TGN121L-DTTMKV (2015)
Toyota Hilux

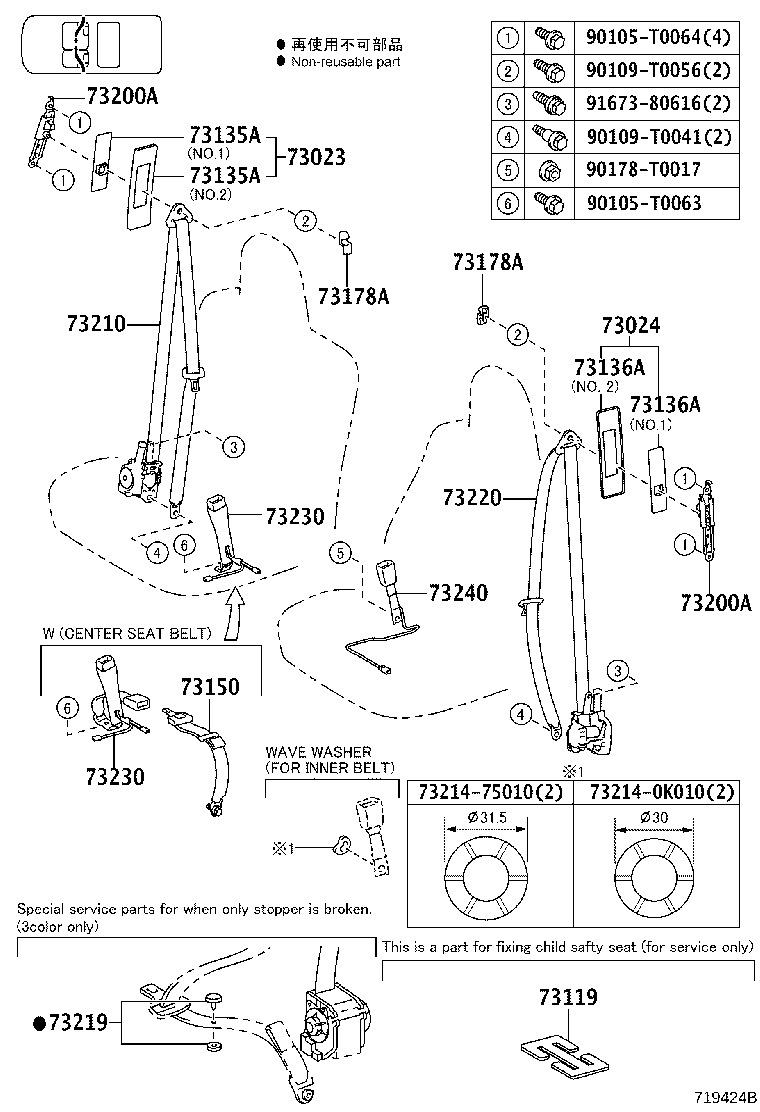

ILLUST NO. 1 OF 2(1505- )LHD..ADC,SDC,TDC,VDC
FRONT SEAT(BENCH TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-KK010B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73023-KK010B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3# |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73135-KK010B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3#,NO.1:REFER ILLUST. |
1 | ||
| 73135-KK020B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3#,NO.2:REFER ILLUST. |
1 | ||
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73135-KK010B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3#,NO.1:REFER ILLUST. |
1 | ||
| 73135-KK020B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3#,NO.2:REFER ILLUST. |
1 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73135-KK010B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3#,NO.1:REFER ILLUST. |
1 | ||
| 73135-KK020B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3#,NO.2:REFER ILLUST. |
1 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73135-KK010B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3#,NO.1:REFER ILLUST. |
1 | ||
| 73135-KK020B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3#,NO.2:REFER ILLUST. |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-KK010B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-KK010B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-0D051B2 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-0D051B2 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0K830C0 |
TGN11#,120,121..L..GCC SRS AIR BAG-WITHOUT,BLACK,TRIM2#,3# |
1 | ||
| 73210-0K830C0 |
KUN122..S..GCC;KUN122..L..GCC..CBU;GUN112,122,125,KUN112,125,TGN11#,120,121,126..(L,S)..GCC SRS AIR BAG-WITH(*DRS ONLY),BLACK,TRIM2#,3# |
1 | ||
| 73210-0K840C0 |
GUN125..6FC..M..GCC;GUN112,122,126,KUN112,122,125,TGN11#,120,121..GCC;GUN125,KUN126,TGN126..(MSC,PSC,TDC,TSC)..(L,S,X)..(GCC,MA,PKN) BLACK,TRIM2#,3# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT BEIGE |
1 | ||
| 73219-33010 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT BLACK |
1 | ||
| 73219-33020 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0K560C0 |
TGN11#,120,121..L..GCC SRS AIR BAG-WITHOUT,BLACK,TRIM2#,3# |
1 | ||
| 73220-0K560C0 |
KUN122..S..GCC;KUN122..L..GCC..CBU;GUN112,122,125,KUN112,125,TGN11#,120,121,126..(L,S)..GCC SRS AIR BAG-WITH(*DRS ONLY),BLACK,TRIM2#,3# |
1 | ||
| 73220-0K550C0 |
GUN125..6FC..M..GCC;GUN112,122,126,KUN112,122,125,TGN11#,120,121..GCC;GUN125,KUN126,TGN126..(MSC,PSC,TDC,TSC)..(L,S,X)..(GCC,MA,PKN) BLACK,TRIM2#,3# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0KA50C0 |
TGN121..5F..M;TGN126..6FC..L..GCC;TGN126..TDC..(M,S)..GCC;GUN125,KUN125..TXT..S..GEN;GUN125,126,TGN121..6FC..GCC;GGN125,GUN122,KUN125..M..GCC;GUN125,126..TDC..6F..(M,S)..GCC BLACK,TRIM2#,3# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0KA50C0 |
TGN121..5F..M;TGN126..6FC..L..GCC;TGN126..TDC..(M,S)..GCC;GUN125,KUN125..TXT..S..GEN;GUN125,126,TGN121..6FC..GCC;GGN125,GUN122,KUN125..M..GCC;GUN125,126..TDC..6F..(M,S)..GCC BLACK,TRIM2#,3# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0K890C0 |
GGN125,GUN122,125,126,KUN125,TGN121,126..M..GCC BLACK,TRIM2#,3# |
1 | ||
| 73230-0K860C0 |
KUN125..TXT..S;GUN125..TDC..(L,S)..GCC;GUN125..LHD..(TSC,TXT)..(L,S);GUN112,122,126,KUN112,122,125,TGN11#,120,121,126..(L,S)..GCC BLACK,TRIM2#,3# |
1 | ||
| Common parts | ||||
| 73214-0K010 | ||||
| 73214-75010 | ||||
| 90105-T0063 | ||||
| 90105-T0064 | ||||
| 90109-T0041 | ||||
| 90109-T0056 | ||||
| 90178-T0017 | ||||
| 91673-80616 | ||||

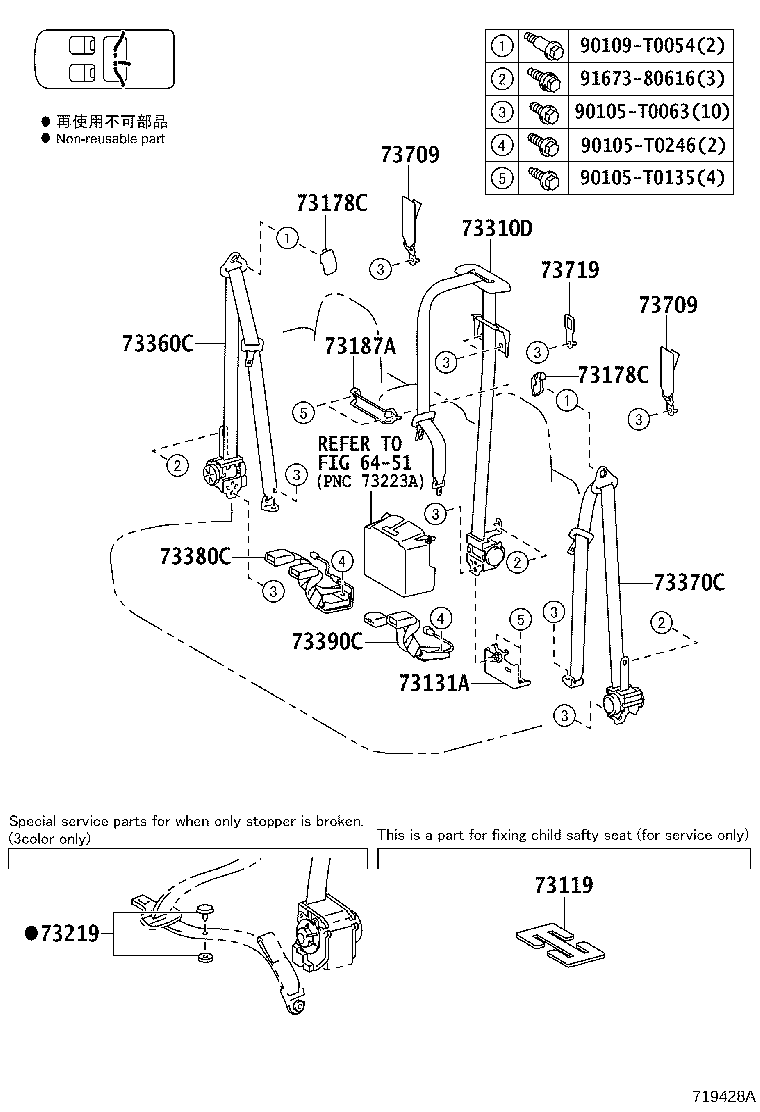

ILLUST NO. 2 OF 2(1505- )ADC,KDC,MDC,PDC,SDC,TDC,VDC
REAR SEAT,W(CENTER SEAT BELT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 73131A - BRACKET, SEAT BELT | ||||
| 73131-0K010 |
TGN121..6FC..M;KUN122..TDC..GCC;TGN121..TDC..5F..S..GCC;TGN126..TDC..(L,M)..GCC;GUN125..TDC..6F..(L,M)..GCC EGYPT SPEC&REAR HEADREST-WITH(RH/LH/CENTER) |
1 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-KK020B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3# |
2 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-KK020B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3# |
2 | ||
| 73187A - GUIDE, REAR SEAT SHOULDER BELT | ||||
| 73187-KK020 |
TGN121..6FC..M;KUN122..TDC..GCC;TGN121..TDC..5F..S..GCC;TGN126..TDC..(L,M)..GCC;GUN125..TDC..6F..(L,M)..GCC EGYPT SPEC&REAR HEADREST-WITH(RH/LH/CENTER) |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT BEIGE |
1 | ||
| 73219-33010 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT BLACK |
1 | ||
| 73219-33020 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT GRAY |
1 | ||
| 73310D - BELT ASSY, REAR SEAT 3 POINT TYPE, CENTER | ||||
| 73310-0K010C0 |
TGN121..6FC..M;KUN122..TDC..GCC;TGN126..TDC..L..GCC;GUN125..TDC..6F..L..GCC;TGN121..TDC..5F..S..GCC EGYPT SPEC&REAR HEADREST-WITH(RH/LH/CENTER),BLACK,TRIM2#,3# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-0K270C0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC BLACK,TRIM2#,3# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-0K160C0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC BLACK,TRIM2#,3# |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-0K370C0 |
GGN125,GUN122,125,126,KUN122,125,TGN120,121,126..TDC..GCC BLACK,TRIM2#,3# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73390-0K220C0 |
GGN125,GUN122,125,126,KUN122,125,TGN120,121,126..TDC..GCC BLACK,TRIM2#,3# |
1 | ||
| 73390-0K290C0 |
TGN121..6FC..M;KUN122..TDC..GCC;TGN121..TDC..5F..S..GCC;TGN126..TDC..(L,M)..GCC;GUN125..TDC..6F..(L,M)..GCC EGYPT SPEC&REAR HEADREST-WITH(RH/LH/CENTER),BLACK,TRIM2#,3# |
1 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73709-0K010 |
TGN121..6FC..M;KUN122..TDC..GCC;TGN121..TDC..5F..S..GCC;TGN126..TDC..(L,M)..GCC;GUN125..TDC..6F..(L,M)..GCC EGYPT SPEC&REAR HEADREST-WITH(RH/LH/CENTER) |
2 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73709-0K010 |
TGN121..6FC..M;KUN122..TDC..GCC;TGN121..TDC..5F..S..GCC;TGN126..TDC..(L,M)..GCC;GUN125..TDC..6F..(L,M)..GCC EGYPT SPEC&REAR HEADREST-WITH(RH/LH/CENTER) |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-0K010 |
TGN121..6FC..M;KUN122..TDC..GCC;TGN121..TDC..5F..S..GCC;TGN126..TDC..(L,M)..GCC;GUN125..TDC..6F..(L,M)..GCC EGYPT SPEC&REAR HEADREST-WITH(RH/LH/CENTER) |
1 | ||
| Common parts | ||||
| 90105-T0063 | ||||
| 90105-T0135 | ||||
| 90105-T0246 | ||||
| 90109-T0054 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6451 | ||||
ILLUST NO. 2 OF 2(1505- )ADC,KDC,MDC,PDC,SDC,TDC,VDC
REAR SEAT,W/O(CENTER SEAT BELT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-KK020B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3# |
2 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-KK020B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3# |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT BEIGE |
1 | ||
| 73219-33010 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT BLACK |
1 | ||
| 73219-33020 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT GRAY |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-0K270C0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC BLACK,TRIM2#,3# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-0K160C0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC BLACK,TRIM2#,3# |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-0K370C0 |
GGN125,GUN122,125,126,KUN122,125,TGN120,121,126..TDC..GCC BLACK,TRIM2#,3# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73390-0K220C0 |
GGN125,GUN122,125,126,KUN122,125,TGN120,121,126..TDC..GCC BLACK,TRIM2#,3# |
1 | ||
| 73390-0K290C0 |
TGN121..6FC..M;KUN122..TDC..GCC;TGN121..TDC..5F..S..GCC;TGN126..TDC..(L,M)..GCC;GUN125..TDC..6F..(L,M)..GCC EGYPT SPEC&REAR HEADREST-WITH(RH/LH/CENTER),BLACK,TRIM2#,3# |
1 | ||
| Common parts | ||||
| 90105-T0063 | ||||
| 90105-T0246 | ||||
| 90109-T0054 | ||||
| 91673-80616 | ||||
ILLUST NO. 1 OF 2(1505- )ADC,KDC,MDC,PDC,SDC,TDC,VDC
FRONT SEAT(SEPARATE TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-KK010B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73023-KK010B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3# |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73135-KK010B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3#,NO.1:REFER ILLUST. |
1 | ||
| 73135-KK020B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3#,NO.2:REFER ILLUST. |
1 | ||
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73135-KK010B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3#,NO.1:REFER ILLUST. |
1 | ||
| 73135-KK020B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3#,NO.2:REFER ILLUST. |
1 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73135-KK010B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3#,NO.1:REFER ILLUST. |
1 | ||
| 73135-KK020B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3#,NO.2:REFER ILLUST. |
1 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73135-KK010B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3#,NO.1:REFER ILLUST. |
1 | ||
| 73135-KK020B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3#,NO.2:REFER ILLUST. |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-KK010B0 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-0D051B2 |
GUN125..6FC..M..GCC;GUN125,TGN126..TDC..(L,S)..GCC;GUN122,126,KUN122,125,TGN120,121..TDC..GCC LT.GRAY,TRIM2#,3# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0K830C0 |
TGN11#,120,121..L..GCC SRS AIR BAG-WITHOUT,BLACK,TRIM2#,3# |
1 | ||
| 73210-0K830C0 |
KUN122..S..GCC;KUN122..L..GCC..CBU;GUN112,122,125,KUN112,125,TGN11#,120,121,126..(L,S)..GCC SRS AIR BAG-WITH(*DRS ONLY),BLACK,TRIM2#,3# |
1 | ||
| 73210-0K840C0 |
GUN125..6FC..M..GCC;GUN112,122,126,KUN112,122,125,TGN11#,120,121..GCC;GUN125,KUN126,TGN126..(MSC,PSC,TDC,TSC)..(L,S,X)..(GCC,MA,PKN) BLACK,TRIM2#,3# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT BEIGE |
1 | ||
| 73219-33010 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT BLACK |
1 | ||
| 73219-33020 |
GUN136..H,M;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN135..(MDC,SSC)..(L,X);GUN135..ADC,ASC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..(ADC,ASC,TSC)..6F..LA;GGN12#,135,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..(ADC,ASC,SDC,SSC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,SA,TH);GUN112,120,122,123,126,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0K560C0 |
TGN11#,120,121..L..GCC SRS AIR BAG-WITHOUT,BLACK,TRIM2#,3# |
1 | ||
| 73220-0K560C0 |
KUN122..S..GCC;KUN122..L..GCC..CBU;GUN112,122,125,KUN112,125,TGN11#,120,121,126..(L,S)..GCC SRS AIR BAG-WITH(*DRS ONLY),BLACK,TRIM2#,3# |
1 | ||
| 73220-0K550C0 |
GUN125..6FC..M..GCC;GUN112,122,126,KUN112,122,125,TGN11#,120,121..GCC;GUN125,KUN126,TGN126..(MSC,PSC,TDC,TSC)..(L,S,X)..(GCC,MA,PKN) BLACK,TRIM2#,3# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0KA50C0 |
TGN121..5F..M;TGN126..6FC..L..GCC;TGN126..TDC..(M,S)..GCC;GUN125,KUN125..TXT..S..GEN;GUN125,126,TGN121..6FC..GCC;GGN125,GUN122,KUN125..M..GCC;GUN125,126..TDC..6F..(M,S)..GCC BLACK,TRIM2#,3# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0K890C0 |
GGN125,GUN122,125,126,KUN125,TGN121,126..M..GCC BLACK,TRIM2#,3# |
1 | ||
| 73230-0K860C0 |
KUN125..TXT..S;GUN125..TDC..(L,S)..GCC;GUN125..LHD..(TSC,TXT)..(L,S);GUN112,122,126,KUN112,122,125,TGN11#,120,121,126..(L,S)..GCC BLACK,TRIM2#,3# |
1 | ||
| Common parts | ||||
| 73214-0K010 | ||||
| 73214-75010 | ||||
| 90105-T0064 | ||||
| 90109-T0041 | ||||
| 90109-T0056 | ||||
| 90178-T0017 | ||||
| 91673-80616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
