TGN121L-DTTMKV (2015)
Toyota Hilux
(1107- )1TRFE,2TRFE
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-00022 | ||||
| 90068-00023 | ||||
| 90068-04033 | ||||
| 90068-05009 | ||||
| 90068-0C020 | ||||
| 90105-T0125 | ||||
| 90178-T0018 | ||||

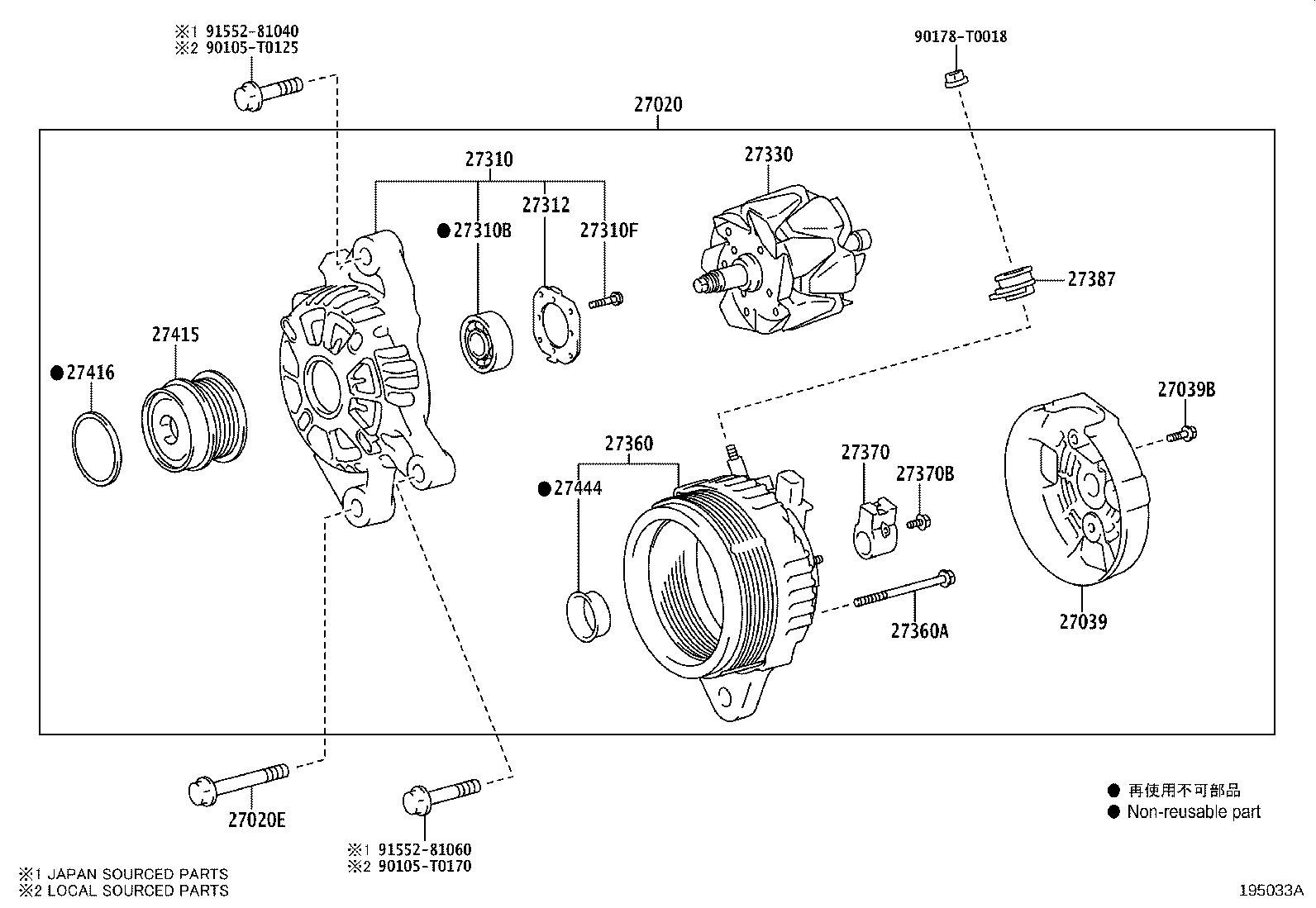

(1505- )1TRFE,2TRFE..TGN11#,120,121,126,127,136..TDC,TSC,TXT,VDC
12V 80A(DENSO)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0C110 |
2TRFE..TGN121,126..6FC..M..GCC 12V 80A |
1 | ||
| 27060-0C080 |
2TRFE..TGN121..6FC..M;2TRFE..TGN126..6FC..(M,S)..GCC 12V 100A |
1 | ||
| 27060-0C110 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..6FC..L;2TRFE..TGN126..M..GEN;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TXT)..(L,S,X);1TRFE,2TRFE..TGN11#,120,136..TDC,TSC,TXT 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91552-81080 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 90105-T0211 |
1TRFE,2TRFE..TGN11#,12#,13# (L) |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0M100 |
2TRFE..TGN126..6FC..M..GCC;2GDFTV,2TRFE..GUN135,TGN121..(6F,6FC)..(L,M)..(GCC,GEN) |
1 | ||
| 27039-0M100 |
2TRFE..TGN121..5F..M;2GDFTV..GUN135..L..MA;2TRFE..TGN126..6FC..L;1GDFTV..GUN126..6F..H..TH;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TXT)..(L,S,X);2GDFTV..GUN125..RHD..TDC..6FC..(L,M,X);1GDFTV,2GDFTV..GUN126,135..H..(GEN,PKN,VN);2GDFTV..GUN125..(TSC,TXT)..(ARL,GEN,IDN,LA,TH);2GDFTV..GUN125..TDC..6F..(GEN,IDN,LA,PH,TH,VN);2GDFTV,2TRFE..GUN125,TGN126..LHD..TDC..6FC..(GEN,LA);2GDFTV,1TRFE,2TRFE..GUN135,TGN11#,120..(TDC,TSC,TXT)..(ARL,GCC,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,PH,PKN,TAIW,TH,VN);1GDFTV,2GDFTV,2TRFE..GUN112,120,122,123,136,TGN136..(PSC,TDC,TSC,TXT)..(ARL,GEN,IDN,LA,PH,PKN,TH) |
1 | ||
| 27039B - BOLT(FOR ALTERNATOR REAR END COVER) | ||||
| 90068-04047 |
2TRFE..TGN126..6FC..M..GCC;2GDFTV,2TRFE..GUN135,TGN121..(6F,6FC)..(L,M)..(GCC,GEN) |
3 | ||
| 90068-04047 |
2TRFE..TGN121..5F..M;2GDFTV..GUN135..L..MA;2TRFE..TGN126..6FC..L;1GDFTV..GUN126..6F..H..TH;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TXT)..(L,S,X);2GDFTV..GUN125..RHD..TDC..6FC..(L,M,X);1GDFTV,2GDFTV..GUN126,135..H..(GEN,PKN,VN);2GDFTV..GUN125..(TSC,TXT)..(ARL,GEN,IDN,LA,TH);2GDFTV..GUN125..TDC..6F..(GEN,IDN,LA,PH,TH,VN);2GDFTV,2TRFE..GUN125,TGN126..LHD..TDC..6FC..(GEN,LA);2GDFTV,1TRFE,2TRFE..GUN135,TGN11#,120..(TDC,TSC,TXT)..(ARL,GCC,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,PH,PKN,TAIW,TH,VN);2GDFTV,1KDFTV,2KDFTV..GUN112,120,KUN12#,135..(PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(GEN,IDN,LA,PKN,SA,TH,VN);1GDFTV,2GDFTV,1KDFTV,2KDFTV,2TRFE..GUN122,123,136,KUN112,136,TGN136..(PSC,TDC,TSC,TXT)..(ARL,GEN,IDN,LA,PH,PKN,TH) |
3 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0C110 |
2TRFE..TGN121,126..6FC..M..GCC |
1 | ||
| 27310-0C080 |
2TRFE..TGN121..6FC..M;2TRFE..TGN126..6FC..(M,S)..GCC |
1 | ||
| 27310-0C110 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..6FC..L;2TRFE..TGN126..M..GEN;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TXT)..(L,S,X);1TRFE,2TRFE..TGN11#,120,136..TDC,TSC,TXT |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10040 |
2TRFE..TGN126..6FC..M..GCC;2GDFTV,2TRFE..GUN135,TGN121..(6F,6FC)..(L,M)..(GCC,GEN) |
1 | ||
| 90068-10040 |
2TRFE..TGN121..5F..M;2TRFE..TGN121..S..GCC;2TRFE..TGN126..M..GEN;2TRFE..TGN136..TDC..X;2TRFE..TGN126..6FC..L..GCC;2TRFE..TGN121..(TDC,TSC,TXT)..(L,X);1TRFE,2TRFE..TGN11#,120,126..(TDC,TSC)..5F |
1 | ||
| 90068-10042 |
2TRFE..TGN121,126..6FC..M..GCC |
1 | ||
| 27310F - SCREW(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-00022 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
4 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0C020 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0M100 |
2TRFE..TGN121..5F..M;2GDFTV..GUN135..L..MA;2TRFE..TGN126..6FC..L;1GDFTV..GUN126..6F..H..TH;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TXT)..(L,S,X);2GDFTV..GUN125..RHD..TDC..6FC..(L,M,X);1GDFTV,2GDFTV..GUN126,135..H..(GEN,PKN,VN);2GDFTV..GUN125..(TSC,TXT)..(ARL,GEN,IDN,LA,TH);2GDFTV..GUN125..TDC..6F..(GEN,IDN,LA,PH,TH,VN);2GDFTV,2TRFE..GUN125,TGN126..LHD..TDC..6FC..(GEN,LA);2GDFTV,1TRFE,2TRFE..GUN135,TGN11#,120..(TDC,TSC,TXT)..(ARL,GCC,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,PH,PKN,TAIW,TH,VN);2GDFTV,1KDFTV,2KDFTV..GUN112,120,KUN12#,135..(PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(GEN,IDN,LA,PKN,SA,TH,VN);1GDFTV,2GDFTV,1KDFTV,2KDFTV,2TRFE..GUN122,123,136,KUN112,136,TGN136..(PSC,TDC,TSC,TXT)..(ARL,GEN,IDN,LA,PH,PKN,TH) |
1 | ||
| 27330-0M100 |
2TRFE..TGN126..6FC..M..GCC;2GDFTV,2TRFE..GUN135,TGN121..(6F,6FC)..(L,M)..(GCC,GEN) |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0C110 |
2TRFE..TGN121,126..6FC..M..GCC |
1 | ||
| 27360-0C110 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..6FC..L;2TRFE..TGN126..M..GEN;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TXT)..(L,S,X);1TRFE,2TRFE..TGN11#,120,136..TDC,TSC,TXT |
1 | ||
| 27360-0C080 |
2TRFE..TGN121..6FC..M;2TRFE..TGN126..6FC..(M,S)..GCC |
1 | ||
| 27360A - BOLT(FOR ALTERNATOR COIL) | ||||
| 90068-04048 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
4 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0C020 |
1TRFE,2TRFE..TGN120,121,126,136..TDC,TSC,TXT;1KDFTV,2KDFTV,1TRFE,2TRFE..KUN112,12#,13#,TGN11#..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 27370B - SCREW(FOR ALTERNATOR BRUSH HOLDER) | ||||
| 90068-00023 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-0C020 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W053 |
2TRFE..TGN121,126..6FC..M..GCC |
1 | ||
| 27415-0W053 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..6FC..L;2TRFE..TGN126..M..GEN;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TXT)..(L,S,X);1TRFE,2TRFE..TGN11#,120,136..TDC,TSC,TXT |
1 | ||
| 27415-0W063 |
2TRFE..TGN121..6FC..M;2TRFE..TGN126..6FC..(M,S)..GCC |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
1TRFE,2TRFE..TGN11#,12#,13# |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-0Y180 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
1 | ||
| Common parts | ||||
| 90105-T0125 | ||||
| 90178-T0018 | ||||
| 91552-81040 | ||||
(1708- )2TRFE..TGN121,126..6FC..GCC
12V 100A(DENSO)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0C110 |
2TRFE..TGN121,126..6FC..M..GCC 12V 80A |
1 | ||
| 27060-0C080 |
2TRFE..TGN121..6FC..M;2TRFE..TGN126..6FC..(M,S)..GCC 12V 100A |
1 | ||
| 27060-0C110 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..6FC..L;2TRFE..TGN126..M..GEN;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TXT)..(L,S,X);1TRFE,2TRFE..TGN11#,120,136..TDC,TSC,TXT 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91552-81080 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 90105-T0211 |
1TRFE,2TRFE..TGN11#,12#,13# (L) |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0M100 |
2TRFE..TGN126..6FC..M..GCC;2GDFTV,2TRFE..GUN135,TGN121..(6F,6FC)..(L,M)..(GCC,GEN) |
1 | ||
| 27039-0M100 |
2TRFE..TGN121..5F..M;2GDFTV..GUN135..L..MA;2TRFE..TGN126..6FC..L;1GDFTV..GUN126..6F..H..TH;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TXT)..(L,S,X);2GDFTV..GUN125..RHD..TDC..6FC..(L,M,X);1GDFTV,2GDFTV..GUN126,135..H..(GEN,PKN,VN);2GDFTV..GUN125..(TSC,TXT)..(ARL,GEN,IDN,LA,TH);2GDFTV..GUN125..TDC..6F..(GEN,IDN,LA,PH,TH,VN);2GDFTV,2TRFE..GUN125,TGN126..LHD..TDC..6FC..(GEN,LA);2GDFTV,1TRFE,2TRFE..GUN135,TGN11#,120..(TDC,TSC,TXT)..(ARL,GCC,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,PH,PKN,TAIW,TH,VN);1GDFTV,2GDFTV,2TRFE..GUN112,120,122,123,136,TGN136..(PSC,TDC,TSC,TXT)..(ARL,GEN,IDN,LA,PH,PKN,TH) |
1 | ||
| 27039B - BOLT(FOR ALTERNATOR REAR END COVER) | ||||
| 90068-04047 |
2TRFE..TGN126..6FC..M..GCC;2GDFTV,2TRFE..GUN135,TGN121..(6F,6FC)..(L,M)..(GCC,GEN) |
3 | ||
| 90068-04047 |
2TRFE..TGN121..5F..M;2GDFTV..GUN135..L..MA;2TRFE..TGN126..6FC..L;1GDFTV..GUN126..6F..H..TH;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TXT)..(L,S,X);2GDFTV..GUN125..RHD..TDC..6FC..(L,M,X);1GDFTV,2GDFTV..GUN126,135..H..(GEN,PKN,VN);2GDFTV..GUN125..(TSC,TXT)..(ARL,GEN,IDN,LA,TH);2GDFTV..GUN125..TDC..6F..(GEN,IDN,LA,PH,TH,VN);2GDFTV,2TRFE..GUN125,TGN126..LHD..TDC..6FC..(GEN,LA);2GDFTV,1TRFE,2TRFE..GUN135,TGN11#,120..(TDC,TSC,TXT)..(ARL,GCC,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,PH,PKN,TAIW,TH,VN);2GDFTV,1KDFTV,2KDFTV..GUN112,120,KUN12#,135..(PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(GEN,IDN,LA,PKN,SA,TH,VN);1GDFTV,2GDFTV,1KDFTV,2KDFTV,2TRFE..GUN122,123,136,KUN112,136,TGN136..(PSC,TDC,TSC,TXT)..(ARL,GEN,IDN,LA,PH,PKN,TH) |
3 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0C110 |
2TRFE..TGN121,126..6FC..M..GCC |
1 | ||
| 27310-0C080 |
2TRFE..TGN121..6FC..M;2TRFE..TGN126..6FC..(M,S)..GCC |
1 | ||
| 27310-0C110 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..6FC..L;2TRFE..TGN126..M..GEN;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TXT)..(L,S,X);1TRFE,2TRFE..TGN11#,120,136..TDC,TSC,TXT |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10040 |
2TRFE..TGN126..6FC..M..GCC;2GDFTV,2TRFE..GUN135,TGN121..(6F,6FC)..(L,M)..(GCC,GEN) |
1 | ||
| 90068-10040 |
2TRFE..TGN121..5F..M;2TRFE..TGN121..S..GCC;2TRFE..TGN126..M..GEN;2TRFE..TGN136..TDC..X;2TRFE..TGN126..6FC..L..GCC;2TRFE..TGN121..(TDC,TSC,TXT)..(L,X);1TRFE,2TRFE..TGN11#,120,126..(TDC,TSC)..5F |
1 | ||
| 90068-10042 |
2TRFE..TGN121,126..6FC..M..GCC |
1 | ||
| 27310F - SCREW(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-00022 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
4 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0C020 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0M100 |
2TRFE..TGN121..5F..M;2GDFTV..GUN135..L..MA;2TRFE..TGN126..6FC..L;1GDFTV..GUN126..6F..H..TH;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TXT)..(L,S,X);2GDFTV..GUN125..RHD..TDC..6FC..(L,M,X);1GDFTV,2GDFTV..GUN126,135..H..(GEN,PKN,VN);2GDFTV..GUN125..(TSC,TXT)..(ARL,GEN,IDN,LA,TH);2GDFTV..GUN125..TDC..6F..(GEN,IDN,LA,PH,TH,VN);2GDFTV,2TRFE..GUN125,TGN126..LHD..TDC..6FC..(GEN,LA);2GDFTV,1TRFE,2TRFE..GUN135,TGN11#,120..(TDC,TSC,TXT)..(ARL,GCC,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X)..(ARL,GEN,LA,PH,PKN,TAIW,TH,VN);2GDFTV,1KDFTV,2KDFTV..GUN112,120,KUN12#,135..(PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(GEN,IDN,LA,PKN,SA,TH,VN);1GDFTV,2GDFTV,1KDFTV,2KDFTV,2TRFE..GUN122,123,136,KUN112,136,TGN136..(PSC,TDC,TSC,TXT)..(ARL,GEN,IDN,LA,PH,PKN,TH) |
1 | ||
| 27330-0M100 |
2TRFE..TGN126..6FC..M..GCC;2GDFTV,2TRFE..GUN135,TGN121..(6F,6FC)..(L,M)..(GCC,GEN) |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0C110 |
2TRFE..TGN121,126..6FC..M..GCC |
1 | ||
| 27360-0C110 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..6FC..L;2TRFE..TGN126..M..GEN;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TXT)..(L,S,X);1TRFE,2TRFE..TGN11#,120,136..TDC,TSC,TXT |
1 | ||
| 27360-0C080 |
2TRFE..TGN121..6FC..M;2TRFE..TGN126..6FC..(M,S)..GCC |
1 | ||
| 27360A - BOLT(FOR ALTERNATOR COIL) | ||||
| 90068-04048 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
4 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0C020 |
1TRFE,2TRFE..TGN120,121,126,136..TDC,TSC,TXT;1KDFTV,2KDFTV,1TRFE,2TRFE..KUN112,12#,13#,TGN11#..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 27370B - SCREW(FOR ALTERNATOR BRUSH HOLDER) | ||||
| 90068-00023 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-0C020 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W053 |
2TRFE..TGN121,126..6FC..M..GCC |
1 | ||
| 27415-0W053 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..6FC..L;2TRFE..TGN126..M..GEN;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TXT)..(L,S,X);1TRFE,2TRFE..TGN11#,120,136..TDC,TSC,TXT |
1 | ||
| 27415-0W063 |
2TRFE..TGN121..6FC..M;2TRFE..TGN126..6FC..(M,S)..GCC |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
1TRFE,2TRFE..TGN11#,12#,13# |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-0Y180 |
2GDFTV..GUN135..L..MA;2GDFTV..GUN125..TSC,TXT;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN126..H..(GEN,PKN,VN);2GDFTV..GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);1GDFTV..GUN126..(PDC,PSC,TDC,TSC,TXT)..(L,M,S,X);1KDFTV,2KDFTV..KUN12#,135..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1GDFTV,2GDFTV,1KDFTV,2TRFE..GUN13#,KUN136,TGN126,136..TDC,TSC,TXT;1G#,2GDFTV,2KDFTV,1TRFE,2TRFE..GGN12#,GUN112,120,122,123,KUN112,TGN11#,120,121..ADC,PSC,TDC,TSC,TXT |
1 | ||
| Common parts | ||||
| 90105-T0125 | ||||
| 90105-T0170 | ||||
| 90178-T0018 | ||||
| 91552-81040 | ||||
| 91552-81060 | ||||
(2006- )1TRFE,2TRFE..TGN11#,120,121,136..L,S..ARL,GCC,GEN,IDN,TH ; (2102- )2T
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0125 | ||||
| 90178-T0018 | ||||
| 91552-81040 | ||||
