TGN121L-DTTMKV (2015)
Toyota Hilux

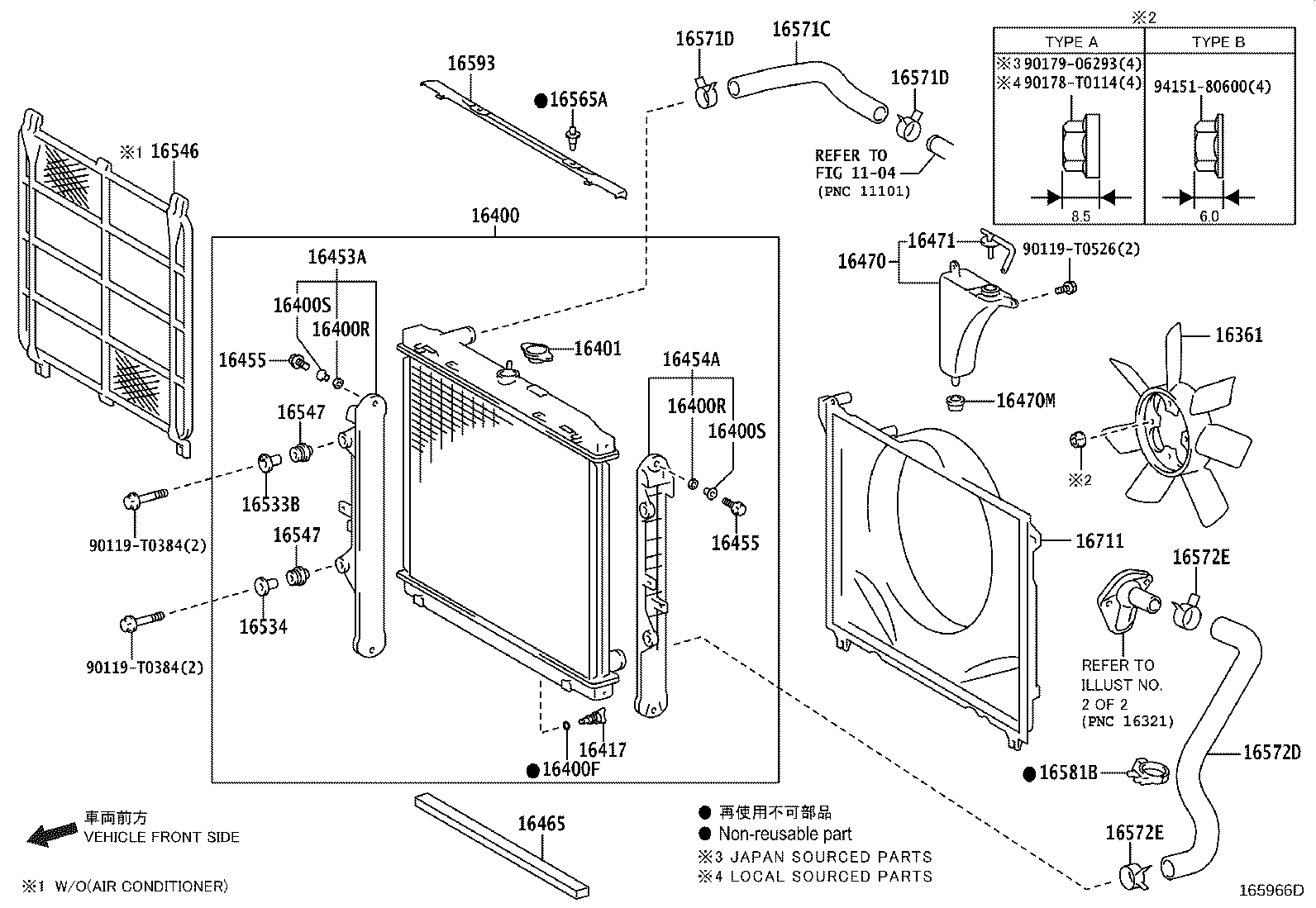

ILLUST NO. 1 OF 2(1505- )1TRFE,2TRFE..TGN11#,120,121,126,127,136..SDC,SSC,TDC,TSC,TXT,VDC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0C011 |
1TRFE,2TRFE..TGN11#,12#,13# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0C280 |
2TRFE..TGN121,126,136..(TDC,TSC)..6FC |
1 | ||
| 16400-0C281 |
2TRFE..TGN121,126,136..(TDC,TSC)..6FC |
1 | ||
| 16400-0C282 |
2TRFE..TGN121,126..(TDC,TSC)..6FC |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1TRFE,2TRFE..TGN11#,12#,136..TDC,TSC,TXT |
1 | ||
| 16492-0L060 |
1TRFE,2TRFE..TGN11#,120,121,126,136..TDC,TSC,TXT |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-0L060 |
2TRFE..TGN121,126..(TDC,TSC)..6FC |
10 | ||
| 16444-0L060 |
2TRFE..TGN121,126..(TDC,TSC)..6FC |
2 | ||
| 16444-0L060 |
2TRFE..TGN121..6FC;2TRFE..TGN126..LHD..TDC..6FC |
2 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-0L060 |
2TRFE..TGN121,126..(TDC,TSC)..6FC |
10 | ||
| 16444-0L060 |
2TRFE..TGN121,126..(TDC,TSC)..6FC |
2 | ||
| 16444-0L060 |
2TRFE..TGN121..6FC;2TRFE..TGN126..LHD..TDC..6FC |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-0C180 |
2TRFE..TGN121,126..(TDC,TSC)..6FC |
10 | ||
| 16445-0C180 |
2TRFE..TGN121..6FC;2TRFE..TGN126..LHD..TDC..6FC |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-0C180 |
2TRFE..TGN121,126..(TDC,TSC)..6FC |
10 | ||
| 16445-0C180 |
2TRFE..TGN121..6FC;2TRFE..TGN126..LHD..TDC..6FC |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-0C030 |
1TRFE,2TRFE..TGN11#,12#,136 |
1 | ||
| 16401-0C050 |
2TRFE..TGN121,126,136..(TDC,TSC)..6FC |
1 | ||
| 16417 - COCK | ||||
| 16417-0C180 |
1TRFE,2TRFE..TGN11#,120,121,126,136..TDC,TSC,TXT |
1 | ||
| 16453A - PLATE, RADIATOR SIDE SUPPORT, RH | ||||
| 16453-0L361 |
1TRFE,2TRFE..TGN11#,120,121,126,136..TDC,TSC,TXT |
1 | ||
| 16454A - PLATE, RADIATOR SIDE SUPPORT, LH | ||||
| 16454-0L361 |
1TRFE,2TRFE..TGN11#,120,121,126,136..TDC,TSC,TXT |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
1TRFE,2TRFE..TGN11#,12#,13#..ADC,ASC,TDC,TSC,TXT |
4 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
1TRFE,2TRFE..TGN11#,12#,13#..ADC,ASC,TDC,TSC,TXT |
4 | ||
| 16465 - PACKING, RADIATOR | ||||
| 88619-0K010 |
2TRFE..TGN121..L..CBU;2TRFE..TGN121..(TDC,TSC)..(M,S,X);1TRFE,2TRFE..TGN11#,120,126,136..(TDC,TSC,TXT)..CBU |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0C110 |
1TRFE,2TRFE..TGN11#,120,121,126,136..TDC,TSC,TXT |
1 | ||
| 16470M - GROMMET | ||||
| 90480-T0003 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126,136..TDC,TSC,TXT |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-0L010 |
1TRFE,2TRFE..TGN11#,12#,13#..ADC,ASC,TDC,TSC,TXT |
2 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-0L010 |
1TRFE,2TRFE..TGN11#,12#,13#..ADC,ASC,TDC,TSC,TXT |
2 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-0L010 |
1TRFE,2TRFE..TGN11#,12#,13#..ADC,ASC,TDC,TSC,TXT |
4 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-0L010 |
1TRFE,2TRFE..TGN11#,12#,13#..ADC,ASC,TDC,TSC,TXT |
4 | ||
| 16565A - CLIP | ||||
| 90467-T0027C0 |
2TRFE..TGN121;1TRFE,2TRFE..TGN11#,120,126,128,13#..ADC,ASC,SDC,TDC,TSC,TXT BLACK |
4 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0C160 |
2TRFE..TGN136..SDC,TDC,TSC,TXT;1TRFE,2TRFE..TGN11#,120,121,126..SDC,SSC,TDC,TSC,TXT |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-T0028 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 90466-T0067 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-T0028 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 90466-T0067 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0C160 |
2TRFE..TGN136..SDC,TDC,TSC,TXT;1TRFE,2TRFE..TGN11#,120,121,126..SDC,SSC,TDC,TSC,TXT |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0028 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 90466-T0067 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0028 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 90466-T0067 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-0C010 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-0L040 |
1TRFE,2TRFE..TGN11#,120,121,126,136..TDC,TSC,TXT |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0C180 |
1TRFE,2TRFE..TGN11#,120,121,126,136..TDC,TSC,TXT |
1 | ||
| Common parts | ||||
| 90119-T0384 | ||||
| 90119-T0526 | ||||
| 90178-T0114 | ||||
| 90179-06293 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
ILLUST NO. 2 OF 2(2006- )1TRFE,2TRFE..ARL,BZAG,GCC,GEN,LA,PKN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0415 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| 90178-T0030 | ||||
| 90179-08087 | ||||
| 90466-T0017 | ||||
| 91551-00825 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| 96136-42101 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1503 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(2006- )1TRFE,2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0384 | ||||
| 90119-T0526 | ||||
| 90119-T0610 | ||||
| 90178-T0114 | ||||
| 90179-06293 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
