Toyota Hilux TGN121 MOUNTING - JDM Part Detective

TGN121L-DTTMKV (2015)

Toyota Hilux

Production May 2015 - May 2020

Engine 2TRFE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1107- )1TRFE,2TRFE

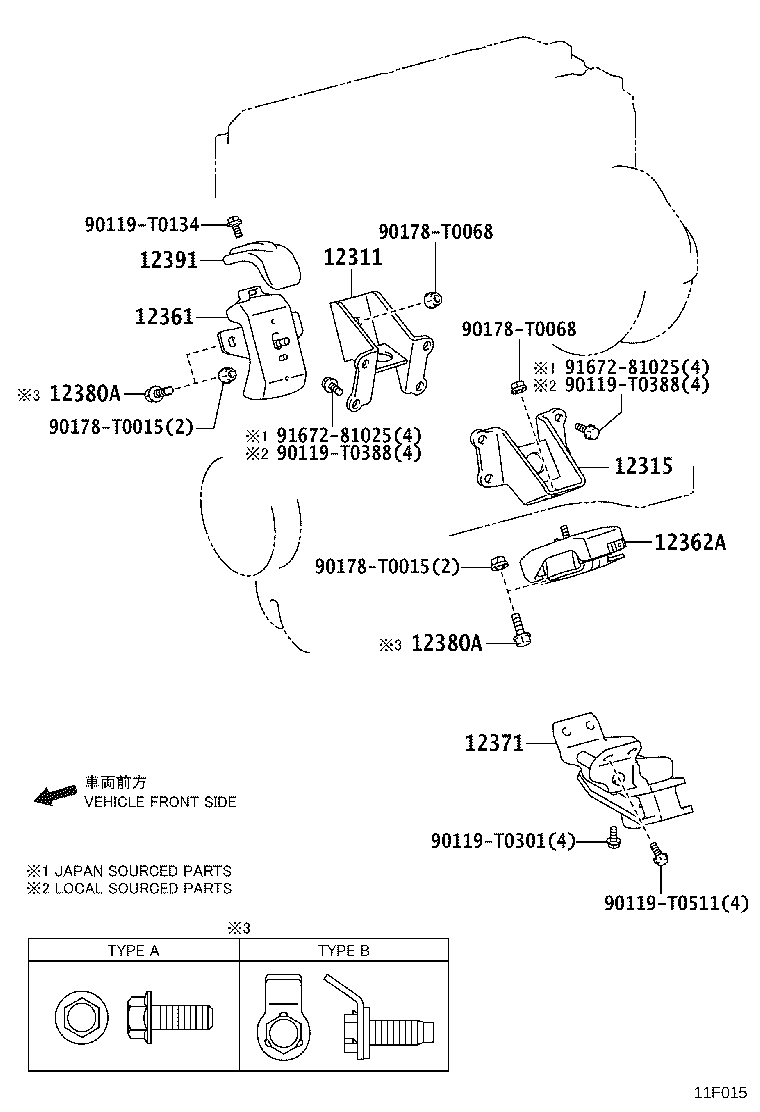

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-T0191
90119-10742
90119-T0064
90119-T0237
90119-T0301
90119-T0388
90119-T0511
90178-T0050
90178-T0068
90179-12127
91672-81025

(1505- )2TRFE..TGN121..L..CBU ; (1505- )2TRFE..TGN121..5F..M,S,X ; (1505-

Click highlighted areas on diagram

Part #	Description	Period	Qty
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-0C020	2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT THA SOURCED PARTS	05/2015 - 05/2020	1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-0C020	2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT THA SOURCED PARTS	05/2015 - 05/2020	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12305-0C050	1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT	05/2015 - 10/2020	1
12362A - INSULATOR, ENGINE MOUNTING, FRONT LH
12305-0C050	1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT	05/2015 - 10/2020	1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-0C190	2TRFE..TGN121,13#..6FC	05/2015 - 10/2020	1
12380A - BOLT(FOR ENGINE MOUNTING INSURATOR)
90910-03003	1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT TYPE B:REFER ILLUST.	05/2015 - 10/2020	4
90105-T0174	1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT TYPE A:REFER ILLUST.	05/2015 - 10/2020	4
12380A - BOLT(FOR ENGINE MOUNTING INSURATOR)
90910-03003	1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT TYPE B:REFER ILLUST.	05/2015 - 10/2020	4
90105-T0174	1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT TYPE A:REFER ILLUST.	05/2015 - 10/2020	4
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-0L010	1TRFE,2TRFE..TGN11#,120,121,126,136..TDC,TSC,TXT	05/2015 - 05/2020	1
Common parts
90119-T0134
90119-T0301
90119-T0388
90119-T0511
90178-T0015
90178-T0068
91672-81025

(1505- )2TRFE..TGN121,13#..6FC ; (1505- )2TRFE..TGN121..GCC..IV3

Click highlighted areas on diagram

Part #	Description	Period	Qty
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-0C020	2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT THA SOURCED PARTS	05/2015 - 05/2020	1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-0C020	2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT THA SOURCED PARTS	05/2015 - 05/2020	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12305-0C050	1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT	05/2015 - 10/2020	1
12362A - INSULATOR, ENGINE MOUNTING, FRONT LH
12305-0C050	1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT	05/2015 - 10/2020	1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-0C190	2TRFE..TGN121,13#..6FC	05/2015 - 10/2020	1
12380A - BOLT(FOR ENGINE MOUNTING INSURATOR)
90910-03003	1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT TYPE B:REFER ILLUST.	05/2015 - 10/2020	4
90105-T0174	1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT TYPE A:REFER ILLUST.	05/2015 - 10/2020	4
12380A - BOLT(FOR ENGINE MOUNTING INSURATOR)
90910-03003	1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT TYPE B:REFER ILLUST.	05/2015 - 10/2020	4
90105-T0174	1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT TYPE A:REFER ILLUST.	05/2015 - 10/2020	4
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-0L010	1TRFE,2TRFE..TGN11#,120,121,126,136..TDC,TSC,TXT	05/2015 - 05/2020	1
Common parts
90119-T0134
90119-T0301
90119-T0388
90119-T0511
90178-T0015
90178-T0068
91672-81025

(2006- )2TRFE..TGN121,138..6FC

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-T0134
90119-T0301
90119-T0388
90119-T0511
90178-T0015
90178-T0068
91672-81025

TGN121L-DTTMKV (2015)

(1107- )1TRFE,2TRFE

(1505- )2TRFE..TGN121..L..CBU ; (1505- )2TRFE..TGN121..5F..M,S,X ; (1505-

(1505- )2TRFE..TGN121,13#..6FC ; (1505- )2TRFE..TGN121..GCC..IV3

(2006- )2TRFE..TGN121,138..6FC
