TGN121L-DTMLK (2015)
Toyota Hilux
(0408- )GGN15,KUN1#,LAN15,TGN1#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0242 | ||||
| 90119-T0245 | ||||
| 90178-T0041 | ||||
| 94184-61001 | ||||

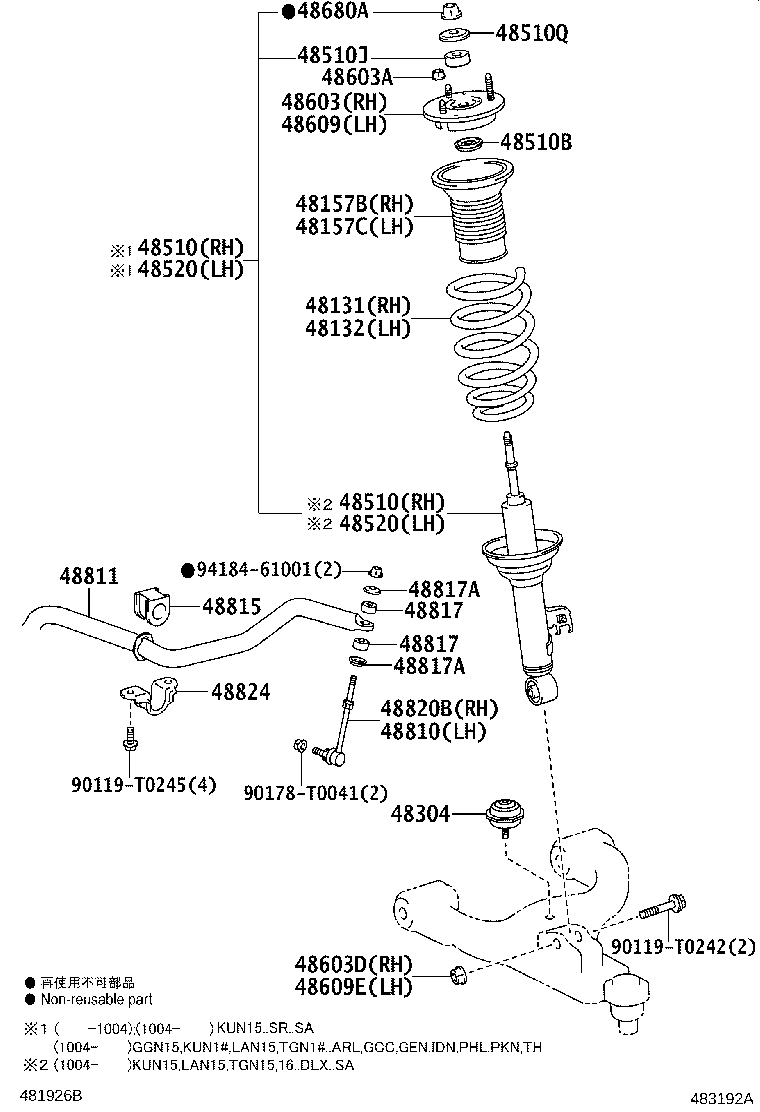

(1107- )GGN15,KUN1#,LAN15,TGN1#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0242 | ||||
| 90119-T0245 | ||||
| 90178-T0041 | ||||
| 94184-61001 | ||||

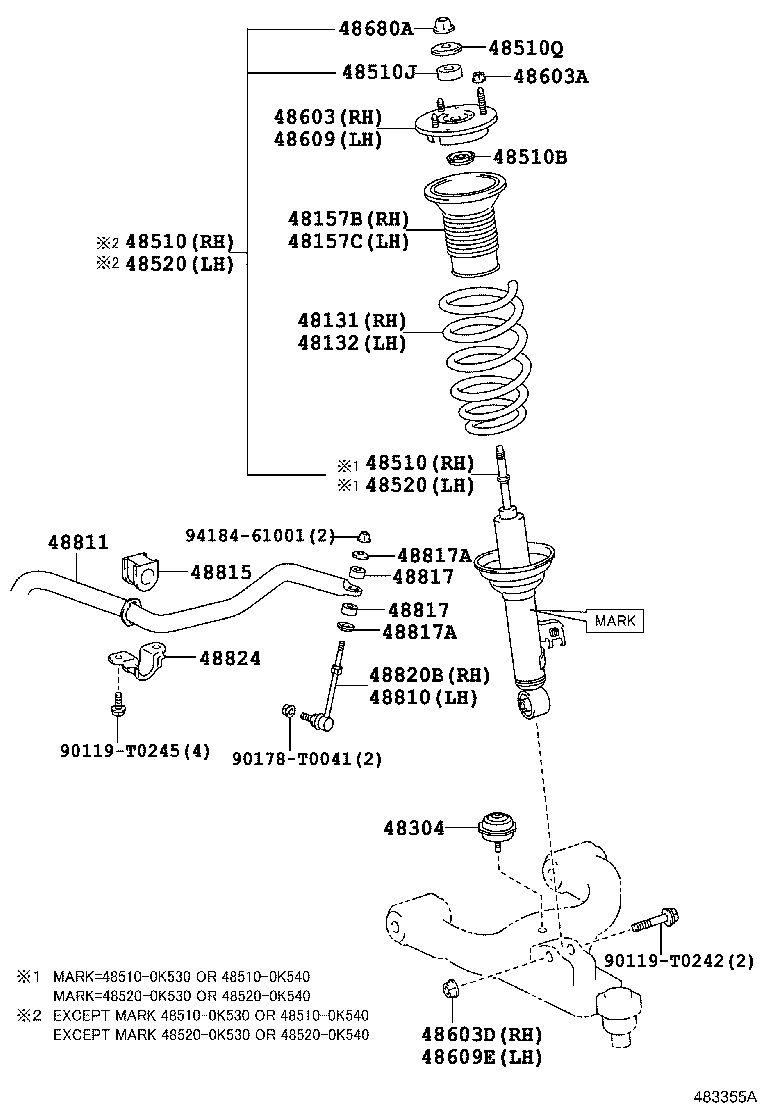

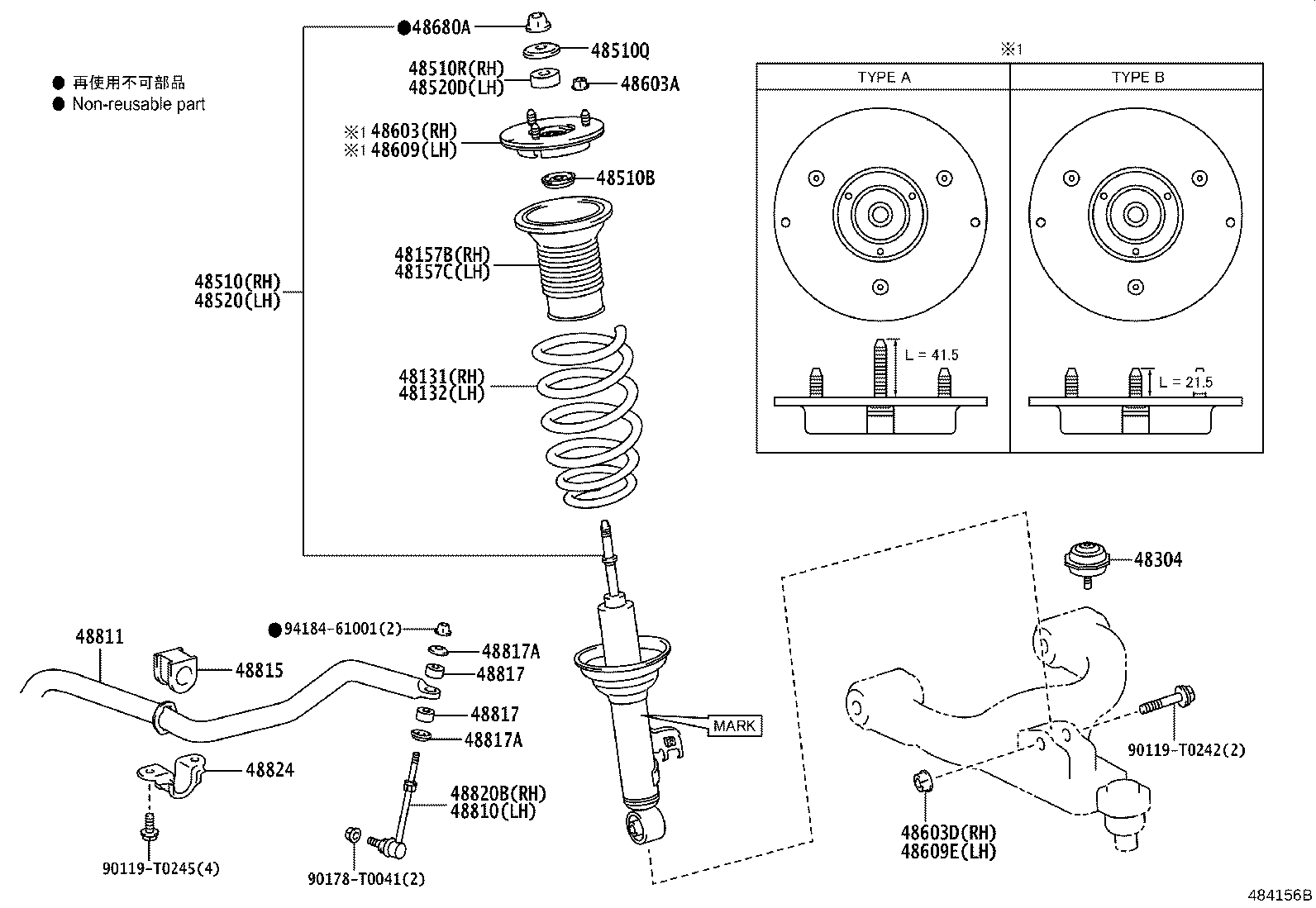

(1505- )GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-0KF20 |
TGN121..L..GEN;GUN122..PH..IV3;GUN122..TXT..GEN;GUN112,TGN120..TDC,TSC;KUN122..LHD..(TSC,TXT)..GEN;KUN112,TGN121..TSC..(GCC,GEN,TH) |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-0KF20 |
GUN112..RHD;TGN120..GCC;TGN121..L..GEN;TGN121..TSC..(GCC,GEN,TH) |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-0K010 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-0K010 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-0K010 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-8Z190 |
GUN120,122,TGN121..TXT..(L,X);GGN120,GUN122,123,KUN122,TGN120,121..(TDC,TXT)..(ARL,GCC,GEN,PH) MARK 48510-0K740 |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-T2003 |
KUN125,126;GUN135..L..MA;LAN125..SSC..S;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN135,KUN122,135..ADC,ASC,PSC,SDC,TDC,TSC,TXT;GGN12#,GUN112,120,122,123,126,13#,KUN112,136,TGN11#,120,121,126,128,13#..ADC,ASC,PDC,PSC,TDC,TSC,TXT |
2 | ||
| 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-T2004 |
KUN125,126;GUN135..L..MA;LAN125..SSC..S;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN135,KUN122,135..ADC,ASC,PSC,SDC,TDC,TSC,TXT;GGN12#,GUN112,120,122,123,126,13#,KUN112,136,TGN11#,120,121,126,128,13#..ADC,ASC,PDC,PSC,TDC,TSC,TXT |
2 | ||
| 48510R - CUSHION, FRONT SHOCK ABSORBER, NO.1 RH | ||||
| 90948-T1013 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121..PSC,TDC,TSC,TXT |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-8Z071 |
GUN120,122,TGN121..TXT..(L,X);GGN120,GUN122,123,KUN122,TGN120,121..(TDC,TXT)..(ARL,GCC,GEN,PH) MARK 48520-0K590 |
1 | ||
| 48520D - CUSHION, FRONT SHOCK ABSORBER, NO.1 LH | ||||
| 90948-T1013 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121..PSC,TDC,TSC,TXT |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-0K150 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121..PSC,TDC,TSC,TXT |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-T0050 |
GUN135..L..MA;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN120,122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
6 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90178-T0048 |
GUN135..L..MA;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN120,122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-0K150 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121..PSC,TDC,TSC,TXT |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90178-T0048 |
GUN135..L..MA;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN120,122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90177-T0015 |
GUN135..L..MA;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN120,122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-0K010 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-0K230 |
GGN120,GUN120,122,123,KUN122,TGN120,121..TDC |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-0K050 |
GGN120,GUN120,122,123,KUN122,TGN120,121..SDC,TDC |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-T1002 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-T1002 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-T2002 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-T2002 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-0K010 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
1 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-0K010 |
GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121 |
2 | ||
| Common parts | ||||
| 90119-T0242 | ||||
| 90119-T0245 | ||||
| 90178-T0041 | ||||
| 94184-61001 | ||||
