Toyota Hilux TGN121 CLUTCH PEDAL & FLEXIBLE HOSE

Manufacturers Home
Toyota
GR
HILUX
TGN121L-DTMLK (2015)
3102 - CLUTCH PEDAL & FLEXIBLE HOSE

TGN121L-DTMLK (2015)

Toyota Hilux

Production May 2015 - May 2020

Engine 2TRFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

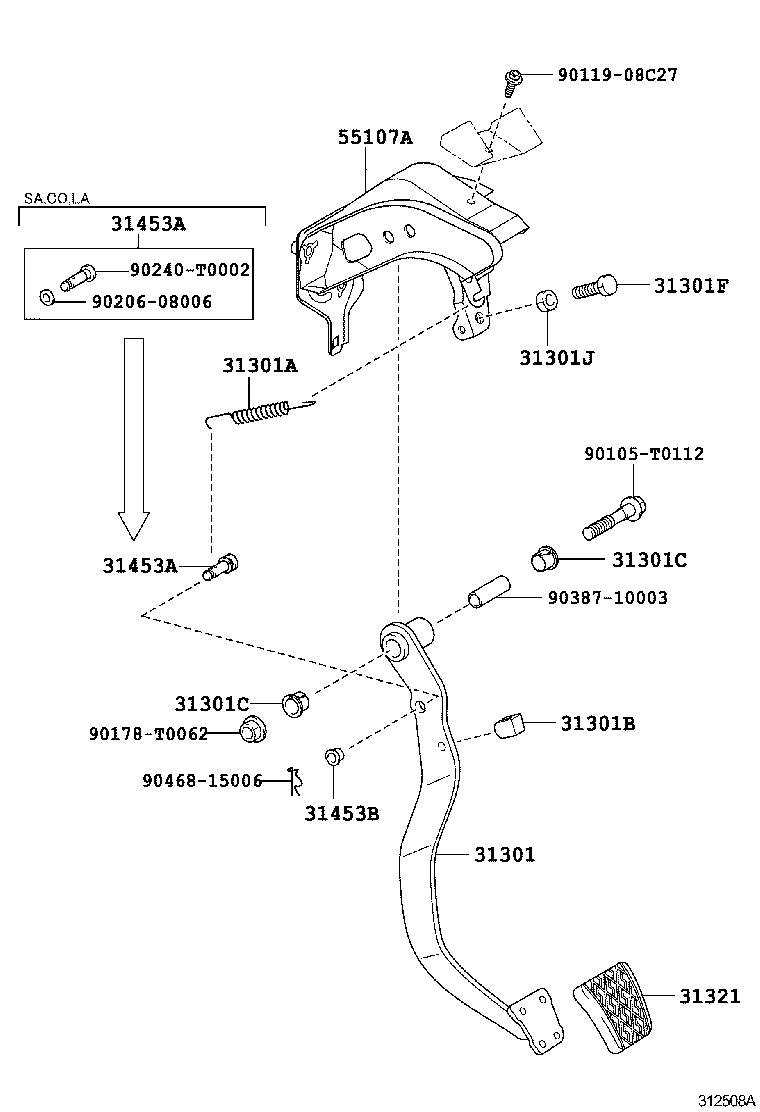

ILLUST NO. 1 OF 2(1107- )LAN15,25,35,TGN1#,26,36..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-T0112
90119-08C27
90178-T0062
90206-08006
90240-T0002
90387-10003
90468-15006

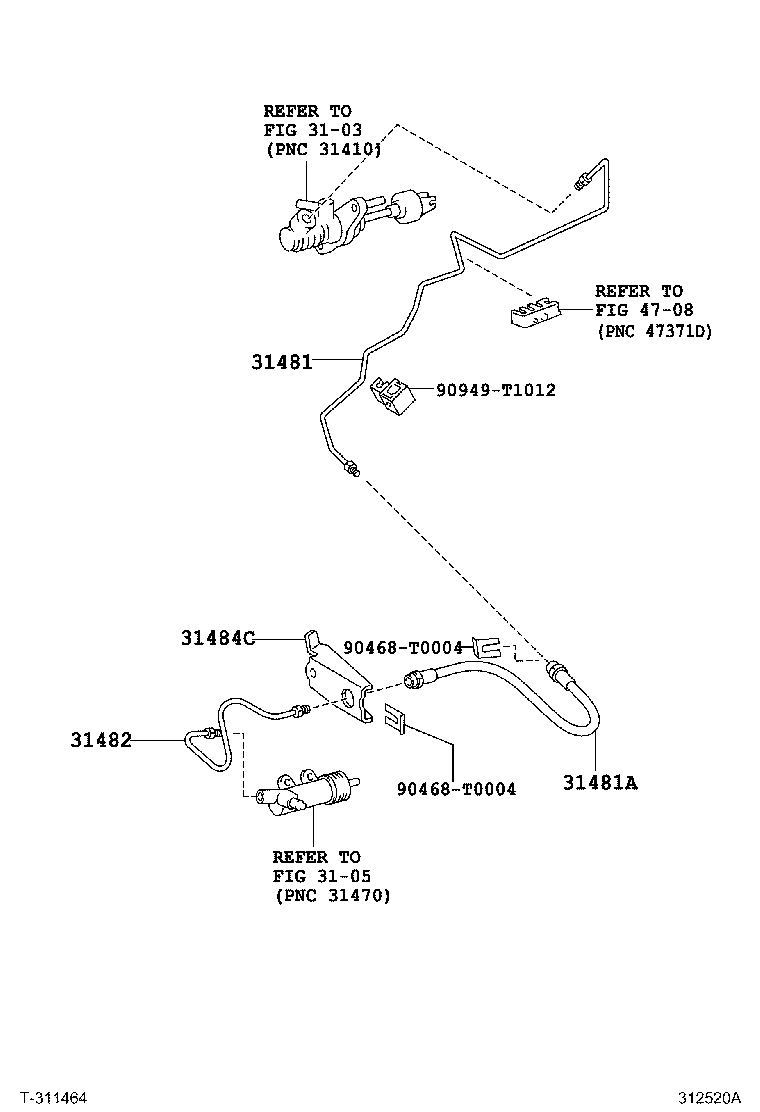

ILLUST NO. 2 OF 2(1107- )TGN1#,26,36..LHD..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90468-T0004
90949-T1012
Linked diagrams
3103
3105
4708

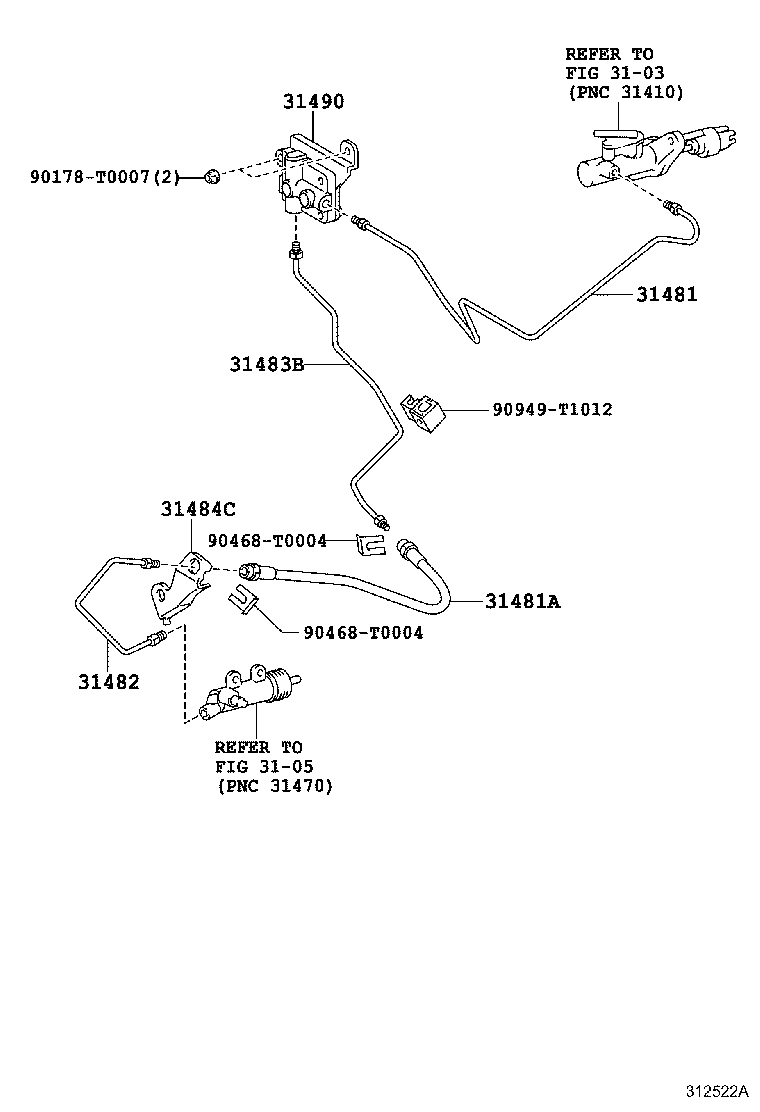

ILLUST NO. 2 OF 2(1107- )KUN10,15,2#,3#..LHD..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90178-T0007
90468-T0004
90949-T1012
Linked diagrams
3103
3105

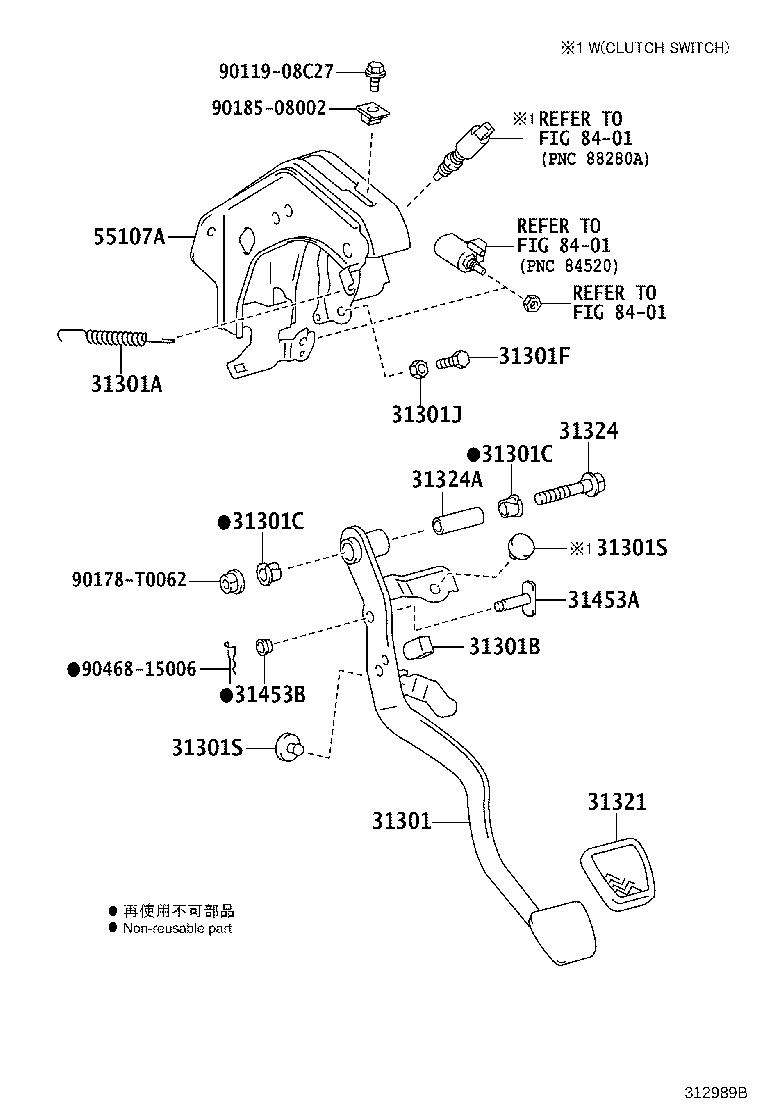

ILLUST NO. 1 OF 2(1505- )KUN112,122,TGN11#,120,121,126,127,13#..LHD..5F

Click highlighted areas on diagram

CLUTCH PEDAL

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-KK100	KUN112,122,TGN11#,120,121,126,13#..LHD..5F	05/2015 - 10/2020	1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-T0001	TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;KUN112,122,LAN125,TGN11#,120,121,126,138..5F	05/2015 - 10/2020	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-T0005	GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,13#..LHD..MTM	05/2015 - 10/2020	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..MTM;GUN122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,138..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..MTM;GUN122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,138..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-T0005	TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..MTM;GUN122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,138..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
90170-T0011	TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,138..MTM	05/2015 - 04/2020	1
90170-T0005	GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN122,LAN125,TGN11#,120,121,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	04/2020 - 12/2999	1
31301S - CUSHION, NO.2(FOR CLUTCH PEDAL)
90541-06036	TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#,TGN11#,120,121,126,138..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	2
31301S - CUSHION, NO.2(FOR CLUTCH PEDAL)
90541-06036	TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#,TGN11#,120,121,126,138..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	2
31321 - PAD, CLUTCH PEDAL
31321-02020	TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..MTM;GUN122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,138..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	1
31324 - SHAFT, CLUTCH PEDAL
90105-T0112	TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..MTM;GUN122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,138..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003	TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..MTM;GUN122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,138..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-T0002	TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..MTM;GUN122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,138..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM L=31.9	05/2015 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..MTM;GUN122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,138..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-KK020	TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;KUN112,122,LAN125,TGN11#,120,121,126,138..5F	05/2015 - 10/2020	1
Common parts
90119-08C27
90178-T0062
90185-08002
90468-15006
Linked diagrams
8401

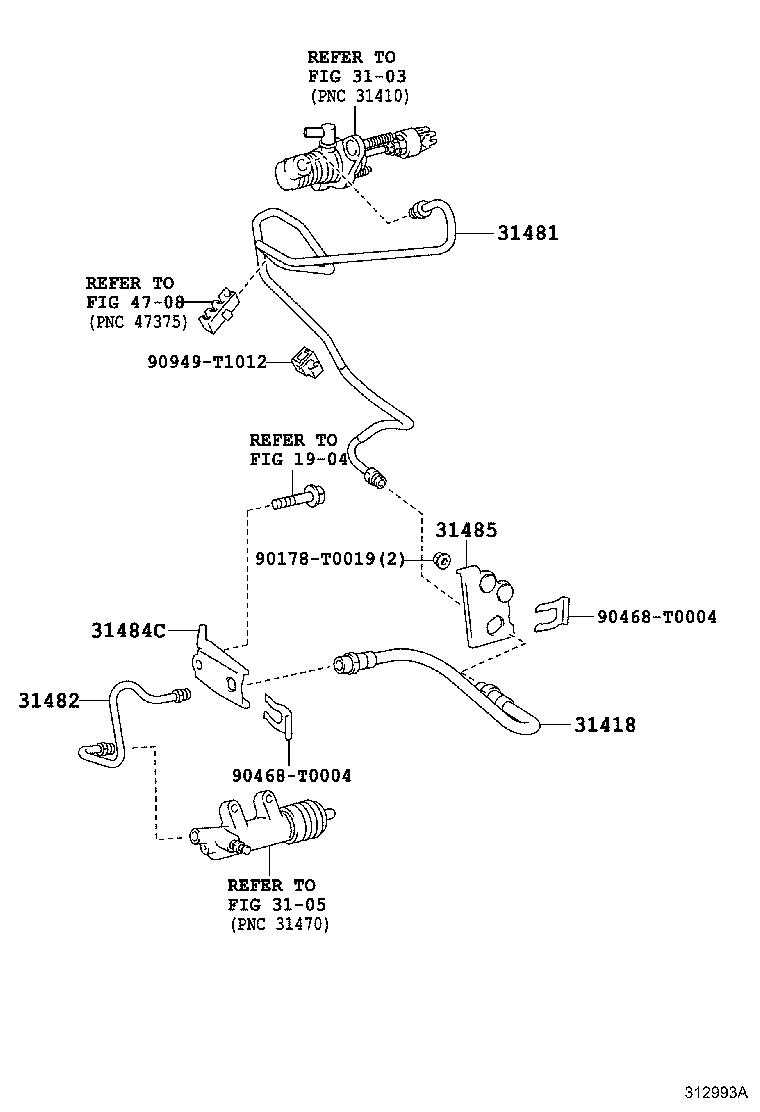

ILLUST NO. 2 OF 2(1505- )TGN11#,120,121,126,127,13#..LHD..5F

Click highlighted areas on diagram

CLUTCH PIPING

Part #	Description	Period	Qty
31418 - HOSE, CLUTCH
90080-94215	GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#,LAN125..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	1
90080-94215	TGN11#,120,121,126,138..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F MARK=HITACHI	05/2015 - 10/2020	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-KK050	GUN126,136..LHD..6F..(L,S,X);GUN126,136..LHD..6F..M..(GEN,LA);GUN112,122,125,135,KUN112,12#,13#,LAN125..LHD..MTM	05/2015 - 10/2020	1
31481-KK020	TGN11#,120,121,126,13#..LHD..5F	05/2015 - 10/2020	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-KK030	GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	1
31482-KK040	TGN11#,120,121,126,138..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F	05/2015 - 10/2020	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-0K010	TGN11#,120,121,126,138..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F	05/2015 - 10/2020	1
31484-KK010	GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-KK010	TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..MTM;GUN122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,138..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	1
Common parts
90178-T0019
90468-T0004
90949-T1012
Linked diagrams
1904
3103
3105
4708

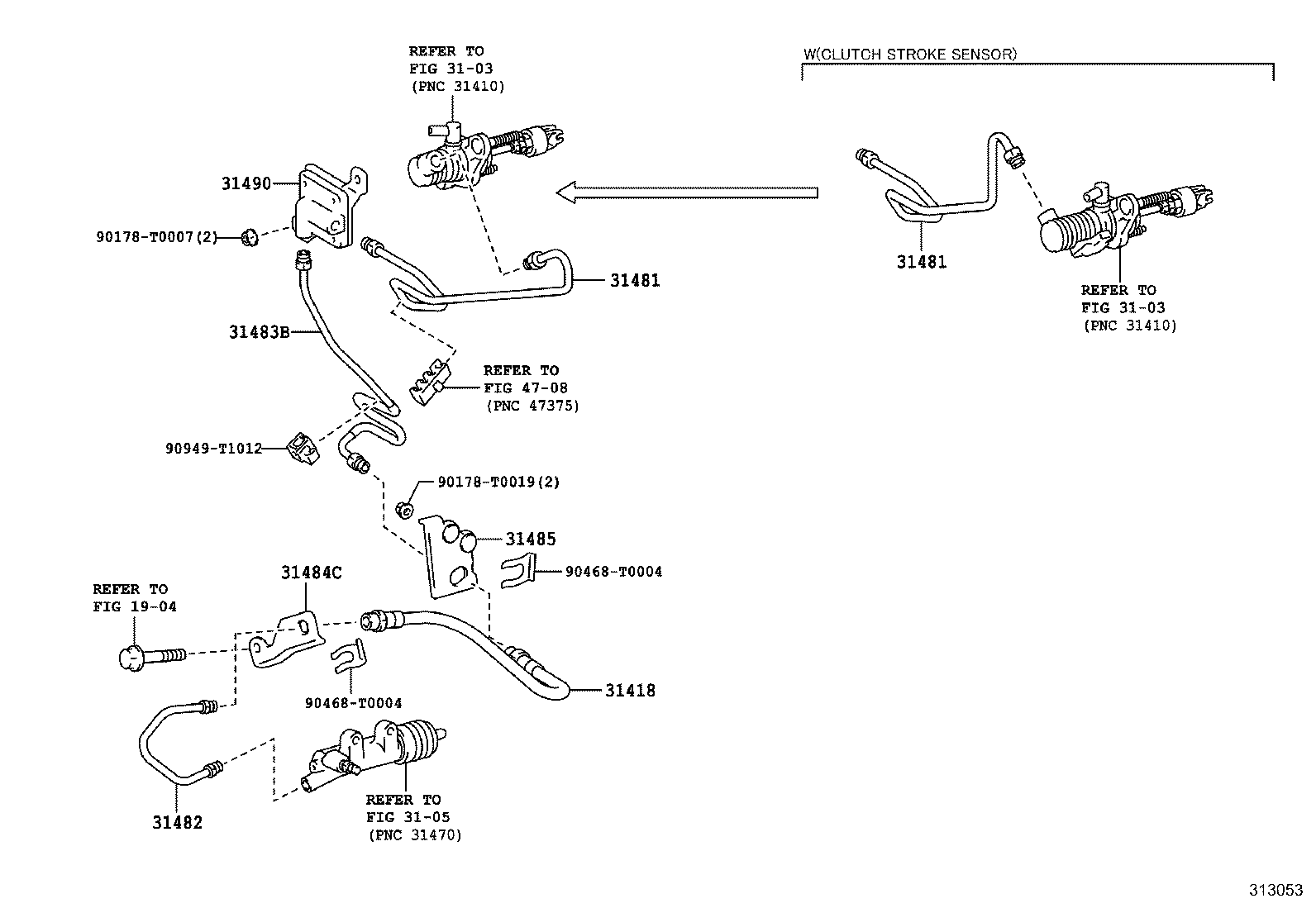

ILLUST NO. 2 OF 2(1505- )GUN112,122,125,126,13#,KUN112,12#,13#..LHD..MTM

Click highlighted areas on diagram

CLUTCH PIPING

Part #	Description	Period	Qty
31418 - HOSE, CLUTCH
90080-94215	GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#,LAN125..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	1
90080-94215	TGN11#,120,121,126,138..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F MARK=HITACHI	05/2015 - 10/2020	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-KK050	GUN126,136..LHD..6F..(L,S,X);GUN126,136..LHD..6F..M..(GEN,LA);GUN112,122,125,135,KUN112,12#,13#,LAN125..LHD..MTM	05/2015 - 10/2020	1
31481-KK020	TGN11#,120,121,126,13#..LHD..5F	05/2015 - 10/2020	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-KK050	GUN126,136..LHD..6F..(L,S,X);GUN126,136..LHD..6F..M..(GEN,LA);GUN112,122,125,135,KUN112,12#,13#,LAN125..LHD..MTM	05/2015 - 10/2020	1
31481-KK020	TGN11#,120,121,126,13#..LHD..5F	05/2015 - 10/2020	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-KK030	GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	1
31482-KK040	TGN11#,120,121,126,138..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F	05/2015 - 10/2020	1
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-KK010	GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#,LAN125..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-0K010	TGN11#,120,121,126,138..5F;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F	05/2015 - 10/2020	1
31484-KK010	GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-KK010	TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..MTM;GUN122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,138..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM	05/2015 - 12/2999	1
Common parts
90178-T0007
90178-T0019
90468-T0004
90949-T1012
Linked diagrams
1904
3103
3105
4708
