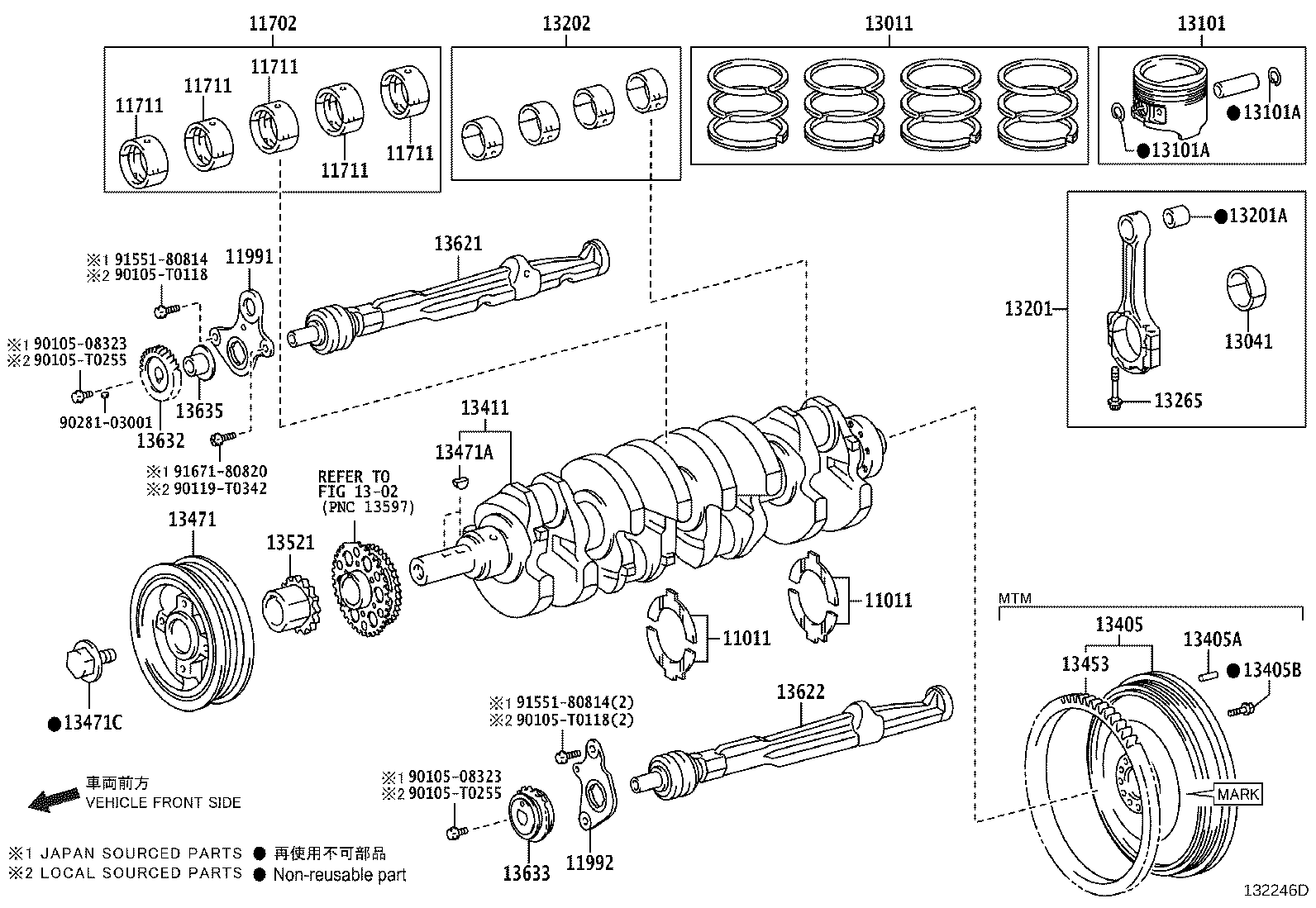

TGN121L-DTMLK (2015)
Toyota Hilux
(1107- )2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08323 | ||||
| 90105-T0054 | ||||
| 90105-T0118 | ||||
| 90105-T0255 | ||||
| 90119-T0342 | ||||
| 90281-03001 | ||||
| 91551-80814 | ||||
| 91671-80820 | ||||
(1505- )2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-0C010 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU STD,IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS) |
2 | ||
| 11011-0C010 |
1TRFE,2TRFE..TGN11#,12#,13# STD |
2 | ||
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-0C010 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU STD,IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS) |
2 | ||
| 11011-0C010 |
1TRFE,2TRFE..TGN11#,12#,13# STD |
2 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-75032 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU U/S 0.25,IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 11704-75032 |
2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT U/S 0.25,REFER REPAIR MANUAL |
1 | ||
| 11704-75032 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0C01102 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01102 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0C01102 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01102 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0C01102 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01102 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0C01102 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01102 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0C01102 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01102 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01103 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01101 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01104 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-0C01105 |
1TRFE,2TRFE..TGN11#,12#,13# MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11991 - WASHER, BALANCESHAFT THRUST | ||||
| 11991-75010 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS |
1 | ||
| 11991-0C010 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS |
1 | ||
| 11991-75010 |
2TRFE..TGN111,121,126,128,13# JAPAN SOURCED PARTS |
1 | ||
| 11991-0C010 |
2TRFE..TGN136..ADC..M;2TRFE..TGN126,138..5F..M..BZAGT;2TRFE..TGN126,138..L..(BZAGT,GEN);2TRFE..TGN126..(TDC,TSC)..(GCC,LA);2TRFE..TGN111,121,136..(ASC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,TH) THA SOURCED PARTS |
1 | ||
| 11991-0C020 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS |
1 | ||
| 11992 - WASHER, BALANCESHAFT THRUST, NO.2 | ||||
| 11992-0C010 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L) |
1 | ||
| 11992-75010 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(J) |
1 | ||
| 11992-75010 |
2TRFE..TGN111,121,126,128,13# (J) |
1 | ||
| 11992-0C020 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L) |
1 | ||
| 11992-0C010 |
2TRFE..TGN136..ADC..M;2TRFE..TGN126,138..5F..M..BZAGT;2TRFE..TGN126,138..L..(BZAGT,GEN);2TRFE..TGN126..(TDC,TSC)..(GCC,LA);2TRFE..TGN111,121,136..(ASC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,TH) THA SOURCED PARTS |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-0C090 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU STD,IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L) |
1 | ||
| 13011-0C090 |
2TRFE..TGN111,121,126,136 STD,(L) |
1 | ||
| 13013-75200 |
2TRFE..TGN111,121,126,136 O/S 0.50 |
1 | ||
| 13011-75200 |
2TRFE..TGN111,121,126,136 STD,(J) |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0C05205 |
1TRFE,2TRFE..TGN11#,12#,136 MARK 5,REFER REPAIR MANUAL |
4 | ||
| 13041-0C05204 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..5F..GCC;2TRFE..TGN121..TSC..GCC IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 4,REFER REPAIR MANUAL |
4 | ||
| 13041-0C05206 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..5F..GCC;2TRFE..TGN121..TSC..GCC IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 6,REFER REPAIR MANUAL |
4 | ||
| 13041-0C05204 |
1TRFE,2TRFE..TGN11#,12#,136 MARK 4,REFER REPAIR MANUAL |
4 | ||
| 13041-0C05206 |
1TRFE,2TRFE..TGN11#,12#,136 MARK 6,REFER REPAIR MANUAL |
4 | ||
| 13041-0C05205 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..5F..GCC;2TRFE..TGN121..TSC..GCC IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 5,REFER REPAIR MANUAL |
4 | ||
| 13041-0C06004 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 4,(L),REFER R/M |
4 | ||
| 13041-0C06005 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 5,(L),REFER R/M |
4 | ||
| 13041-0C06006 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MARK 6,(L),REFER R/M |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-0C070 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU STD,IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),*555 |
4 | ||
| 13101-0C090 |
2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);2TRFE..TGN111,121,136..TDC,TSC,TXT STD,*163 |
4 | ||
| 13101-0C070 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;2TRFE..TGN111,121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) STD,*555 |
4 | ||
| 13103-75200 |
2TRFE..TGN111,121,126,136 O/S 0.50 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS) |
8 | ||
| 90520-22025 |
1TRFE,2TRFE..TGN11#,12#,13# |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS) |
8 | ||
| 90520-22025 |
1TRFE,2TRFE..TGN11#,12#,13# |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-09B80 |
2TRFE..TGN111,121,126,136 |
4 | ||
| 13201-09B81 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS) |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73144 |
1TRFE,2TRFE..TGN11#,12#,13# |
4 | ||
| 90999-73144 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS) |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-75070 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU U/S 0.25,IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 13204-75052 |
1TRFE,2TRFE..TGN11#,12#,136 U/S 0.25 |
1 | ||
| 13204-75052 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..5F..GCC;2TRFE..TGN121..TSC..GCC U/S 0.25,IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-28010 |
1TRFE,2TRFE..TGN11#,12#,13# |
8 | ||
| 13265-28020 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
8 | ||
| 13265-28010 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS) |
8 | ||
| 13265-28020 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS) |
8 | ||
| 13265-28020 |
2TRFE..TGN136..ADC..LA;2TRFE..TGN136..BZAGT,GEN,SA;1TRFE,2TRFE..TGN11#,12#,138..ADC,ASC,SDC,SSC,TDC,TSC |
8 | ||
| 13265-28020 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(J) |
8 | ||
| 13265-0C010 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L),MADE IN IDN |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-0C040 |
2TRFE..TGN126..5F..L..GEN;2TRFE..TGN126..(TDC,TSC)..5F..(GCC,LA);2TRFE..TGN111,121,136..(TDC,TSC,TXT)..5F MARK 0C040 |
1 | ||
| 13405-0C030 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;2TRFE..TGN111,121,126,138..5F..(BZAGT,GCC,GEN,LA,SA,TH) MARK 0C030 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-T0010 |
2TRFE..TGN126..5F..L..GEN;2TRFE..TGN126..(TDC,TSC)..5F..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..(TDC,TSC,TXT)..5F L=23,OD=8 |
3 | ||
| 90250-T0010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,121,126,138..5F..(BZAGT,GCC,GEN,LA,SA,TH) L=23,OD=8,(L) |
3 | ||
| 90250-08054 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,121,126,138..5F..(BZAGT,GCC,GEN,LA,SA,TH) L=23,OD=8,(J) |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90910-02116 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,121,126,138..5F..(BZAGT,GCC,GEN,LA,SA,TH) (J) |
10 | ||
| 90910-T2004 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,121,126,138..5F..(BZAGT,GCC,GEN,LA,SA,TH) (L) |
10 | ||
| 90910-T2004 |
2TRFE..TGN126..5F..L..GEN;2TRFE..TGN126..(TDC,TSC)..5F..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..(TDC,TSC,TXT)..5F |
10 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-0C022 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 13401-75021 |
2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);2TRFE..TGN111,121,136..TDC,TSC,TXT (J) |
1 | ||
| 13401-0C022 |
2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);2TRFE..TGN111,121,136..TDC,TSC,TXT (L) |
1 | ||
| 13401-0C022 |
2TRFE..TGN111,128,138;2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-0C030 |
2TRFE..TGN126..5F..L..GEN;2TRFE..TGN126..(TDC,TSC)..5F..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..(TDC,TSC,TXT)..5F |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-0C030 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),*555 |
1 | ||
| 13408-0C030 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *555 |
1 | ||
| 13408-0C040 |
2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT *163 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-T0003 |
2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);2TRFE..TGN111,121,136..TDC,TSC,TXT (L) |
2 | ||
| 90280-T0003 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS) |
2 | ||
| 90280-05005 |
2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);2TRFE..TGN111,121,136..TDC,TSC,TXT (J) |
2 | ||
| 90280-T0003 |
1TRFE,2TRFE..TGN11#,120,128,138;2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90109-T0038 |
1TRFE,2TRFE..TGN11#,12#,13# (L) |
1 | ||
| 90105-16041 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 90105-16041 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(J) |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-0C011 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..5F..GCC;2TRFE..TGN121..TSC..GCC IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L),MADE IN THAILAND |
1 | ||
| 13521-0C030 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L),MADE IN IDN |
1 | ||
| 13521-75021 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(J) |
1 | ||
| 13521-0C011 |
2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT (L),MADE IN THAILAND |
1 | ||
| 13521-75021 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 13621 - BALANCESHAFT, NO.1 | ||||
| 13621-0C010 |
2TRFE..TGN111,121,126,128,13# (L) |
1 | ||
| 13621-75020 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(J) |
1 | ||
| 13621-75020 |
2TRFE..TGN111,121,126,128,13# (J) |
1 | ||
| 13622 - BALANCESHAFT, NO.2 | ||||
| 13622-0C010 |
2TRFE..TGN111,121,126,128,13# (L) |
1 | ||
| 13622-75020 |
2TRFE..TGN111,121,126,128,13# (J) |
1 | ||
| 13622-75020 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(J) |
1 | ||
| 13632 - GEAR, BALANCESHAFT DRIVEN, NO.1 | ||||
| 13632-0C010 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 13632-0C010 |
2TRFE..TGN111,121,126,128,13# |
1 | ||
| 13633 - GEAR, BALANCESHAFT DRIVEN, NO.2 | ||||
| 13633-75010 |
2TRFE..TGN111,121,126,128,13# |
1 | ||
| 13633-75010 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 13635 - SPACER, BALANCESHAFT THRUST | ||||
| 13635-75010 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(J) |
1 | ||
| 13635-75010 |
2TRFE..TGN111,121,126,128,13# (J) |
1 | ||
| 13635-0C010 |
2TRFE..TGN111,121,126,128,13# (L) |
1 | ||
| Common parts | ||||
| 90105-08323 | ||||
| 90105-T0118 | ||||
| 90105-T0255 | ||||
| 90119-T0342 | ||||
| 90281-03001 | ||||
| 91551-80814 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 1302 | ||||
(2006- )2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08323 | ||||
| 90105-T0118 | ||||
| 90105-T0255 | ||||
| 90119-T0342 | ||||
| 90281-03001 | ||||
| 91551-80814 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 1302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
