TGN121L-BTMLK3 (2020)

Toyota Hilux

Production Jun 2020 - Aug 2021
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

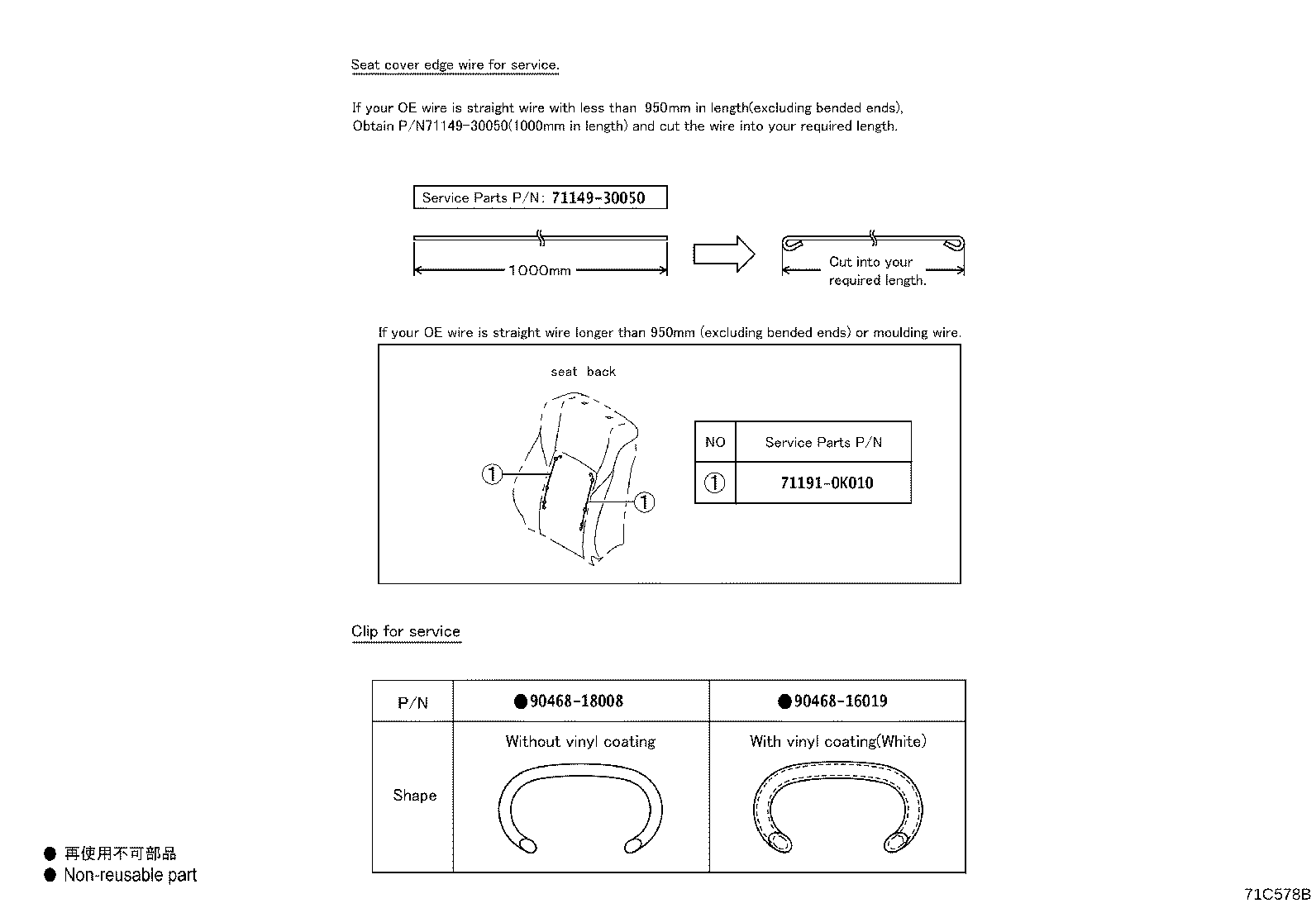

SEAT COVER EDGE WIRE & CLIP

diagram 7114930050 711910K010 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
71191-0K010
90468-16019
90468-18008

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

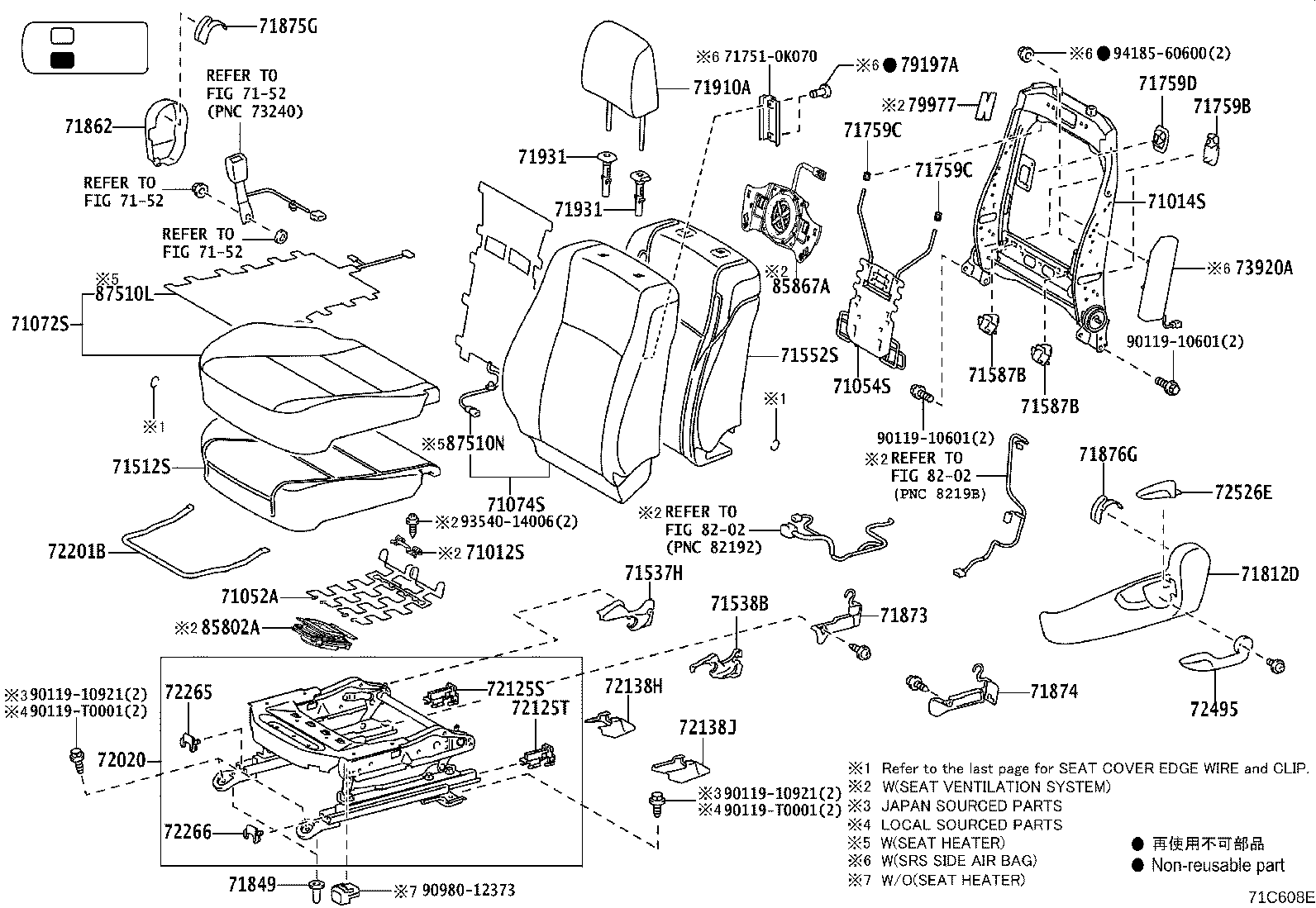

FRONT(LH MANUAL 4WAY)

diagram 71014S 71052A 71054S 71072S 71074S 71512S 7152 7152 7152 71537H 71538B 71552S 71587B 71587B 71620S 717510K070 71759B 71759C 71759C 71759D 71812D 71849 71862 71875G 71876G 71910A 71931 71931 72020 72125S 72125T 72138H 72138J 72201B 72265 72266 72526E 73920A 79197A 8421 87510L 87510N 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9098012373 9418560600
Part # Description Qty Price
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-06070

GUN125..6FC..GEN;GUN122..TS..5F..L;GUN120,135..TD,TS,TX;GUN125..6F..(H,S)..GEN;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;GUN122,126..(MD,MMD,TD,TS,TX)..(H,S);GUN122,126..(TD,TX)..L..(GCC,LA,PH,TH);GUN125..(MD,TD,TS,TX)..(ARL,GCC,IDN,LA,MA,PH,TH,VN);GGN125,GUN112,136,TGN11#,120,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)

 1
71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH
71053-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MMD,TD,TX;GUN125,TGN126..(TD,TX)..(ARL,GEN,IDN,LA,PH,TH,VN)

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0KG50C1

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71072-0KG70C2

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN125..LHD..TD..S..GEN;GUN122,TGN121..LHD..TS..L..GEN;GUN112,135,TGN110..MTM..(L,S)..(IDN,PH)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71072-0KG70C2

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0K240C4

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71074-0K460C3

GUN125..TS..6F..L..GEN;GUN122..LHD..TS..L..GEN;GUN112,TGN110,121..TS..(GEN,IDN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71074-0KP10C1

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71074-0KP20C1

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-0K571

GUN125..TX..S..GEN;GUN125..LHD..L..GEN;GUN126..TD..(L,S)..LA;GUN135..TD..6F..S..LA;GUN135..(TD,TS)..L..(ARL,LA);TGN121..(L,S)..(ARL,GCC,GEN);GUN112,126,136,TGN11#..TS..(ARL,GCC);GUN122,TGN120,126,136..LHD..(TD,TS)..(L,S);GUN125..(TD,TS,TX)..(L,S)..(ARL,GCC,LA,PH)

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-06130C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-06140C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0K120

TGN121..TS..GEN;TGN126..5F..L..GCC;GUN125..TS..(GCC,IDN);GUN125..TD..6F..L..GCC;GUN125,TGN126..TS..(H,S);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC;GUN120,122,125,TGN126..TS..(5F,6FC)..(GEN,LA,PH,TH)

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MD,MMD,TD,TX;GUN125,TGN126..(MD,TD,TX)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)

 4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MD,MMD,TD,TX;GUN125,TGN126..(MD,TD,TX)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN125..H..MA;TGN126..6FC..L;TGN121..6FC..CBU;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);TGN126..(AD,TD)..(GEN,LA);GUN122..(TD,TX)..S..(GEN,TH);GUN125..(AD,MD,TD,TX)..6F..(H,S);GUN125..(AD,TD)..6FC..(GCC,GEN,LA);GGN125,GUN120,126,13#,TGN128,13#..AD,MD,MMD,TD,TX;GUN122,125..(AD,TD,TX)..(H,L)..(ARL,BZAG,IDN,LA,PH,TH)

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN125..H..MA;TGN126..6FC..L;TGN121..6FC..CBU;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);TGN126..(AD,TD)..(GEN,LA);GUN122..(TD,TX)..S..(GEN,TH);GUN125..(AD,MD,TD,TX)..6F..(H,S);GUN125..(AD,TD)..6FC..(GCC,GEN,LA);GGN125,GUN120,126,13#,TGN128,13#..AD,MD,MMD,TD,TX;GUN122,125..(AD,TD,TX)..(H,L)..(ARL,BZAG,IDN,LA,PH,TH)

 4
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-06390C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-47010

GUN125..6FC..GEN;GUN122..TS..5F..L;GUN125..6F..(H,S)..GEN;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;GUN120,135..AD,AS,TD,TS,TX;GUN122,126..(AD,MD,MMD,TD,TS,TX)..(H,S);GUN122,126..(AD,AS,TD,TX)..L..(BZAG,GCC,LA,PH,TH);GGN125,GUN112,136,TGN11#,12#,13#..ARL,BZAG,GCC,GEN,LA;GUN125..(AD,AS,MD,TD,TS,TX)..(ARL,BZAG,GCC,IDN,LA,MA,PH,TH,VN)

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-06270C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71875-06450C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71876-06470C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W(LOCK),BLACK,TRIM2#,3#

 2
71931-0K040C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W/O(LOCK),BLACK,TRIM2#,3#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W(LOCK),BLACK,TRIM2#,3#

 2
71931-0K040C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W/O(LOCK),BLACK,TRIM2#,3#

 2
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-0K060

GUN122..S;GUN122..TS..5F..L;GUN125..TD..6F..S..LA;GUN126..TD..(L,S)..LA;GUN122..LHD..TD..L..GEN;GUN125..RHD..6F..(H,S)..GEN;GUN125..TD..6F..L..(GEN,LA);GUN125..(L,S)..(GCC,IDN,PH,TH);GUN122..(TD,TX)..L..(GCC,PH,TH);TGN121,126..LHD..(TD,TS)..(L,S);GUN126,135..RHD..(TD,TX)..(GEN,TH);GUN125..LHD..(TS,TX)..(L,S)..(GEN,LA);GUN120,125..(TD,TS,TX)..6FC..(GEN,IDN,LA,TH);GUN112,135,TGN11#,120,136..LHD..(TD,TS)..MTM..(L,S)..(GCC,GEN,LA)

 1
72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72211-0D160

GUN125..TX..GEN;GUN125..6FC..GEN;GUN122..TS..5F..L;GUN126,136..S..BZAG;GUN125..TD..6F..L..GEN;GUN125..LHD..TD..S..GEN;GUN122..LHD..TD..L..GEN;GUN125..RHD..6F..(H,S)..GEN;GUN125..ARL,BZAG,GCC,IDN,LA,PH,TH,VN;GUN120,135,TGN126,128,13#..AD,AS,TD,TS,TX;GGN125,GUN112,TGN11#,120,121..ARL,GCC,GEN;GUN122,126..(AD,AS,TD,TX)..L..(BZAG,GCC,LA,PH,TH);GUN122,126,136..(H,S)..(ARL,GCC,GEN,LA,PH,TH,TWN,VN)

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D260C0

GUN125..TD..6F..L..GEN;GUN135..LHD..6F..(LA,SA);GUN135..RHD..(SX,TD,TS,TX);GUN126,136..(L,S)..(BZAG,LA);GUN135..(AD,SD,SS)..S..(BZAG,SA);GUN122..LHD..(SS,TD)..L..(GEN,SA);GUN122..(SD,TD,TX)..L..(PH,SA,TH);GUN122,136..(H,S)..(ARL,GEN,SA,TH);GUN125..LHD..(SD,SS,TX)..6F..(L,S);GUN125..RHD..6F..(H,S)..(GEN,KEN,SA);GUN126..RHD..(H,S)..(ARL,GEN,KEN,SA,TH);GUN122,135..(AD,AS,TS)..L..(BZAG,GEN,PH);TGN121,126,136..(L,S)..(ARL,BZAG,GEN,LA,SA);GGN125,GUN120,125,LAN125..(5F,6FC)..(GEN,SA,TH);GUN125..(AD,AS,SX,TD,TS,TX)..(ARL,BZAG,IDN,LA,PH,SA,TH)

BLACK,TRIM2#

 1
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90980-12373
94185-60600
Linked diagrams
7152
8421

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

FRONT(LH MANUAL 4WAY HIGH BACK)

diagram 71052A 71072S 71074S 71512S 7152 7152 7152 71537H 71538B 71552S 71640S 717510K070 71812D 71849 71862 71875G 71876G 72020 72125S 72125T 72138H 72138J 72201B 72265 72266 72526E 73920A 79197A 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9098012373 9418560600
Part # Description Qty Price
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-06070

GUN125..6FC..GEN;GUN122..TS..5F..L;GUN120,135..TD,TS,TX;GUN125..6F..(H,S)..GEN;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;GUN122,126..(MD,MMD,TD,TS,TX)..(H,S);GUN122,126..(TD,TX)..L..(GCC,LA,PH,TH);GUN125..(MD,TD,TS,TX)..(ARL,GCC,IDN,LA,MA,PH,TH,VN);GGN125,GUN112,136,TGN11#,120,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0KG50C1

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71072-0KG70C2

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN125..LHD..TD..S..GEN;GUN122,TGN121..LHD..TS..L..GEN;GUN112,135,TGN110..MTM..(L,S)..(IDN,PH)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71072-0KG70C2

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0K240C4

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71074-0K460C3

GUN125..TS..6F..L..GEN;GUN122..LHD..TS..L..GEN;GUN112,TGN110,121..TS..(GEN,IDN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71074-0KP10C1

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71074-0KP20C1

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-0K571

GUN125..TX..S..GEN;GUN125..LHD..L..GEN;GUN126..TD..(L,S)..LA;GUN135..TD..6F..S..LA;GUN135..(TD,TS)..L..(ARL,LA);TGN121..(L,S)..(ARL,GCC,GEN);GUN112,126,136,TGN11#..TS..(ARL,GCC);GUN122,TGN120,126,136..LHD..(TD,TS)..(L,S);GUN125..(TD,TS,TX)..(L,S)..(ARL,GCC,LA,PH)

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-06130C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-06140C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0K120

TGN121..TS..GEN;TGN126..5F..L..GCC;GUN125..TS..(GCC,IDN);GUN125..TD..6F..L..GCC;GUN125,TGN126..TS..(H,S);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC;GUN120,122,125,TGN126..TS..(5F,6FC)..(GEN,LA,PH,TH)

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-0K200

GUN122..TS..S..GCC;GUN122..RHD..TD..GEN;GUN122..LHD..TS..L..(GCC,GEN);GUN112,125,TGN11#,120,121,126..TS..MTM..(L,S)..(GCC,GEN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71640-0K670

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71640-0K200

GUN125..TS..6F..L..GEN;GUN122..LHD..TS..L..GEN;GUN112,TGN110,121..TS..(GEN,IDN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-06390C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-47010

GUN125..6FC..GEN;GUN122..TS..5F..L;GUN125..6F..(H,S)..GEN;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;GUN120,135..AD,AS,TD,TS,TX;GUN122,126..(AD,MD,MMD,TD,TS,TX)..(H,S);GUN122,126..(AD,AS,TD,TX)..L..(BZAG,GCC,LA,PH,TH);GGN125,GUN112,136,TGN11#,12#,13#..ARL,BZAG,GCC,GEN,LA;GUN125..(AD,AS,MD,TD,TS,TX)..(ARL,BZAG,GCC,IDN,LA,MA,PH,TH,VN)

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-06270C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71875-06450C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71876-06470C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-0K060

GUN122..S;GUN122..TS..5F..L;GUN125..TD..6F..S..LA;GUN126..TD..(L,S)..LA;GUN122..LHD..TD..L..GEN;GUN125..RHD..6F..(H,S)..GEN;GUN125..TD..6F..L..(GEN,LA);GUN125..(L,S)..(GCC,IDN,PH,TH);GUN122..(TD,TX)..L..(GCC,PH,TH);TGN121,126..LHD..(TD,TS)..(L,S);GUN126,135..RHD..(TD,TX)..(GEN,TH);GUN125..LHD..(TS,TX)..(L,S)..(GEN,LA);GUN120,125..(TD,TS,TX)..6FC..(GEN,IDN,LA,TH);GUN112,135,TGN11#,120,136..LHD..(TD,TS)..MTM..(L,S)..(GCC,GEN,LA)

 1
72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72211-0D160

GUN125..TX..GEN;GUN125..6FC..GEN;GUN122..TS..5F..L;GUN126,136..S..BZAG;GUN125..TD..6F..L..GEN;GUN125..LHD..TD..S..GEN;GUN122..LHD..TD..L..GEN;GUN125..RHD..6F..(H,S)..GEN;GUN125..ARL,BZAG,GCC,IDN,LA,PH,TH,VN;GUN120,135,TGN126,128,13#..AD,AS,TD,TS,TX;GGN125,GUN112,TGN11#,120,121..ARL,GCC,GEN;GUN122,126..(AD,AS,TD,TX)..L..(BZAG,GCC,LA,PH,TH);GUN122,126,136..(H,S)..(ARL,GCC,GEN,LA,PH,TH,TWN,VN)

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D260C0

GUN125..TD..6F..L..GEN;GUN135..LHD..6F..(LA,SA);GUN135..RHD..(SX,TD,TS,TX);GUN126,136..(L,S)..(BZAG,LA);GUN135..(AD,SD,SS)..S..(BZAG,SA);GUN122..LHD..(SS,TD)..L..(GEN,SA);GUN122..(SD,TD,TX)..L..(PH,SA,TH);GUN122,136..(H,S)..(ARL,GEN,SA,TH);GUN125..LHD..(SD,SS,TX)..6F..(L,S);GUN125..RHD..6F..(H,S)..(GEN,KEN,SA);GUN126..RHD..(H,S)..(ARL,GEN,KEN,SA,TH);GUN122,135..(AD,AS,TS)..L..(BZAG,GEN,PH);TGN121,126,136..(L,S)..(ARL,BZAG,GEN,LA,SA);GGN125,GUN120,125,LAN125..(5F,6FC)..(GEN,SA,TH);GUN125..(AD,AS,SX,TD,TS,TX)..(ARL,BZAG,IDN,LA,PH,SA,TH)

BLACK,TRIM2#

 1
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90980-12373
94185-60600
Linked diagrams
7152

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

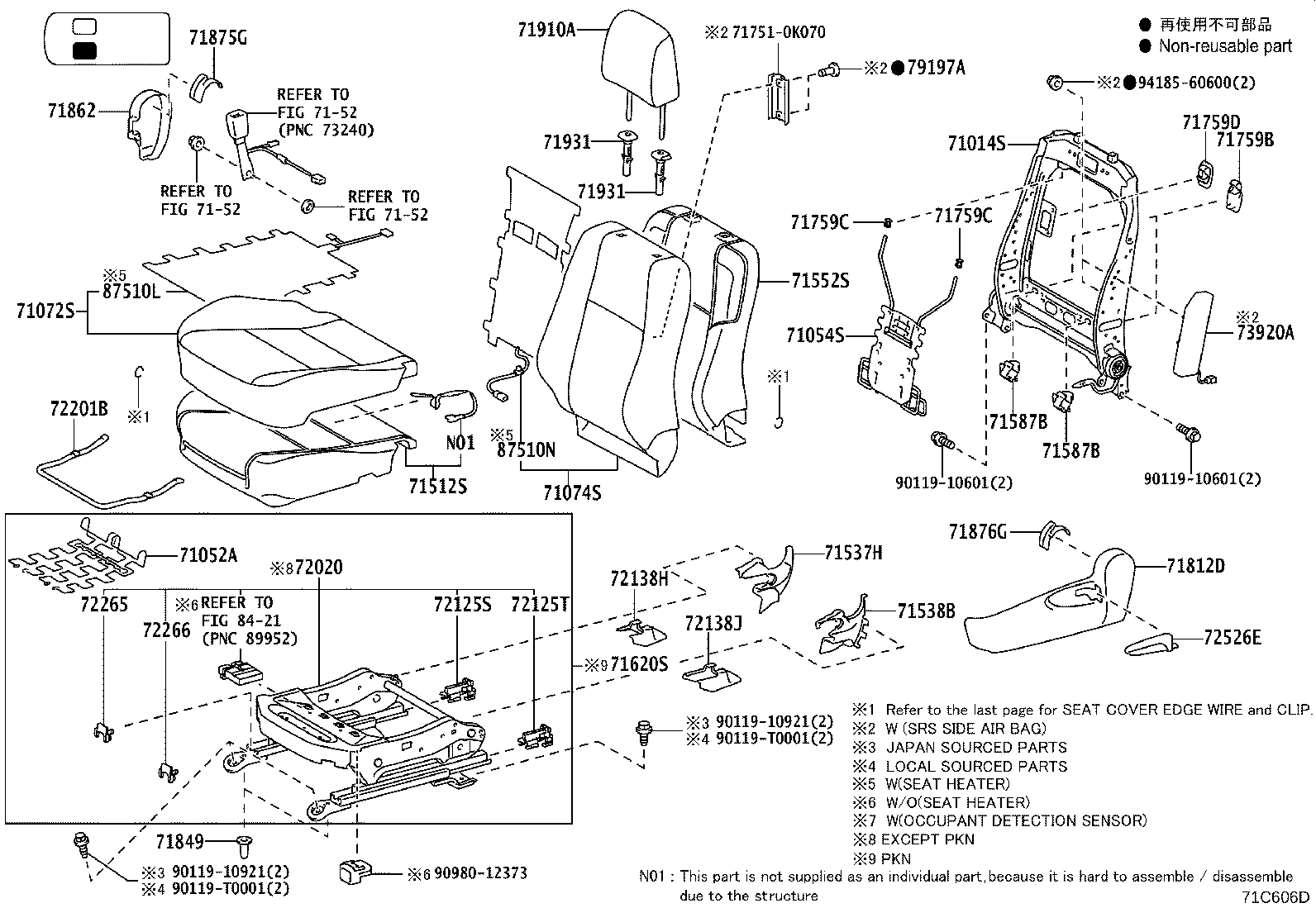

FRONT(LH MANUAL 6WAY)

diagram 71012S 71014S 71052A 71054S 71072S 71074S 71512S 7152 7152 7152 71537H 71538B 71552S 71587B 71587B 717510K070 71759B 71759C 71759C 71759D 71812D 71849 71862 71873 71874 71875G 71876G 71910A 71931 71931 72020 72125S 72125T 72138H 72138J 72201B 72265 72266 72495 72526E 73920A 79197A 79977 8202 8202 85802A 85867A 87510L 87510N 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9098012373 9354014006 9418560600
Part # Description Qty Price
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-06070

GUN125..6FC..GEN;GUN122..TS..5F..L;GUN120,135..TD,TS,TX;GUN125..6F..(H,S)..GEN;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;GUN122,126..(MD,MMD,TD,TS,TX)..(H,S);GUN122,126..(TD,TX)..L..(GCC,LA,PH,TH);GUN125..(MD,TD,TS,TX)..(ARL,GCC,IDN,LA,MA,PH,TH,VN);GGN125,GUN112,136,TGN11#,120,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)

 1
71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH
71053-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MMD,TD,TX;GUN125,TGN126..(TD,TX)..(ARL,GEN,IDN,LA,PH,TH,VN)

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0KG50C1

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71072-0KG70C2

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN125..LHD..TD..S..GEN;GUN122,TGN121..LHD..TS..L..GEN;GUN112,135,TGN110..MTM..(L,S)..(IDN,PH)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71072-0KG70C2

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0K240C4

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71074-0K460C3

GUN125..TS..6F..L..GEN;GUN122..LHD..TS..L..GEN;GUN112,TGN110,121..TS..(GEN,IDN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71074-0KP10C1

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71074-0KP20C1

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-0K571

GUN125..TX..S..GEN;GUN125..LHD..L..GEN;GUN126..TD..(L,S)..LA;GUN135..TD..6F..S..LA;GUN135..(TD,TS)..L..(ARL,LA);TGN121..(L,S)..(ARL,GCC,GEN);GUN112,126,136,TGN11#..TS..(ARL,GCC);GUN122,TGN120,126,136..LHD..(TD,TS)..(L,S);GUN125..(TD,TS,TX)..(L,S)..(ARL,GCC,LA,PH)

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-06130C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-06140C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0K120

TGN121..TS..GEN;TGN126..5F..L..GCC;GUN125..TS..(GCC,IDN);GUN125..TD..6F..L..GCC;GUN125,TGN126..TS..(H,S);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC;GUN120,122,125,TGN126..TS..(5F,6FC)..(GEN,LA,PH,TH)

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MD,MMD,TD,TX;GUN125,TGN126..(MD,TD,TX)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)

 4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MD,MMD,TD,TX;GUN125,TGN126..(MD,TD,TX)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN125..H..MA;TGN126..6FC..L;TGN121..6FC..CBU;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);TGN126..(AD,TD)..(GEN,LA);GUN122..(TD,TX)..S..(GEN,TH);GUN125..(AD,MD,TD,TX)..6F..(H,S);GUN125..(AD,TD)..6FC..(GCC,GEN,LA);GGN125,GUN120,126,13#,TGN128,13#..AD,MD,MMD,TD,TX;GUN122,125..(AD,TD,TX)..(H,L)..(ARL,BZAG,IDN,LA,PH,TH)

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN125..H..MA;TGN126..6FC..L;TGN121..6FC..CBU;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);TGN126..(AD,TD)..(GEN,LA);GUN122..(TD,TX)..S..(GEN,TH);GUN125..(AD,MD,TD,TX)..6F..(H,S);GUN125..(AD,TD)..6FC..(GCC,GEN,LA);GGN125,GUN120,126,13#,TGN128,13#..AD,MD,MMD,TD,TX;GUN122,125..(AD,TD,TX)..(H,L)..(ARL,BZAG,IDN,LA,PH,TH)

 4
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-06390C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-47010

GUN125..6FC..GEN;GUN122..TS..5F..L;GUN125..6F..(H,S)..GEN;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;GUN120,135..AD,AS,TD,TS,TX;GUN122,126..(AD,MD,MMD,TD,TS,TX)..(H,S);GUN122,126..(AD,AS,TD,TX)..L..(BZAG,GCC,LA,PH,TH);GGN125,GUN112,136,TGN11#,12#,13#..ARL,BZAG,GCC,GEN,LA;GUN125..(AD,AS,MD,TD,TS,TX)..(ARL,BZAG,GCC,IDN,LA,MA,PH,TH,VN)

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-06270C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71875-06450C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71876-06470C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W(LOCK),BLACK,TRIM2#,3#

 2
71931-0K040C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W/O(LOCK),BLACK,TRIM2#,3#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W(LOCK),BLACK,TRIM2#,3#

 2
71931-0K040C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W/O(LOCK),BLACK,TRIM2#,3#

 2
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-0K060

GUN122..S;GUN122..TS..5F..L;GUN125..TD..6F..S..LA;GUN126..TD..(L,S)..LA;GUN122..LHD..TD..L..GEN;GUN125..RHD..6F..(H,S)..GEN;GUN125..TD..6F..L..(GEN,LA);GUN125..(L,S)..(GCC,IDN,PH,TH);GUN122..(TD,TX)..L..(GCC,PH,TH);TGN121,126..LHD..(TD,TS)..(L,S);GUN126,135..RHD..(TD,TX)..(GEN,TH);GUN125..LHD..(TS,TX)..(L,S)..(GEN,LA);GUN120,125..(TD,TS,TX)..6FC..(GEN,IDN,LA,TH);GUN112,135,TGN11#,120,136..LHD..(TD,TS)..MTM..(L,S)..(GCC,GEN,LA)

 1
72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72211-0D160

GUN125..TX..GEN;GUN125..6FC..GEN;GUN122..TS..5F..L;GUN126,136..S..BZAG;GUN125..TD..6F..L..GEN;GUN125..LHD..TD..S..GEN;GUN122..LHD..TD..L..GEN;GUN125..RHD..6F..(H,S)..GEN;GUN125..ARL,BZAG,GCC,IDN,LA,PH,TH,VN;GUN120,135,TGN126,128,13#..AD,AS,TD,TS,TX;GGN125,GUN112,TGN11#,120,121..ARL,GCC,GEN;GUN122,126..(AD,AS,TD,TX)..L..(BZAG,GCC,LA,PH,TH);GUN122,126,136..(H,S)..(ARL,GCC,GEN,LA,PH,TH,TWN,VN)

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D260C0

GUN125..TD..6F..L..GEN;GUN135..LHD..6F..(LA,SA);GUN135..RHD..(SX,TD,TS,TX);GUN126,136..(L,S)..(BZAG,LA);GUN135..(AD,SD,SS)..S..(BZAG,SA);GUN122..LHD..(SS,TD)..L..(GEN,SA);GUN122..(SD,TD,TX)..L..(PH,SA,TH);GUN122,136..(H,S)..(ARL,GEN,SA,TH);GUN125..LHD..(SD,SS,TX)..6F..(L,S);GUN125..RHD..6F..(H,S)..(GEN,KEN,SA);GUN126..RHD..(H,S)..(ARL,GEN,KEN,SA,TH);GUN122,135..(AD,AS,TS)..L..(BZAG,GEN,PH);TGN121,126,136..(L,S)..(ARL,BZAG,GEN,LA,SA);GGN125,GUN120,125,LAN125..(5F,6FC)..(GEN,SA,TH);GUN125..(AD,AS,SX,TD,TS,TX)..(ARL,BZAG,IDN,LA,PH,SA,TH)

BLACK,TRIM2#

 1
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90980-12373
93540-14006
94185-60600
Linked diagrams
7152
8202

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

FRONT(LH POWER 8WAY)

diagram 71014S 71052A 71054S 71072S 71074S 71512S 7152 7152 7152 71537H 71538B 71552S 71587B 71587B 717510K070 71759B 71759C 71759C 71759D 71812D 71849 71862 71868A 71873 71874 71875G 71876G 71910A 71931 71931 72020 72125S 72125T 72138H 72138J 72265 72266 73920A 79197A 8202 8202 8401 8401 8401 8401 87510L 87510N 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9098012373 9418560600
Part # Description Qty Price
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-06070

GUN125..6FC..GEN;GUN122..TS..5F..L;GUN120,135..TD,TS,TX;GUN125..6F..(H,S)..GEN;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;GUN122,126..(MD,MMD,TD,TS,TX)..(H,S);GUN122,126..(TD,TX)..L..(GCC,LA,PH,TH);GUN125..(MD,TD,TS,TX)..(ARL,GCC,IDN,LA,MA,PH,TH,VN);GGN125,GUN112,136,TGN11#,120,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)

 1
71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH
71053-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MMD,TD,TX;GUN125,TGN126..(TD,TX)..(ARL,GEN,IDN,LA,PH,TH,VN)

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0KG50C1

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71072-0KG70C2

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN125..LHD..TD..S..GEN;GUN122,TGN121..LHD..TS..L..GEN;GUN112,135,TGN110..MTM..(L,S)..(IDN,PH)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71072-0KG70C2

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0K240C4

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71074-0K460C3

GUN125..TS..6F..L..GEN;GUN122..LHD..TS..L..GEN;GUN112,TGN110,121..TS..(GEN,IDN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71074-0KP10C1

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71074-0KP20C1

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-0K571

GUN125..TX..S..GEN;GUN125..LHD..L..GEN;GUN126..TD..(L,S)..LA;GUN135..TD..6F..S..LA;GUN135..(TD,TS)..L..(ARL,LA);TGN121..(L,S)..(ARL,GCC,GEN);GUN112,126,136,TGN11#..TS..(ARL,GCC);GUN122,TGN120,126,136..LHD..(TD,TS)..(L,S);GUN125..(TD,TS,TX)..(L,S)..(ARL,GCC,LA,PH)

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-06130C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-06140C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0K120

TGN121..TS..GEN;TGN126..5F..L..GCC;GUN125..TS..(GCC,IDN);GUN125..TD..6F..L..GCC;GUN125,TGN126..TS..(H,S);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC;GUN120,122,125,TGN126..TS..(5F,6FC)..(GEN,LA,PH,TH)

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MD,MMD,TD,TX;GUN125,TGN126..(MD,TD,TX)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)

 4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MD,MMD,TD,TX;GUN125,TGN126..(MD,TD,TX)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN125..H..MA;TGN126..6FC..L;TGN121..6FC..CBU;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);TGN126..(AD,TD)..(GEN,LA);GUN122..(TD,TX)..S..(GEN,TH);GUN125..(AD,MD,TD,TX)..6F..(H,S);GUN125..(AD,TD)..6FC..(GCC,GEN,LA);GGN125,GUN120,126,13#,TGN128,13#..AD,MD,MMD,TD,TX;GUN122,125..(AD,TD,TX)..(H,L)..(ARL,BZAG,IDN,LA,PH,TH)

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN125..H..MA;TGN126..6FC..L;TGN121..6FC..CBU;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);TGN126..(AD,TD)..(GEN,LA);GUN122..(TD,TX)..S..(GEN,TH);GUN125..(AD,MD,TD,TX)..6F..(H,S);GUN125..(AD,TD)..6FC..(GCC,GEN,LA);GGN125,GUN120,126,13#,TGN128,13#..AD,MD,MMD,TD,TX;GUN122,125..(AD,TD,TX)..(H,L)..(ARL,BZAG,IDN,LA,PH,TH)

 4
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-06390C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-47010

GUN125..6FC..GEN;GUN122..TS..5F..L;GUN125..6F..(H,S)..GEN;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;GUN120,135..AD,AS,TD,TS,TX;GUN122,126..(AD,MD,MMD,TD,TS,TX)..(H,S);GUN122,126..(AD,AS,TD,TX)..L..(BZAG,GCC,LA,PH,TH);GGN125,GUN112,136,TGN11#,12#,13#..ARL,BZAG,GCC,GEN,LA;GUN125..(AD,AS,MD,TD,TS,TX)..(ARL,BZAG,GCC,IDN,LA,MA,PH,TH,VN)

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-06270C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71875-06450C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71876-06470C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W(LOCK),BLACK,TRIM2#,3#

 2
71931-0K040C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W/O(LOCK),BLACK,TRIM2#,3#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W(LOCK),BLACK,TRIM2#,3#

 2
71931-0K040C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W/O(LOCK),BLACK,TRIM2#,3#

 2
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-0K060

GUN122..S;GUN122..TS..5F..L;GUN125..TD..6F..S..LA;GUN126..TD..(L,S)..LA;GUN122..LHD..TD..L..GEN;GUN125..RHD..6F..(H,S)..GEN;GUN125..TD..6F..L..(GEN,LA);GUN125..(L,S)..(GCC,IDN,PH,TH);GUN122..(TD,TX)..L..(GCC,PH,TH);TGN121,126..LHD..(TD,TS)..(L,S);GUN126,135..RHD..(TD,TX)..(GEN,TH);GUN125..LHD..(TS,TX)..(L,S)..(GEN,LA);GUN120,125..(TD,TS,TX)..6FC..(GEN,IDN,LA,TH);GUN112,135,TGN11#,120,136..LHD..(TD,TS)..MTM..(L,S)..(GCC,GEN,LA)

 1
72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90980-12373
94185-60600
Linked diagrams
7152
8202
8401

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

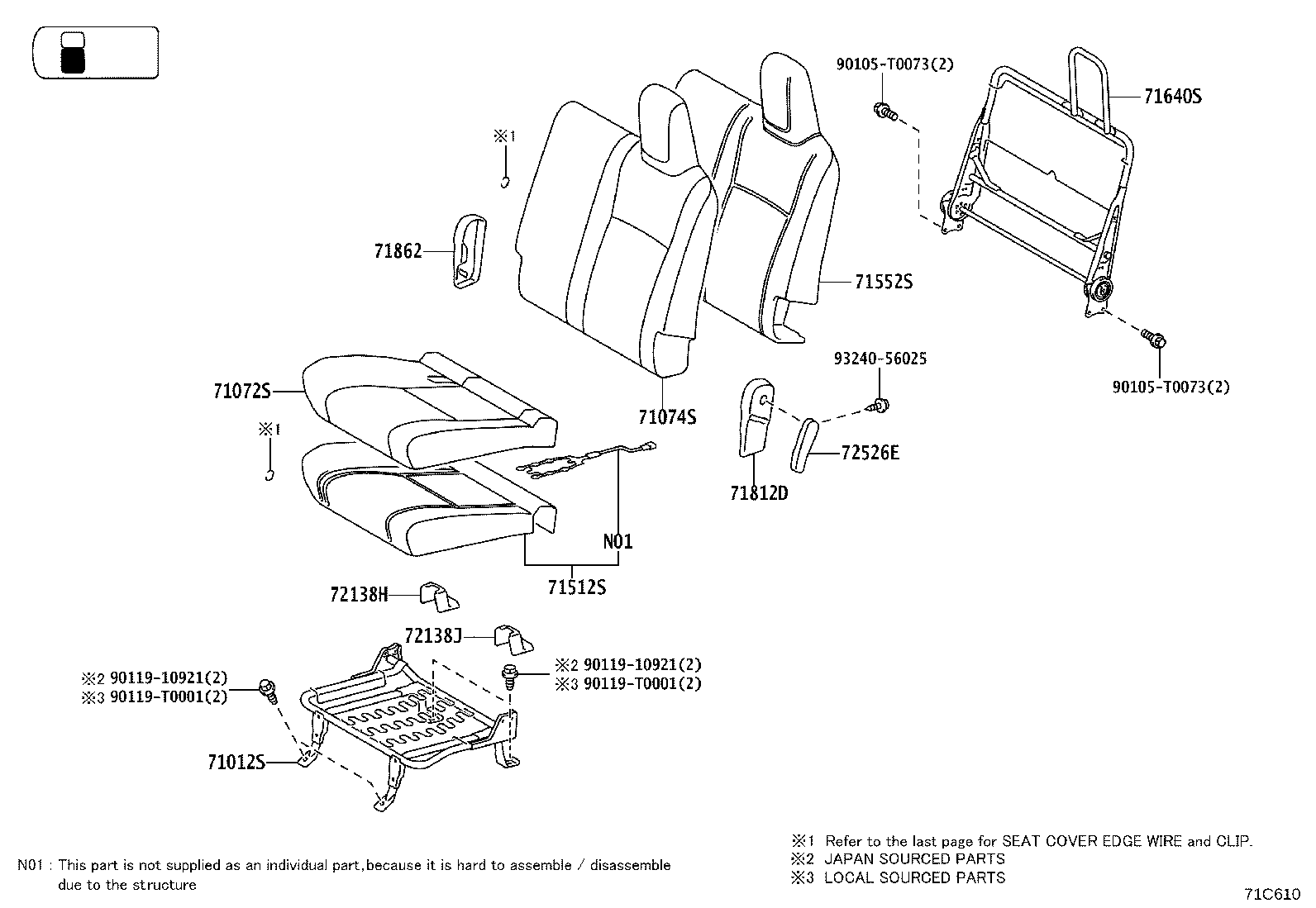

FRONT(LH BENCH TYPE)

diagram 71012S 71072S 71074S 71512S 71552S 71640S 71812D 71862 72138H 72138J 72526E 90105T0073 90105T0073 9011910921 9011910921 90119T0001 90119T0001 9324056025
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0KG50C1

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71072-0KG70C2

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN125..LHD..TD..S..GEN;GUN122,TGN121..LHD..TS..L..GEN;GUN112,135,TGN110..MTM..(L,S)..(IDN,PH)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71072-0KG70C2

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0K240C4

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71074-0K460C3

GUN125..TS..6F..L..GEN;GUN122..LHD..TS..L..GEN;GUN112,TGN110,121..TS..(GEN,IDN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71074-0KP10C1

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71074-0KP20C1

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-0K571

GUN125..TX..S..GEN;GUN125..LHD..L..GEN;GUN126..TD..(L,S)..LA;GUN135..TD..6F..S..LA;GUN135..(TD,TS)..L..(ARL,LA);TGN121..(L,S)..(ARL,GCC,GEN);GUN112,126,136,TGN11#..TS..(ARL,GCC);GUN122,TGN120,126,136..LHD..(TD,TS)..(L,S);GUN125..(TD,TS,TX)..(L,S)..(ARL,GCC,LA,PH)

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0K120

TGN121..TS..GEN;TGN126..5F..L..GCC;GUN125..TS..(GCC,IDN);GUN125..TD..6F..L..GCC;GUN125,TGN126..TS..(H,S);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC;GUN120,122,125,TGN126..TS..(5F,6FC)..(GEN,LA,PH,TH)

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-0K200

GUN122..TS..S..GCC;GUN122..RHD..TD..GEN;GUN122..LHD..TS..L..(GCC,GEN);GUN112,125,TGN11#,120,121,126..TS..MTM..(L,S)..(GCC,GEN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71640-0K670

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71640-0K200

GUN125..TS..6F..L..GEN;GUN122..LHD..TS..L..GEN;GUN112,TGN110,121..TS..(GEN,IDN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-06390C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-06270C0

GUN125..TS..H;GUN126..(AS,TS)..(ARL,BZAG);GUN122,125,TGN121..TS..(5F,6FC)..(ARL,GEN,PH);GUN120,125,13#,TGN126,136..(AS,TS)..(ARL,BZAG,IDN,LA,TH)

BLACK,TRIM2#

 1
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D260C0

GUN125..TD..6F..L..GEN;GUN135..LHD..6F..(LA,SA);GUN135..RHD..(SX,TD,TS,TX);GUN126,136..(L,S)..(BZAG,LA);GUN135..(AD,SD,SS)..S..(BZAG,SA);GUN122..LHD..(SS,TD)..L..(GEN,SA);GUN122..(SD,TD,TX)..L..(PH,SA,TH);GUN122,136..(H,S)..(ARL,GEN,SA,TH);GUN125..LHD..(SD,SS,TX)..6F..(L,S);GUN125..RHD..6F..(H,S)..(GEN,KEN,SA);GUN126..RHD..(H,S)..(ARL,GEN,KEN,SA,TH);GUN122,135..(AD,AS,TS)..L..(BZAG,GEN,PH);TGN121,126,136..(L,S)..(ARL,BZAG,GEN,LA,SA);GGN125,GUN120,125,LAN125..(5F,6FC)..(GEN,SA,TH);GUN125..(AD,AS,SX,TD,TS,TX)..(ARL,BZAG,IDN,LA,PH,SA,TH)

BLACK,TRIM2#

 1
Common parts
90105-T0073
90119-10921
90119-T0001
93240-56025

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

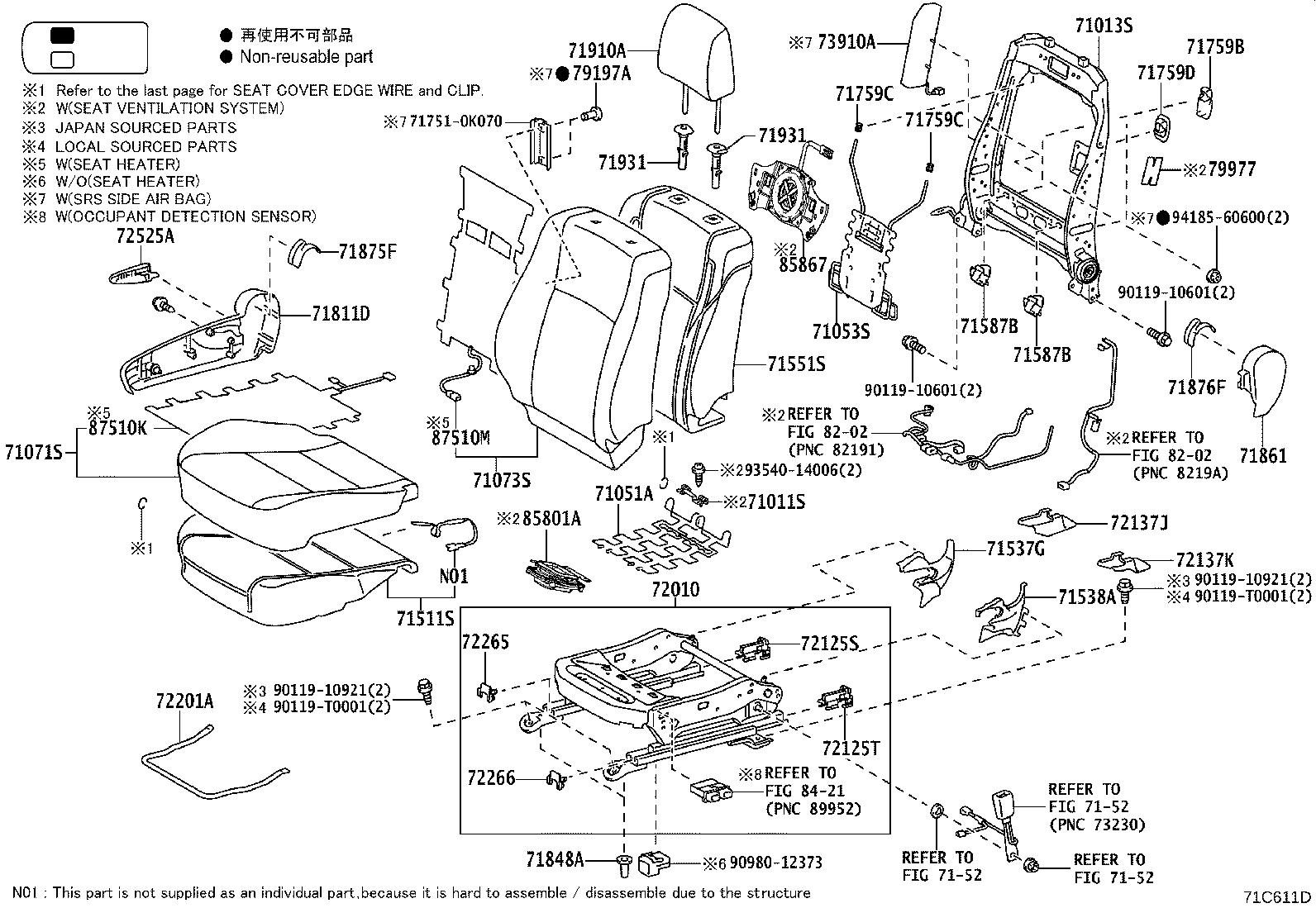

Click highlighted areas on diagram

FRONT(RH MANUAL 4WAY)

diagram 71011S 71013S 71051A 71053S 71071S 71073S 71511S 7152 7152 7152 71537G 71538A 71551S 71587B 71587B 717510K070 71759B 71759C 71759C 71759D 71811D 71848A 71861 71875F 71876F 71910A 71931 71931 72010 72125S 72125T 72137J 72137K 72201A 72265 72266 72525A 73910A 79197A 79977 8202 8202 8421 85801A 85867 87510K 87510M 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9098012373 9354014006 9418560600
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-0K090

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-06070

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71051-06070

TGN121..6FC;GUN122..S..GEN;TGN126..6FC..L;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122,TGN121..LHD..TD..L..(GEN,PH);GUN112,122,TGN110,121..RHD..(TD,TS,TX)..MTM;GGN125,GUN120,123,126,13#,TGN136..MD,MMD,TD,TS,TX;GUN125,TGN126..(MD,MS,TD,TS,TX)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)

 1
71051-06070

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH
71053-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MMD,TD,TX;GUN125,TGN126..(TD,TX)..(ARL,GEN,IDN,LA,PH,TH,VN)

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0KK40C1

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71071-0KK50C1

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71071-0KK60C2

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN125..LHD..TD..S..GEN;GUN122,TGN121..LHD..TS..L..GEN;GUN112,135,TGN110..MTM..(L,S)..(IDN,PH)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71071-0KK90C2

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0KJ00C5

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71073-0KJ20C4

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71073-0KJ50C3

GUN125..TS..6F..L..GEN;GUN122..LHD..TS..L..GEN;GUN112,TGN110,121..TS..(GEN,IDN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71073-0KJ70C4

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-0K040

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71501-0K231

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71501-0K231

GUN122,TGN121..LHD..TS..L..GEN;GUN125,135..LHD..TD..6F..S..(GEN,PH)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-02170C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71537-06130C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71537-06130C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-02120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71538-06140C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71538-06140C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K190

GUN122..TS..S..GCC;GUN122..LHD..TS..L..(GCC,GEN);GUN112,125,TGN11#,120,121,126..LHD..TS..(GCC,GEN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71551-0K190

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71551-0K210

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MD,MMD,TD,TX;GUN125,TGN126..(MD,TD,TX)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)

 4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MD,MMD,TD,TX;GUN125,TGN126..(MD,TD,TX)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN125..H..MA;TGN126..6FC..L;TGN121..6FC..CBU;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);TGN126..(AD,TD)..(GEN,LA);GUN122..(TD,TX)..S..(GEN,TH);GUN125..(AD,MD,TD,TX)..6F..(H,S);GUN125..(AD,TD)..6FC..(GCC,GEN,LA);GGN125,GUN120,126,13#,TGN128,13#..AD,MD,MMD,TD,TX;GUN122,125..(AD,TD,TX)..(H,L)..(ARL,BZAG,IDN,LA,PH,TH)

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN125..H..MA;TGN126..6FC..L;TGN121..6FC..CBU;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);TGN126..(AD,TD)..(GEN,LA);GUN122..(TD,TX)..S..(GEN,TH);GUN125..(AD,MD,TD,TX)..6F..(H,S);GUN125..(AD,TD)..6FC..(GCC,GEN,LA);GGN125,GUN120,126,13#,TGN128,13#..AD,MD,MMD,TD,TX;GUN122,125..(AD,TD,TX)..(H,L)..(ARL,BZAG,IDN,LA,PH,TH)

 4
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-06330C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71811-06330C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71811-0K150C0

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71811-0K240C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-47010

TGN121..6FC;GUN122..S..GEN;TGN126..6FC..L;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122,TGN121..LHD..TD..L..(GEN,PH);GUN112,122,TGN110,121..RHD..(TD,TS,TX)..MTM;GUN125,TGN126..ARL,BZAG,GEN,IDN,LA,MA,PH,TH,VN;GGN125,GUN120,123,126,13#,TGN128,13#..AD,AS,MD,MMD,TD,TS,TX

 2
71848-47010

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 2
71848-47010

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-06260C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71861-06260C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71861-0K130C0

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71861-0K210C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71875-06450C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71875-06450C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-06470C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71876-06470C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71876-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W(LOCK),BLACK,TRIM2#,3#

 2
71931-0K040C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W/O(LOCK),BLACK,TRIM2#,3#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W(LOCK),BLACK,TRIM2#,3#

 2
71931-0K040C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W/O(LOCK),BLACK,TRIM2#,3#

 2
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-0K080

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
72010-0K080

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
72010-0K080

TGN121..5F..H;GUN122..TS..S..GEN;TGN121..5F..(ARL,TH);GUN126..(MMD,TS)..CBU;TGN126..TD..(H,S)..GCC;TGN126..(TD,TS)..(GEN,LA);GUN112,122,TGN110..RHD..TS;GUN126..LHD..TD..6F..(L,S);GUN125,TGN126..6FC..L..GCC;GUN125..LHD..(TD,TX)..(H,S);GUN122,126..LHD..TD..H..(GCC,GEN,LA,PH,VN);GUN125..(TD,TS,TX)..L..(ARL,GEN,IDN,LA,PH);GGN125,GUN123,136,TGN136..(TD,TS)..(GCC,GEN,LA,TH);GUN122,126,TGN121..TD..(5F,6FC)..(L,S)..(GEN,LA,PH);GUN135,TGN121..(TD,TS)..(6F,6FC)..(ARL,GCC,GEN,LA,PH,VN)

 1
72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-KK010C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-KK010C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-0D160

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
72211-0D160

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
72211-0D160

TGN121..5F..H;GUN122..S..GEN;TGN126..GEN,LA;TGN126..6FC..L;GUN125..6F..S..GCC;GUN126..6FC..H..GEN;TGN126..TD..(H,S)..GCC;GUN125..6FC..(L,S)..GCC;GUN126..LHD..6F..H..GEN;GUN126..(L,S)..(GEN,TH);GUN122,125..TD..H..(GCC,GEN);GUN135..(AD,AS,TD,TS,TX)..(L,S);GUN122,135,TGN121..LHD..TD..(H,L)..(GEN,PH);GUN112,122,TGN110,121..RHD..(TD,TS,TX)..MTM;GUN125..TD..(L,S)..(ARL,GEN,IDN,LA,PH,TH,VN);GUN125..(AD,AS,TS,TX)..(ARL,BZAG,GEN,IDN,LA,TH);GGN125,GUN120,123,136,TGN128,13#..AD,AS,TD,TS,TX;GUN126,TGN121..(6F,6FC)..(ARL,BZAG,GCC,LA,MMR,PH,TWN,VN)

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0D270C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72525-0D270C0

LAN125,TGN126..SD..L;GUN122..LHD..TS..L..GEN;TGN121..(SS,TS)..(GEN,SA)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
72525-0D270C0

GUN122..LHD..TS..L..GEN;TGN121..(SD,SS,TS)..(GEN,SA);GUN125,135,LAN125,TGN126..LHD..SD..L

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
72526-0K010C0

GUN122..LHD..(SS,TS)..L..(GEN,PH,SA);GUN125,135,LAN125,TGN121,126..LHD..(SD,SS,TS)..L..(GEN,SA)

BLACK,TRIM2#

 1
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90980-12373
93540-14006
94185-60600
Linked diagrams
7152
8202
8421

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

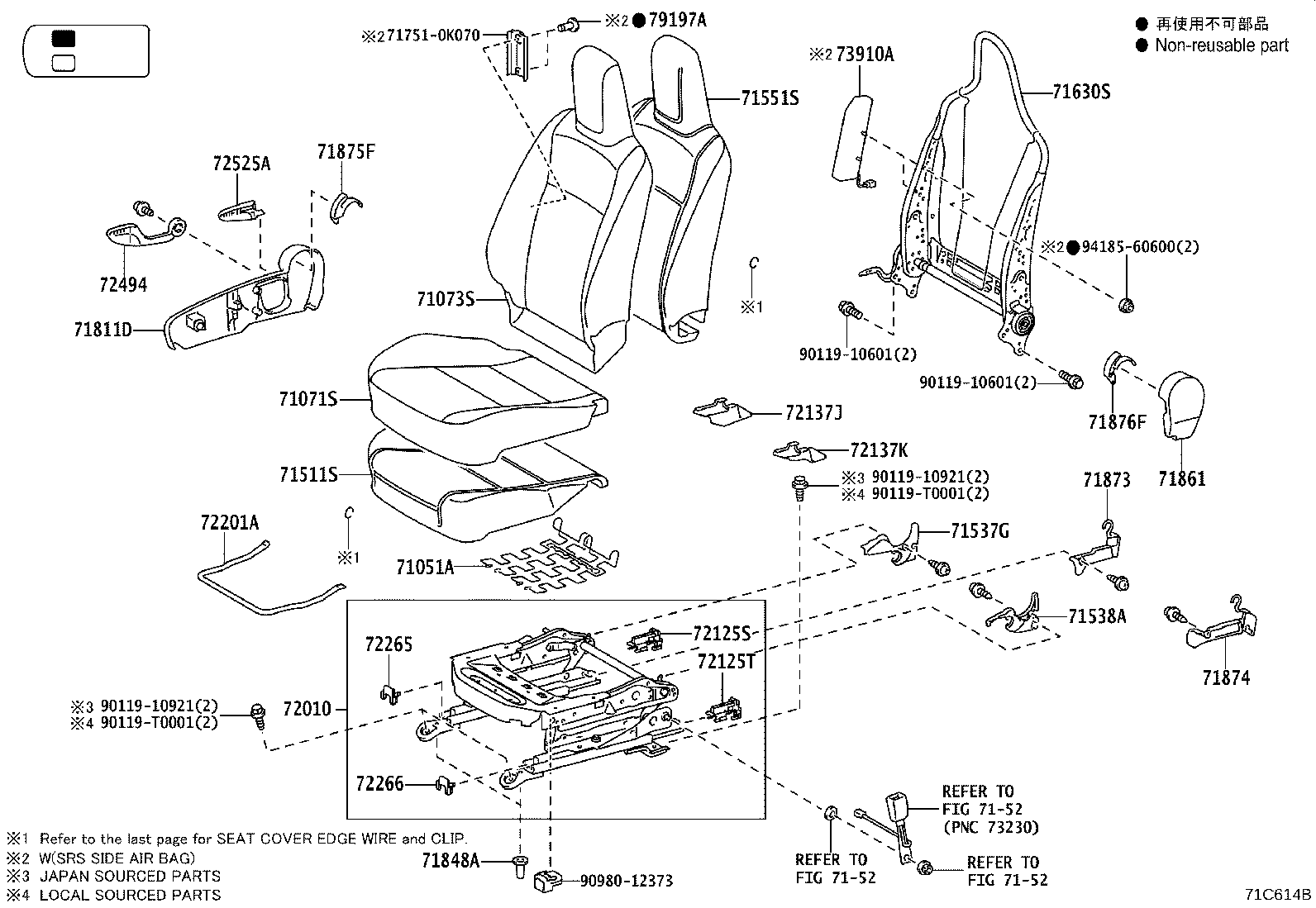

FRONT(RH MANUAL 4WAY HIGH BACK)

diagram 71051A 71071S 71073S 71511S 7152 7152 7152 71537G 71538A 71551S 71630S 717510K070 71811D 71848A 71861 71875F 71876F 72010 72125S 72125T 72137J 72137K 72201A 72265 72266 72525A 73910A 79197A 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9098012373 9418560600
Part # Description Qty Price
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-06070

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71051-06070

TGN121..6FC;GUN122..S..GEN;TGN126..6FC..L;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122,TGN121..LHD..TD..L..(GEN,PH);GUN112,122,TGN110,121..RHD..(TD,TS,TX)..MTM;GGN125,GUN120,123,126,13#,TGN136..MD,MMD,TD,TS,TX;GUN125,TGN126..(MD,MS,TD,TS,TX)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)

 1
71051-06070

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0KK40C1

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71071-0KK50C1

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71071-0KK60C2

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN125..LHD..TD..S..GEN;GUN122,TGN121..LHD..TS..L..GEN;GUN112,135,TGN110..MTM..(L,S)..(IDN,PH)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71071-0KK90C2

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0KJ00C5

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71073-0KJ20C4

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71073-0KJ50C3

GUN125..TS..6F..L..GEN;GUN122..LHD..TS..L..GEN;GUN112,TGN110,121..TS..(GEN,IDN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71073-0KJ70C4

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-0K040

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71501-0K231

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71501-0K231

GUN122,TGN121..LHD..TS..L..GEN;GUN125,135..LHD..TD..6F..S..(GEN,PH)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-02170C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71537-06130C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71537-06130C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-02120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71538-06140C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71538-06140C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K190

GUN122..TS..S..GCC;GUN122..LHD..TS..L..(GCC,GEN);GUN112,125,TGN11#,120,121,126..LHD..TS..(GCC,GEN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71551-0K190

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71551-0K210

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0K210

GUN122..TS..S..GCC;GUN122..RHD..TD..GEN;GUN122..LHD..TS..L..(GCC,GEN);GUN112,125,TGN11#,120,121,126..TS..MTM..(L,S)..(GCC,GEN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71630-0K230

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71630-0K210

GUN125..TS..6F..L..GEN;GUN122..LHD..TS..L..GEN;GUN112,TGN110,121..TS..(GEN,IDN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-06330C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71811-06330C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71811-0K150C0

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71811-0K240C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-47010

TGN121..6FC;GUN122..S..GEN;TGN126..6FC..L;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122,TGN121..LHD..TD..L..(GEN,PH);GUN112,122,TGN110,121..RHD..(TD,TS,TX)..MTM;GUN125,TGN126..ARL,BZAG,GEN,IDN,LA,MA,PH,TH,VN;GGN125,GUN120,123,126,13#,TGN128,13#..AD,AS,MD,MMD,TD,TS,TX

 2
71848-47010

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 2
71848-47010

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-06260C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71861-06260C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71861-0K130C0

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71861-0K210C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71875-06450C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71875-06450C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-06470C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71876-06470C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71876-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-0K080

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
72010-0K080

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
72010-0K080

TGN121..5F..H;GUN122..TS..S..GEN;TGN121..5F..(ARL,TH);GUN126..(MMD,TS)..CBU;TGN126..TD..(H,S)..GCC;TGN126..(TD,TS)..(GEN,LA);GUN112,122,TGN110..RHD..TS;GUN126..LHD..TD..6F..(L,S);GUN125,TGN126..6FC..L..GCC;GUN125..LHD..(TD,TX)..(H,S);GUN122,126..LHD..TD..H..(GCC,GEN,LA,PH,VN);GUN125..(TD,TS,TX)..L..(ARL,GEN,IDN,LA,PH);GGN125,GUN123,136,TGN136..(TD,TS)..(GCC,GEN,LA,TH);GUN122,126,TGN121..TD..(5F,6FC)..(L,S)..(GEN,LA,PH);GUN135,TGN121..(TD,TS)..(6F,6FC)..(ARL,GCC,GEN,LA,PH,VN)

 1
72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-KK010C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-KK010C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-0D160

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
72211-0D160

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
72211-0D160

TGN121..5F..H;GUN122..S..GEN;TGN126..GEN,LA;TGN126..6FC..L;GUN125..6F..S..GCC;GUN126..6FC..H..GEN;TGN126..TD..(H,S)..GCC;GUN125..6FC..(L,S)..GCC;GUN126..LHD..6F..H..GEN;GUN126..(L,S)..(GEN,TH);GUN122,125..TD..H..(GCC,GEN);GUN135..(AD,AS,TD,TS,TX)..(L,S);GUN122,135,TGN121..LHD..TD..(H,L)..(GEN,PH);GUN112,122,TGN110,121..RHD..(TD,TS,TX)..MTM;GUN125..TD..(L,S)..(ARL,GEN,IDN,LA,PH,TH,VN);GUN125..(AD,AS,TS,TX)..(ARL,BZAG,GEN,IDN,LA,TH);GGN125,GUN120,123,136,TGN128,13#..AD,AS,TD,TS,TX;GUN126,TGN121..(6F,6FC)..(ARL,BZAG,GCC,LA,MMR,PH,TWN,VN)

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0D270C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72525-0D270C0

LAN125,TGN126..SD..L;GUN122..LHD..TS..L..GEN;TGN121..(SS,TS)..(GEN,SA)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
72525-0D270C0

GUN122..LHD..TS..L..GEN;TGN121..(SD,SS,TS)..(GEN,SA);GUN125,135,LAN125,TGN126..LHD..SD..L

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
72526-0K010C0

GUN122..LHD..(SS,TS)..L..(GEN,PH,SA);GUN125,135,LAN125,TGN121,126..LHD..(SD,SS,TS)..L..(GEN,SA)

BLACK,TRIM2#

 1
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90980-12373
94185-60600
Linked diagrams
7152

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

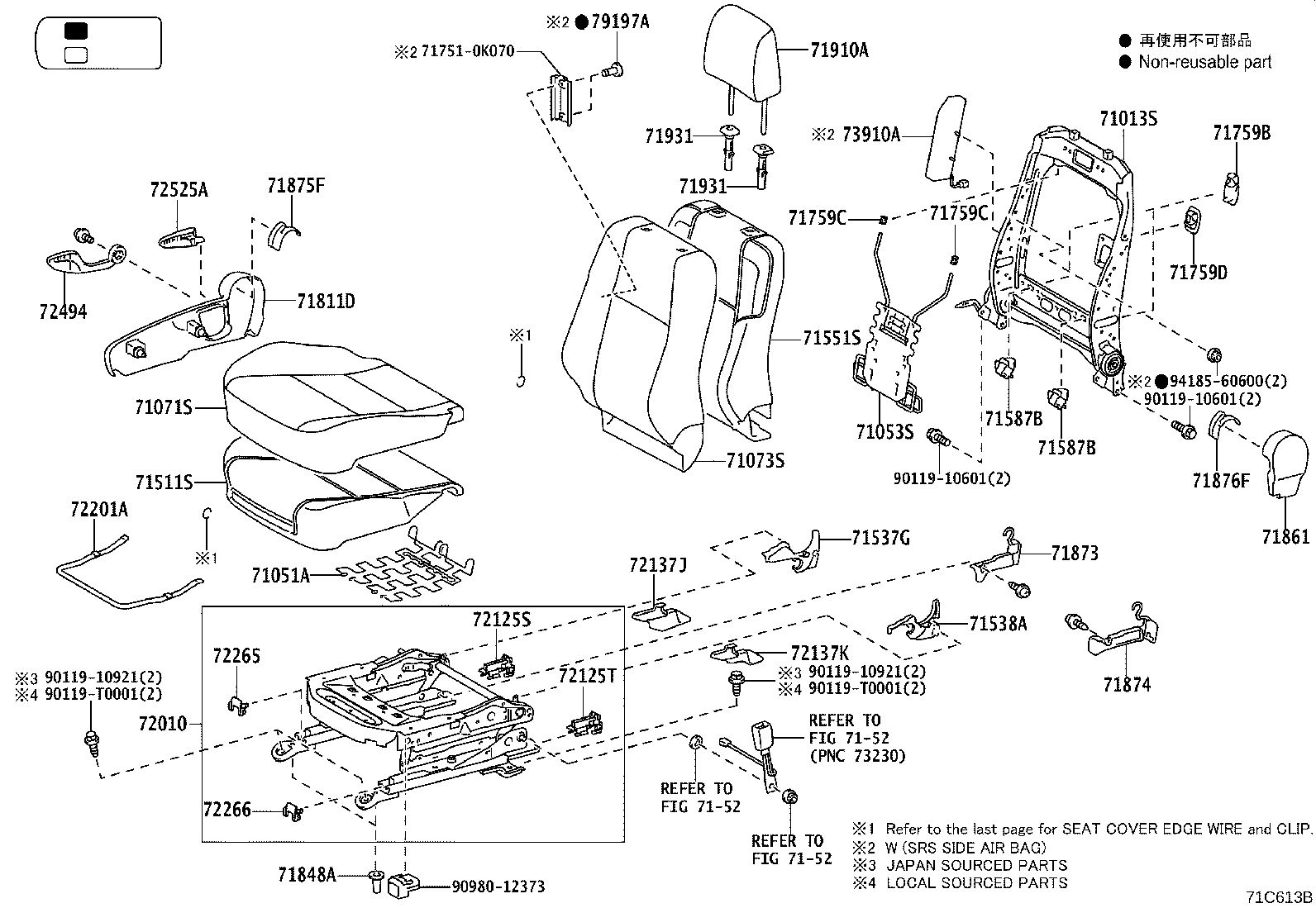

FRONT(RH MANUAL 6WAY)

diagram 71013S 71051A 71053S 71071S 71073S 71511S 7152 7152 7152 71537G 71538A 71551S 71587B 71587B 717510K070 71759B 71759C 71759C 71759D 71811D 71848A 71861 71873 71874 71875F 71876F 71910A 71931 71931 72010 72125S 72125T 72137J 72137K 72201A 72265 72266 72494 72525A 73910A 79197A 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9098012373 9418560600
Part # Description Qty Price
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-06070

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71051-06070

TGN121..6FC;GUN122..S..GEN;TGN126..6FC..L;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122,TGN121..LHD..TD..L..(GEN,PH);GUN112,122,TGN110,121..RHD..(TD,TS,TX)..MTM;GGN125,GUN120,123,126,13#,TGN136..MD,MMD,TD,TS,TX;GUN125,TGN126..(MD,MS,TD,TS,TX)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)

 1
71051-06070

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH
71053-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MMD,TD,TX;GUN125,TGN126..(TD,TX)..(ARL,GEN,IDN,LA,PH,TH,VN)

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0KK40C1

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71071-0KK50C1

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71071-0KK60C2

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN125..LHD..TD..S..GEN;GUN122,TGN121..LHD..TS..L..GEN;GUN112,135,TGN110..MTM..(L,S)..(IDN,PH)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71071-0KK90C2

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0KJ00C5

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71073-0KJ20C4

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71073-0KJ50C3

GUN125..TS..6F..L..GEN;GUN122..LHD..TS..L..GEN;GUN112,TGN110,121..TS..(GEN,IDN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71073-0KJ70C4

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-0K040

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71501-0K231

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71501-0K231

GUN122,TGN121..LHD..TS..L..GEN;GUN125,135..LHD..TD..6F..S..(GEN,PH)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-02170C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71537-06130C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71537-06130C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-02120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71538-06140C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71538-06140C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K190

GUN122..TS..S..GCC;GUN122..LHD..TS..L..(GCC,GEN);GUN112,125,TGN11#,120,121,126..LHD..TS..(GCC,GEN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71551-0K190

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71551-0K210

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MD,MMD,TD,TX;GUN125,TGN126..(MD,TD,TX)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)

 4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MD,MMD,TD,TX;GUN125,TGN126..(MD,TD,TX)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN125..H..MA;TGN126..6FC..L;TGN121..6FC..CBU;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);TGN126..(AD,TD)..(GEN,LA);GUN122..(TD,TX)..S..(GEN,TH);GUN125..(AD,MD,TD,TX)..6F..(H,S);GUN125..(AD,TD)..6FC..(GCC,GEN,LA);GGN125,GUN120,126,13#,TGN128,13#..AD,MD,MMD,TD,TX;GUN122,125..(AD,TD,TX)..(H,L)..(ARL,BZAG,IDN,LA,PH,TH)

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN125..H..MA;TGN126..6FC..L;TGN121..6FC..CBU;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);TGN126..(AD,TD)..(GEN,LA);GUN122..(TD,TX)..S..(GEN,TH);GUN125..(AD,MD,TD,TX)..6F..(H,S);GUN125..(AD,TD)..6FC..(GCC,GEN,LA);GGN125,GUN120,126,13#,TGN128,13#..AD,MD,MMD,TD,TX;GUN122,125..(AD,TD,TX)..(H,L)..(ARL,BZAG,IDN,LA,PH,TH)

 4
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-06330C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71811-06330C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71811-0K150C0

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71811-0K240C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-47010

TGN121..6FC;GUN122..S..GEN;TGN126..6FC..L;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122,TGN121..LHD..TD..L..(GEN,PH);GUN112,122,TGN110,121..RHD..(TD,TS,TX)..MTM;GUN125,TGN126..ARL,BZAG,GEN,IDN,LA,MA,PH,TH,VN;GGN125,GUN120,123,126,13#,TGN128,13#..AD,AS,MD,MMD,TD,TS,TX

 2
71848-47010

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 2
71848-47010

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-06260C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71861-06260C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71861-0K130C0

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71861-0K210C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71875-06450C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71875-06450C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-06470C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71876-06470C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71876-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W(LOCK),BLACK,TRIM2#,3#

 2
71931-0K040C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W/O(LOCK),BLACK,TRIM2#,3#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W(LOCK),BLACK,TRIM2#,3#

 2
71931-0K040C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W/O(LOCK),BLACK,TRIM2#,3#

 2
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-0K080

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
72010-0K080

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
72010-0K080

TGN121..5F..H;GUN122..TS..S..GEN;TGN121..5F..(ARL,TH);GUN126..(MMD,TS)..CBU;TGN126..TD..(H,S)..GCC;TGN126..(TD,TS)..(GEN,LA);GUN112,122,TGN110..RHD..TS;GUN126..LHD..TD..6F..(L,S);GUN125,TGN126..6FC..L..GCC;GUN125..LHD..(TD,TX)..(H,S);GUN122,126..LHD..TD..H..(GCC,GEN,LA,PH,VN);GUN125..(TD,TS,TX)..L..(ARL,GEN,IDN,LA,PH);GGN125,GUN123,136,TGN136..(TD,TS)..(GCC,GEN,LA,TH);GUN122,126,TGN121..TD..(5F,6FC)..(L,S)..(GEN,LA,PH);GUN135,TGN121..(TD,TS)..(6F,6FC)..(ARL,GCC,GEN,LA,PH,VN)

 1
72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-KK010C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-KK010C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-0D160

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
72211-0D160

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
72211-0D160

TGN121..5F..H;GUN122..S..GEN;TGN126..GEN,LA;TGN126..6FC..L;GUN125..6F..S..GCC;GUN126..6FC..H..GEN;TGN126..TD..(H,S)..GCC;GUN125..6FC..(L,S)..GCC;GUN126..LHD..6F..H..GEN;GUN126..(L,S)..(GEN,TH);GUN122,125..TD..H..(GCC,GEN);GUN135..(AD,AS,TD,TS,TX)..(L,S);GUN122,135,TGN121..LHD..TD..(H,L)..(GEN,PH);GUN112,122,TGN110,121..RHD..(TD,TS,TX)..MTM;GUN125..TD..(L,S)..(ARL,GEN,IDN,LA,PH,TH,VN);GUN125..(AD,AS,TS,TX)..(ARL,BZAG,GEN,IDN,LA,TH);GGN125,GUN120,123,136,TGN128,13#..AD,AS,TD,TS,TX;GUN126,TGN121..(6F,6FC)..(ARL,BZAG,GCC,LA,MMR,PH,TWN,VN)

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0D270C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72525-0D270C0

LAN125,TGN126..SD..L;GUN122..LHD..TS..L..GEN;TGN121..(SS,TS)..(GEN,SA)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
72525-0D270C0

GUN122..LHD..TS..L..GEN;TGN121..(SD,SS,TS)..(GEN,SA);GUN125,135,LAN125,TGN126..LHD..SD..L

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
72526-0K010C0

GUN122..LHD..(SS,TS)..L..(GEN,PH,SA);GUN125,135,LAN125,TGN121,126..LHD..(SD,SS,TS)..L..(GEN,SA)

BLACK,TRIM2#

 1
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90980-12373
94185-60600
Linked diagrams
7152

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

FRONT(RH MANUAL 6WAY HIGH BACK)

diagram 71051A 71071S 71073S 71511S 7152 7152 7152 71537G 71538A 71551S 71630S 717510K070 71811D 71848A 71861 71873 71874 71875F 71876F 72010 72125S 72125T 72137J 72137K 72201A 72265 72266 72494 72525A 73910A 79197A 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9098012373 9418560600
Part # Description Qty Price
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-06070

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71051-06070

TGN121..6FC;GUN122..S..GEN;TGN126..6FC..L;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122,TGN121..LHD..TD..L..(GEN,PH);GUN112,122,TGN110,121..RHD..(TD,TS,TX)..MTM;GGN125,GUN120,123,126,13#,TGN136..MD,MMD,TD,TS,TX;GUN125,TGN126..(MD,MS,TD,TS,TX)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)

 1
71051-06070

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0KK40C1

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71071-0KK50C1

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71071-0KK60C2

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN125..LHD..TD..S..GEN;GUN122,TGN121..LHD..TS..L..GEN;GUN112,135,TGN110..MTM..(L,S)..(IDN,PH)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71071-0KK90C2

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0KJ00C5

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71073-0KJ20C4

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71073-0KJ50C3

GUN125..TS..6F..L..GEN;GUN122..LHD..TS..L..GEN;GUN112,TGN110,121..TS..(GEN,IDN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71073-0KJ70C4

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-0K040

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71501-0K231

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71501-0K231

GUN122,TGN121..LHD..TS..L..GEN;GUN125,135..LHD..TD..6F..S..(GEN,PH)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-02170C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71537-06130C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71537-06130C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-02120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71538-06140C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71538-06140C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K190

GUN122..TS..S..GCC;GUN122..LHD..TS..L..(GCC,GEN);GUN112,125,TGN11#,120,121,126..LHD..TS..(GCC,GEN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71551-0K190

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71551-0K210

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0K210

GUN122..TS..S..GCC;GUN122..RHD..TD..GEN;GUN122..LHD..TS..L..(GCC,GEN);GUN112,125,TGN11#,120,121,126..TS..MTM..(L,S)..(GCC,GEN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71630-0K230

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71630-0K210

GUN125..TS..6F..L..GEN;GUN122..LHD..TS..L..GEN;GUN112,TGN110,121..TS..(GEN,IDN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-06330C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71811-06330C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71811-0K150C0

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71811-0K240C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-47010

TGN121..6FC;GUN122..S..GEN;TGN126..6FC..L;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122,TGN121..LHD..TD..L..(GEN,PH);GUN112,122,TGN110,121..RHD..(TD,TS,TX)..MTM;GUN125,TGN126..ARL,BZAG,GEN,IDN,LA,MA,PH,TH,VN;GGN125,GUN120,123,126,13#,TGN128,13#..AD,AS,MD,MMD,TD,TS,TX

 2
71848-47010

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 2
71848-47010

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-06260C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71861-06260C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71861-0K130C0

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71861-0K210C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71875-06450C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71875-06450C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-06470C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71876-06470C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71876-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-0K080

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
72010-0K080

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
72010-0K080

TGN121..5F..H;GUN122..TS..S..GEN;TGN121..5F..(ARL,TH);GUN126..(MMD,TS)..CBU;TGN126..TD..(H,S)..GCC;TGN126..(TD,TS)..(GEN,LA);GUN112,122,TGN110..RHD..TS;GUN126..LHD..TD..6F..(L,S);GUN125,TGN126..6FC..L..GCC;GUN125..LHD..(TD,TX)..(H,S);GUN122,126..LHD..TD..H..(GCC,GEN,LA,PH,VN);GUN125..(TD,TS,TX)..L..(ARL,GEN,IDN,LA,PH);GGN125,GUN123,136,TGN136..(TD,TS)..(GCC,GEN,LA,TH);GUN122,126,TGN121..TD..(5F,6FC)..(L,S)..(GEN,LA,PH);GUN135,TGN121..(TD,TS)..(6F,6FC)..(ARL,GCC,GEN,LA,PH,VN)

 1
72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-KK010C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-KK010C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-0D160

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
72211-0D160

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
72211-0D160

TGN121..5F..H;GUN122..S..GEN;TGN126..GEN,LA;TGN126..6FC..L;GUN125..6F..S..GCC;GUN126..6FC..H..GEN;TGN126..TD..(H,S)..GCC;GUN125..6FC..(L,S)..GCC;GUN126..LHD..6F..H..GEN;GUN126..(L,S)..(GEN,TH);GUN122,125..TD..H..(GCC,GEN);GUN135..(AD,AS,TD,TS,TX)..(L,S);GUN122,135,TGN121..LHD..TD..(H,L)..(GEN,PH);GUN112,122,TGN110,121..RHD..(TD,TS,TX)..MTM;GUN125..TD..(L,S)..(ARL,GEN,IDN,LA,PH,TH,VN);GUN125..(AD,AS,TS,TX)..(ARL,BZAG,GEN,IDN,LA,TH);GGN125,GUN120,123,136,TGN128,13#..AD,AS,TD,TS,TX;GUN126,TGN121..(6F,6FC)..(ARL,BZAG,GCC,LA,MMR,PH,TWN,VN)

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0D270C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72525-0D270C0

LAN125,TGN126..SD..L;GUN122..LHD..TS..L..GEN;TGN121..(SS,TS)..(GEN,SA)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
72525-0D270C0

GUN122..LHD..TS..L..GEN;TGN121..(SD,SS,TS)..(GEN,SA);GUN125,135,LAN125,TGN126..LHD..SD..L

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
72526-0K010C0

GUN122..LHD..(SS,TS)..L..(GEN,PH,SA);GUN125,135,LAN125,TGN121,126..LHD..(SD,SS,TS)..L..(GEN,SA)

BLACK,TRIM2#

 1
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90980-12373
94185-60600
Linked diagrams
7152

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

FRONT(RH POWER 8WAY)

diagram 71013S 71051A 71053S 71071S 71073S 71511S 7152 7152 7152 71537G 71538A 71551S 71587B 71587B 717510K070 71759B 71759C 71759C 71759D 71811D 71848A 71861 71867A 71873 71874 71875F 71876F 71910A 71931 71931 72010 72125S 72125T 72137J 72137K 72265 72266 73910A 79197A 8202 8202 8401 8401 8401 8401 87510K 87510M 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9418560600
Part # Description Qty Price
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-06070

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71051-06070

TGN121..6FC;GUN122..S..GEN;TGN126..6FC..L;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122,TGN121..LHD..TD..L..(GEN,PH);GUN112,122,TGN110,121..RHD..(TD,TS,TX)..MTM;GGN125,GUN120,123,126,13#,TGN136..MD,MMD,TD,TS,TX;GUN125,TGN126..(MD,MS,TD,TS,TX)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)

 1
71051-06070

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH
71053-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MMD,TD,TX;GUN125,TGN126..(TD,TX)..(ARL,GEN,IDN,LA,PH,TH,VN)

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0KK40C1

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71071-0KK50C1

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71071-0KK60C2

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN125..LHD..TD..S..GEN;GUN122,TGN121..LHD..TS..L..GEN;GUN112,135,TGN110..MTM..(L,S)..(IDN,PH)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71071-0KK90C2

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0KJ00C5

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71073-0KJ20C4

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71073-0KJ50C3

GUN125..TS..6F..L..GEN;GUN122..LHD..TS..L..GEN;GUN112,TGN110,121..TS..(GEN,IDN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71073-0KJ70C4

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-0K040

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71501-0K231

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71501-0K231

GUN122,TGN121..LHD..TS..L..GEN;GUN125,135..LHD..TD..6F..S..(GEN,PH)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-02170C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71537-06130C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71537-06130C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-02120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71538-06140C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71538-06140C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K190

GUN122..TS..S..GCC;GUN122..LHD..TS..L..(GCC,GEN);GUN112,125,TGN11#,120,121,126..LHD..TS..(GCC,GEN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71551-0K190

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71551-0K210

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MD,MMD,TD,TX;GUN125,TGN126..(MD,TD,TX)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)

 4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

TGN126..6FC..L;TGN121..6FC..CBU;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);GUN122..(TD,TX)..L..(PH,TH);GUN122..(TD,TX)..S..(GEN,TH);GGN125,GUN120,126,13#,TGN136..MD,MMD,TD,TX;GUN125,TGN126..(MD,TD,TX)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN125..H..MA;TGN126..6FC..L;TGN121..6FC..CBU;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);TGN126..(AD,TD)..(GEN,LA);GUN122..(TD,TX)..S..(GEN,TH);GUN125..(AD,MD,TD,TX)..6F..(H,S);GUN125..(AD,TD)..6FC..(GCC,GEN,LA);GGN125,GUN120,126,13#,TGN128,13#..AD,MD,MMD,TD,TX;GUN122,125..(AD,TD,TX)..(H,L)..(ARL,BZAG,IDN,LA,PH,TH)

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN125..H..MA;TGN126..6FC..L;TGN121..6FC..CBU;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..TD..6F..L..GEN;GUN122..LHD..TD..L..GEN;TGN121..TD..5F..(ARL,GEN);TGN126..(AD,TD)..(GEN,LA);GUN122..(TD,TX)..S..(GEN,TH);GUN125..(AD,MD,TD,TX)..6F..(H,S);GUN125..(AD,TD)..6FC..(GCC,GEN,LA);GGN125,GUN120,126,13#,TGN128,13#..AD,MD,MMD,TD,TX;GUN122,125..(AD,TD,TX)..(H,L)..(ARL,BZAG,IDN,LA,PH,TH)

 4
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-06330C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71811-06330C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71811-0K150C0

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71811-0K240C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-47010

TGN121..6FC;GUN122..S..GEN;TGN126..6FC..L;GUN125..6FC..GCC;GUN122,TGN121..5F..H;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN122,TGN121..LHD..TD..L..(GEN,PH);GUN112,122,TGN110,121..RHD..(TD,TS,TX)..MTM;GUN125,TGN126..ARL,BZAG,GEN,IDN,LA,MA,PH,TH,VN;GGN125,GUN120,123,126,13#,TGN128,13#..AD,AS,MD,MMD,TD,TS,TX

 2
71848-47010

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 2
71848-47010

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-06260C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71861-06260C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71861-0K130C0

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71861-0K210C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71875-06450C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71875-06450C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-06470C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71876-06470C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71876-0K120C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W(LOCK),BLACK,TRIM2#,3#

 2
71931-0K040C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W/O(LOCK),BLACK,TRIM2#,3#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W(LOCK),BLACK,TRIM2#,3#

 2
71931-0K040C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

W/O(LOCK),BLACK,TRIM2#,3#

 2
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-0K080

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
72010-0K080

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
72010-0K080

TGN121..5F..H;GUN122..TS..S..GEN;TGN121..5F..(ARL,TH);GUN126..(MMD,TS)..CBU;TGN126..TD..(H,S)..GCC;TGN126..(TD,TS)..(GEN,LA);GUN112,122,TGN110..RHD..TS;GUN126..LHD..TD..6F..(L,S);GUN125,TGN126..6FC..L..GCC;GUN125..LHD..(TD,TX)..(H,S);GUN122,126..LHD..TD..H..(GCC,GEN,LA,PH,VN);GUN125..(TD,TS,TX)..L..(ARL,GEN,IDN,LA,PH);GGN125,GUN123,136,TGN136..(TD,TS)..(GCC,GEN,LA,TH);GUN122,126,TGN121..TD..(5F,6FC)..(L,S)..(GEN,LA,PH);GUN135,TGN121..(TD,TS)..(6F,6FC)..(ARL,GCC,GEN,LA,PH,VN)

 1
72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH
72125-0D030

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72125-0D030

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-KK010C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-KK010C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

GUN135..H..TH;GUN135..6F..LA;GUN122..SD,SS,TS;GUN126..6F..BZAG;GUN125..TX..S..GEN;GUN122..TD..5F..(L,S);GUN126..RHD..6FC..S..GEN;GUN126..(L,S)..(LA,SA,TH);GUN126..RHD..6F..H..(GEN,TH);TGN121..(SD,SS,TD,TS)..(L,S);GGN125,GUN112,123,TGN11#..AD,TS;GUN125..S..(BZAG,GCC,KEN,LA,SA);GUN135..(L,S)..(ARL,BZAG,GEN,KEN,SA);GUN125,136..LHD..(AD,TD)..H..(BZAG,GEN);GUN125,126..6FC..(BZAG,IDN,KEN,MA,MMR,TH);GUN125..L..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA);GUN136,LAN125,TGN120,126,136..(L,S)..(BZAG,GCC,GEN,LA,SA)

FOR MANUAL SEAT

 1
72265-0D080

GUN125..H..GCC;GUN136..S..ARL;GUN126..TD..S..ARL;GUN126..6F..S..GEN;GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN125..(SD,TX)..H;GUN125..6FC..S..GEN;GUN126..(TS,TX)..ARL;GUN135..6FC..(GEN,LA);GUN136..H..(ARL,LA,SA);GUN126..LHD..6F..H..GEN;GUN126..LHD..6FC..S..GEN;GUN122,TGN121,126,128..H;GGN125,GUN120..GCC,SA,TH;GUN135..(L,S)..(PH,TH,VN);GUN125..LHD..TD..S..(GEN,VN);GUN122,TGN138..(AD,TD,TX)..(BZAG,TH);GUN126..6F..H..(ARL,GCC,KEN,LA,PH,SA);GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN126..(AD,SD,SS,SX,TD)..6FC..H..(ARL,GCC,GEN,LA,PH,SA,TWN,VN)

 2
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
94185-60600
Linked diagrams
7152
8202
8401

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

FRONT(RH BENCH TYPE)

diagram 71011S 71071S 71073S 71511S 71551S 71630S 71811D 71861 72137J 72137K 72525A 90105T0073 90105T0073 9011910921 9011910921 90119T0001 90119T0001 9324056025
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-0K090

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0KK40C1

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71071-0KK50C1

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71071-0KK60C2

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN125..LHD..TD..S..GEN;GUN122,TGN121..LHD..TS..L..GEN;GUN112,135,TGN110..MTM..(L,S)..(IDN,PH)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71071-0KK90C2

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0KJ00C5

GUN122..RHD..TD..GEN;GUN125..TS..6F..L..GEN;GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71073-0KJ20C4

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71073-0KJ50C3

GUN125..TS..6F..L..GEN;GUN122..LHD..TS..L..GEN;GUN112,TGN110,121..TS..(GEN,IDN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71073-0KJ70C4

GUN122,TGN121..LHD..TS..L..GEN

SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-0K040

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71501-0K231

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..GEN;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71501-0K231

GUN122,TGN121..LHD..TS..L..GEN;GUN125,135..LHD..TD..6F..S..(GEN,PH)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K190

GUN122..TS..S..GCC;GUN122..LHD..TS..L..(GCC,GEN);GUN112,125,TGN11#,120,121,126..LHD..TS..(GCC,GEN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71551-0K190

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71551-0K210

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0K210

GUN122..TS..S..GCC;GUN122..RHD..TD..GEN;GUN122..LHD..TS..L..(GCC,GEN);GUN112,125,TGN11#,120,121,126..TS..MTM..(L,S)..(GCC,GEN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

 1
71630-0K230

TGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN122,TGN121..LHD..TS..L..(GEN,PH);GUN112,122,TGN11#,120,121..5F..(L,S)..GCC

 1
71630-0K210

GUN125..TS..6F..L..GEN;GUN122..LHD..TS..L..GEN;GUN112,TGN110,121..TS..(GEN,IDN)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-06330C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71811-06330C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71811-0K150C0

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71811-0K240C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-06260C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71861-06260C0

GUN122,TGN121..LHD..TS..L..GEN

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
71861-0K130C0

GUN122,TGN121..LHD..TS..L..(GEN,PH)

BLACK,TRIM2#

 1
71861-0K210C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-KK010C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-KK010C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0D270C0

TGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC

BLACK,TRIM2#,3#

 1
72525-0D270C0

LAN125,TGN126..SD..L;GUN122..LHD..TS..L..GEN;TGN121..(SS,TS)..(GEN,SA)

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
72525-0D270C0

GUN122..LHD..TS..L..GEN;TGN121..(SD,SS,TS)..(GEN,SA);GUN125,135,LAN125,TGN126..LHD..SD..L

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

 1
72526-0K010C0

GUN122..LHD..(SS,TS)..L..(GEN,PH,SA);GUN125,135,LAN125,TGN121,126..LHD..(SD,SS,TS)..L..(GEN,SA)

BLACK,TRIM2#

 1
Common parts
90105-T0073
90119-10921
90119-T0001
93240-56025
