RZN193L-PRMDK (1997)
Toyota Hilux

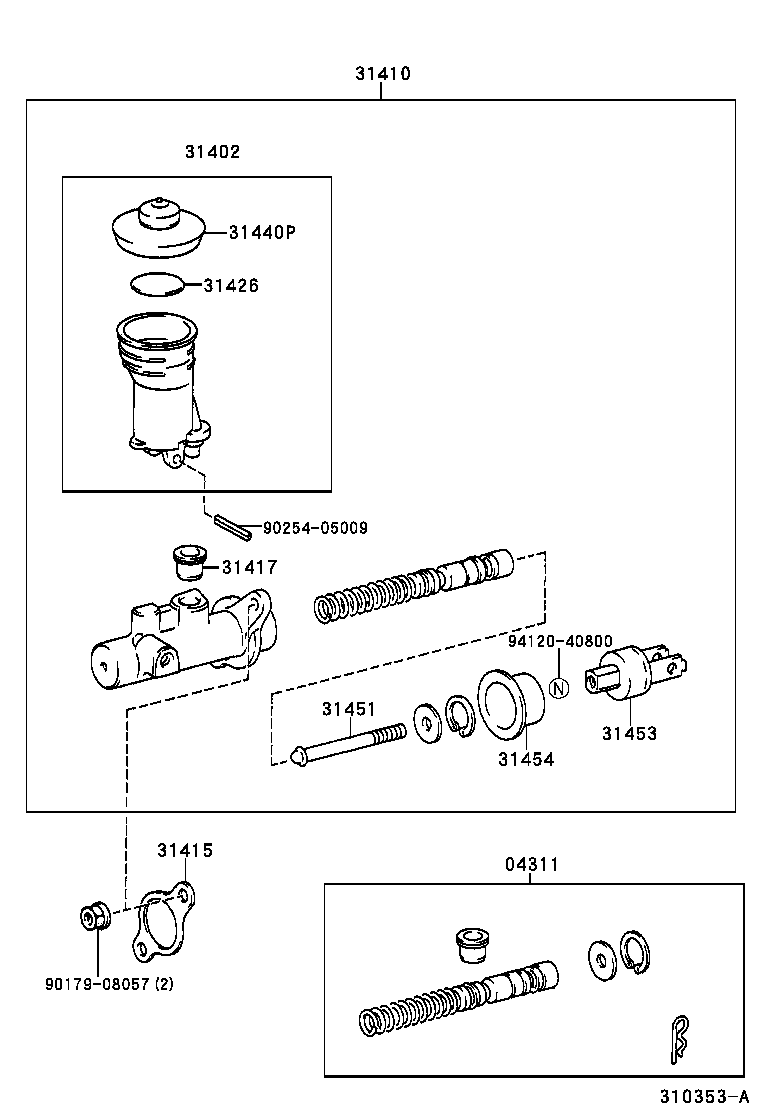

(9708- )LN166,RZN142,147,148,168,193..CBR,EFI; (9708- )LN140,145,147,15#,16#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-26070 |
LN145,155..LHD..TH;KZN165,LN152,17#,RZN154,174..(THDCB,THSCB,XTR)..MTM..(ARL,GEN);LN14#,16#,19#,RZN14#,16#,19#,YN140..(DCB,SADCB,SCB)..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 04311-26070 |
LN145,155..LHD..TH;LN140,145,147,167,192,RZN147,149,169,194,YN140..(DCB,SADCB,SCB)..MTM..(ARL,GCC,GEN,SA);KZN165,LN141,146,152,166,17#,191,RZN142,144,148,154,168,174,193..(DCB,SCB,THDCB,THSCB,XTR)..MTM..(ARL,GCC,GEN) |
1 | ||
| 04311-26070 |
RZN149,154,169..CBR;LN145,155,RZN144..LHD..(CBR,DSL)..(GCC,TH);LN167,RZN149,154,169,194..(DCB,SADCB,SCB,XTR)..MTM..(ARL,SA);LN14#,152,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 04311-26070 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 04311-26070 |
RZN148..CO;LN145..LHD..IV3;KZN165,190,RZN194..SR..SA;LN145,RZN148..(GEN,SA)..CBU;LN140,141,146,16#,171,19#,RZN142,144,147,149,154,16#,193..MTM..(CO,GCC,GEN,SA) |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-35120 |
LN145,155..LHD..TH;KZN165,LN152,17#,RZN154,174..(THDCB,THSCB,XTR)..MTM..(ARL,GEN);LN14#,16#,19#,RZN14#,16#,19#,YN140..(DCB,SADCB,SCB)..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 31402-35120 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 31402-35120 |
LN145,155..LHD..TH;LN140,145,147,167,192,RZN147,149,169,194,YN140..(DCB,SADCB,SCB)..MTM..(ARL,GCC,GEN,SA);KZN165,LN141,146,152,166,17#,191,RZN142,144,148,154,168,174,193..(DCB,SCB,THDCB,THSCB,XTR)..MTM..(ARL,GCC,GEN) |
1 | ||
| 31402-35120 |
LN152..XTR..IV3;RZN169..DCB..SA;LN145..LHD..DLX..TH;LN167..DCB..DLX..ARL;LN147,166..(DCB,SCB)..DLX..(ARL,GCC,GEN);LN155,RZN148,168,193..LHD..DLX..(GEN,TH);RZN149,169..(DCB,SCB)..MTM..DLX..(ARL,SA);LN167,RZN154..RHD..(SCB,XTR)..MTM..DLX..(DEFI,EFI);LN167,RZN147,174,194..(DCB,SADCB,SCB,XTR)..(CBR,DSL,EFI);LN140,141,145,146,17#,19#,RZN142,144,149,154,169,YN140..(DCB,SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GCC,GEN,SA) |
1 | ||
| 31402-35120 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-34012 |
LN145,166,RZN169..RHD..GEN..CBU;RZN142,147,148,168,193..GEN..CBU |
1 | ||
| 31415 - GASKET, CLUTCH MASTER CYLINDER | ||||
| 31415-10010 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 31415-10010 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 31417 - GROMMET, CLUTCH RESERVOIR | ||||
| 31417-35010 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 31417-35010 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN154..(DCB,SCB,THXTR,XTR)..MTM..(ARL,SA);KZN165,LN152..(THDCB,THSCB,XTR)..MTM..SR..(DEFI,TDE);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX |
1 | ||
| 31426-30011 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 31405-35020 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 31405-35020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-35080 |
LN145,155..LHD..TH;LN140,145,147,167,192,RZN147,149,169,194,YN140..(DCB,SADCB,SCB)..MTM..(ARL,GCC,GEN,SA);KZN165,LN141,146,152,166,17#,191,RZN142,144,148,154,168,174,193..(DCB,SCB,THDCB,THSCB,XTR)..MTM..(ARL,GCC,GEN) |
1 | ||
| 31451-35080 |
LN145,155..LHD..TH;KZN165,LN152,17#,RZN154,174..(THDCB,THSCB,XTR)..MTM..(ARL,GEN);LN14#,16#,19#,RZN14#,16#,19#,YN140..(DCB,SADCB,SCB)..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 31451-35080 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 31451-35080 |
RZN169..CBR;LN152..XTR..IV3;LN145..LHD..DLX..TH;LN167,RZN169,194..SA;LN155,RZN144,149,154..LHD..(CBR,DSL);LN167,RZN149,154,169..(DCB,SCB,XTR)..MTM..DLX..ARL;LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 31451-35080 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-28020 |
LN14#,155,157,16#,19#,RZN14#,16#,19#,YN140..MTM;KZN165,LN150,152,17#,RZN154,174..(THDCB,THSCB,THXTR,XTR)..MTM |
1 | ||
| 31404-28020 |
LN140,145,167,192,RZN147,169,194,YN140;KZN165,LN141,146,147,15#,166,17#,191,RZN142,144,148,149,154,168,174,193..MTM..(ARL,GCC,GEN,TH) |
1 | ||
| 31404-28020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 31404-28020 |
LN145..SCB;LN152..IV3;LN145..LHD..DLX..TH;LN150,152,RZN194..MTM..SR;LN145,167..DCB..DLX..(ARL,GEN);RZN149,169..MTM..DLX..(ARL,SA);LN167,RZN154..RHD..MTM..(DSL,EFI);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-16010 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 31454-16010 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| Common parts | ||||
| 90179-08057 | ||||
| 90254-05009 | ||||
| 94120-40800 | ||||

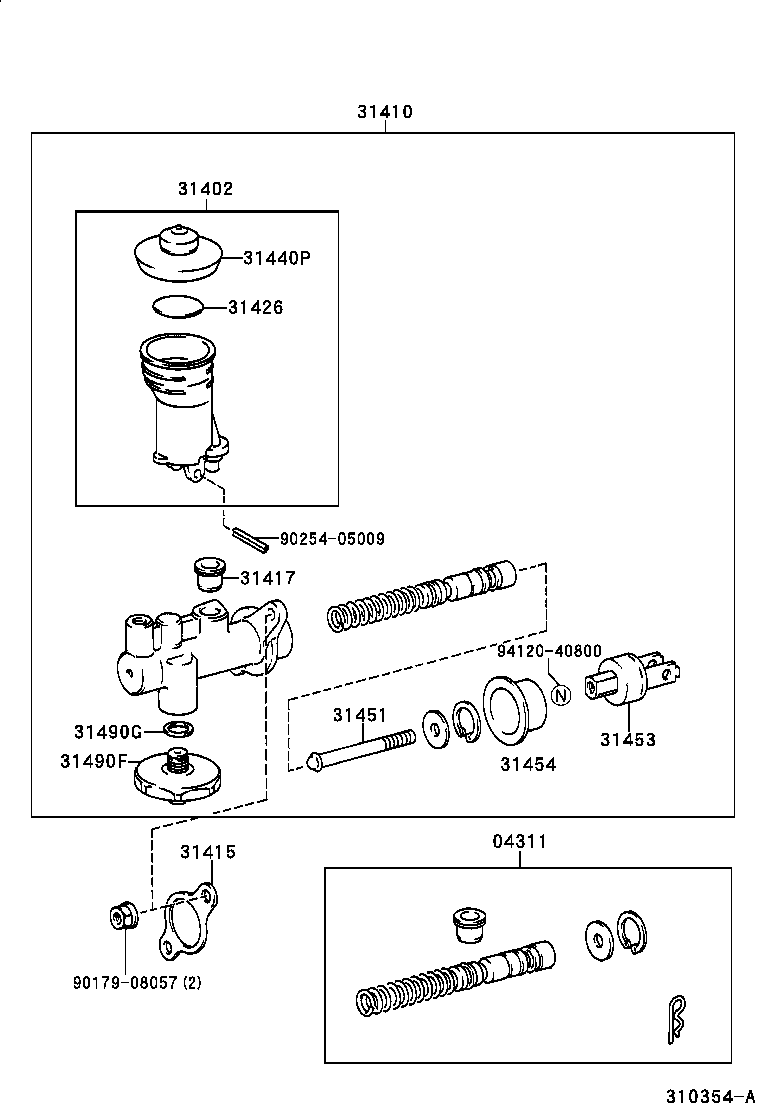

(9708- )LN141,145,146,155,166,171,191,RZN144,149,154,169..LHD..MTM ; (9908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-26070 |
LN145,155..LHD..TH;KZN165,LN152,17#,RZN154,174..(THDCB,THSCB,XTR)..MTM..(ARL,GEN);LN14#,16#,19#,RZN14#,16#,19#,YN140..(DCB,SADCB,SCB)..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 04311-26070 |
LN145,155..LHD..TH;LN140,145,147,167,192,RZN147,149,169,194,YN140..(DCB,SADCB,SCB)..MTM..(ARL,GCC,GEN,SA);KZN165,LN141,146,152,166,17#,191,RZN142,144,148,154,168,174,193..(DCB,SCB,THDCB,THSCB,XTR)..MTM..(ARL,GCC,GEN) |
1 | ||
| 04311-26070 |
RZN149,154,169..CBR;LN145,155,RZN144..LHD..(CBR,DSL)..(GCC,TH);LN167,RZN149,154,169,194..(DCB,SADCB,SCB,XTR)..MTM..(ARL,SA);LN14#,152,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 04311-26070 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 04311-26070 |
RZN148..CO;LN145..LHD..IV3;KZN165,190,RZN194..SR..SA;LN145,RZN148..(GEN,SA)..CBU;LN140,141,146,16#,171,19#,RZN142,144,147,149,154,16#,193..MTM..(CO,GCC,GEN,SA) |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-35120 |
LN145,155..LHD..TH;KZN165,LN152,17#,RZN154,174..(THDCB,THSCB,XTR)..MTM..(ARL,GEN);LN14#,16#,19#,RZN14#,16#,19#,YN140..(DCB,SADCB,SCB)..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 31402-35120 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 31402-35120 |
LN145,155..LHD..TH;LN140,145,147,167,192,RZN147,149,169,194,YN140..(DCB,SADCB,SCB)..MTM..(ARL,GCC,GEN,SA);KZN165,LN141,146,152,166,17#,191,RZN142,144,148,154,168,174,193..(DCB,SCB,THDCB,THSCB,XTR)..MTM..(ARL,GCC,GEN) |
1 | ||
| 31402-35120 |
LN152..XTR..IV3;RZN169..DCB..SA;LN145..LHD..DLX..TH;LN167..DCB..DLX..ARL;LN147,166..(DCB,SCB)..DLX..(ARL,GCC,GEN);LN155,RZN148,168,193..LHD..DLX..(GEN,TH);RZN149,169..(DCB,SCB)..MTM..DLX..(ARL,SA);LN167,RZN154..RHD..(SCB,XTR)..MTM..DLX..(DEFI,EFI);LN167,RZN147,174,194..(DCB,SADCB,SCB,XTR)..(CBR,DSL,EFI);LN140,141,145,146,17#,19#,RZN142,144,149,154,169,YN140..(DCB,SCB,XTR)..(CBR,DEFI,DSL)..(ARL,GCC,GEN,SA) |
1 | ||
| 31402-35120 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-34012 |
LN145,166,RZN169..RHD..GEN..CBU;RZN142,147,148,168,193..GEN..CBU |
1 | ||
| 31415 - GASKET, CLUTCH MASTER CYLINDER | ||||
| 31415-10010 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 31415-10010 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 31417 - GROMMET, CLUTCH RESERVOIR | ||||
| 31417-35010 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 31417-35010 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN154..(DCB,SCB,THXTR,XTR)..MTM..(ARL,SA);KZN165,LN152..(THDCB,THSCB,XTR)..MTM..SR..(DEFI,TDE);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX |
1 | ||
| 31426-30011 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 31405-35020 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 31405-35020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-35080 |
LN145,155..LHD..TH;LN140,145,147,167,192,RZN147,149,169,194,YN140..(DCB,SADCB,SCB)..MTM..(ARL,GCC,GEN,SA);KZN165,LN141,146,152,166,17#,191,RZN142,144,148,154,168,174,193..(DCB,SCB,THDCB,THSCB,XTR)..MTM..(ARL,GCC,GEN) |
1 | ||
| 31451-35080 |
LN145,155..LHD..TH;KZN165,LN152,17#,RZN154,174..(THDCB,THSCB,XTR)..MTM..(ARL,GEN);LN14#,16#,19#,RZN14#,16#,19#,YN140..(DCB,SADCB,SCB)..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 31451-35080 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 31451-35080 |
RZN169..CBR;LN152..XTR..IV3;LN145..LHD..DLX..TH;LN167,RZN169,194..SA;LN155,RZN144,149,154..LHD..(CBR,DSL);LN167,RZN149,154,169..(DCB,SCB,XTR)..MTM..DLX..ARL;LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 31451-35080 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-28020 |
LN14#,155,157,16#,19#,RZN14#,16#,19#,YN140..MTM;KZN165,LN150,152,17#,RZN154,174..(THDCB,THSCB,THXTR,XTR)..MTM |
1 | ||
| 31404-28020 |
LN140,145,167,192,RZN147,169,194,YN140;KZN165,LN141,146,147,15#,166,17#,191,RZN142,144,148,149,154,168,174,193..MTM..(ARL,GCC,GEN,TH) |
1 | ||
| 31404-28020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 31404-28020 |
LN145..SCB;LN152..IV3;LN145..LHD..DLX..TH;LN150,152,RZN194..MTM..SR;LN145,167..DCB..DLX..(ARL,GEN);RZN149,169..MTM..DLX..(ARL,SA);LN167,RZN154..RHD..MTM..(DSL,EFI);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-16010 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM..(ARL,GCC,GEN,SA) |
1 | ||
| 31454-16010 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| Common parts | ||||
| 90179-08057 | ||||
| 90254-05009 | ||||
| 94120-40800 | ||||
(0408-0808)KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..5F ; (0808-0809)5F..MA ; (0808-0810
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90178-T0067 | ||||
| 90466-T0018 | ||||
| 94120-40800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
