RZN169R-TRMDKQ (1997)
Toyota Hilux

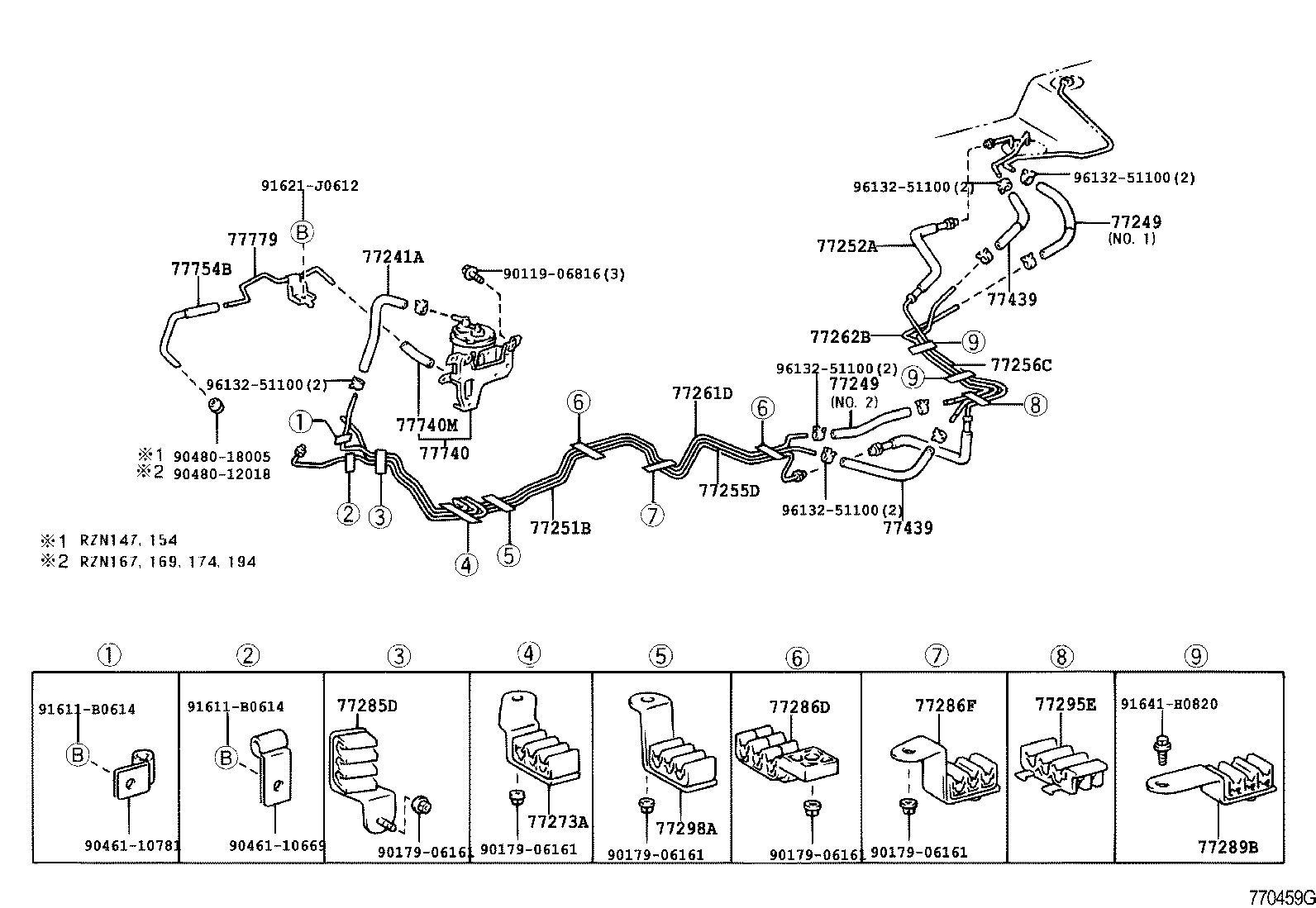

ILLUST NO. 2 OF 2(9708- )RZN142,144,147,149,169..ARL,GCC,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06030 |
RZN147,149,154,169,174..ARL *H,L=220 |
1 | ||
| 95333-06030 |
RZN147,169,174..ARL *H,L=220 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-35120 |
RZN147,149,154,169,174..ARL NO.1 |
1 | ||
| 95333-06020 |
RZN147,149,154,169,174..ARL NO.2 |
1 | ||
| 95333-06020 |
RZN147,169,174..ARL NO.2 |
1 | ||
| 77249-35120 |
RZN147,169,174..ARL NO.1 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-35120 |
RZN147,149,154,169,174..ARL NO.1 |
1 | ||
| 95333-06020 |
RZN147,149,154,169,174..ARL NO.2 |
1 | ||
| 95333-06020 |
RZN147,169,174..ARL NO.2 |
1 | ||
| 77249-35120 |
RZN147,169,174..ARL NO.1 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-3D240 |
RZN147,149,169..(SCB,THSCB)..ARL |
1 | ||
| 77251-3D240 |
RZN147,169..SCB..ARL |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77209-35350 |
RZN147,169,174..(SCB,THSCB,THXTR,XTR)..ARL |
1 | ||
| 77209-35350 |
RZN169..(SCB,THSCB)..DLX..(ARL,SA);RZN148,149,168..(SCB,THSCB)..EFI..(ARL,GEN);RZN147,154,174,194..RHD..(SCB,THSCB,THXTR,XTR)..EFI |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-35800 |
LN140,141,145,147,155,157,16#,192..SCB |
1 | ||
| 77255-35800 |
LN155..LHD;LN140,141,145,147,16#,192..(SCB,THSCB)..(ARL,GCC,GEN,SA) |
1 | ||
| 77255-35800 |
LN155..LHD;LN140,141,145,147,16#,192..SCB..(ARL,GCC,GEN,SA) |
1 | ||
| 77255-35770 |
RZN142,144,149,169..SCB..CBR;RZN147,148,168,194..SCB,THSCB;RZN149..(SCB,THSCB)..DLX..EFI;RZN169..(SCB,THSCB)..(ARL,SA) |
1 | ||
| 77255-35770 |
RZN147,169..SCB..ARL |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-35050 |
LN150,152,17#,RZN154,174;KZN165,190,LN145,146,147,155,157,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,SCB,THDCB,THSCB |
1 | ||
| 77256-35050 |
RZN147,169,174..ARL;LN167..DCB..SR..ARL;LN167..SCB..ARL..CBU |
1 | ||
| 77256-35050 |
RZN149,154,169..CBR;RZN154,169..(DCB,SCB,XTR)..(ARL,SA);LN150,152,17#,RZN147,174..DCB,SCB,XTR;RZN148,149,168..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,190,LN145,146,147,155,157,16#,19#,RZN19#..(DCB,SCB)..(DEFI,DSL,EFI,TDE) |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-35530 |
RZN147,149,169..(SCB,THSCB)..ARL |
1 | ||
| 77261-35530 |
RZN147,169..SCB..ARL |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-35060 |
LN150,152,17#,RZN154,174;KZN165,190,LN145,146,147,155,157,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,SCB,THDCB,THSCB |
1 | ||
| 77262-35060 |
RZN149,154,169..CBR;RZN154,169..(DCB,SCB,XTR)..(ARL,SA);LN150,152,17#,RZN147,174..DCB,SCB,XTR;RZN148,149,168..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,190,LN145,146,147,155,157,16#,19#,RZN19#..(DCB,SCB)..(DEFI,DSL,EFI,TDE) |
1 | ||
| 77262-35060 |
RZN147,169,174..ARL;LN167..DCB..SR..ARL;LN167..SCB..ARL..CBU |
1 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-35020 |
KZN165..TH;LN167..SR..ARL;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77273-35020 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35320 |
LN147,152,167,172..DEFI..ARL;LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77285-35320 |
LN167..SR..ARL;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35020 |
KZN165..TH;LN167..SR..ARL;RZN147,169..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU |
2 | ||
| 77286-35020 |
KZN165..SCB..DLX;LN145,155,RZN147,149,169..ARL,TH;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,157,167,192..DEFI..(ARL,TH) |
2 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35040 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77286-35040 |
KZN165..TH;LN167..SR..ARL;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-35020 |
KZN165..SCB..DLX;LN147,152,157,172..DEFI;KZN165..(DCB,THDCB)..ARL;LN145,150,155,RZN147,149,154,169,174..ARL,TH;LN167..(DCB,SCB,THDCB,THSCB)..DEFI..(ARL,TH) |
2 | ||
| 77289-35020 |
LN167..SR..ARL;KZN165..DCB..TH;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
2 | ||
| 77295E - GROMMET, FUEL TUBE | ||||
| 77295-35160 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77295-35160 |
KZN165..TH;LN167..SR..ARL;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-35010 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77298-35010 |
KZN165..TH;LN167..SR..ARL;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35030 |
RZN147,149,154,169,174..ARL |
2 | ||
| 77439-35030 |
RZN147,169,174..ARL |
2 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35030 |
RZN147,149,154,169,174..ARL |
2 | ||
| 77439-35030 |
RZN147,169,174..ARL |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-35450 |
RZN169..SA;RZN154,194..RHD;RZN169..DLX..ARL;RZN148,149,168,174,193..DLX..EFI..(ARL,GEN) |
1 | ||
| 77740-35450 |
RZN169,174..ARL |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-35450 |
RZN169..SA;RZN154,194..RHD;RZN169..DLX..ARL;RZN148,149,168,174,193..DLX..EFI..(ARL,GEN) |
1 | ||
| 77740-35450 |
RZN169,174..ARL |
1 | ||
| 77740M - HOSE, CHARCOAL CANISTER | ||||
| 90445-12284 |
RZN149..SR;RZN147,169..EFI;RZN149..DLX..(ARL,GCC);RZN147,148,16#,193..LHD;RZN142,144,154,174,194..ARL,GCC,SA |
1 | ||
| 90445-12284 |
RZN19#;RZN169..DCB..SA;RZN169..DLX..(ARL,SA);RZN147,154,174..ARL,GCC;RZN142,144,149,169..CBR..GCC;RZN148,149,168..DLX..EFI..(ARL,GEN) |
1 | ||
| 90445-12284 |
RZN147,169,174..ARL |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-35360 |
RZN169..LHD;RZN16#,174,19#..EFI |
1 | ||
| 77754-35360 |
RZN174,19#;RZN169..DCB..SA;RZN169..CBR..GCC;RZN168..DLX..GEN;RZN169..DLX..(ARL,SA) |
1 | ||
| 77754-35360 |
RZN169,174..ARL |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-35040 |
RZN147,169,174..ARL |
1 | ||
| 77779-35040 |
RZN19#;RZN169..DCB..SA;RZN169..DLX..(ARL,SA);RZN147,154,174..ARL,GCC;RZN142,144,149,169..CBR..GCC;RZN148,149,168..DLX..EFI..(ARL,GEN) |
1 | ||
| 77779-35040 |
RZN149..SR;RZN147,169..EFI;RZN149..DLX..(ARL,GCC);RZN147,148,16#,193..LHD;RZN142,144,154,174,194..ARL,GCC,SA |
1 | ||
| Common parts | ||||
| 90119-06816 | ||||
| 90179-06161 | ||||
| 90461-10669 | ||||
| 90461-10781 | ||||
| 90480-12018 | ||||
| 90480-18005 | ||||
| 91611-B0614 | ||||
| 91621-J0612 | ||||
| 91641-H0820 | ||||
| 91651-60614 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 2 OF 2(9708- )KZN165,190,LN14#,15#,16#,17#,19#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-35120 |
RZN147,149,154,169,174..ARL NO.1 |
1 | ||
| 95333-06020 |
RZN147,149,154,169,174..ARL NO.2 |
1 | ||
| 95333-06020 |
RZN147,169,174..ARL NO.2 |
1 | ||
| 77249-35120 |
RZN147,169,174..ARL NO.1 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-3D240 |
RZN147,149,169..(SCB,THSCB)..ARL |
1 | ||
| 77251-3D240 |
RZN147,169..SCB..ARL |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77209-35350 |
RZN147,169,174..(SCB,THSCB,THXTR,XTR)..ARL |
1 | ||
| 77209-35350 |
RZN169..(SCB,THSCB)..DLX..(ARL,SA);RZN148,149,168..(SCB,THSCB)..EFI..(ARL,GEN);RZN147,154,174,194..RHD..(SCB,THSCB,THXTR,XTR)..EFI |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-35800 |
LN140,141,145,147,155,157,16#,192..SCB |
1 | ||
| 77255-35800 |
LN155..LHD;LN140,141,145,147,16#,192..(SCB,THSCB)..(ARL,GCC,GEN,SA) |
1 | ||
| 77255-35800 |
LN155..LHD;LN140,141,145,147,16#,192..SCB..(ARL,GCC,GEN,SA) |
1 | ||
| 77255-35770 |
RZN142,144,149,169..SCB..CBR;RZN147,148,168,194..SCB,THSCB;RZN149..(SCB,THSCB)..DLX..EFI;RZN169..(SCB,THSCB)..(ARL,SA) |
1 | ||
| 77255-35770 |
RZN147,169..SCB..ARL |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-35050 |
LN150,152,17#,RZN154,174;KZN165,190,LN145,146,147,155,157,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,SCB,THDCB,THSCB |
1 | ||
| 77256-35050 |
RZN147,169,174..ARL;LN167..DCB..SR..ARL;LN167..SCB..ARL..CBU |
1 | ||
| 77256-35050 |
RZN149,154,169..CBR;RZN154,169..(DCB,SCB,XTR)..(ARL,SA);LN150,152,17#,RZN147,174..DCB,SCB,XTR;RZN148,149,168..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,190,LN145,146,147,155,157,16#,19#,RZN19#..(DCB,SCB)..(DEFI,DSL,EFI,TDE) |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-35060 |
LN150,152,17#,RZN154,174;KZN165,190,LN145,146,147,155,157,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,SCB,THDCB,THSCB |
1 | ||
| 77262-35060 |
RZN149,154,169..CBR;RZN154,169..(DCB,SCB,XTR)..(ARL,SA);LN150,152,17#,RZN147,174..DCB,SCB,XTR;RZN148,149,168..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,190,LN145,146,147,155,157,16#,19#,RZN19#..(DCB,SCB)..(DEFI,DSL,EFI,TDE) |
1 | ||
| 77262-35060 |
RZN147,169,174..ARL;LN167..DCB..SR..ARL;LN167..SCB..ARL..CBU |
1 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-35020 |
KZN165..TH;LN167..SR..ARL;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77273-35020 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35320 |
LN147,152,167,172..DEFI..ARL;LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77285-35320 |
LN167..SR..ARL;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35020 |
KZN165..TH;LN167..SR..ARL;RZN147,169..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU |
2 | ||
| 77286-35020 |
KZN165..SCB..DLX;LN145,155,RZN147,149,169..ARL,TH;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,157,167,192..DEFI..(ARL,TH) |
2 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35040 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77286-35040 |
KZN165..TH;LN167..SR..ARL;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-35020 |
KZN165..SCB..DLX;LN147,152,157,172..DEFI;KZN165..(DCB,THDCB)..ARL;LN145,150,155,RZN147,149,154,169,174..ARL,TH;LN167..(DCB,SCB,THDCB,THSCB)..DEFI..(ARL,TH) |
2 | ||
| 77289-35020 |
LN167..SR..ARL;KZN165..DCB..TH;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
2 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-35020 |
KZN165..SCB..DLX;LN147,152,157,172..DEFI;KZN165..(DCB,THDCB)..ARL;LN145,150,155,RZN147,149,154,169,174..ARL,TH;LN167..(DCB,SCB,THDCB,THSCB)..DEFI..(ARL,TH) |
2 | ||
| 77289-35020 |
LN167..SR..ARL;KZN165..DCB..TH;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
2 | ||
| 77295E - GROMMET, FUEL TUBE | ||||
| 77295-35160 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77295-35160 |
KZN165..TH;LN167..SR..ARL;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-35010 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77298-35010 |
KZN165..TH;LN167..SR..ARL;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35030 |
RZN147,149,154,169,174..ARL |
2 | ||
| 77439-35030 |
RZN147,169,174..ARL |
2 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35030 |
RZN147,149,154,169,174..ARL |
2 | ||
| 77439-35030 |
RZN147,169,174..ARL |
2 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90461-10781 | ||||
| 91611-B0614 | ||||
| 91641-H0820 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 2 OF 2(9708- )RZN144,147,148,149,154,16#,174,19#..EFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06030 |
RZN147,149,154,169,174..ARL *H,L=220 |
1 | ||
| 95333-06030 |
RZN147,169,174..ARL *H,L=220 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-35120 |
RZN147,149,154,169,174..ARL NO.1 |
1 | ||
| 95333-06020 |
RZN147,149,154,169,174..ARL NO.2 |
1 | ||
| 95333-06020 |
RZN147,169,174..ARL NO.2 |
1 | ||
| 77249-35120 |
RZN147,169,174..ARL NO.1 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-35120 |
RZN147,149,154,169,174..ARL NO.1 |
1 | ||
| 95333-06020 |
RZN147,149,154,169,174..ARL NO.2 |
1 | ||
| 95333-06020 |
RZN147,169,174..ARL NO.2 |
1 | ||
| 77249-35120 |
RZN147,169,174..ARL NO.1 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-3D240 |
RZN147,149,169..(SCB,THSCB)..ARL |
1 | ||
| 77251-3D240 |
RZN147,169..SCB..ARL |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77209-35350 |
RZN147,169,174..(SCB,THSCB,THXTR,XTR)..ARL |
1 | ||
| 77209-35350 |
RZN169..(SCB,THSCB)..DLX..(ARL,SA);RZN148,149,168..(SCB,THSCB)..EFI..(ARL,GEN);RZN147,154,174,194..RHD..(SCB,THSCB,THXTR,XTR)..EFI |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-35800 |
LN140,141,145,147,155,157,16#,192..SCB |
1 | ||
| 77255-35800 |
LN155..LHD;LN140,141,145,147,16#,192..(SCB,THSCB)..(ARL,GCC,GEN,SA) |
1 | ||
| 77255-35800 |
LN155..LHD;LN140,141,145,147,16#,192..SCB..(ARL,GCC,GEN,SA) |
1 | ||
| 77255-35770 |
RZN142,144,149,169..SCB..CBR;RZN147,148,168,194..SCB,THSCB;RZN149..(SCB,THSCB)..DLX..EFI;RZN169..(SCB,THSCB)..(ARL,SA) |
1 | ||
| 77255-35770 |
RZN147,169..SCB..ARL |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-35050 |
LN150,152,17#,RZN154,174;KZN165,190,LN145,146,147,155,157,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,SCB,THDCB,THSCB |
1 | ||
| 77256-35050 |
RZN147,169,174..ARL;LN167..DCB..SR..ARL;LN167..SCB..ARL..CBU |
1 | ||
| 77256-35050 |
RZN149,154,169..CBR;RZN154,169..(DCB,SCB,XTR)..(ARL,SA);LN150,152,17#,RZN147,174..DCB,SCB,XTR;RZN148,149,168..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,190,LN145,146,147,155,157,16#,19#,RZN19#..(DCB,SCB)..(DEFI,DSL,EFI,TDE) |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-35530 |
RZN147,169..SCB..ARL |
1 | ||
| 77261-35530 |
RZN147,149,169..(SCB,THSCB)..ARL |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-35060 |
LN150,152,17#,RZN154,174;KZN165,190,LN145,146,147,155,157,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,SCB,THDCB,THSCB |
1 | ||
| 77262-35060 |
RZN149,154,169..CBR;RZN154,169..(DCB,SCB,XTR)..(ARL,SA);LN150,152,17#,RZN147,174..DCB,SCB,XTR;RZN148,149,168..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,190,LN145,146,147,155,157,16#,19#,RZN19#..(DCB,SCB)..(DEFI,DSL,EFI,TDE) |
1 | ||
| 77262-35060 |
RZN147,169,174..ARL;LN167..DCB..SR..ARL;LN167..SCB..ARL..CBU |
1 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-35020 |
KZN165..TH;LN167..SR..ARL;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77273-35020 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35320 |
LN147,152,167,172..DEFI..ARL;LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77285-35320 |
LN167..SR..ARL;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35020 |
KZN165..TH;LN167..SR..ARL;RZN147,169..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU |
2 | ||
| 77286-35020 |
KZN165..SCB..DLX;LN145,155,RZN147,149,169..ARL,TH;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,157,167,192..DEFI..(ARL,TH) |
2 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35040 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77286-35040 |
KZN165..TH;LN167..SR..ARL;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-35020 |
KZN165..SCB..DLX;LN147,152,157,172..DEFI;KZN165..(DCB,THDCB)..ARL;LN145,150,155,RZN147,149,154,169,174..ARL,TH;LN167..(DCB,SCB,THDCB,THSCB)..DEFI..(ARL,TH) |
2 | ||
| 77289-35020 |
LN167..SR..ARL;KZN165..DCB..TH;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
2 | ||
| 77295E - GROMMET, FUEL TUBE | ||||
| 77295-35160 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77295-35160 |
KZN165..TH;LN167..SR..ARL;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-35010 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77298-35010 |
KZN165..TH;LN167..SR..ARL;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35030 |
RZN147,149,154,169,174..ARL |
2 | ||
| 77439-35030 |
RZN147,169,174..ARL |
2 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35030 |
RZN147,149,154,169,174..ARL |
2 | ||
| 77439-35030 |
RZN147,169,174..ARL |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-35450 |
RZN169..SA;RZN154,194..RHD;RZN169..DLX..ARL;RZN148,149,168,174,193..DLX..EFI..(ARL,GEN) |
1 | ||
| 77740-35450 |
RZN169,174..ARL |
1 | ||
| 77740M - HOSE, CHARCOAL CANISTER | ||||
| 90445-12284 |
RZN149..SR;RZN147,169..EFI;RZN149..DLX..(ARL,GCC);RZN147,148,16#,193..LHD;RZN142,144,154,174,194..ARL,GCC,SA |
1 | ||
| 90445-12284 |
RZN19#;RZN169..DCB..SA;RZN169..DLX..(ARL,SA);RZN147,154,174..ARL,GCC;RZN142,144,149,169..CBR..GCC;RZN148,149,168..DLX..EFI..(ARL,GEN) |
1 | ||
| 90445-12284 |
RZN147,169,174..ARL |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-35360 |
RZN169..LHD;RZN16#,174,19#..EFI |
1 | ||
| 77754-35360 |
RZN174,19#;RZN169..DCB..SA;RZN169..CBR..GCC;RZN168..DLX..GEN;RZN169..DLX..(ARL,SA) |
1 | ||
| 77754-35360 |
RZN169,174..ARL |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-35040 |
RZN147,169,174..ARL |
1 | ||
| 77779-35040 |
RZN19#;RZN169..DCB..SA;RZN169..DLX..(ARL,SA);RZN147,154,174..ARL,GCC;RZN142,144,149,169..CBR..GCC;RZN148,149,168..DLX..EFI..(ARL,GEN) |
1 | ||
| 77779-35040 |
RZN149..SR;RZN147,169..EFI;RZN149..DLX..(ARL,GCC);RZN147,148,16#,193..LHD;RZN142,144,154,174,194..ARL,GCC,SA |
1 | ||
| Common parts | ||||
| 90119-06816 | ||||
| 90179-06161 | ||||
| 90461-10669 | ||||
| 90461-10781 | ||||
| 90480-12018 | ||||
| 90480-18005 | ||||
| 91611-B0614 | ||||
| 91621-J0612 | ||||
| 91641-H0820 | ||||
| 96132-51100 | ||||
ILLUST NO. 1 OF 2(0110- )KDN15#,16#,190,VZN167,172..SCB,SRWGN,XTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-35210 |
LN145..DCB..TH;KZN165,RZN147..SCB..DLX..ARL;LN147,167,RZN149,169..(DCB,SCB,THDCB)..(DEFI,EFI)..(ARL,TH);KZN165,LN152,172,RZN154,174..(DCB,THDCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 77011-35210 |
LN145..DCB..TH;KZN165,RZN147..SCB..DLX..ARL;LN147,167,RZN149,169..(DCB,SCB,THDCB)..(DEFI,EFI)..(ARL,TH);KZN165,LN152,172,RZN154,174..(DCB,THDCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-35060 |
KZN165,LN147,152,167,172,RZN147,149,154,169,174..(SCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL |
1 | ||
| 77018-35060 |
KZN165,LN147,152,167,172,RZN147,149,154,169,174..(SCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3D910 |
RZN16#,174..(SCB,THSCB,THXTR,XTR)..EFI..(ARL,GEN) |
1 | ||
| 77001-3D910 |
RZN16#,174..(SCB,THSCB,THXTR,XTR)..EFI..(ARL,GEN) |
1 | ||
| 77001-3D910 |
RZN169..(SCB,THSCB)..DLX..(ARL,SA);RZN168,174,194..(SCB,THXTR,XTR)..CBU |
1 | ||
| 77001-3D910 |
RZN169..(SCB,THSCB)..DLX..(ARL,SA);RZN168,174,194..(SCB,THXTR,XTR)..CBU |
1 | ||
| 77131 - BRACKET, FUEL TANK FILLER PIPE SUPPORT | ||||
| 77131-35060 |
RZN169..(SCB,THSCB)..ARL..CBU;RZN147..RHD..(SCB,THSCB)..(ARL,GEN)..CBU;LN167,RZN148,149,168..(SCB,THSCB)..MTM..(ARL,GEN)..CBU;KZN165,LN145,166,172,RZN154,174..RHD..(SCB,THXTR,XTR)..(ARL,GEN)..CBU |
1 | ||
| 77131-35060 |
RZN169..(SCB,THSCB)..ARL..CBU;RZN147..RHD..(SCB,THSCB)..(ARL,GEN)..CBU;LN167,RZN148,149,168..(SCB,THSCB)..MTM..(ARL,GEN)..CBU;KZN165,LN145,166,172,RZN154,174..RHD..(SCB,THXTR,XTR)..(ARL,GEN)..CBU |
1 | ||
| 77131-35060 |
LN167,RZN147,169..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THSCB,THXTR,XTR)..ARL..CBU |
1 | ||
| 77131-35060 |
LN167,RZN147,169..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THSCB,THXTR,XTR)..ARL..CBU |
1 | ||
| 77131-35060 |
KZN165,LN141,145,147,16#,17#,RZN14#,154,16#,174..(SCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN)..CBU |
1 | ||
| 77131-35060 |
KZN165,LN141,145,147,16#,17#,RZN14#,154,16#,174..(SCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN)..CBU |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77606-35030 |
LN167..DEFI..TH;RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..ARL |
1 | ||
| 77606-35030 |
LN167..DEFI..TH;RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..ARL |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77606-35030 |
LN167..DEFI..TH;RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..ARL |
1 | ||
| 77606-35030 |
LN167..DEFI..TH;RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..ARL |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77606-35030 |
LN167..DEFI..TH;RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..ARL |
1 | ||
| 77606-35030 |
LN167..DEFI..TH;RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..ARL |
1 | ||
| 77162B - BRACKET, FUEL TANK REAR PROTECTOR | ||||
| 77162-35020 |
LN167..DEFI..TH;KZN165..SCB..DLX;LN167..(THDCB,THSCB)..DEFI;KZN165,LN192..(DCB,THDCB,XTR)..(DEFI,TDE)..(ARL,TH);LN172,RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..(DEFI,EFI)..ARL |
1 | ||
| 77162-35020 |
LN167..DEFI..TH;KZN165..SCB..DLX;LN167..(THDCB,THSCB)..DEFI;KZN165,LN192..(DCB,THDCB,XTR)..(DEFI,TDE)..(ARL,TH);LN172,RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..(DEFI,EFI)..ARL |
1 | ||
| 77162-35020 |
LN167..DCB..SR..ARL;RZN169..(DCB,SCB)..ARL;LN167,RZN174..(SCB,XTR)..ARL..CBU |
1 | ||
| 77162-35020 |
LN167..DCB..SR..ARL;RZN169..(DCB,SCB)..ARL;LN167,RZN174..(SCB,XTR)..ARL..CBU |
1 | ||
| 77162B - BRACKET, FUEL TANK REAR PROTECTOR | ||||
| 77162-35020 |
LN167..DEFI..TH;KZN165..SCB..DLX;LN167..(THDCB,THSCB)..DEFI;KZN165,LN192..(DCB,THDCB,XTR)..(DEFI,TDE)..(ARL,TH);LN172,RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..(DEFI,EFI)..ARL |
1 | ||
| 77162-35020 |
LN167..DEFI..TH;KZN165..SCB..DLX;LN167..(THDCB,THSCB)..DEFI;KZN165,LN192..(DCB,THDCB,XTR)..(DEFI,TDE)..(ARL,TH);LN172,RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..(DEFI,EFI)..ARL |
1 | ||
| 77162-35020 |
LN167..DCB..SR..ARL;RZN169..(DCB,SCB)..ARL;LN167,RZN174..(SCB,XTR)..ARL..CBU |
1 | ||
| 77162-35020 |
LN167..DCB..SR..ARL;RZN169..(DCB,SCB)..ARL;LN167,RZN174..(SCB,XTR)..ARL..CBU |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
RZN147,149,154,169,174..ARL;KZN165,LN145..(DCB,THDCB)..(ARL,TH);LN147,167..(DCB,SCB,THDCB)..DEFI..(ARL,TH);KZN165,LN152,172..(SCB,XTR)..DLX..(DEFI,TDE) |
1 | ||
| 77169-14010 |
RZN147,149,154,169,174..ARL;KZN165,LN145..(DCB,THDCB)..(ARL,TH);LN147,167..(DCB,SCB,THDCB)..DEFI..(ARL,TH);KZN165,LN152,172..(SCB,XTR)..DLX..(DEFI,TDE) |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-34010 |
RZN147,149,169..(DCB,SCB,THDCB)..ARL;KZN165,LN147,167,RZN154,174..(THDCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 77178-34010 |
RZN147,149,169..(DCB,SCB,THDCB)..ARL;KZN165,LN147,167,RZN154,174..(THDCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
KZN165,LN145,RZN154,174..(DCB,THDCB,XTR)..(ARL,TH);KZN165,LN152,172,RZN147..(SCB,XTR)..DLX..(DEFI,EFI,TDE);LN147,167,192,RZN149,169..(DCB,SCB,THDCB,XTR)..(DEFI,EFI)..(ARL,TH) |
1 | ||
| 77179-26010 |
KZN165,LN145,RZN154,174..(DCB,THDCB,XTR)..(ARL,TH);KZN165,LN152,172,RZN147..(SCB,XTR)..DLX..(DEFI,EFI,TDE);LN147,167,192,RZN149,169..(DCB,SCB,THDCB,XTR)..(DEFI,EFI)..(ARL,TH) |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35590 |
RZN147,149,169..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77201-35590 |
RZN147,149,169..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95313-13022 |
RZN149..SCB..IV3;RZN147,169..THSCB..CBU;KZN165,LN145,155,RZN147,169..SCB..DLX..(ARL,TH);LN147,157,167,RZN149..(SCB,THSCB)..(DEFI,EFI)..(ARL,TH)..CBU L=220 |
1 | ||
| 95313-13022 |
RZN149..SCB..IV3;RZN147,169..THSCB..CBU;KZN165,LN145,155,RZN147,169..SCB..DLX..(ARL,TH);LN147,157,167,RZN149..(SCB,THSCB)..(DEFI,EFI)..(ARL,TH)..CBU L=220 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-35520 |
RZN169..(SCB,THSCB)..ARL;RZN168,174..(SCB,THXTR,XTR)..CBU |
1 | ||
| 77203-35520 |
RZN169..(SCB,THSCB)..ARL;RZN168,174..(SCB,THXTR,XTR)..CBU |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35310 |
RZN149..SCB..IV3;RZN147,169..THSCB..CBU;KZN165,LN145,155,RZN147,169..SCB..DLX..(ARL,TH);LN147,157,167,RZN149..(SCB,THSCB)..(DEFI,EFI)..(ARL,TH)..CBU |
1 | ||
| 77213-35310 |
RZN149..SCB..IV3;RZN147,169..THSCB..CBU;KZN165,LN145,155,RZN147,169..SCB..DLX..(ARL,TH);LN147,157,167,RZN149..(SCB,THSCB)..(DEFI,EFI)..(ARL,TH)..CBU |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-35050 |
RZN169..(SCB,THSCB)..(ARL,SA)..CBU;RZN147,148,168,194..(SCB,THSCB)..CBU;KZN165,RZN149..(SCB,THSCB)..DLX..(EFI,TDE)..CBU;KZN190,LN140,141,145,147,155,157,16#,192,RZN142,144,149,169,YN140..(SCB,THSCB)..(CBR,DEFI,DSL,TDE)..CBU |
1 | ||
| 77290-35050 |
RZN169..(SCB,THSCB)..(ARL,SA)..CBU;RZN147,148,168,194..(SCB,THSCB)..CBU;KZN165,RZN149..(SCB,THSCB)..DLX..(EFI,TDE)..CBU;KZN190,LN140,141,145,147,155,157,16#,192,RZN142,144,149,169,YN140..(SCB,THSCB)..(CBR,DEFI,DSL,TDE)..CBU |
1 | ||
| 77290-35050 |
LN167,RZN147,169..SCB..ARL..CBU |
1 | ||
| 77290-35050 |
LN167,RZN147,169..SCB..ARL..CBU |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35140 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77295-35140 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-35060 |
KZN165..SCB..DLX..CBU;KZN190,LN140,141,145,147,155,157,16#,192,RZN14#,16#,194,YN140..(SCB,THSCB)..CBU |
1 | ||
| 77305-35060 |
KZN165..SCB..DLX..CBU;KZN190,LN140,141,145,147,155,157,16#,192,RZN14#,16#,194,YN140..(SCB,THSCB)..CBU |
1 | ||
| 77305-35061 |
RZN169..(SCB,THSCB)..DLX..(ARL,SA)..CBU;KZN190,RZN149..(SCB,THSCB)..DLX..(EFI,TDE)..(ARL,GEN,SA)..CBU;LN147,167,RZN147,148,168,194..(SCB,THSCB)..(ARL,GCC,GEN,SA)..CBU;KZN165,LN140,141,145,155,157,166,192,RZN142,144,149,169..SCB..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN,SA,TH)..CBU |
1 | ||
| 77305-35061 |
RZN169..(SCB,THSCB)..DLX..(ARL,SA)..CBU;KZN190,RZN149..(SCB,THSCB)..DLX..(EFI,TDE)..(ARL,GEN,SA)..CBU;LN147,167,RZN147,148,168,194..(SCB,THSCB)..(ARL,GCC,GEN,SA)..CBU;KZN165,LN140,141,145,155,157,166,192,RZN142,144,149,169..SCB..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN,SA,TH)..CBU |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-35110 |
LN14#,16#,17#,191..CBU |
1 | ||
| 77310-35110 |
LN14#,16#,17#,191..CBU |
1 | ||
| 77310-35080 |
RZN147,149,154,169,174..ARL..CBU |
1 | ||
| 77310-35080 |
RZN147,149,154,169,174..ARL..CBU |
1 | ||
| 77310-48010 |
RZN147,169,174..ARL..CBU |
1 | ||
| 77310-48010 |
RZN147,169,174..ARL..CBU |
1 | ||
| 77310-48020 |
RZN147,149,154,169,174..ARL..CBU |
1 | ||
| 77310-48020 |
RZN147,149,154,169,174..ARL..CBU |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
LN147,167..DEFI..(ARL,TH)..(CBU,IV1);LN145,150,155,RZN147,149,154,169,174..(ARL,TH)..CBU;KZN165,LN157,172..(SCB,THXTR,XTR)..DLX..(DEFI,TDE)..CBU;KZN165,LN152,192..(DCB,THDCB,XTR)..SR..(DEFI,TDE)..(ARL,TH) |
1 | ||
| 77316-16010 |
LN147,167..DEFI..(ARL,TH)..(CBU,IV1);LN145,150,155,RZN147,149,154,169,174..(ARL,TH)..CBU;KZN165,LN157,172..(SCB,THXTR,XTR)..DLX..(DEFI,TDE)..CBU;KZN165,LN152,192..(DCB,THDCB,XTR)..SR..(DEFI,TDE)..(ARL,TH) |
1 | ||
| 77316-16010 |
KZN165..TH;LN167..SR..ARL;KDN165,190..IV1;RZN169..ARL..CBU;KZN165..THDCB..SR;LN167,RZN147..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THSCB,THXTR,XTR)..ARL..CBU |
1 | ||
| 77316-16010 |
KZN165..TH;LN167..SR..ARL;KDN165,190..IV1;RZN169..ARL..CBU;KZN165..THDCB..SR;LN167,RZN147..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THSCB,THXTR,XTR)..ARL..CBU |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77380-26010 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| Common parts | ||||
| 90080-54035 | ||||
| 90105-12116 | ||||
| 90119-06595 | ||||
| 90119-08667 | ||||
| 90149-50057 | ||||
| 90159-50219 | ||||
| 90159-60032 | ||||
| 90167-T0003 | ||||
| 90201-06547 | ||||
| 90269-04059 | ||||
| 90430-12245 | ||||
| 90460-26001 | ||||
| 90460-46003 | ||||
| 90464-00042 | ||||
| 90464-00786 | ||||
| 90467-11061 | ||||
| 90541-06058 | ||||
| 90541-09024 | ||||
| 91611-60618 | ||||
| 91621-J0614 | ||||
| 93319-A4010 | ||||
| 93560-15014 | ||||
| 94130-60600 | ||||
ILLUST NO. 1 OF 2(9708- )KDN165,190,KZN165,190,LN140,145,147,15#,16#,172,192,RZN142,147,149,154,1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-35210 |
LN145..DCB..TH;KZN165,RZN147..SCB..DLX..ARL;LN147,167,RZN149,169..(DCB,SCB,THDCB)..(DEFI,EFI)..(ARL,TH);KZN165,LN152,172,RZN154,174..(DCB,THDCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 77011-35210 |
LN145..DCB..TH;KZN165,RZN147..SCB..DLX..ARL;LN147,167,RZN149,169..(DCB,SCB,THDCB)..(DEFI,EFI)..(ARL,TH);KZN165,LN152,172,RZN154,174..(DCB,THDCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-35060 |
KZN165,LN147,152,167,172,RZN147,149,154,169,174..(SCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL |
1 | ||
| 77018-35060 |
KZN165,LN147,152,167,172,RZN147,149,154,169,174..(SCB,XTR)..DLX..(DEFI,EFI,TDE)..ARL |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3D910 |
RZN16#,174..(SCB,THSCB,THXTR,XTR)..EFI..(ARL,GEN) |
1 | ||
| 77001-3D910 |
RZN16#,174..(SCB,THSCB,THXTR,XTR)..EFI..(ARL,GEN) |
1 | ||
| 77001-3D910 |
RZN169..(SCB,THSCB)..DLX..(ARL,SA);RZN168,174,194..(SCB,THXTR,XTR)..CBU |
1 | ||
| 77001-3D910 |
RZN169..(SCB,THSCB)..DLX..(ARL,SA);RZN168,174,194..(SCB,THXTR,XTR)..CBU |
1 | ||
| 77131 - BRACKET, FUEL TANK FILLER PIPE SUPPORT | ||||
| 77131-35060 |
RZN169..(SCB,THSCB)..ARL..CBU;RZN147..RHD..(SCB,THSCB)..(ARL,GEN)..CBU;LN167,RZN148,149,168..(SCB,THSCB)..MTM..(ARL,GEN)..CBU;KZN165,LN145,166,172,RZN154,174..RHD..(SCB,THXTR,XTR)..(ARL,GEN)..CBU |
1 | ||
| 77131-35060 |
RZN169..(SCB,THSCB)..ARL..CBU;RZN147..RHD..(SCB,THSCB)..(ARL,GEN)..CBU;LN167,RZN148,149,168..(SCB,THSCB)..MTM..(ARL,GEN)..CBU;KZN165,LN145,166,172,RZN154,174..RHD..(SCB,THXTR,XTR)..(ARL,GEN)..CBU |
1 | ||
| 77131-35060 |
LN167,RZN147,169..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THSCB,THXTR,XTR)..ARL..CBU |
1 | ||
| 77131-35060 |
LN167,RZN147,169..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THSCB,THXTR,XTR)..ARL..CBU |
1 | ||
| 77131-35060 |
KZN165,LN141,145,147,16#,17#,RZN14#,154,16#,174..(SCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN)..CBU |
1 | ||
| 77131-35060 |
KZN165,LN141,145,147,16#,17#,RZN14#,154,16#,174..(SCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN)..CBU |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77606-35030 |
LN167..DEFI..TH;RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..ARL |
1 | ||
| 77606-35030 |
LN167..DEFI..TH;RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..ARL |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77606-35030 |
LN167..DEFI..TH;RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..ARL |
1 | ||
| 77606-35030 |
LN167..DEFI..TH;RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..ARL |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77606-35030 |
LN167..DEFI..TH;RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..ARL |
1 | ||
| 77606-35030 |
LN167..DEFI..TH;RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..ARL |
1 | ||
| 77162B - BRACKET, FUEL TANK REAR PROTECTOR | ||||
| 77162-35020 |
LN167..DEFI..TH;KZN165..SCB..DLX;LN167..(THDCB,THSCB)..DEFI;KZN165,LN192..(DCB,THDCB,XTR)..(DEFI,TDE)..(ARL,TH);LN172,RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..(DEFI,EFI)..ARL |
1 | ||
| 77162-35020 |
LN167..DEFI..TH;KZN165..SCB..DLX;LN167..(THDCB,THSCB)..DEFI;KZN165,LN192..(DCB,THDCB,XTR)..(DEFI,TDE)..(ARL,TH);LN172,RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..(DEFI,EFI)..ARL |
1 | ||
| 77162-35020 |
LN167..DCB..SR..ARL;RZN169..(DCB,SCB)..ARL;LN167,RZN174..(SCB,XTR)..ARL..CBU |
1 | ||
| 77162-35020 |
LN167..DCB..SR..ARL;RZN169..(DCB,SCB)..ARL;LN167,RZN174..(SCB,XTR)..ARL..CBU |
1 | ||
| 77162B - BRACKET, FUEL TANK REAR PROTECTOR | ||||
| 77162-35020 |
LN167..DEFI..TH;KZN165..SCB..DLX;LN167..(THDCB,THSCB)..DEFI;KZN165,LN192..(DCB,THDCB,XTR)..(DEFI,TDE)..(ARL,TH);LN172,RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..(DEFI,EFI)..ARL |
1 | ||
| 77162-35020 |
LN167..DEFI..TH;KZN165..SCB..DLX;LN167..(THDCB,THSCB)..DEFI;KZN165,LN192..(DCB,THDCB,XTR)..(DEFI,TDE)..(ARL,TH);LN172,RZN169,174..(DCB,SCB,THDCB,THSCB,THXTR)..(DEFI,EFI)..ARL |
1 | ||
| 77162-35020 |
LN167..DCB..SR..ARL;RZN169..(DCB,SCB)..ARL;LN167,RZN174..(SCB,XTR)..ARL..CBU |
1 | ||
| 77162-35020 |
LN167..DCB..SR..ARL;RZN169..(DCB,SCB)..ARL;LN167,RZN174..(SCB,XTR)..ARL..CBU |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
RZN147,149,154,169,174..ARL;KZN165,LN145..(DCB,THDCB)..(ARL,TH);LN147,167..(DCB,SCB,THDCB)..DEFI..(ARL,TH);KZN165,LN152,172..(SCB,XTR)..DLX..(DEFI,TDE) |
1 | ||
| 77169-14010 |
RZN147,149,154,169,174..ARL;KZN165,LN145..(DCB,THDCB)..(ARL,TH);LN147,167..(DCB,SCB,THDCB)..DEFI..(ARL,TH);KZN165,LN152,172..(SCB,XTR)..DLX..(DEFI,TDE) |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-34010 |
RZN147,149,169..(DCB,SCB,THDCB)..ARL;KZN165,LN147,167,RZN154,174..(THDCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 77178-34010 |
RZN147,149,169..(DCB,SCB,THDCB)..ARL;KZN165,LN147,167,RZN154,174..(THDCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
KZN165,LN145,RZN154,174..(DCB,THDCB,XTR)..(ARL,TH);KZN165,LN152,172,RZN147..(SCB,XTR)..DLX..(DEFI,EFI,TDE);LN147,167,192,RZN149,169..(DCB,SCB,THDCB,XTR)..(DEFI,EFI)..(ARL,TH) |
1 | ||
| 77179-26010 |
KZN165,LN145,RZN154,174..(DCB,THDCB,XTR)..(ARL,TH);KZN165,LN152,172,RZN147..(SCB,XTR)..DLX..(DEFI,EFI,TDE);LN147,167,192,RZN149,169..(DCB,SCB,THDCB,XTR)..(DEFI,EFI)..(ARL,TH) |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35590 |
RZN147,149,169..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77201-35590 |
RZN147,149,169..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95313-13022 |
RZN149..SCB..IV3;RZN147,169..THSCB..CBU;KZN165,LN145,155,RZN147,169..SCB..DLX..(ARL,TH);LN147,157,167,RZN149..(SCB,THSCB)..(DEFI,EFI)..(ARL,TH)..CBU L=220 |
1 | ||
| 95313-13022 |
RZN149..SCB..IV3;RZN147,169..THSCB..CBU;KZN165,LN145,155,RZN147,169..SCB..DLX..(ARL,TH);LN147,157,167,RZN149..(SCB,THSCB)..(DEFI,EFI)..(ARL,TH)..CBU L=220 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-35520 |
RZN169..(SCB,THSCB)..ARL;RZN168,174..(SCB,THXTR,XTR)..CBU |
1 | ||
| 77203-35520 |
RZN169..(SCB,THSCB)..ARL;RZN168,174..(SCB,THXTR,XTR)..CBU |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35310 |
RZN149..SCB..IV3;RZN147,169..THSCB..CBU;KZN165,LN145,155,RZN147,169..SCB..DLX..(ARL,TH);LN147,157,167,RZN149..(SCB,THSCB)..(DEFI,EFI)..(ARL,TH)..CBU |
1 | ||
| 77213-35310 |
RZN149..SCB..IV3;RZN147,169..THSCB..CBU;KZN165,LN145,155,RZN147,169..SCB..DLX..(ARL,TH);LN147,157,167,RZN149..(SCB,THSCB)..(DEFI,EFI)..(ARL,TH)..CBU |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-35050 |
RZN169..(SCB,THSCB)..(ARL,SA)..CBU;RZN147,148,168,194..(SCB,THSCB)..CBU;KZN165,RZN149..(SCB,THSCB)..DLX..(EFI,TDE)..CBU;KZN190,LN140,141,145,147,155,157,16#,192,RZN142,144,149,169,YN140..(SCB,THSCB)..(CBR,DEFI,DSL,TDE)..CBU |
1 | ||
| 77290-35050 |
RZN169..(SCB,THSCB)..(ARL,SA)..CBU;RZN147,148,168,194..(SCB,THSCB)..CBU;KZN165,RZN149..(SCB,THSCB)..DLX..(EFI,TDE)..CBU;KZN190,LN140,141,145,147,155,157,16#,192,RZN142,144,149,169,YN140..(SCB,THSCB)..(CBR,DEFI,DSL,TDE)..CBU |
1 | ||
| 77290-35050 |
LN167,RZN147,169..SCB..ARL..CBU |
1 | ||
| 77290-35050 |
LN167,RZN147,169..SCB..ARL..CBU |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35140 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77295-35140 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-35060 |
KZN165..SCB..DLX..CBU;KZN190,LN140,141,145,147,155,157,16#,192,RZN14#,16#,194,YN140..(SCB,THSCB)..CBU |
1 | ||
| 77305-35060 |
KZN165..SCB..DLX..CBU;KZN190,LN140,141,145,147,155,157,16#,192,RZN14#,16#,194,YN140..(SCB,THSCB)..CBU |
1 | ||
| 77305-35061 |
RZN169..(SCB,THSCB)..DLX..(ARL,SA)..CBU;KZN190,RZN149..(SCB,THSCB)..DLX..(EFI,TDE)..(ARL,GEN,SA)..CBU;LN147,167,RZN147,148,168,194..(SCB,THSCB)..(ARL,GCC,GEN,SA)..CBU;KZN165,LN140,141,145,155,157,166,192,RZN142,144,149,169..SCB..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN,SA,TH)..CBU |
1 | ||
| 77305-35061 |
RZN169..(SCB,THSCB)..DLX..(ARL,SA)..CBU;KZN190,RZN149..(SCB,THSCB)..DLX..(EFI,TDE)..(ARL,GEN,SA)..CBU;LN147,167,RZN147,148,168,194..(SCB,THSCB)..(ARL,GCC,GEN,SA)..CBU;KZN165,LN140,141,145,155,157,166,192,RZN142,144,149,169..SCB..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN,SA,TH)..CBU |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-35110 |
LN14#,16#,17#,191..CBU |
1 | ||
| 77310-35110 |
LN14#,16#,17#,191..CBU |
1 | ||
| 77310-35080 |
RZN147,149,154,169,174..ARL..CBU |
1 | ||
| 77310-35080 |
RZN147,149,154,169,174..ARL..CBU |
1 | ||
| 77310-48010 |
RZN147,169,174..ARL..CBU |
1 | ||
| 77310-48010 |
RZN147,169,174..ARL..CBU |
1 | ||
| 77310-48020 |
RZN147,149,154,169,174..ARL..CBU |
1 | ||
| 77310-48020 |
RZN147,149,154,169,174..ARL..CBU |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
LN147,167..DEFI..(ARL,TH)..(CBU,IV1);LN145,150,155,RZN147,149,154,169,174..(ARL,TH)..CBU;KZN165,LN157,172..(SCB,THXTR,XTR)..DLX..(DEFI,TDE)..CBU;KZN165,LN152,192..(DCB,THDCB,XTR)..SR..(DEFI,TDE)..(ARL,TH) |
1 | ||
| 77316-16010 |
LN147,167..DEFI..(ARL,TH)..(CBU,IV1);LN145,150,155,RZN147,149,154,169,174..(ARL,TH)..CBU;KZN165,LN157,172..(SCB,THXTR,XTR)..DLX..(DEFI,TDE)..CBU;KZN165,LN152,192..(DCB,THDCB,XTR)..SR..(DEFI,TDE)..(ARL,TH) |
1 | ||
| 77316-16010 |
KZN165..TH;LN167..SR..ARL;KDN165,190..IV1;RZN169..ARL..CBU;KZN165..THDCB..SR;LN167,RZN147..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THSCB,THXTR,XTR)..ARL..CBU |
1 | ||
| 77316-16010 |
KZN165..TH;LN167..SR..ARL;KDN165,190..IV1;RZN169..ARL..CBU;KZN165..THDCB..SR;LN167,RZN147..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THSCB,THXTR,XTR)..ARL..CBU |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77380-26010 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| Common parts | ||||
| 90080-54035 | ||||
| 90105-12116 | ||||
| 90119-06595 | ||||
| 90119-08667 | ||||
| 90149-50057 | ||||
| 90159-50219 | ||||
| 90159-60032 | ||||
| 90167-T0003 | ||||
| 90201-06547 | ||||
| 90269-04059 | ||||
| 90430-12245 | ||||
| 90460-26001 | ||||
| 90460-46003 | ||||
| 90464-00042 | ||||
| 90464-00786 | ||||
| 90467-11061 | ||||
| 90541-06058 | ||||
| 90541-09024 | ||||
| 91611-60618 | ||||
| 91621-J0614 | ||||
| 93319-A4010 | ||||
| 93560-15014 | ||||
| 94130-60600 | ||||
ILLUST NO. 2 OF 2(0110- )KDN145,15#,16#,190
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-35120 |
RZN147,149,154,169,174..ARL NO.1 |
1 | ||
| 95333-06020 |
RZN147,149,154,169,174..ARL NO.2 |
1 | ||
| 95333-06020 |
RZN147,169,174..ARL NO.2 |
1 | ||
| 77249-35120 |
RZN147,169,174..ARL NO.1 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-35120 |
RZN147,149,154,169,174..ARL NO.1 |
1 | ||
| 95333-06020 |
RZN147,149,154,169,174..ARL NO.2 |
1 | ||
| 95333-06020 |
RZN147,169,174..ARL NO.2 |
1 | ||
| 77249-35120 |
RZN147,169,174..ARL NO.1 |
1 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-35020 |
KZN165..TH;LN167..SR..ARL;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77273-35020 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35320 |
LN147,152,167,172..DEFI..ARL;LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77285-35320 |
LN167..SR..ARL;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35020 |
KZN165..TH;LN167..SR..ARL;RZN147,169..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU |
2 | ||
| 77286-35020 |
KZN165..SCB..DLX;LN145,155,RZN147,149,169..ARL,TH;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,157,167,192..DEFI..(ARL,TH) |
2 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35040 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77286-35040 |
KZN165..TH;LN167..SR..ARL;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-35020 |
KZN165..SCB..DLX;LN147,152,157,172..DEFI;KZN165..(DCB,THDCB)..ARL;LN145,150,155,RZN147,149,154,169,174..ARL,TH;LN167..(DCB,SCB,THDCB,THSCB)..DEFI..(ARL,TH) |
2 | ||
| 77289-35020 |
LN167..SR..ARL;KZN165..DCB..TH;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
2 | ||
| 77295E - GROMMET, FUEL TUBE | ||||
| 77295-35160 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77295-35160 |
KZN165..TH;LN167..SR..ARL;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-35010 |
KZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH |
1 | ||
| 77298-35010 |
KZN165..TH;LN167..SR..ARL;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35030 |
RZN147,149,154,169,174..ARL |
2 | ||
| 77439-35030 |
RZN147,169,174..ARL |
2 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35030 |
RZN147,149,154,169,174..ARL |
2 | ||
| 77439-35030 |
RZN147,169,174..ARL |
2 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35030 |
RZN147,149,154,169,174..ARL |
2 | ||
| 77439-35030 |
RZN147,169,174..ARL |
2 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90461-10781 | ||||
| 91611-B0614 | ||||
| 91641-H0820 | ||||
| 96132-41500 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
