RZN169R-TRMDKQ (1997)
Toyota Hilux

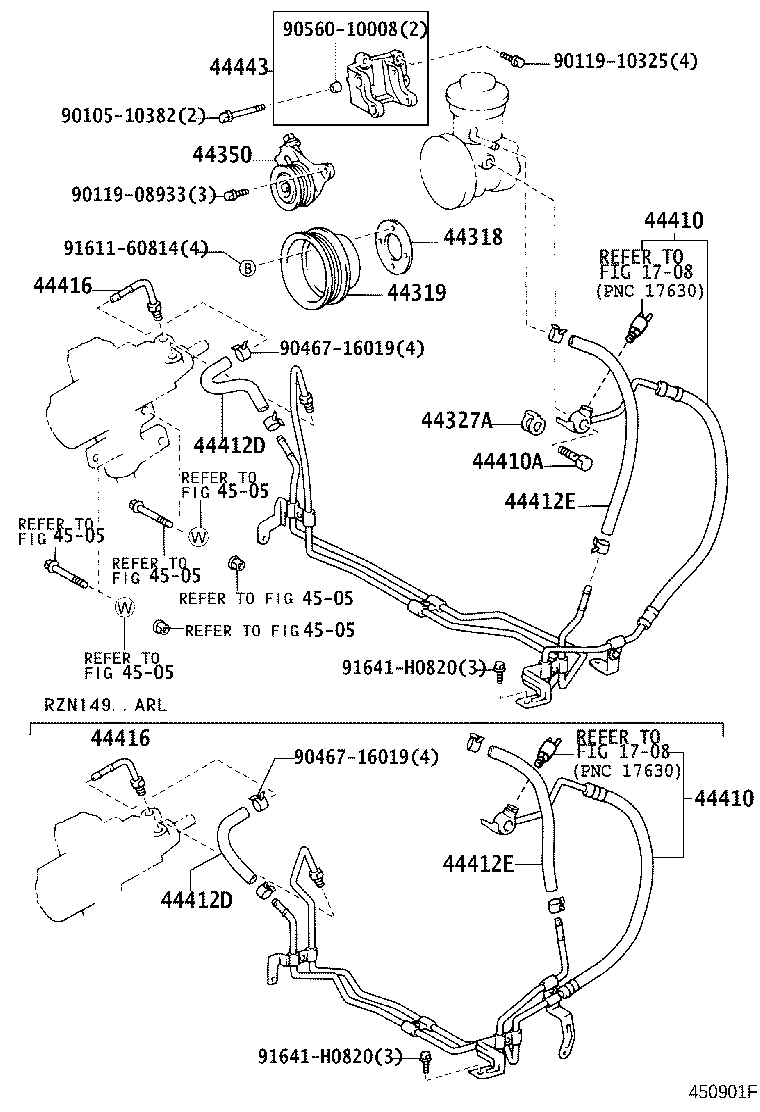

(9708- )RZN168..SCB..CBU ; (9708- )RZN144,149,169..LHD ; (9708- )RZN149,16
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-26020 |
RZN147,149,154,169,174..ARL |
1 | ||
| 44318-26020 |
RZN168..DLX;RZN168..SR..GEN;RZN169..DLX..SA;RZN148..GEN..CBU;RZN148,149..ARL,CO,GCC;RZN142,144,147,154,169,174,193..ARL,GCC,GEN |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-34010 |
RZN149,154,169,174..ARL |
1 | ||
| 44319-34010 |
RZN154,16#,193;RZN148..GEN..CBU;RZN144,148,149,174,194..ARL,CO,GCC,SA |
1 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-26020 |
RZN147,149,154,169,174..ARL |
1 | ||
| 44327-26020 |
RZN147,169,174..ARL |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-34010 |
RZN149,154,169,174..ARL |
1 | ||
| 44350-34010 |
RZN169,174..ARL |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16034 |
RZN147,169,174..ARL |
1 | ||
| 90401-16034 |
RZN147,149,154,169,174..ARL |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-35110 |
KZN165..SCB..DLX;LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..ARL;KZN165,LN172,RZN174..(DCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 44412-35110 |
KZN165..TH;LN167..SR..ARL;RZN169,174..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-35110 |
KZN165..SCB..DLX;LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..ARL;KZN165,LN172,RZN174..(DCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 44412-35110 |
KZN165..TH;LN167..SR..ARL;RZN169,174..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 90445-18154 |
RZN169,174..ARL |
1 | ||
| 90445-18154 |
RZN169,174..ARL |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35100 |
KZN165..SCB..DLX;LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..ARL;KZN165,LN172,RZN174..(DCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 44416-35100 |
LN167..DCB..SR..ARL;LN167..SCB..ARL..CBU;RZN169..(DCB,SCB)..ARL;KZN165,RZN174..(THDCB,THSCB,XTR)..ARL |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35100 |
KZN165..SCB..DLX;LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..ARL;KZN165,LN172,RZN174..(DCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 44416-35100 |
LN167..DCB..SR..ARL;LN167..SCB..ARL..CBU;RZN169..(DCB,SCB)..ARL;KZN165,RZN174..(THDCB,THSCB,XTR)..ARL |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-35040 |
RZN149,154,169,174..ARL |
1 | ||
| 44443-35040 |
RZN169,174..ARL |
1 | ||
| Common parts | ||||
| 90105-10382 | ||||
| 90119-08933 | ||||
| 90119-10325 | ||||
| 90467-16019 | ||||
| 90560-10008 | ||||
| 91611-60814 | ||||
| 91621-J0814 | ||||
| 91626-G0616 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 4505 | ||||
(9708- )RZN154,169..RHD ; (9708- )RZN169..LHD..EFI ; (9708- )RZN144,149,17
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-26020 |
RZN147,149,154,169,174..ARL |
1 | ||
| 44318-26020 |
RZN168..DLX;RZN168..SR..GEN;RZN169..DLX..SA;RZN148..GEN..CBU;RZN148,149..ARL,CO,GCC;RZN142,144,147,154,169,174,193..ARL,GCC,GEN |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-34010 |
RZN149,154,169,174..ARL |
1 | ||
| 44319-34010 |
RZN154,16#,193;RZN148..GEN..CBU;RZN144,148,149,174,194..ARL,CO,GCC,SA |
1 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-26020 |
RZN147,149,154,169,174..ARL |
1 | ||
| 44327-26020 |
RZN147,169,174..ARL |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-34010 |
RZN149,154,169,174..ARL |
1 | ||
| 44350-34010 |
RZN169,174..ARL |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-35530 |
RZN169,174,194..EFI |
1 | ||
| 44410-35530 |
RZN169,174,194..(DCB,SCB,XTR)..EFI |
1 | ||
| 44410-35531 |
RZN169..SA;RZN169..(DCB,SCB)..DLX..ARL;RZN174,194..DCB,SADCB,SCB,XTR |
1 | ||
| 44410-35531 |
RZN169,174..(DCB,SCB,XTR)..ARL |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-35530 |
RZN169,174,194..EFI |
1 | ||
| 44410-35530 |
RZN169,174,194..(DCB,SCB,XTR)..EFI |
1 | ||
| 44410-35531 |
RZN169..SA;RZN169..(DCB,SCB)..DLX..ARL;RZN174,194..DCB,SADCB,SCB,XTR |
1 | ||
| 44410-35531 |
RZN169,174..(DCB,SCB,XTR)..ARL |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16034 |
RZN147,169,174..ARL |
1 | ||
| 90401-16034 |
RZN147,149,154,169,174..ARL |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-35110 |
KZN165..SCB..DLX;LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..ARL;KZN165,LN172,RZN174..(DCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 44412-35110 |
KZN165..TH;LN167..SR..ARL;RZN169,174..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-35110 |
KZN165..SCB..DLX;LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..ARL;KZN165,LN172,RZN174..(DCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 44412-35110 |
KZN165..TH;LN167..SR..ARL;RZN169,174..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 90445-18154 |
RZN169,174..ARL |
1 | ||
| 90445-18154 |
RZN169,174..ARL |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 90445-18154 |
RZN169,174..ARL |
1 | ||
| 90445-18154 |
RZN169,174..ARL |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35100 |
KZN165..SCB..DLX;LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..ARL;KZN165,LN172,RZN174..(DCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 44416-35100 |
LN167..DCB..SR..ARL;LN167..SCB..ARL..CBU;RZN169..(DCB,SCB)..ARL;KZN165,RZN174..(THDCB,THSCB,XTR)..ARL |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35100 |
KZN165..SCB..DLX;LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..ARL;KZN165,LN172,RZN174..(DCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 44416-35100 |
LN167..DCB..SR..ARL;LN167..SCB..ARL..CBU;RZN169..(DCB,SCB)..ARL;KZN165,RZN174..(THDCB,THSCB,XTR)..ARL |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-35040 |
RZN149,154,169,174..ARL |
1 | ||
| 44443-35040 |
RZN169,174..ARL |
1 | ||
| Common parts | ||||
| 90105-10382 | ||||
| 90119-08933 | ||||
| 90119-10325 | ||||
| 90467-16019 | ||||
| 90560-10008 | ||||
| 91611-60814 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 4505 | ||||
(9708- )LN140,145,147,15#,16#,172,192..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-26020 |
RZN147,149,154,169,174..ARL |
1 | ||
| 44318-26020 |
RZN168..DLX;RZN168..SR..GEN;RZN169..DLX..SA;RZN148..GEN..CBU;RZN148,149..ARL,CO,GCC;RZN142,144,147,154,169,174,193..ARL,GCC,GEN |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-34010 |
RZN149,154,169,174..ARL |
1 | ||
| 44319-34010 |
RZN154,16#,193;RZN148..GEN..CBU;RZN144,148,149,174,194..ARL,CO,GCC,SA |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-35210 |
LN140,145,147,152,16#,172,192..RHD..(ARL,GEN,SA) |
1 | ||
| 44348-35210 |
LN145..SA;LN145..DCB..IV3;LN140,147,152,16#,172,192..RHD..(DCB,SCB,XTR)..(ARL,GEN,SA) |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-35530 |
RZN169,174,194..EFI |
1 | ||
| 44410-35530 |
RZN169,174,194..(DCB,SCB,XTR)..EFI |
1 | ||
| 44410-35531 |
RZN169..SA;RZN169..(DCB,SCB)..DLX..ARL;RZN174,194..DCB,SADCB,SCB,XTR |
1 | ||
| 44410-35531 |
RZN169,174..(DCB,SCB,XTR)..ARL |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-35530 |
RZN169,174,194..EFI |
1 | ||
| 44410-35530 |
RZN169,174,194..(DCB,SCB,XTR)..EFI |
1 | ||
| 44410-35531 |
RZN169..SA;RZN169..(DCB,SCB)..DLX..ARL;RZN174,194..DCB,SADCB,SCB,XTR |
1 | ||
| 44410-35531 |
RZN169,174..(DCB,SCB,XTR)..ARL |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-35110 |
KZN165..SCB..DLX;LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..ARL;KZN165,LN172,RZN174..(DCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 44412-35110 |
KZN165..TH;LN167..SR..ARL;RZN169,174..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-35110 |
KZN165..SCB..DLX;LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..ARL;KZN165,LN172,RZN174..(DCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 44412-35110 |
KZN165..TH;LN167..SR..ARL;RZN169,174..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 90445-18154 |
RZN169,174..ARL |
1 | ||
| 90445-18154 |
RZN169,174..ARL |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 90445-18154 |
RZN169,174..ARL |
1 | ||
| 90445-18154 |
RZN169,174..ARL |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35100 |
KZN165..SCB..DLX;LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..ARL;KZN165,LN172,RZN174..(DCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 44416-35100 |
LN167..DCB..SR..ARL;LN167..SCB..ARL..CBU;RZN169..(DCB,SCB)..ARL;KZN165,RZN174..(THDCB,THSCB,XTR)..ARL |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35100 |
KZN165..SCB..DLX;LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..ARL;KZN165,LN172,RZN174..(DCB,XTR)..(DEFI,EFI,TDE)..ARL |
1 | ||
| 44416-35100 |
LN167..DCB..SR..ARL;LN167..SCB..ARL..CBU;RZN169..(DCB,SCB)..ARL;KZN165,RZN174..(THDCB,THSCB,XTR)..ARL |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-35040 |
RZN149,154,169,174..ARL |
1 | ||
| 44443-35040 |
RZN169,174..ARL |
1 | ||
| Common parts | ||||
| 90105-10042 | ||||
| 90105-10113 | ||||
| 90105-10255 | ||||
| 90105-12109 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91611-60814 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 4505 | ||||
