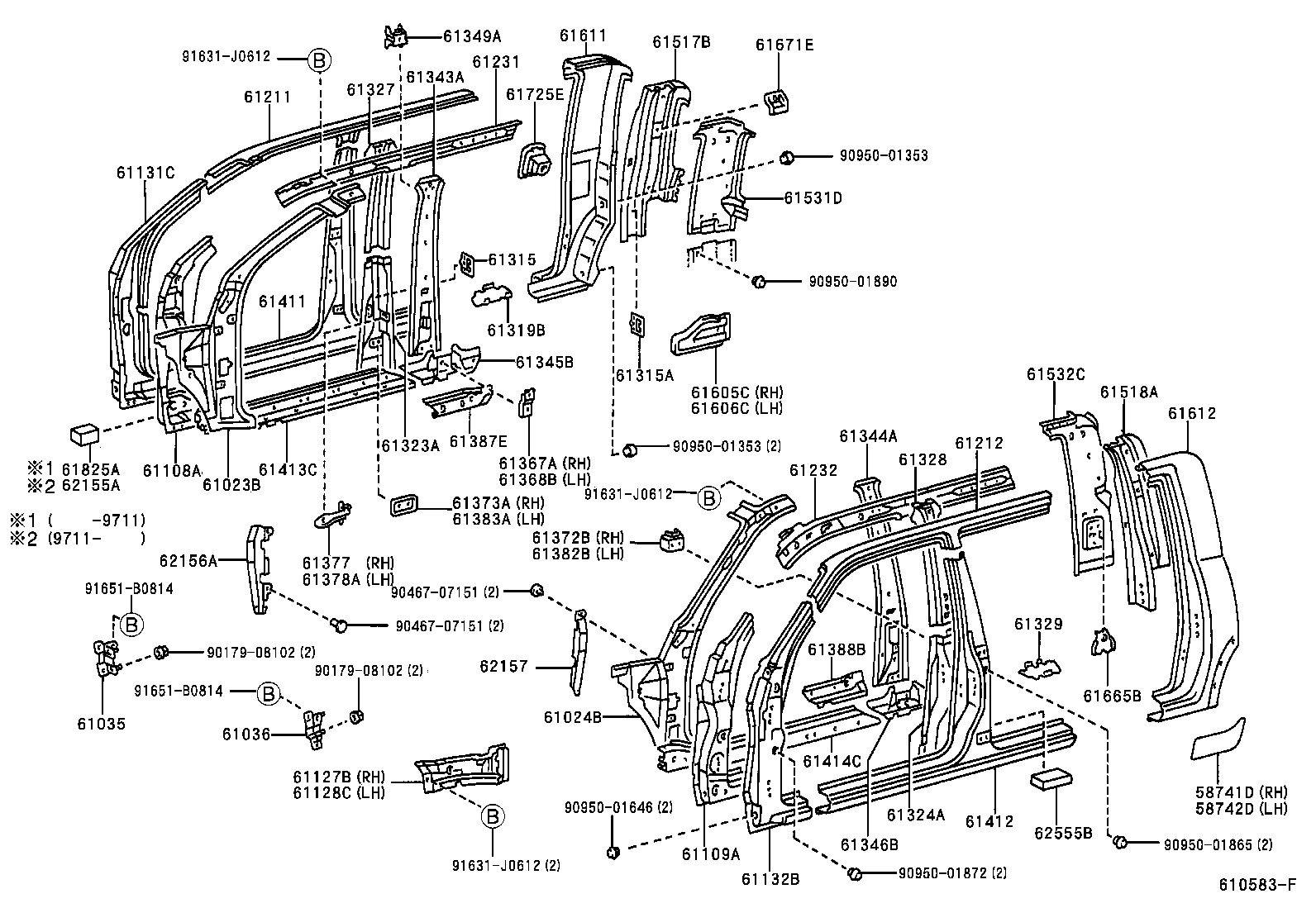

RZN169R-PRMDU (1997)
Toyota Hilux
(9708- )DCB,SADCB,THDCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741D - PROTECTOR, REAR WHEEL EXTENSION, RH | ||||
| 58741-35010 |
RZN169..SR..SA;KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..(CBR,DEFI)..(GEN,TH);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN190,LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI,TDE)..(ARL,GEN,SA) |
1 | ||
| 58742D - PROTECTOR, REAR WHEEL EXTENSION, LH | ||||
| 58742-35010 |
RZN169..SR..SA;KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..(CBR,DEFI)..(GEN,TH);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN190,LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI,TDE)..(ARL,GEN,SA) |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-35130 |
LN152,167..DSL;LN152..DEFI..IV3;KZN165..SR..(ARL,SA);LN145..RHD..DCB..GEN;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN150,RZN194..(DCB,SCB,XTR)..SR;LN192,RZN169..RHD..(CBR,DEFI,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN145..RHD..(SCB,XTR)..(GEN,SA,TH)..(CBU,IV1);KZN190,LN140,147,155,157,166,172,RZN142,147,149,154,174,YN140..RHD..DLX..(ARL,GEN,SA,TH) |
1 | ||
| 61023-35190 |
LN167..DSL;LN152..DEFI..IV3;LN150,RZN194..SR;KZN165..SR..(ARL,SA);LN145..RHD..SCB..(IV1,IV3);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN165,LN145..SCB..DLX..(ARL,SA,TH)..(CBU,IV3);LN166,192,RZN169..RHD..(CBR,DEFI,DSL)..(GEN,SA,TH);LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN140,147,155,157,172,RZN142,147,149,154,169,174,YN140..RHD..DLX..(ARL,SA,TH) W(ANNTENA) |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-35100 |
LN145..DCB..IV3;LN147..DCB..DSL;RZN169..(DCB,SCB)..DLX..ARL;LN145,166,RZN169..RHD..(CBR,DSL)..GEN..CBU;LN167,RZN147,149..RHD..(DCB,SCB)..DLX..(CBR,DSL,EFI)..(ARL,GEN) ROUGH ROAD PACKAGE |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61036-35010 |
LN167..DSL;LN152..DEFI..IV3;LN150,RZN194..SR;KZN165..SR..(ARL,SA);LN145..RHD..DCB..GEN;RZN169..DLX..(ARL,SA);KZN165,LN145..RHD..SCB..DLX;LN192,RZN169..RHD..(CBR,DEFI,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN140,147,155,157,166,172,RZN142,147,149,154,174,YN140..RHD..DLX..(ARL,GEN,SA,TH) |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-35030 |
LN152..IV3;RZN169..DCB..SA;RZN169..DLX..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,RZN154..(SCB,THXTR,XTR)..DLX..ARL;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN144,149,154,169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-35030 |
LN152..IV3;RZN169..DCB..SA;RZN169..DLX..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,RZN154..(SCB,THXTR,XTR)..DLX..ARL;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN144,149,154,169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61127B - REINFORCEMENT, COWL SIDE PANEL, NO.2 RH | ||||
| 61127-35040 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 61128C - REINFORCEMENT, COWL SIDE PANEL, NO.2 LH | ||||
| 61128-35040 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-35030 |
KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140 |
1 | ||
| 61131-35040 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-35030 |
KZN165,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140 |
1 | ||
| 61132-35040 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-35040 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-35040 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-35150 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-35140 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61315-22020 |
LN152..IV3;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);KZN165,RZN194..SR..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,RZN154..(SCB,THXTR,XTR)..DLX..ARL;LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN144,149,154,169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61315A - RETAINER, DOOR LOCK STRIKER | ||||
| 61315-22020 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61319B - PLATE, CENTER BODY PILLAR, OUTER RH | ||||
| 61319-35010 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61323A - REINFORCEMENT, CENTER BODY PILLAR, LOWER RH | ||||
| 61323-35030 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61324A - REINFORCEMENT, CENTER BODY PILLAR, LOWER LH | ||||
| 61324-35030 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61327 - REINFORCEMENT, CENTER BODY PILLAR, OUTER RH | ||||
| 61327-35030 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61328 - REINFORCEMENT, CENTER BODY PILLAR, OUTER LH | ||||
| 61328-35030 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61329 - PLATE, CENTER BODY PILLAR, OUTER LH | ||||
| 61329-35010 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-35030 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-35030 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61345B - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-35030 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61346B - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61346-35030 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61349A - PATCH, BELT ANCHOR TO CENTER PILLAR | ||||
| 61349-35050 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61367A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH | ||||
| 61367-35020 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61368B - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH | ||||
| 61368-35020 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61372B - REINFORCE, CENTER PILLAR UPPER HINGE, NO.2 RH | ||||
| 61371-35010 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61373A - REINFORCE, CENTER PILLAR LOWER HINGE, NO.1 RH | ||||
| 61373-35010 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61377 - BRACKET, REAR DOOR CHECK ARM, RH | ||||
| 61377-35010 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61378A - BRACKET, REAR DOOR CHECK ARM, LH | ||||
| 61377-35010 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61382B - REINFORCE, CENTER PILLAR UPPER HINGE, NO.2 LH | ||||
| 61371-35010 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61383A - REINFORCE, CENTER PILLAR LOWER HINGE, NO.1 LH | ||||
| 61373-35010 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61387E - EXTENSION, CENTER BODY PILLAR, LOWER RH | ||||
| 61387-35010 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61388B - EXTENSION, CENTER BODY PILLAR, LOWER LH | ||||
| 61388-35010 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-35080 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-35080 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-35030 |
LN152..IV3;RZN169..DCB..SA;RZN169..DLX..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,RZN154..(SCB,THXTR,XTR)..DLX..ARL;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN144,149,154,169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-35030 |
LN152..IV3;RZN169..DCB..SA;RZN169..DLX..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,RZN154..(SCB,THXTR,XTR)..DLX..ARL;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN144,149,154,169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61517B - REINFORCEMENT, QUARTER LOCK PILLAR, RH | ||||
| 61517-35030 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61518A - REINFORCEMENT, QUARTER LOCK PILLAR, LH | ||||
| 61518-35030 |
LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN) |
1 | ||
| 61531D - PANEL, CAB REAR PILLAR, INNER RH | ||||
| 61531-35040 |
LN145,146,147,16#,19#,RZN147,148,149,16#,193..DCB..DLX W(3 POINT REAR SEAT BELT) |
1 | ||
| 61531-35050 |
LN145,166,19#,RZN147,148,149,16#,193..DCB..DLX..(GEN,SA,TH) |
1 | ||
| 61531-35040 |
LN145..DCB..IV3;RZN169..(DCB,THDCB)..DLX..ARL;KZN165,RZN149,169..DCB..DLX..(CBR,TDE)..CBU;LN147,167,RZN149..(DCB,THDCB)..DLX..(DEFI,DSL,EFI)..(ARL,GEN) W(3 POINT REAR SEAT BELT) |
1 | ||
| 61532C - PANEL, CAB REAR PILLAR, INSIDE LH | ||||
| 61532-35040 |
LN145,146,147,16#,19#,RZN147,148,149,16#,193..DCB..DLX W(3 POINT REAR SEAT BELT) |
1 | ||
| 61532-35050 |
LN145,166,19#,RZN147,148,149,16#,193..DCB..DLX..(GEN,SA,TH) |
1 | ||
| 61532-35040 |
LN145..DCB..IV3;RZN169..DCB..DLX..ARL;LN147,167..THDCB..DLX..DEFI;RZN149..DCB..DLX..EFI..(ARL,GEN);KZN165,LN147,167,RZN149,169..DCB..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN)..CBU W(3 POINT REAR SEAT BELT) |
1 | ||
| 61606C - PANEL SUB-ASSY, QUATER, REAR INNER LH | ||||
| 61568-35030 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-35120 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-35100 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61665B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61665-35020 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61671E - REINFORCEMENT, SEAT BELT ANCHOR, UPPER | ||||
| 61671-35010 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 61725E - BOX, FUEL INLET | ||||
| 61725-35020 |
RZN169..DCB..CBR;RZN149..DCB..CBR..GCC;RZN169..(DCB,THDCB)..ARL;RZN149..(DCB,THDCB)..DLX..(ARL,GEN);KZN165,LN145,146,147,16#,191,RZN147,148,168,193..(DCB,THDCB)..DLX..(ARL,GCC,GEN,TH) |
1 | ||
| 61725-35010 |
RZN169..DCB..SA;RZN149..DCB..CBR;RZN169..(DCB,THDCB)..DLX..ARL;KZN165..(DCB,THDCB)..SR..(ARL,SA);LN16#..DCB..(DEFI,DSL)..(GCC,GEN,TH);LN145,RZN148,168..LHD..DCB..DLX..(GEN,TH);LN167,RZN169..(DCB,THDCB)..DLX..(CBR,DEFI)..(ARL,GCC,GEN);LN146,167,19#,RZN147,19#..(DCB,SADCB,THDCB)..(CBR,DSL,EFI);KZN190,LN145,147,RZN149..RHD..(DCB,THDCB)..DLX..(ARL,GEN,SA)..CBU W(FUEL LID OPENER) |
1 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 62151-20170 |
LN145,146,147,16#,191,RZN147,148,149,16#,193..DCB |
2 | ||
| 62155A - PAD, COWL SIDE LOWER SILENCER | ||||
| 62155-89101 |
LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#..CBU,IV3 |
2 | ||
| 62156A - INSULATOR, COWL SIDE, RH | ||||
| 62156-35020 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 62157 - INSULATOR, COWL SIDE, LH | ||||
| 62157-35020 |
LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 62555B - PAD, PILLAR, NO.5 | ||||
| 62555-35010 |
KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| Common parts | ||||
| 90179-08102 | ||||
| 90467-07151 | ||||
| 90950-01353 | ||||
| 90950-01646 | ||||
| 90950-01865 | ||||
| 90950-01872 | ||||
| 90950-01890 | ||||
| 91631-J0612 | ||||
| 91651-B0814 | ||||
