RZN169L-TRMDU (1997)
Toyota Hilux
(9708- )3RZ#

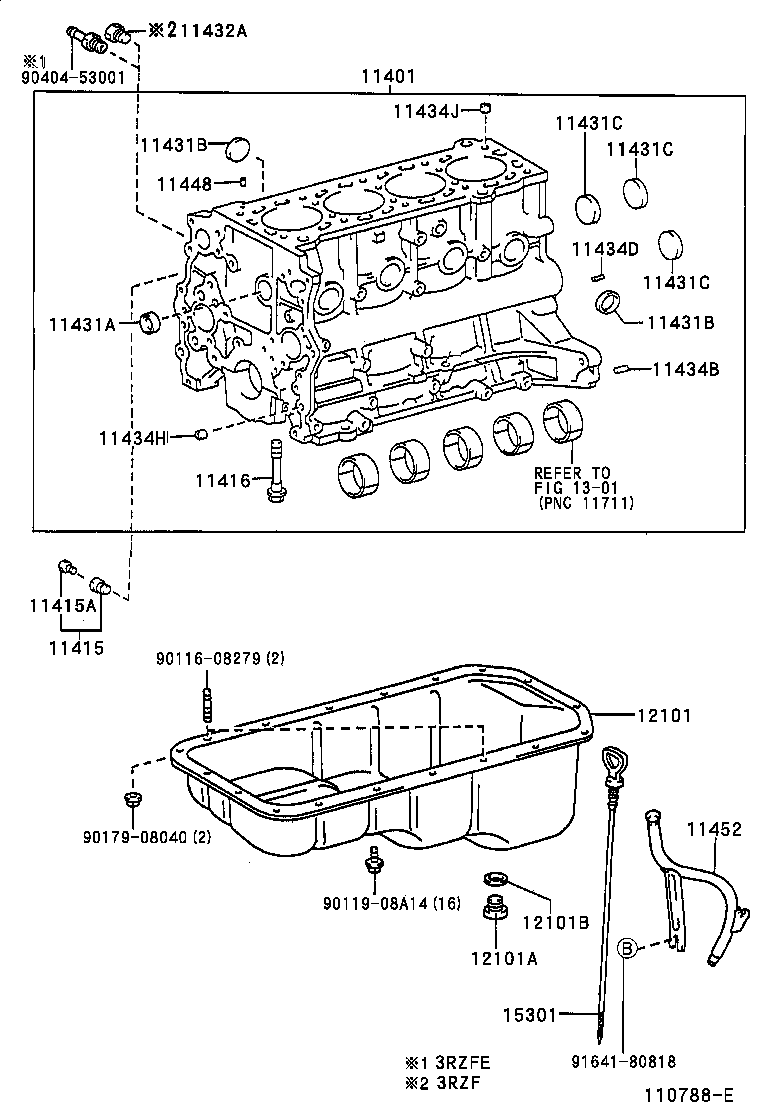

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-79856 |
3RZF..RZN144,149,154,169 |
1 | ||
| 11401-79855 |
3RZF..RZN144,149,154,169 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90345-52001 |
2RZFE,3RZ#..RZN144,148,149,154,16#,174,19# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02092 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-63000 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-63500 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
8 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-63500 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
8 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-64000 |
3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZF..RZN144,149,154,169;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149..DLX..(ARL,GEN) |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-64000 |
3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZF..RZN144,149,154,169;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149..DLX..(ARL,GEN) |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-64000 |
3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZF..RZN144,149,154,169;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149..DLX..(ARL,GEN) |
3 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-53009 |
3RZF..RZN144,149,154,169 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 L=22,OD=10 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 L=14,OD=6 |
2 | ||
| 11434H - PIN, RING (FOR TIMING BELT COVER SET) | ||||
| 90253-11005 |
3RZF..RZN149..GCC;3RZF..RZN144,154,169;3RZF..RZN149..DLX..GEN |
3 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-15016 |
3RZF..RZN149..GCC;1RZ..RZN147..LHD..SCB;3RZF..RZN149..DLX..GEN;1RZ..RZN147..DCB..(GCC,GEN);1RZ,2RZFE,3RZF..RZN142,144,154,169,193..GCC,GEN |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 90977-02011 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN) |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-75020 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-75090 |
3RZFE..RZN174,194;3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN16#,193..DLX |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12026 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-75011 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| Common parts | ||||
| 90116-08279 | ||||
| 90119-08A14 | ||||
| 90179-08040 | ||||
| 90404-53001 | ||||
| 91641-80818 | ||||
| Linked diagrams | ||||
| 1301 | ||||
