RZN169L-TRMDKV (2001)
Toyota Hilux

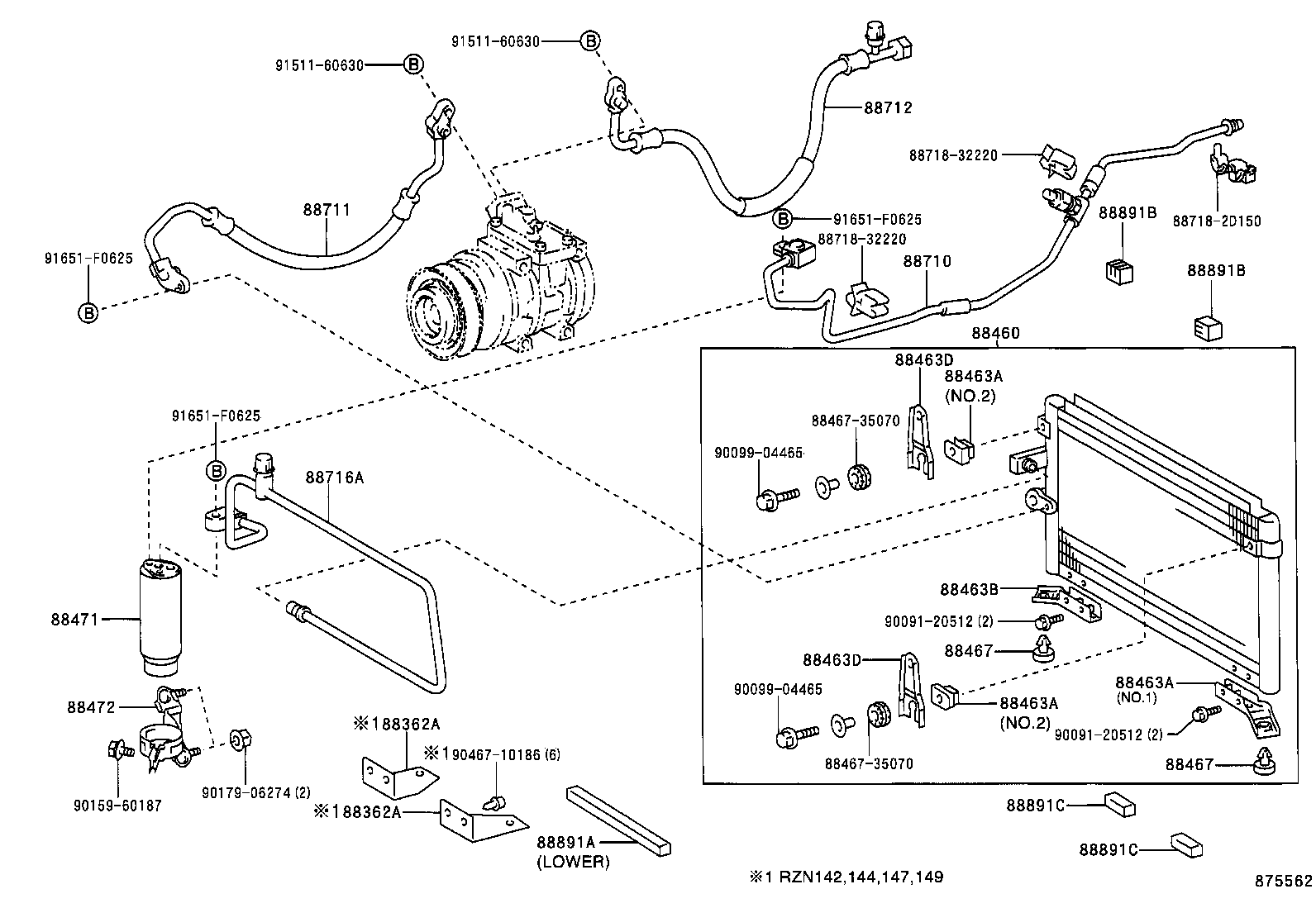

ILLUST NO. 1 OF 2(0108- )RZN142,144,147,149,169..GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88362A - PLATE,SEAL | ||||
| 88362-35010 |
RZN169..GCC |
2 | ||
| 88362-35010 |
RZN169..GCC |
2 | ||
| 88362A - PLATE,SEAL | ||||
| 88362-35010 |
RZN169..GCC |
2 | ||
| 88362-35010 |
RZN169..GCC |
2 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-35200 |
RZN149..GCC;RZN149..DLX..CBR..GEN;LN141,145,146,166,171,191,RZN142,144,147,154,169,193..LHD..(GCC,GEN) |
1 | ||
| 88460-35280 |
LN145..LHD..GEN;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154,16#,193..LHD..CBU |
1 | ||
| 88460-35330 |
RZN142,144,147,149,169..GCC |
1 | ||
| 88460-35370 |
RZN144,149,169..GCC DEALER OPTION |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-35120 |
RZN142,144,147,149,169..GCC NO.2 |
2 | ||
| 88463-35120 |
RZN144,149,169..GCC DEALER OPTION |
2 | ||
| 88463-35120 |
RZN142,144,147,149,169..GCC NO.2 |
2 | ||
| 88463-35120 |
RZN144,149,169..GCC DEALER OPTION |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-35120 |
RZN142,144,147,149,169..GCC NO.2 |
2 | ||
| 88463-35120 |
RZN144,149,169..GCC DEALER OPTION |
2 | ||
| 88463-35120 |
RZN142,144,147,149,169..GCC NO.2 |
2 | ||
| 88463-35120 |
RZN144,149,169..GCC DEALER OPTION |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-35120 |
RZN142,144,147,149,169..GCC NO.2 |
2 | ||
| 88463-35120 |
RZN144,149,169..GCC DEALER OPTION |
2 | ||
| 88463-35120 |
RZN142,144,147,149,169..GCC NO.2 |
2 | ||
| 88463-35120 |
RZN144,149,169..GCC DEALER OPTION |
2 | ||
| 88463D - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88463-35180 |
RZN144,149,169..GCC |
2 | ||
| 88463-35180 |
RZN142,144,147,149,169..GCC NO.2 |
4 | ||
| 88463D - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88463-35180 |
RZN144,149,169..GCC |
2 | ||
| 88463-35180 |
RZN142,144,147,149,169..GCC NO.2 |
4 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
KZN190..SR;LN147..IV3;LN145..LHD..IV3;RZN149..ARL,GCC;LN147..DCB,THDCB;RZN147..ARL,GCC,GEN;LN155,RZN142,168..LHD..CBU;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,RZN148,149..LHD..DCB..(CO,TH);KDN165,190,KZN165,LN141,146,16#,17#,19#,RZN144,154,169,174,19#..ARL,GCC,GEN,MA,SA |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-35060 |
RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-35500 |
RZN148..SR;RZN169..GCC;RZN149..SCB..GCC;RZN169..LHD..SCB..GEN;RZN148,149,168..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154..LHD |
1 | ||
| 88710-35510 |
LN141,146,166,RZN144,149,169..GCC DEALER OPTION |
1 | ||
| 88710-35511 |
LN141,146,166,RZN144,149,169..GCC DEALER OPTION |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-35530 |
RZN149..SR;RZN142,144,147,154..LHD;RZN149,169..LHD..SCB..DLX;RZN149,169..DCB..DLX..GCC |
1 | ||
| 88711-35760 |
RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);RZN142,144,147,16#..(CO,GCC)..CBU |
1 | ||
| 88711-35610 |
RZN144,149,169..GCC DEALER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-35510 |
RZN149..SR;RZN142,144,147,154..LHD;RZN149,169..LHD..SCB..DLX;RZN149,169..DCB..DLX..GCC |
1 | ||
| 88712-35510 |
RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);RZN142,144,147,154,16#,193..LHD..CBU |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-35610 |
RZN144,149,169..GCC DEALER OPTION |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-89119 |
RZN144,149,169..GCC LOWER |
1 | ||
| 88578-89119 |
RZN144,149,169..GCC LOWER |
1 | ||
| 53381-35041 |
RZN169..LHD..DCB;RZN169..SCB..GCC;LN145,RZN148..LHD..DLX..GEN;LN167,192,RZN168,193..ARL,GEN,SA;KZN165,LN141,146,147,152,166,172,RZN144,149,154,VZN167,172..ARL,GCC UPPER |
1 | ||
| 53381-35040 |
LN147..IV3;LN145..LHD..GEN;RZN169..DLX..SA;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN;LN167,192,RZN168,193..ARL,GEN,SA;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU;KZN165,LN141,146,166,172,RZN144,147,149,154,169,174,VZN167,172..(DEFI,DSL,EFI,TDE)..(ARL,GCC) UPPER |
1 | ||
| 88578-89119 |
LN147..IV3;RZN149,169..ARL;RZN169..DLX..SA;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN;LN145,RZN168,193..LHD..GEN;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU;KZN165,LN141,146,16#,172,RZN154,174..ARL,GCC TYPE A:REFER TO ILLUSTRATION,LOWER |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-35120 |
LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN) |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-35120 |
LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN) |
2 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-89111 |
KZN190..SR;RZN169..GCC;RZN142,147,149..MTM..(GCC,GEN);KZN165,LN141,146,166,RZN144..ARL,GCC,SA |
2 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-89111 |
KZN190..SR;RZN169..GCC;RZN142,147,149..MTM..(GCC,GEN);KZN165,LN141,146,166,RZN144..ARL,GCC,SA |
2 | ||
| Common parts | ||||
| 88467-35070 | ||||
| 88718-2D150 | ||||
| 88718-32220 | ||||
| 90091-20512 | ||||
| 90099-04465 | ||||
| 90159-60187 | ||||
| 90179-06274 | ||||
| 90467-10186 | ||||
| 91511-60630 | ||||
| 91651-F0625 | ||||

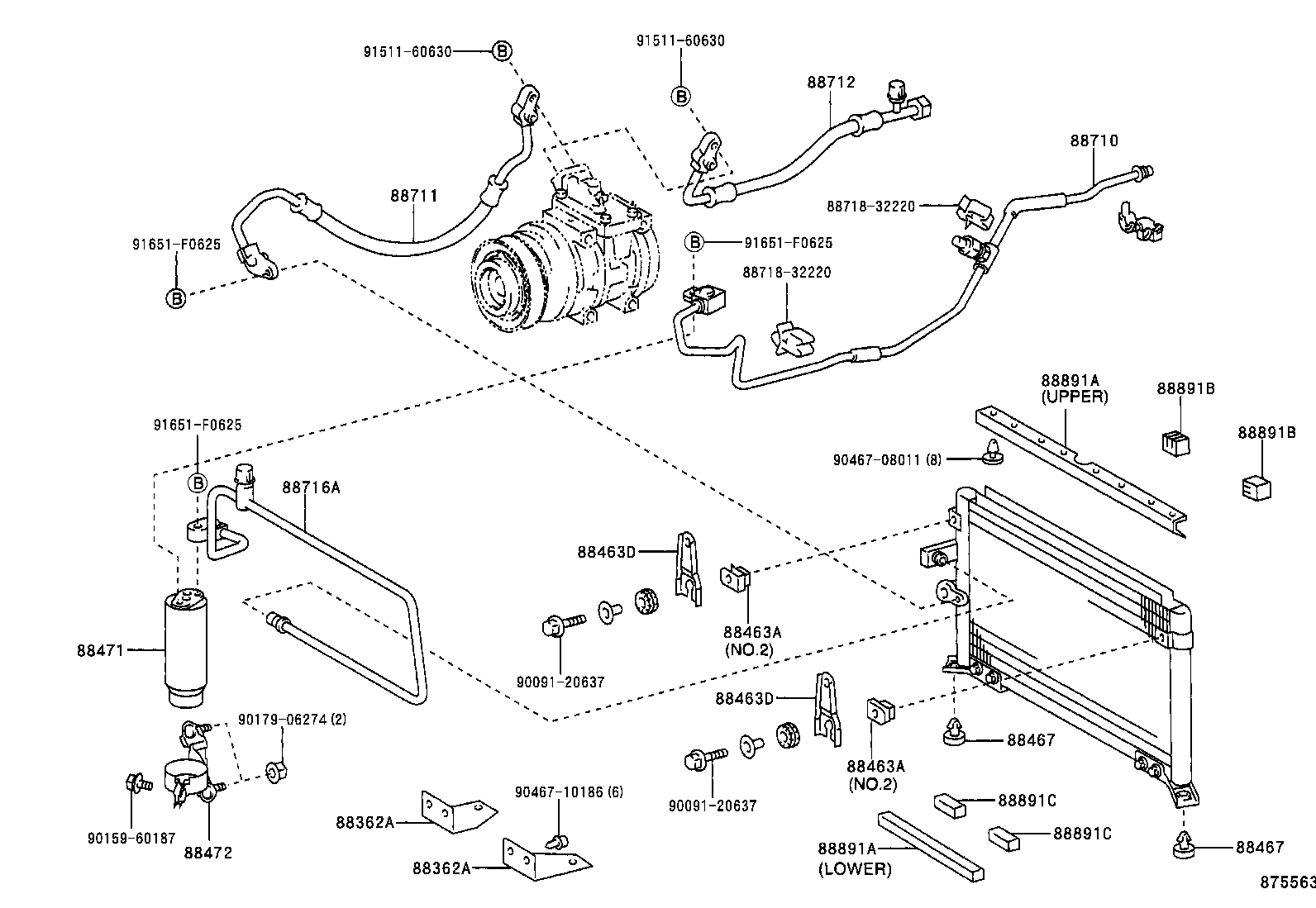

ILLUST NO. 1 OF 2(0108- )RZN144,149,169..GCC
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88362A - PLATE,SEAL | ||||
| 88362-35010 |
RZN169..GCC |
2 | ||
| 88362-35010 |
RZN169..GCC |
2 | ||
| 88362A - PLATE,SEAL | ||||
| 88362-35010 |
RZN169..GCC |
2 | ||
| 88362-35010 |
RZN169..GCC |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-35120 |
RZN142,144,147,149,169..GCC NO.2 |
2 | ||
| 88463-35120 |
RZN144,149,169..GCC DEALER OPTION |
2 | ||
| 88463-35120 |
RZN142,144,147,149,169..GCC NO.2 |
2 | ||
| 88463-35120 |
RZN144,149,169..GCC DEALER OPTION |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-35120 |
RZN142,144,147,149,169..GCC NO.2 |
2 | ||
| 88463-35120 |
RZN144,149,169..GCC DEALER OPTION |
2 | ||
| 88463-35120 |
RZN142,144,147,149,169..GCC NO.2 |
2 | ||
| 88463-35120 |
RZN144,149,169..GCC DEALER OPTION |
2 | ||
| 88463D - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88463-35180 |
RZN144,149,169..GCC |
2 | ||
| 88463-35180 |
RZN142,144,147,149,169..GCC NO.2 |
4 | ||
| 88463D - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88463-35180 |
RZN144,149,169..GCC |
2 | ||
| 88463-35180 |
RZN142,144,147,149,169..GCC NO.2 |
4 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
KZN190..SR;LN147..IV3;LN145..LHD..IV3;RZN149..ARL,GCC;LN147..DCB,THDCB;RZN147..ARL,GCC,GEN;LN155,RZN142,168..LHD..CBU;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,RZN148,149..LHD..DCB..(CO,TH);KDN165,190,KZN165,LN141,146,16#,17#,19#,RZN144,154,169,174,19#..ARL,GCC,GEN,MA,SA |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-35060 |
RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-35500 |
RZN148..SR;RZN169..GCC;RZN149..SCB..GCC;RZN169..LHD..SCB..GEN;RZN148,149,168..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154..LHD |
1 | ||
| 88710-35510 |
LN141,146,166,RZN144,149,169..GCC DEALER OPTION |
1 | ||
| 88710-35511 |
LN141,146,166,RZN144,149,169..GCC DEALER OPTION |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-35530 |
RZN149..SR;RZN142,144,147,154..LHD;RZN149,169..LHD..SCB..DLX;RZN149,169..DCB..DLX..GCC |
1 | ||
| 88711-35760 |
RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);RZN142,144,147,16#..(CO,GCC)..CBU |
1 | ||
| 88711-35610 |
RZN144,149,169..GCC DEALER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-35510 |
RZN149..SR;RZN142,144,147,154..LHD;RZN149,169..LHD..SCB..DLX;RZN149,169..DCB..DLX..GCC |
1 | ||
| 88712-35510 |
RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);RZN142,144,147,154,16#,193..LHD..CBU |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-35610 |
RZN144,149,169..GCC DEALER OPTION |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-89119 |
RZN144,149,169..GCC LOWER |
1 | ||
| 88578-89119 |
RZN144,149,169..GCC LOWER |
1 | ||
| 53381-35041 |
RZN169..LHD..DCB;RZN169..SCB..GCC;LN145,RZN148..LHD..DLX..GEN;LN167,192,RZN168,193..ARL,GEN,SA;KZN165,LN141,146,147,152,166,172,RZN144,149,154,VZN167,172..ARL,GCC UPPER |
1 | ||
| 53381-35040 |
LN147..IV3;LN145..LHD..GEN;RZN169..DLX..SA;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN;LN167,192,RZN168,193..ARL,GEN,SA;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU;KZN165,LN141,146,166,172,RZN144,147,149,154,169,174,VZN167,172..(DEFI,DSL,EFI,TDE)..(ARL,GCC) UPPER |
1 | ||
| 88578-89119 |
LN147..IV3;RZN149,169..ARL;RZN169..DLX..SA;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN;LN145,RZN168,193..LHD..GEN;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU;KZN165,LN141,146,16#,172,RZN154,174..ARL,GCC TYPE A:REFER TO ILLUSTRATION,LOWER |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-89119 |
RZN144,149,169..GCC LOWER |
1 | ||
| 88578-89119 |
RZN144,149,169..GCC LOWER |
1 | ||
| 53381-35041 |
RZN169..LHD..DCB;RZN169..SCB..GCC;LN145,RZN148..LHD..DLX..GEN;LN167,192,RZN168,193..ARL,GEN,SA;KZN165,LN141,146,147,152,166,172,RZN144,149,154,VZN167,172..ARL,GCC UPPER |
1 | ||
| 53381-35040 |
LN147..IV3;LN145..LHD..GEN;RZN169..DLX..SA;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN;LN167,192,RZN168,193..ARL,GEN,SA;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU;KZN165,LN141,146,166,172,RZN144,147,149,154,169,174,VZN167,172..(DEFI,DSL,EFI,TDE)..(ARL,GCC) UPPER |
1 | ||
| 88578-89119 |
LN147..IV3;RZN149,169..ARL;RZN169..DLX..SA;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN;LN145,RZN168,193..LHD..GEN;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU;KZN165,LN141,146,16#,172,RZN154,174..ARL,GCC TYPE A:REFER TO ILLUSTRATION,LOWER |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-35120 |
LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN) |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-35120 |
LN145..GEN..CBU;LN145..LHD..IV3;RZN169..DLX..ARL;RZN147,154..ARL,GCC;RZN149..SCB..MTM..ARL;RZN149..ATM..DLX..ARL;RZN169..LHD..DCB..CBR..GEN;RZN142,144,149,169..CBR..GCC;LN145,152..(DCB,THXTR,XTR)..IV3;RZN149..(DCB,THDCB,THSCB)..MTM..DLX..(ARL,GEN);LN141,146,147,16#,17#,191,RZN174..DLX..(ARL,GCC,GEN) |
2 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-89111 |
KZN190..SR;RZN169..GCC;RZN142,147,149..MTM..(GCC,GEN);KZN165,LN141,146,166,RZN144..ARL,GCC,SA |
2 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-89111 |
KZN190..SR;RZN169..GCC;RZN142,147,149..MTM..(GCC,GEN);KZN165,LN141,146,166,RZN144..ARL,GCC,SA |
2 | ||
| Common parts | ||||
| 88718-32220 | ||||
| 90091-20637 | ||||
| 90159-60187 | ||||
| 90179-06274 | ||||
| 90467-08011 | ||||
| 90467-10186 | ||||
| 91511-60630 | ||||
| 91651-F0625 | ||||
