8718 - HEATING & AIR CONDITIONING - COOLER PIPING

RZN169L-PRMSK (2001)

Toyota Hilux

Production Aug 2001 - Jun 2005

Engine 3RZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

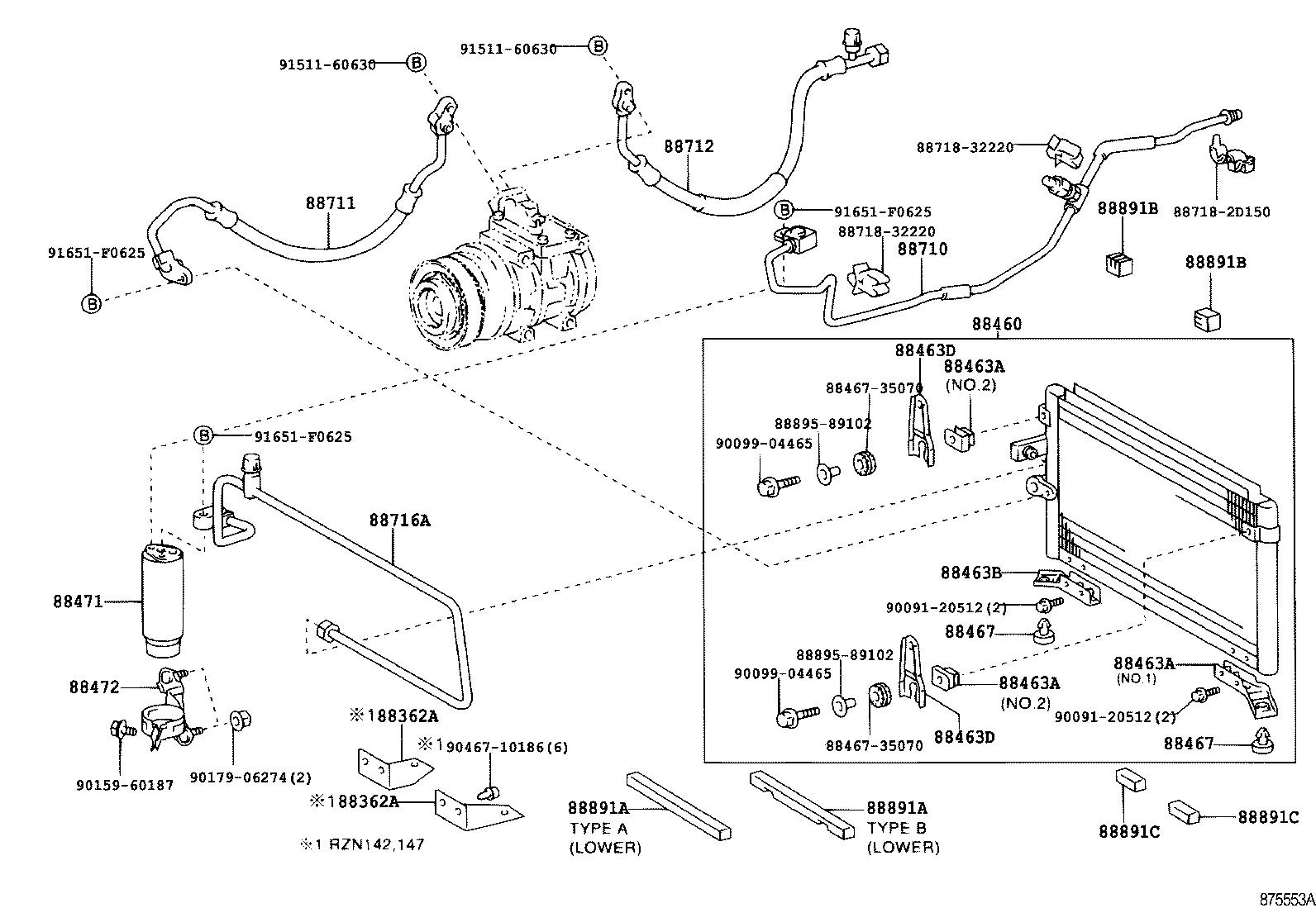

ILLUST NO. 1 OF 2(0108- )RZN142,147,148,154,16#,193..LHD..GEN

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-35200	RZN149..GCC;RZN149..DLX..CBR..GEN;LN141,145,146,166,171,191,RZN142,144,147,154,169,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
88460-35280	LN145..LHD..GEN;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 02/2004	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	KZN190..SR;LN147..IV3;LN145..LHD..IV3;RZN149..ARL,GCC;LN147..DCB,THDCB;RZN147..ARL,GCC,GEN;LN155,RZN142,168..LHD..CBU;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,RZN148,149..LHD..DCB..(CO,TH);KDN165,190,KZN165,LN141,146,16#,17#,19#,RZN144,154,169,174,19#..ARL,GCC,GEN,MA,SA	08/2001 - 12/2999	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-35060	RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD	08/2001 - 12/2999	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-35500	RZN168,193..GEN;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN DEALER OPTION	08/2001 - 06/2005	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35510	RZN169,194..SR	08/1997 - 08/2000	1
88711-35610	RZN168,193..GEN;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN DEALER OPTION	08/2001 - 07/2004	1
88711-35760	RZN142,147,148,154,16#,193..LHD..GEN..CBU	02/2004 - 06/2005	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-35490	RZN169,194..SR	08/1997 - 08/2000	1
88712-35510	RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-35610	RZN168,193..GEN;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN DEALER OPTION	08/2001 - 06/2005	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN168,193..GEN;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN LOWER	08/2001 - 06/2005	1
53381-35040	LN147..IV3;LN145..LHD..GEN;RZN169..DLX..SA;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN;LN167,192,RZN168,193..ARL,GEN,SA;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU;KZN165,LN141,146,166,172,RZN144,147,149,154,169,174,VZN167,172..(DEFI,DSL,EFI,TDE)..(ARL,GCC) UPPER	08/2001 - 09/2003	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN168,193..GEN;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN LOWER	08/2001 - 06/2005	1
53381-35040	LN147..IV3;LN145..LHD..GEN;RZN169..DLX..SA;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN;LN167,192,RZN168,193..ARL,GEN,SA;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU;KZN165,LN141,146,166,172,RZN144,147,149,154,169,174,VZN167,172..(DEFI,DSL,EFI,TDE)..(ARL,GCC) UPPER	08/2001 - 09/2003	1
88891B - PACKING B (FOR COOLER)
88578-35120	RZN194;RZN169..DCB..SA;RZN142,147,148,154,16#,193..GEN..CBU MAKER OPTION	08/2001 - 06/2005	2
88891B - PACKING B (FOR COOLER)
88578-35120	RZN194;RZN169..DCB..SA;RZN142,147,148,154,16#,193..GEN..CBU MAKER OPTION	08/2001 - 06/2005	2
Common parts
88467-35070
88718-2D150
88718-32220
88895-89102
90091-20512
90099-04465
90159-60187
90179-06274
90467-10186
91511-60630
91651-F0625

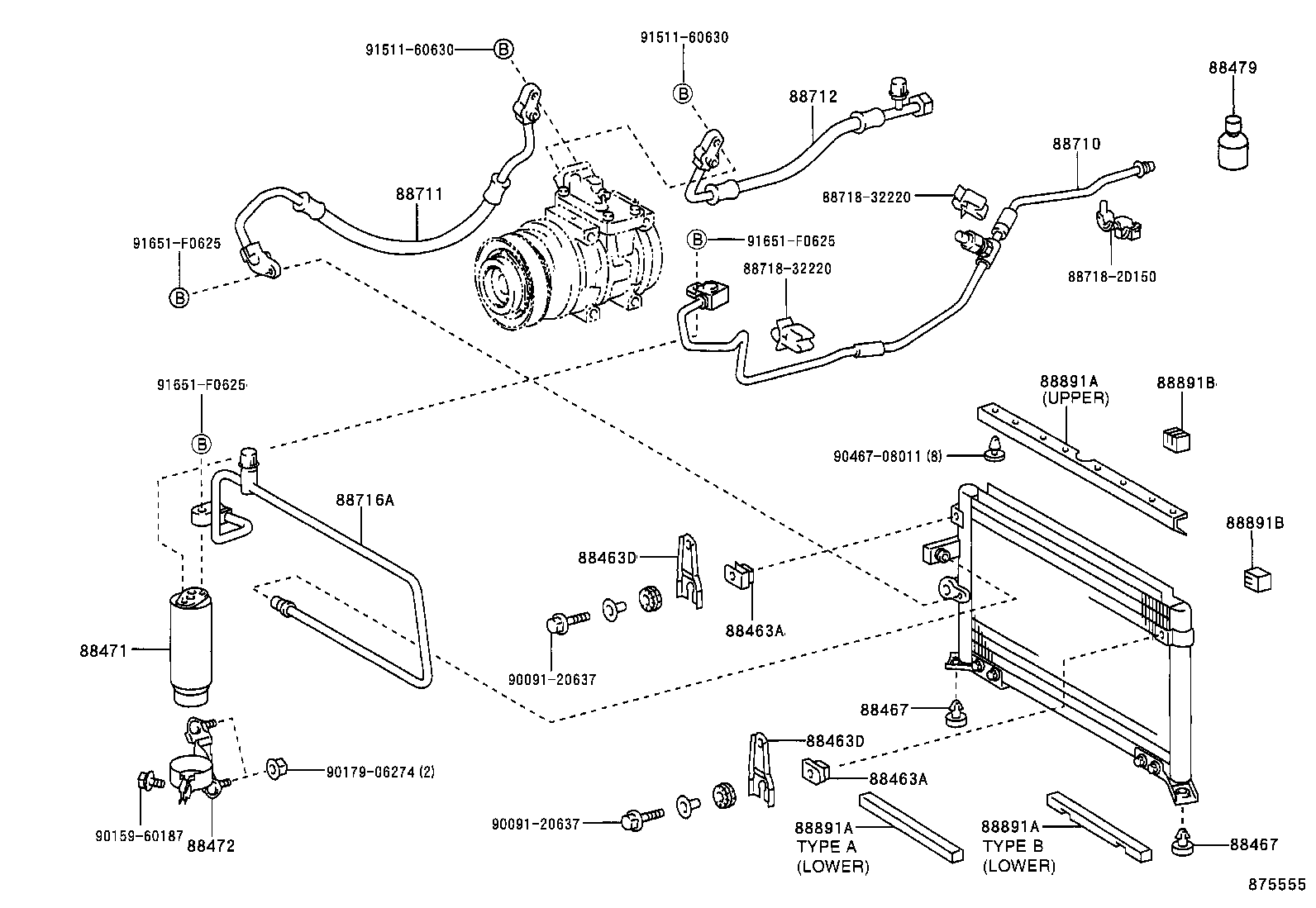

ILLUST NO. 1 OF 2(0108- )RZN148,16#,193..LHD..GEN

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	KZN190..SR;LN147..IV3;LN145..LHD..IV3;RZN149..ARL,GCC;LN147..DCB,THDCB;RZN147..ARL,GCC,GEN;LN155,RZN142,168..LHD..CBU;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,RZN148,149..LHD..DCB..(CO,TH);KDN165,190,KZN165,LN141,146,16#,17#,19#,RZN144,154,169,174,19#..ARL,GCC,GEN,MA,SA	08/2001 - 12/2999	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-35060	RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD	08/2001 - 12/2999	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02008	RZN168,193..GEN;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN 200G	08/2001 - 06/2005	2
88710 - TUBE ASSY, AIR CONDITIONER
88710-35500	RZN168,193..GEN;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN DEALER OPTION	08/2001 - 06/2005	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35510	RZN169,194..SR	08/1997 - 08/2000	1
88711-35610	RZN168,193..GEN;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN DEALER OPTION	08/2001 - 07/2004	1
88711-35760	RZN142,147,148,154,16#,193..LHD..GEN..CBU	02/2004 - 06/2005	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-35490	RZN169,194..SR	08/1997 - 08/2000	1
88712-35510	RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-35610	RZN168,193..GEN;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN DEALER OPTION	08/2001 - 06/2005	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN168,193..GEN;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN LOWER	08/2001 - 06/2005	1
53381-35040	LN147..IV3;LN145..LHD..GEN;RZN169..DLX..SA;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN;LN167,192,RZN168,193..ARL,GEN,SA;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU;KZN165,LN141,146,166,172,RZN144,147,149,154,169,174,VZN167,172..(DEFI,DSL,EFI,TDE)..(ARL,GCC) UPPER	08/2001 - 09/2003	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN168,193..GEN;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN LOWER	08/2001 - 06/2005	1
53381-35040	LN147..IV3;LN145..LHD..GEN;RZN169..DLX..SA;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN;LN167,192,RZN168,193..ARL,GEN,SA;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU;KZN165,LN141,146,166,172,RZN144,147,149,154,169,174,VZN167,172..(DEFI,DSL,EFI,TDE)..(ARL,GCC) UPPER	08/2001 - 09/2003	1
88891A - PACKING A (FOR COOLER)
88578-35130	RZN168,193..GEN;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN LOWER	08/2001 - 06/2005	1
53381-35040	LN147..IV3;LN145..LHD..GEN;RZN169..DLX..SA;RZN148..DLX..GEN..CBU;RZN169..LHD..DCB..GEN;LN167,192,RZN168,193..ARL,GEN,SA;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU;KZN165,LN141,146,166,172,RZN144,147,149,154,169,174,VZN167,172..(DEFI,DSL,EFI,TDE)..(ARL,GCC) UPPER	08/2001 - 09/2003	1
88891B - PACKING B (FOR COOLER)
88578-35120	RZN194;RZN169..DCB..SA;RZN142,147,148,154,16#,193..GEN..CBU MAKER OPTION	08/2001 - 06/2005	2
88891B - PACKING B (FOR COOLER)
88578-35120	RZN194;RZN169..DCB..SA;RZN142,147,148,154,16#,193..GEN..CBU MAKER OPTION	08/2001 - 06/2005	2
Common parts
88718-2D150
88718-32220
90091-20637
90159-60187
90179-06274
90467-08011
91511-60630
91651-F0625
