RZN169L-PRMDUV (1997)

Toyota Hilux

Production Aug 1997 - Aug 2001
Engine 3RZF
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )RZN144,149,154,169..LHD..GCC,GEN

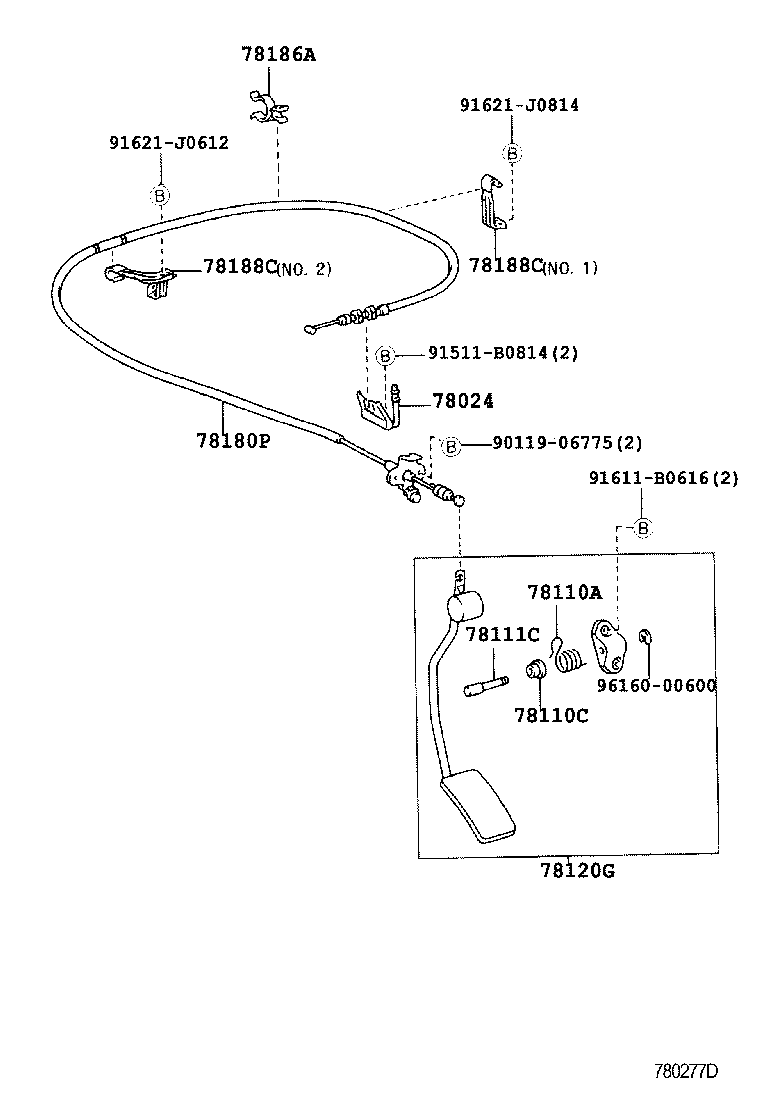

Click highlighted areas on diagram

diagram 78024 78110A 78110C 78111C 78120G 78180P 78186A 78188C 78188C 9011906775 91511B0814 91611B0616 91621J0612 91621J0814 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22100

LN145..LHD..GEN;LN141,146,147,16#,17#,19#..ARL,GCC,GEN,SA

 1
78024-34011

RZN144,149,154,169..CBR

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03051

RZN148,168,193..DLX..GEN;RZN144,149,154,169..LHD..CBR

 1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-12022

RZN148,149,168,193..DLX..EFI..GEN;RZN142,144,147,149,154,169..LHD..CBR

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-08066

RZN148,149,168,193..DLX..EFI..GEN;RZN142,144,147,149,154,169..LHD..CBR

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-35080

RZN148,168,193..DLX..GEN;RZN144,149,154,169..LHD..CBR

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-35420

RZN144,149,154,169..LHD..CBR

 1
78188C - CLAMP, ACCELERATOR CONTROL CABLE, NO.5
78188-35070

RZN142,144,147,149,154,169..LHD..CBR

NO.2

 1
78188-35060

RZN144,149,154,169..LHD..CBR

NO.1

 1
78188C - CLAMP, ACCELERATOR CONTROL CABLE, NO.5
78188-35070

RZN142,144,147,149,154,169..LHD..CBR

NO.2

 1
78188-35060

RZN144,149,154,169..LHD..CBR

NO.1

 1
Common parts
90119-06775
91511-B0814
91611-B0616
91621-J0612
91621-J0814
96160-00600
