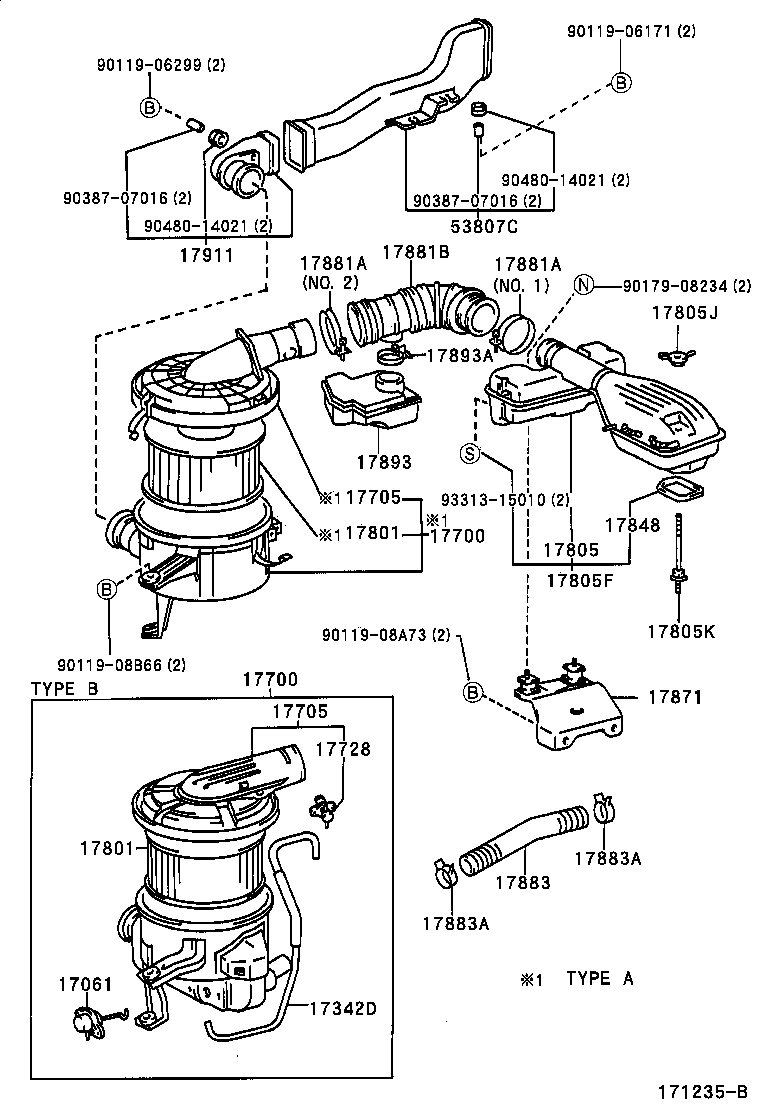

RZN169L-PRMDU (1997)
Toyota Hilux
(9708- )3RZF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-35020 |
3RZF..RZN149..SR;3RZF..RZN149..DLX..GCC;1RZ,3RZF..RZN142,144..GCC;1RZ,3RZF..RZN147,169..LHD |
1 | ||
| 17061-61040 |
3RZF..RZN149..SR;3RZF..RZN149..DLX..GCC;1RZ,3RZF..RZN142,144..GCC;1RZ,3RZF..RZN147,169..LHD |
1 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-75020 |
3RZF..RZN149..SR;3RZF..RZN149..DLX..GCC;1RZ,3RZF..RZN142,144..GCC;1RZ,3RZF..RZN147,169..LHD |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-75260 |
1RZ..RZN147;1RZ,3RZF..RZN142,144,149,154,169..GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 17700-75270 |
3RZF..RZN149..SR;3RZF..RZN149..DLX..GCC;1RZ,3RZF..RZN142,144..GCC;1RZ,3RZF..RZN147,169..LHD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-75260 |
1RZ..RZN147;1RZ,3RZF..RZN142,144,149,154,169..GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 17700-75270 |
3RZF..RZN149..SR;3RZF..RZN149..DLX..GCC;1RZ,3RZF..RZN142,144..GCC;1RZ,3RZF..RZN147,169..LHD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-75210 |
3RZF..RZN149..SR;3RZF..RZN149..DLX..GCC;1RZ,3RZF..RZN142,144..GCC;1RZ,3RZF..RZN147,169..LHD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 17705-75200 |
1RZ..RZN147;1RZ,3RZF..RZN142,144,149,154,169..GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-75210 |
3RZF..RZN149..SR;3RZF..RZN149..DLX..GCC;1RZ,3RZF..RZN142,144..GCC;1RZ,3RZF..RZN147,169..LHD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 17705-75200 |
1RZ..RZN147;1RZ,3RZF..RZN142,144,149,154,169..GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-63040 |
3RZF..RZN149..SR;3RZF..RZN149..DLX..GCC;1RZ,3RZF..RZN142,144..GCC;1RZ,3RZF..RZN147,169..LHD |
1 | ||
| 17728-35020 |
3RZF..RZN149..SR;3RZF..RZN149..DLX..GCC;1RZ,3RZF..RZN142,144..GCC;1RZ,3RZF..RZN147,169..LHD |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-62010 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD..(SCB,XTR);3RZFE..RZN149,169..(DCB,SCB)..DLX..ARL;2RZFE,3RZFE..RZN148,168,174..(DCB,SCB,XTR)..DLX..CBU;1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193..DCB,SCB,XTR TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 17801-58010 |
3RZF..RZN149..SR;3RZF..RZN149..DLX..GCC;1RZ,3RZF..RZN142,144..GCC;1RZ,3RZF..RZN147,169..LHD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-62010 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD..(SCB,XTR);3RZFE..RZN149,169..(DCB,SCB)..DLX..ARL;2RZFE,3RZFE..RZN148,168,174..(DCB,SCB,XTR)..DLX..CBU;1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193..DCB,SCB,XTR TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 17801-58010 |
3RZF..RZN149..SR;3RZF..RZN149..DLX..GCC;1RZ,3RZF..RZN142,144..GCC;1RZ,3RZF..RZN147,169..LHD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-75130 |
3RZF..RZN144,149,154,169 |
1 | ||
| 17805F - RESONATOR SUB-ASSY, INTAKE AIR | ||||
| 17805-75140 |
3RZF..RZN144,149,154,169 |
1 | ||
| 17805-75140 |
3RZF..RZN144,149,154,169 |
1 | ||
| 17805J - NUT, WING(FOR AIR CONNECTOR) | ||||
| 90175-06013 |
3RZF..RZN144,149,154,169 |
1 | ||
| 90175-06013 |
3RZF..RZN144,149,154,169 |
1 | ||
| 17805K - BOLT, STUD(FOR AIR CONNECTOR) | ||||
| 90116-06024 |
3RZF..RZN144,149,154,169 |
1 | ||
| 90116-06024 |
3RZF..RZN144,149,154,169 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
1RZ,3RZF..RZN142,144,147,149,154,169 |
1 | ||
| 17871 - STAY, AIR CONNECTOR | ||||
| 17871-75030 |
3RZF..RZN144,149,154,169 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 NO.1 |
1 | ||
| 96111-10900 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 NO.1 |
1 | ||
| 96111-10900 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 NO.2 |
1 | ||
| 17881B - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-75110 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-75040 |
3RZF..RZN149..SR;3RZF..RZN144,169..LHD;3RZF..RZN149..DLX..GCC |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90467-38003 |
3RZF..RZN149..SR;3RZF..RZN149..DLX..GCC;1RZ,3RZF..RZN142,144..GCC;1RZ,3RZF..RZN147,169..LHD |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90467-38003 |
3RZF..RZN149..SR;3RZF..RZN149..DLX..GCC;1RZ,3RZF..RZN142,144..GCC;1RZ,3RZF..RZN147,169..LHD |
2 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-75050 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10480 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-35010 |
3RZFE..RZN154,169,194..ARL,SA;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 53807C - DUCT SUB-ASSY, FRONT FENDER AIR, RH | ||||
| 53807-35050 |
RZN147,174,19#;RZN169..DCB..SA;RZN154,169..DLX..(ARL,SA);RZN142,144,149,154,169..CBR;RZN148,149,168..DLX..EFI..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90119-06171 | ||||
| 90119-06299 | ||||
| 90119-08A73 | ||||
| 90119-08B66 | ||||
| 90179-08234 | ||||
| 90387-07016 | ||||
| 90480-14021 | ||||
| 93313-15010 | ||||
