RZN169L-PRMDK (2001)

Toyota Hilux

Production Aug 2001 - Jun 2005
Engine 3RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )3RZFE..RZN154,169..GEN

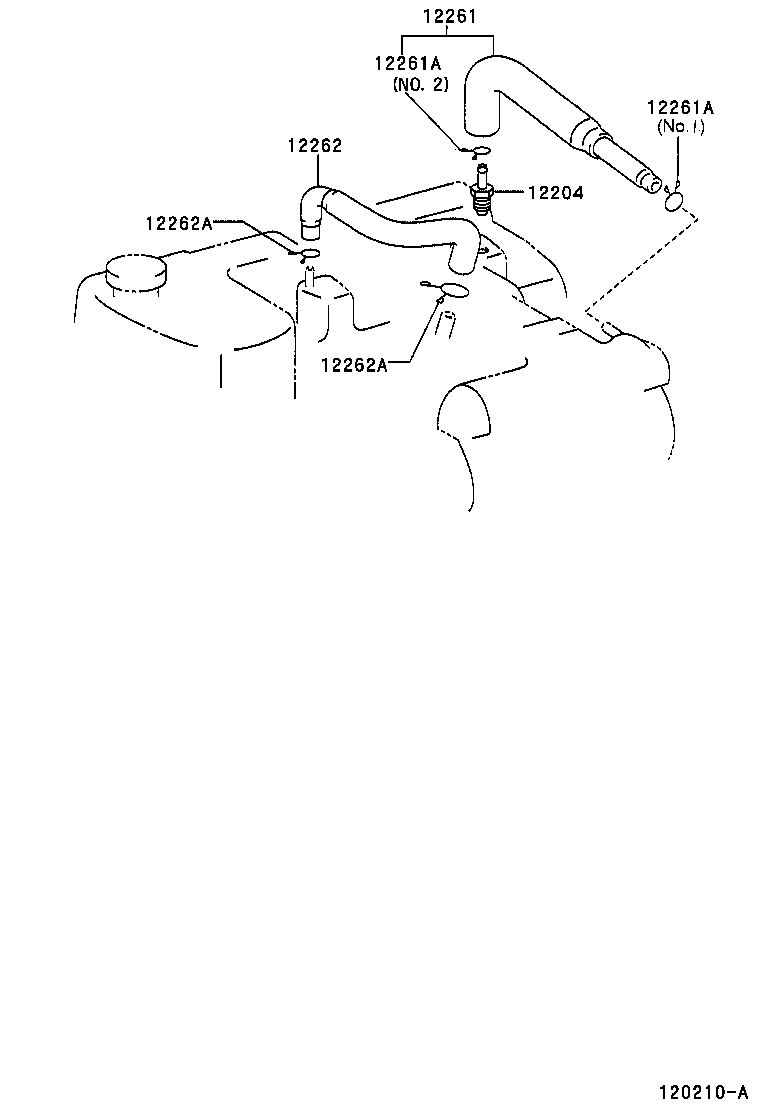

Click highlighted areas on diagram

diagram 12204 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-46010

3RZF..RZN144,149,154,169

 1
12204-75020

3RZFE..RZN154,169..GEN

 1
12261 - HOSE, VENTILATION
12261-75030

2RZFE,3RZFE..RZN148,149,154,16#,174,19#

 1
12261-75040

3RZF..RZN144,149,154,169

 1
12261-75070

3RZFE..RZN154,169..GEN

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19#

 2
90467-20010

3RZFE..RZN154,169..GEN

NO.2

 1
90467-14001

2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU

NO.1

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19#

 2
90467-20010

3RZFE..RZN154,169..GEN

NO.2

 1
90467-14001

2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU

NO.1

 1
12262 - HOSE, VENTILATION, NO.2
12262-75060

3RZF..RZN144,149,154,169

 1
12262-75130

3RZFE..RZN154,169..GEN

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14001

3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

 2
90467-22010

3RZFE..RZN154,169..GEN

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14001

3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

 2
90467-22010

3RZFE..RZN154,169..GEN

 2
