RZN168L-PRMDK (1997)

Toyota Hilux

Production Aug 1997 - Jun 2005
Engine 2RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )2RZFE

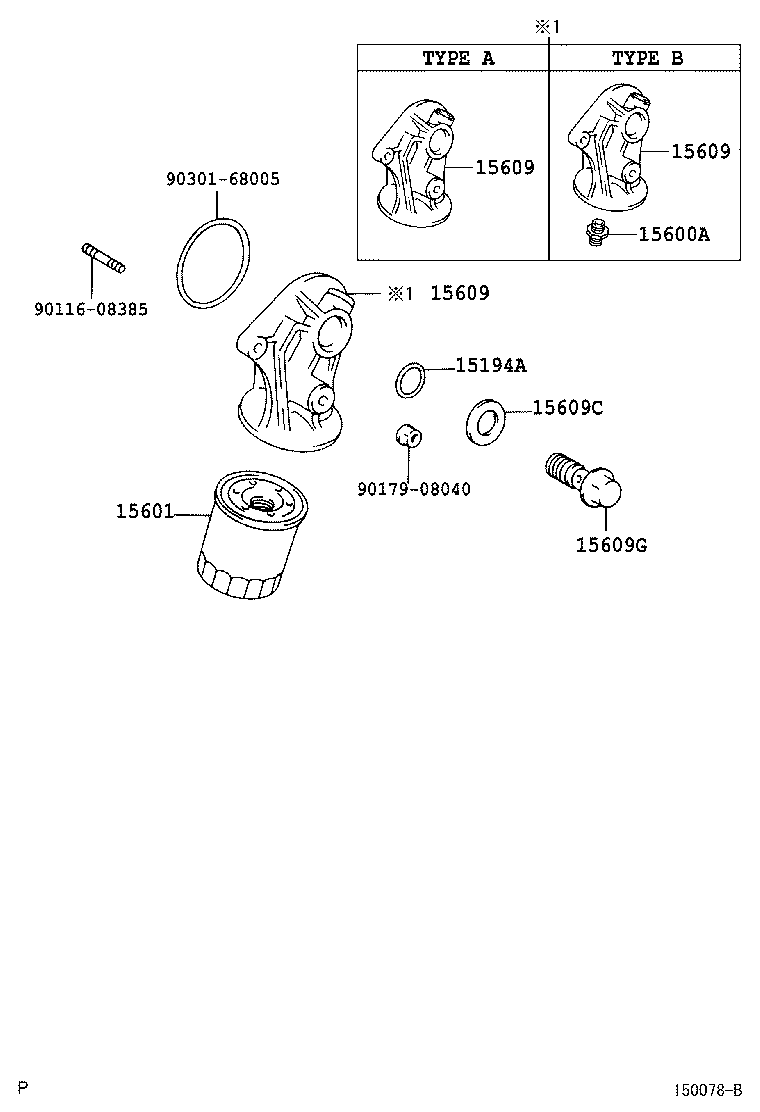

Click highlighted areas on diagram

diagram 15194A 15600A 15601 15609 15609 15609 15609C 15609G 9011608385 9017908040 9030168005
Part # Description Qty Price
15194A - RING, O
96721-24016

2RZFE..RZN148,168,193..DLX..GEN

 1
96721-24016

2RZFE..RZN148,168,193..GEN..CBU

 1
15600A - UNION(FOR OIL FILTER)
90404-19015

1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN

TYPE B:REFER TO ILLUSTRATION

 1
90404-19015

2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZ,2RZFE..RZN142,147,168,193

 1
15601 - FILTER SUB-ASSY, OIL
90915-20001

1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19#

 1
90915-20003

3RZFE..RZN194..SADCB;1RZ..RZN147..DCB..SA;1RZE,3RZFE..RZN147,154,169,174..DLX..ARL;2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ,2RZFE,3RZF..RZN142,144,147,149,154,169,193..GCC,GEN

 1
90915-20003

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-75010

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ,2RZFE..RZN142,147,148,168,193..DLX..(GCC,GEN)

 1
15609-75050

1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN

TYPE B:REFER TO ILLUSTRATION

 1
15609-75010

1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN

TYPE A:REFER TO ILLUSTRATION

 1
15609-75010

2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZE,2RZFE..RZN147,168,193

 1
15609-75010

1RZ,2RZFE..RZN142,147,148,168,193

TYPE A:REFER ILLUST.

 1
15609-75050

2RZFE..RZN168,193;2RZFE..RZN148..GEN..CBU;1RZ,2RZFE..RZN142,147,148..CO,SA

TYPE B:REFER ILLUST.

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-75010

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ,2RZFE..RZN142,147,148,168,193..DLX..(GCC,GEN)

 1
15609-75050

1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN

TYPE B:REFER TO ILLUSTRATION

 1
15609-75010

1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN

TYPE A:REFER TO ILLUSTRATION

 1
15609-75010

2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZE,2RZFE..RZN147,168,193

 1
15609-75010

1RZ,2RZFE..RZN142,147,148,168,193

TYPE A:REFER ILLUST.

 1
15609-75050

2RZFE..RZN168,193;2RZFE..RZN148..GEN..CBU;1RZ,2RZFE..RZN142,147,148..CO,SA

TYPE B:REFER ILLUST.

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-75010

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ,2RZFE..RZN142,147,148,168,193..DLX..(GCC,GEN)

 1
15609-75050

1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN

TYPE B:REFER TO ILLUSTRATION

 1
15609-75010

1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN

TYPE A:REFER TO ILLUSTRATION

 1
15609-75010

2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZE,2RZFE..RZN147,168,193

 1
15609-75010

1RZ,2RZFE..RZN142,147,148,168,193

TYPE A:REFER ILLUST.

 1
15609-75050

2RZFE..RZN168,193;2RZFE..RZN148..GEN..CBU;1RZ,2RZFE..RZN142,147,148..CO,SA

TYPE B:REFER ILLUST.

 1
15609C - GASKET(FOR OIL FILTER BRACKET UNION)
90430-28004

1RZ,2RZFE..RZN142,147,148,168,193..GEN..CBU

 1
90430-28004

1RZ#,2RZFE..RZN142,147,148,168,193..DLX

 1
15609G - BOLT, UNION(FOR OIL FILTER BRACKET)
90401-19005

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ,2RZFE..RZN142,147,148,168,193..DLX..(GCC,GEN)

 1
90401-19005

1RZ,2RZFE..RZN142,147,148,168,193..GEN..CBU

 1
Common parts
90116-08385
90179-08040
90301-68005
