RZN154R-FRPDKQ (1998)
Toyota Hilux

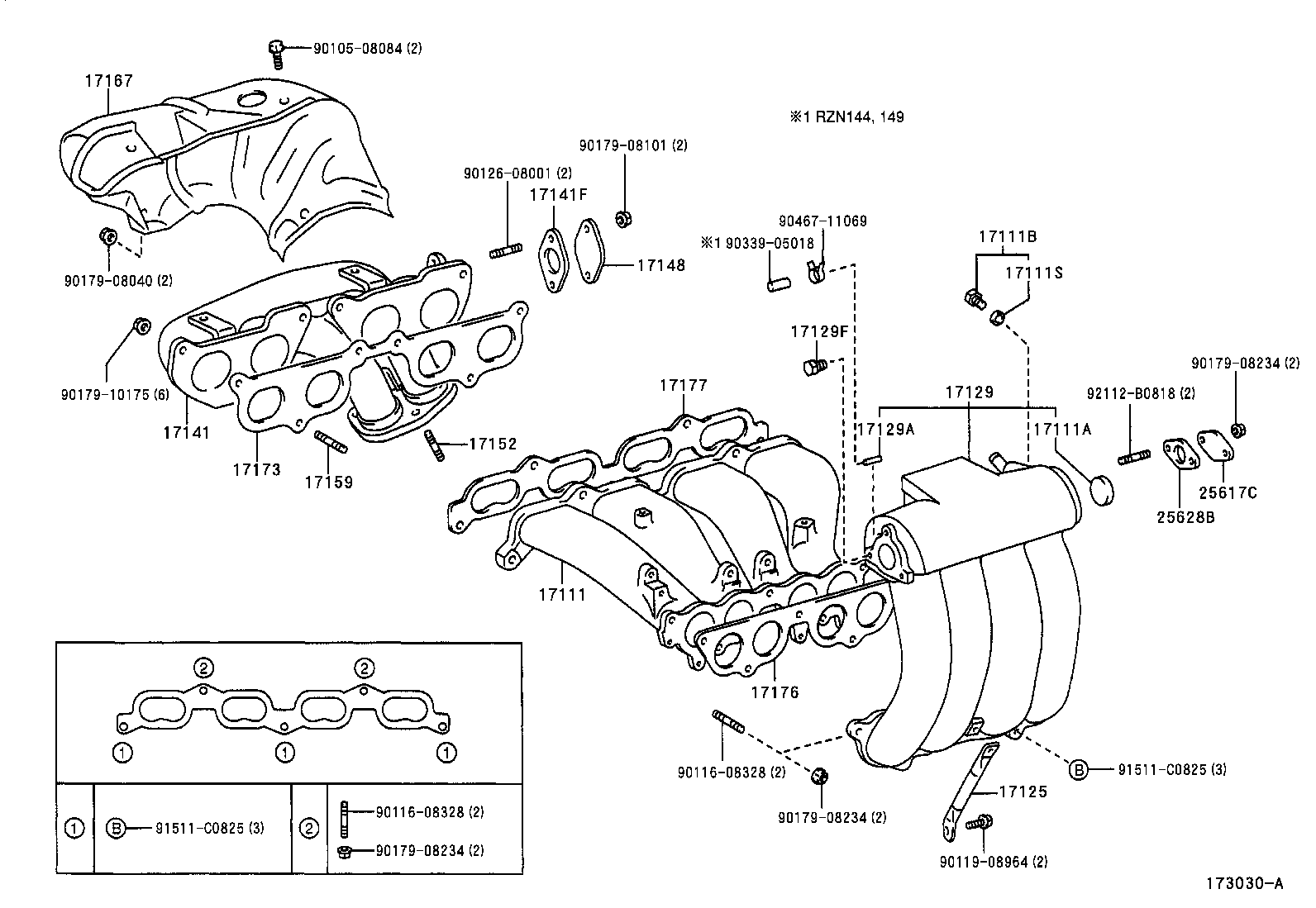

ILLUST NO. 1 OF 2(0007- )1KZTE..SA ; (0008- )1KZTE..KZN165..DCB,SCB,THDCB,XTR..ARL,TH ; (0109-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-75031 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 17111-75040 |
3RZF..RZN144,149,154,169 |
1 | ||
| 17111-75031 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-75080 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN) |
1 | ||
| 17141-75070 |
2RZFE,3RZ#..RZN144,148,149,154,16#,174,19# |
1 | ||
| 17141-75080 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10149 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
3 | ||
| 90116-10149 |
3RZFE..RZN149,154..ARL |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10163 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN) |
6 | ||
| 90116-10163 |
3RZFE..RZN149,154..ARL |
6 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10163 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN) |
6 | ||
| 90116-10163 |
3RZFE..RZN149,154..ARL |
6 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-75100 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17167-75070 |
2RZFE,3RZFE..RZN148,149,154,16#,174,19# |
1 | ||
| 17167-75080 |
3RZF..RZN144,149,154,169 |
1 | ||
| 17167-75120 |
3RZF..RZN144,149,154,169 |
1 | ||
| 17167-75100 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-75020 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN) |
1 | ||
| 17173-75020 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-75020 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN) |
1 | ||
| 17177-75020 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-75020 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN) |
1 | ||
| 17177-75020 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-75020 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN) |
1 | ||
| 17177-75020 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-75020 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN) |
1 | ||
| 17177-75020 |
3RZFE..RZN149,154..ARL |
1 | ||
| Common parts | ||||
| 90116-06070 | ||||
| 90116-08260 | ||||
| 90116-08348 | ||||
| 90116-08410 | ||||
| 90119-06747 | ||||
| 90119-06748 | ||||
| 90119-10778 | ||||
| 90179-06080 | ||||
| 90179-08054 | ||||
| 90179-08150 | ||||
| 90179-08229 | ||||
| 90179-10094 | ||||
| 90201-10109 | ||||
| 90210-08039 | ||||
| 91641-80814 | ||||
| 92122-60610 | ||||
| 92122-60614 | ||||
| 94184-01041 | ||||

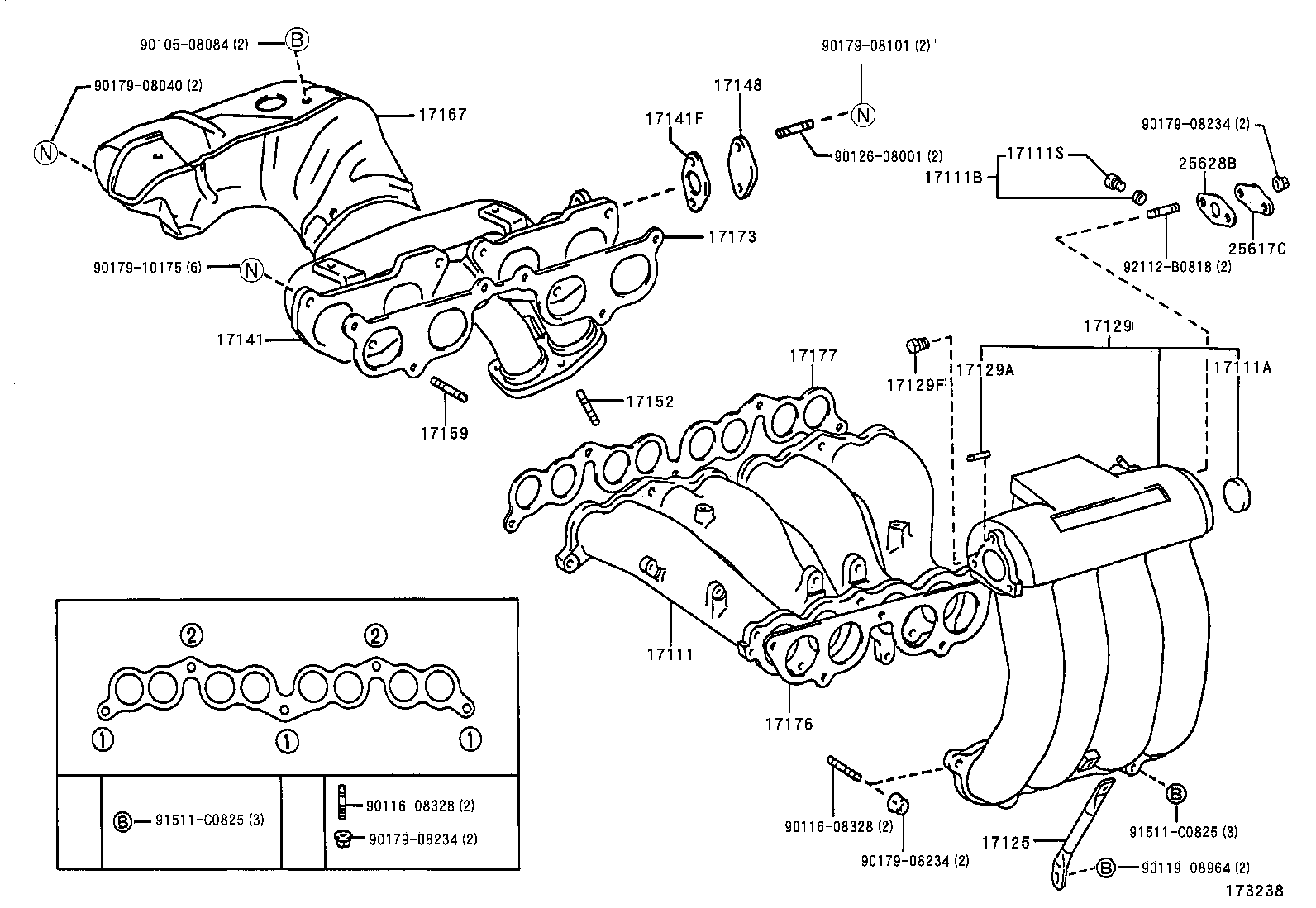

(0108- )3RZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-75031 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 17111-75040 |
3RZF..RZN144,149,154,169 |
1 | ||
| 17111-75031 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 96411-43500 |
3RZFE..RZN149,154..ARL |
2 | ||
| 96411-43500 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
2 | ||
| 17111B - PLUG, NO.2 | ||||
| 90341-10009 |
3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149..DLX..(ARL,GEN) |
1 | ||
| 90341-10009 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17111S - GASKET(FOR MANIFOLD PLUG) | ||||
| 90430-09005 |
3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149..DLX..(ARL,GEN) |
1 | ||
| 90430-09005 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-75020 |
2RZFE..RZN148,168..DLX..GEN;2RZFE,3RZF..RZN144,149,154,169,193 |
1 | ||
| 17125-75030 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17125-75030 |
3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149..DLX..(ARL,GEN) |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-75013 |
2RZFE,3RZFE..RZN148,149,154,16#,174,19# |
1 | ||
| 17109-75030 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 17109-75030 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17129A - UNION, NO.1 | ||||
| 90406-06001 |
2RZFE,3RZFE..RZN148,149,154,16#,174,19# |
1 | ||
| 90406-06002 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 90406-06002 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE | ||||
| 90345-51025 |
3RZFE..RZN149,154..ARL |
2 | ||
| 90345-51025 |
1RZ,2RZFE,3RZFE..RZN142,147,148,149,154,16#,174,19# |
1 | ||
| 90345-51025 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
2 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-75080 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN) |
1 | ||
| 17141-75070 |
2RZFE,3RZ#..RZN144,148,149,154,16#,174,19# |
1 | ||
| 17141-75080 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17141F - GASKET(FOR EXHAUST MANIFOLD PLATE) | ||||
| 89466-20020 |
3RZ#..RZN144,149,154,169,174,194 |
1 | ||
| 25634-75010 |
3RZFE..RZN149,154..ARL |
1 | ||
| 25634-75010 |
3RZFE..RZN169..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149,169..DLX..ARL |
1 | ||
| 17148 - PLATE, EXHAUST MANIFOLD(FOR EGR INLET) | ||||
| 17148-41010 |
3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZF..RZN144,149,154,169;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149..DLX..(ARL,GEN) |
1 | ||
| 17148-41010 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10149 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
3 | ||
| 90116-10149 |
3RZFE..RZN149,154..ARL |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10163 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN) |
6 | ||
| 90116-10163 |
3RZFE..RZN149,154..ARL |
6 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-75100 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17167-75070 |
2RZFE,3RZFE..RZN148,149,154,16#,174,19# |
1 | ||
| 17167-75080 |
3RZF..RZN144,149,154,169 |
1 | ||
| 17167-75120 |
3RZF..RZN144,149,154,169 |
1 | ||
| 17167-75100 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-75020 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN) |
1 | ||
| 17173-75020 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-75010 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 17176-75010 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-75020 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN) |
1 | ||
| 17177-75020 |
3RZFE..RZN149,154..ARL |
1 | ||
| 25617C - PLATE, EGR HOLE COVER | ||||
| 25617-74020 |
3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149..DLX..(ARL,GEN) |
1 | ||
| 25617-74020 |
3RZFE..RZN149,154..ARL |
1 | ||
| 25628B - GASKET, EGR INLET | ||||
| 25628-75010 |
3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149..DLX..(ARL,GEN) |
1 | ||
| 25628-75010 |
3RZFE..RZN149,154..ARL |
1 | ||
| Common parts | ||||
| 90105-08084 | ||||
| 90116-08328 | ||||
| 90119-08964 | ||||
| 90126-08001 | ||||
| 90179-08040 | ||||
| 90179-08101 | ||||
| 90179-08234 | ||||
| 90179-10175 | ||||
| 90339-05018 | ||||
| 90467-11069 | ||||
| 91511-C0825 | ||||
| 92112-B0818 | ||||
(9708-0108)3RZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-75031 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 17111-75040 |
3RZF..RZN144,149,154,169 |
1 | ||
| 17111-75031 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 96411-43500 |
3RZFE..RZN149,154..ARL |
2 | ||
| 96411-43500 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
2 | ||
| 17111B - PLUG, NO.2 | ||||
| 90341-10009 |
3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149..DLX..(ARL,GEN) |
1 | ||
| 90341-10009 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17111S - GASKET(FOR MANIFOLD PLUG) | ||||
| 90430-09005 |
3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149..DLX..(ARL,GEN) |
1 | ||
| 90430-09005 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-75020 |
2RZFE..RZN148,168..DLX..GEN;2RZFE,3RZF..RZN144,149,154,169,193 |
1 | ||
| 17125-75030 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17125-75030 |
3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149..DLX..(ARL,GEN) |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-75013 |
2RZFE,3RZFE..RZN148,149,154,16#,174,19# |
1 | ||
| 17109-75030 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 17109-75030 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17129A - UNION, NO.1 | ||||
| 90406-06001 |
2RZFE,3RZFE..RZN148,149,154,16#,174,19# |
1 | ||
| 90406-06002 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 90406-06002 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE | ||||
| 90345-51025 |
3RZFE..RZN149,154..ARL |
2 | ||
| 90345-51025 |
1RZ,2RZFE,3RZFE..RZN142,147,148,149,154,16#,174,19# |
1 | ||
| 90345-51025 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
2 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-75080 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN) |
1 | ||
| 17141-75070 |
2RZFE,3RZ#..RZN144,148,149,154,16#,174,19# |
1 | ||
| 17141-75080 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17141F - GASKET(FOR EXHAUST MANIFOLD PLATE) | ||||
| 89466-20020 |
3RZ#..RZN144,149,154,169,174,194 |
1 | ||
| 25634-75010 |
3RZFE..RZN149,154..ARL |
1 | ||
| 25634-75010 |
3RZFE..RZN169..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149,169..DLX..ARL |
1 | ||
| 17148 - PLATE, EXHAUST MANIFOLD(FOR EGR INLET) | ||||
| 17148-41010 |
3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZF..RZN144,149,154,169;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149..DLX..(ARL,GEN) |
1 | ||
| 17148-41010 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10149 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
3 | ||
| 90116-10149 |
3RZFE..RZN149,154..ARL |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10163 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN) |
6 | ||
| 90116-10163 |
3RZFE..RZN149,154..ARL |
6 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-75100 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17167-75070 |
2RZFE,3RZFE..RZN148,149,154,16#,174,19# |
1 | ||
| 17167-75080 |
3RZF..RZN144,149,154,169 |
1 | ||
| 17167-75120 |
3RZF..RZN144,149,154,169 |
1 | ||
| 17167-75100 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-75020 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN) |
1 | ||
| 17173-75020 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-75010 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 17176-75010 |
3RZFE..RZN149,154..ARL |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-75020 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZF..RZN144,149,154,169,193;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN) |
1 | ||
| 17177-75020 |
3RZFE..RZN149,154..ARL |
1 | ||
| 25617C - PLATE, EGR HOLE COVER | ||||
| 25617-74020 |
3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149..DLX..(ARL,GEN) |
1 | ||
| 25617-74020 |
3RZFE..RZN149,154..ARL |
1 | ||
| 25628B - GASKET, EGR INLET | ||||
| 25628-75010 |
3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149..DLX..(ARL,GEN) |
1 | ||
| 25628-75010 |
3RZFE..RZN149,154..ARL |
1 | ||
| Common parts | ||||
| 90105-08084 | ||||
| 90116-08328 | ||||
| 90119-08964 | ||||
| 90126-08001 | ||||
| 90179-08040 | ||||
| 90179-08101 | ||||
| 90179-08234 | ||||
| 90179-10175 | ||||
| 91511-C0825 | ||||
| 92112-B0818 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
