RZN148L-PRMDK (1997)
Toyota Hilux

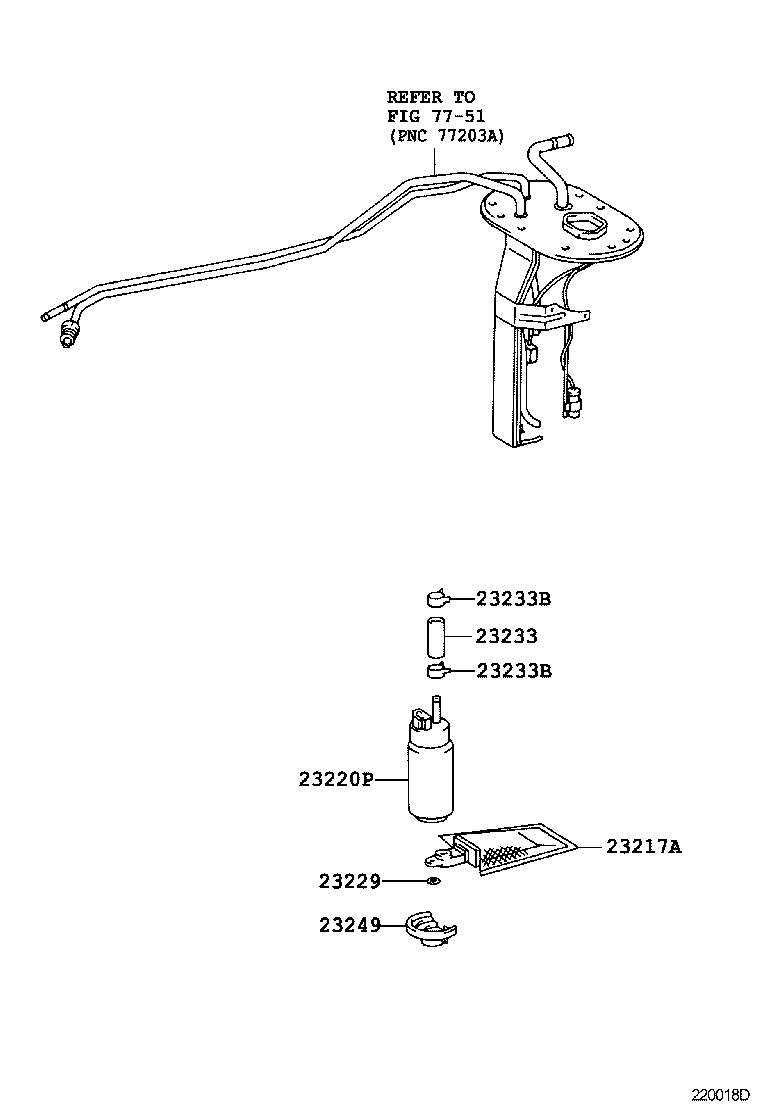

ILLUST NO. 2 OF 2(9708- )2RZFE,3RZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-46090 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN169..DLX..(ARL,SA);1RZE,3RZFE..RZN147,154,174,194..RHD;2RZFE,3RZFE..RZN148,149,168,193..DLX..(ARL,GEN) |
1 | ||
| 23217-46100 |
2RZFE..RZN148,168,193 |
1 | ||
| 23217-46090 |
2RZFE..RZN148..GEN..CBU;2RZFE,3RZFE..RZN148,149,174..(DCB,SCB,THXTR,XTR)..(ARL,CO,GCC);1RZE,2RZFE,3RZFE..RZN144,147,154,16#,19#..DCB,SCB,THDCB,THSCB,XTR |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-76030 |
2RZFE..RZN148,168,193 |
1 | ||
| 23221-13010 |
2RZFE..RZN148..GEN..CBU;2RZFE,3RZFE..RZN144,148,149..CO,GCC;2RZFE,3RZFE..RZN154,16#,193..CO,GCC,GEN |
1 | ||
| 23221-13010 |
2RZFE,3RZFE..RZN148,149,168,193..DLX..GEN |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
2RZFE..RZN148..GEN..CBU;3RZFE..RZN149..(DCB,SCB,THDCB)..ATM..DLX..(ARL,CO);1RZE,2RZFE,3RZFE..RZN144,147,154,16#,19#..DCB,SCB,THDCB,THSCB,XTR;2RZFE,3RZFE..RZN148,149,174..(DCB,SCB,THXTR,XTR)..MTM..(ARL,CO,GCC) |
1 | ||
| 23229-16010 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN169..DLX..(ARL,SA);1RZE,3RZFE..RZN147,154,174,194..RHD;2RZFE,3RZFE..RZN148,149,168,193..DLX..(ARL,GEN) |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-11010 |
2RZFE..RZN148..GEN..CBU;3RZFE..RZN149..THDCB..ATM..DLX;2RZFE,3RZFE..RZN148,149,174..(DCB,SCB,THXTR,XTR)..(ARL,CO,GCC);1RZE,2RZFE,3RZFE..RZN144,147,154,16#,19#..DCB,SCB,THDCB,THSCB,XTR |
1 | ||
| 23239-11010 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN169..DLX..(ARL,SA);1RZE,3RZFE..RZN147,154,174,194..RHD;2RZFE,3RZFE..RZN148,149,168,193..DLX..(ARL,GEN) |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN169..DLX..(ARL,SA);1RZE,3RZFE..RZN147,154,174,194..RHD;2RZFE,3RZFE..RZN148,149,168,193..DLX..(ARL,GEN) |
1 | ||
| 90467-12067 |
2RZFE..RZN148..GEN..CBU;3RZFE..RZN149..THDCB..ATM..DLX;2RZFE,3RZFE..RZN148,149,174..(DCB,SCB,THXTR,XTR)..(ARL,CO,GCC);1RZE,2RZFE,3RZFE..RZN144,147,154,16#,19#..DCB,SCB,THDCB,THSCB,XTR |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN169..DLX..(ARL,SA);1RZE,3RZFE..RZN147,154,174,194..RHD;2RZFE,3RZFE..RZN148,149,168,193..DLX..(ARL,GEN) |
1 | ||
| 90467-12067 |
2RZFE..RZN148..GEN..CBU;3RZFE..RZN149..THDCB..ATM..DLX;2RZFE,3RZFE..RZN148,149,174..(DCB,SCB,THXTR,XTR)..(ARL,CO,GCC);1RZE,2RZFE,3RZFE..RZN144,147,154,16#,19#..DCB,SCB,THDCB,THSCB,XTR |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
2RZFE..RZN148..GEN..CBU;3RZFE..RZN149..THDCB..ATM..DLX;2RZFE,3RZFE..RZN148,149,174..(DCB,SCB,THXTR,XTR)..(ARL,CO,GCC);1RZE,2RZFE,3RZFE..RZN144,147,154,16#,19#..DCB,SCB,THDCB,THSCB,XTR |
1 | ||
| 23249-74610 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN169..DLX..(ARL,SA);1RZE,3RZFE..RZN147,154,174,194..RHD;2RZFE,3RZFE..RZN148,149,168,193..DLX..(ARL,GEN) |
1 | ||
| Linked diagrams | ||||
| 7751 | ||||

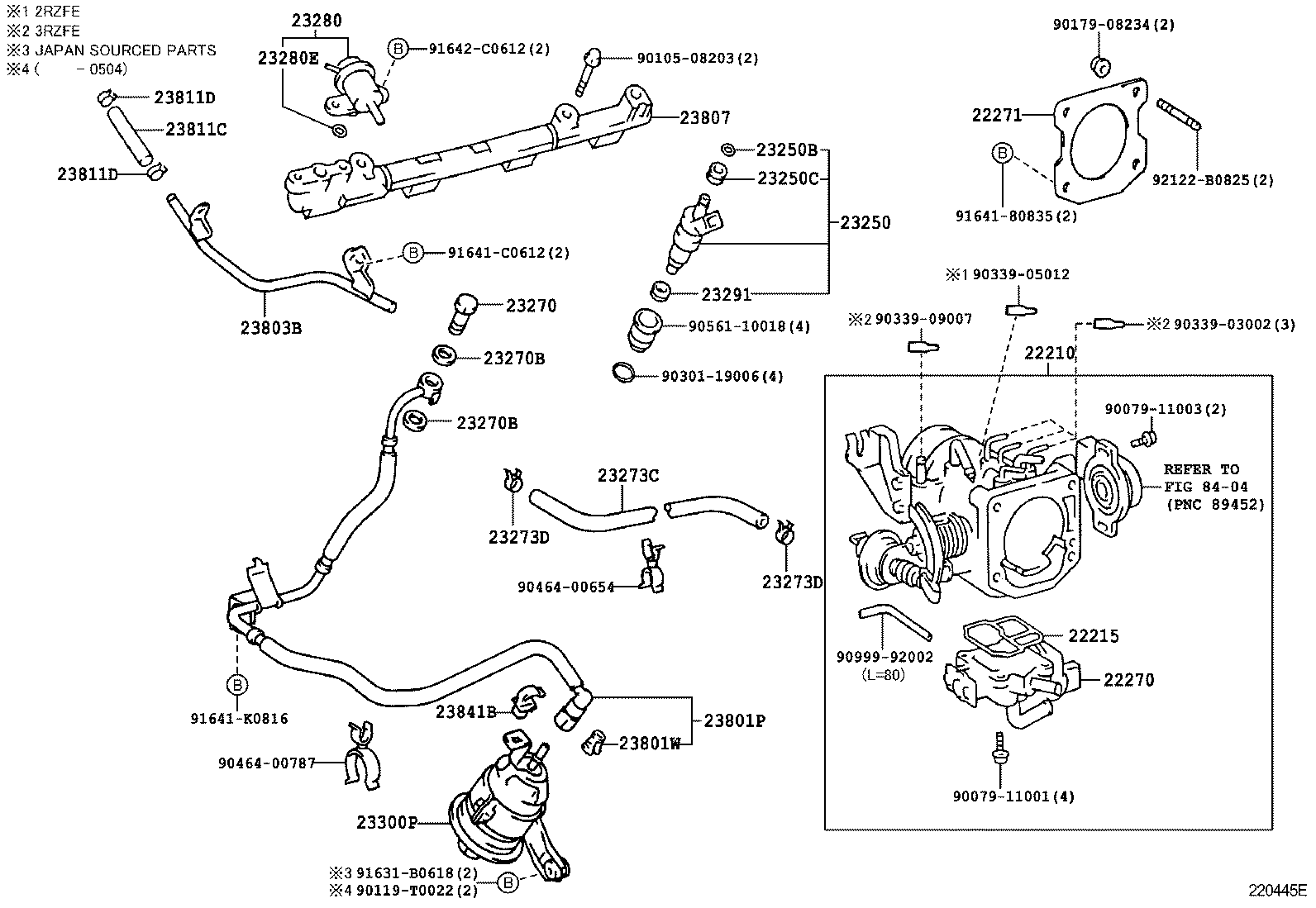

ILLUST NO. 1 OF 2(9708- )3RZFE..RZN154,169..ARL,GCC,SA ; (9708- )2RZFE,3RZFE..RZN144,148,149,1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-75210 |
3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZFE..RZN154,194..RHD..MTM;2RZFE,3RZFE..RZN148,149,168,174,193..MTM..DLX..(ARL,GEN) |
1 | ||
| 22210-75210 |
2RZFE..RZN148,168..DLX..GEN |
1 | ||
| 22210-75210 |
2RZFE..RZN148,168,193..GEN..CBU |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-75050 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 22215-75050 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-75040 |
2RZFE..RZN148,168..DLX..GEN |
1 | ||
| 22270-75040 |
3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZFE..RZN154,194..RHD..MTM;2RZFE,3RZFE..RZN148,149,168,174,193..MTM..DLX..(ARL,GEN) |
1 | ||
| 22270-75040 |
2RZFE..RZN148..GEN..CBU;2RZFE,3RZFE..RZN144,149,168,174,193..MTM;2RZFE,3RZFE..RZN148,154,169..MTM..(ARL,CO,GCC) |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-75020 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 22271-75020 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 22271-75020 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 22271-75020 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-79085 |
2RZFE..RZN148,168..DLX..GEN |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07024 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
4 | ||
| 90301-07024 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
4 | ||
| 90301-07001 |
2RZFE,3RZFE..RZN148,149,154,16#,174,19# |
4 | ||
| 90301-07024 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
4 | ||
| 90301-07024 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
4 | ||
| 90480-13005 |
2RZFE..RZN148,168,193..GEN..CBU |
4 | ||
| 90480-13005 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23207-46010 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 23207-46010 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;1RZE,2RZFE,3RZFE..RZN147,148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 23207-46010 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 23207-46010 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23279-74010 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
2 | ||
| 23279-74010 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;1RZE,2RZFE,3RZFE..RZN147,148,149,168,174,193..DLX..(ARL,GEN) |
2 | ||
| 23279-74010 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
2 | ||
| 23279-74010 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU |
2 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23279-74010 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
2 | ||
| 23279-74010 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;1RZE,2RZFE,3RZFE..RZN147,148,149,168,174,193..DLX..(ARL,GEN) |
2 | ||
| 23279-74010 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
2 | ||
| 23279-74010 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU |
2 | ||
| 23273C - HOSE, FUEL, NO.2 | ||||
| 23273-75090 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168,193..DLX..(ARL,GEN) |
1 | ||
| 23273-75090 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU |
1 | ||
| 23273D - CLIP(FOR FUEL HOSE NO.2) | ||||
| 96135-51100 |
2RZFE..RZN148,168..DLX..GEN..CBU |
2 | ||
| 96135-41100 |
3RZFE..RZN154,194..RHD;3RZFE..RZN169..DCB..SA;3RZFE..RZN169..DLX..(ARL,SA);1RZE,2RZFE,3RZFE..RZN147,148,149,168,174,193..DLX..(ARL,GEN) |
2 | ||
| 96135-51100 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU |
2 | ||
| 23273D - CLIP(FOR FUEL HOSE NO.2) | ||||
| 96135-51100 |
2RZFE..RZN148,168..DLX..GEN..CBU |
2 | ||
| 96135-41100 |
3RZFE..RZN154,194..RHD;3RZFE..RZN169..DCB..SA;3RZFE..RZN169..DLX..(ARL,SA);1RZE,2RZFE,3RZFE..RZN147,148,149,168,174,193..DLX..(ARL,GEN) |
2 | ||
| 96135-51100 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU |
2 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-75020 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 23280-75020 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 23280-75020 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 23280-75020 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07024 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU |
1 | ||
| 90301-07024 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 90301-07024 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 90301-07001 |
2RZFE,3RZFE..RZN148,149,154,16#,174,19# |
1 | ||
| 90301-07024 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-73010 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
4 | ||
| 23291-73010 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
4 | ||
| 23291-73010 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU |
4 | ||
| 23291-73010 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-75110 |
2RZFE..RZN148,168,193..DLX..GEN |
1 | ||
| 23300-75110 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-75070 |
2RZFE..RZN148,168,193..DLX..GEN |
1 | ||
| 23801-75070 |
2RZFE..RZN148,168,193..GEN..CBU |
1 | ||
| 23801W - CLIP, FUEL TUBE CONNECTOR | ||||
| 90923-07010 |
1RZE,2RZFE,3RZFE..RZN147,148,149,154,16#,174,19# |
1 | ||
| 90923-07010 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU |
1 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-75040 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 23803-75040 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 23803-75040 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU |
1 | ||
| 23803-75040 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-75021 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
1 | ||
| 23807-75021 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 23807-75022 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 23807-75021 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 23807-75022 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN |
1 | ||
| 23807-75021 |
2RZFE,3RZFE..RZN154,168,193;2RZFE,3RZFE..RZN148,169..(GCC,GEN,SA)..CBU;2RZFE,3RZFE..RZN144,148,149,194..ARL,CO,GCC,SA |
1 | ||
| 23811C - HOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR) | ||||
| 90445-12290 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN *H,L=120 |
1 | ||
| 90445-12290 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) *H,L=120 |
1 | ||
| 90445-12290 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN *H,L=120 |
1 | ||
| 90445-12290 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU *H,L=120 |
1 | ||
| 23811D - CLIP, HOSE(FOR FUEL HOSE) | ||||
| 96135-41100 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
2 | ||
| 96135-41100 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
2 | ||
| 96135-41100 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
2 | ||
| 96135-51100 |
2RZFE..RZN148,168..DLX..GEN..CBU |
2 | ||
| 96135-51100 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU |
2 | ||
| 23811D - CLIP, HOSE(FOR FUEL HOSE) | ||||
| 96135-41100 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174,193..DLX..(ARL,GEN) |
2 | ||
| 96135-41100 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
2 | ||
| 96135-41100 |
2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
2 | ||
| 96135-51100 |
2RZFE..RZN148,168..DLX..GEN..CBU |
2 | ||
| 96135-51100 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU |
2 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 90469-12012 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN169..DLX..(ARL,SA);1RZE,3RZFE..RZN147,154,174,194..RHD;2RZFE,3RZFE..RZN148,149,168,193..DLX..(ARL,GEN) |
1 | ||
| 90469-12012 |
2RZFE,3RZFE..RZN148,154,16#,193..GEN..CBU |
1 | ||
| Common parts | ||||
| 90079-11001 | ||||
| 90079-11003 | ||||
| 90105-08203 | ||||
| 90119-T0022 | ||||
| 90179-08234 | ||||
| 90301-19006 | ||||
| 90339-03002 | ||||
| 90339-05012 | ||||
| 90339-09007 | ||||
| 90464-00654 | ||||
| 90464-00787 | ||||
| 90561-10018 | ||||
| 90999-92002 | ||||
| 91631-B0618 | ||||
| 91641-80835 | ||||
| 91641-C0612 | ||||
| 91641-K0816 | ||||
| 91642-C0612 | ||||
| 92122-B0825 | ||||
| Linked diagrams | ||||
| 8404 | ||||
