RZN147R-TRMDS (1997)
Toyota Hilux

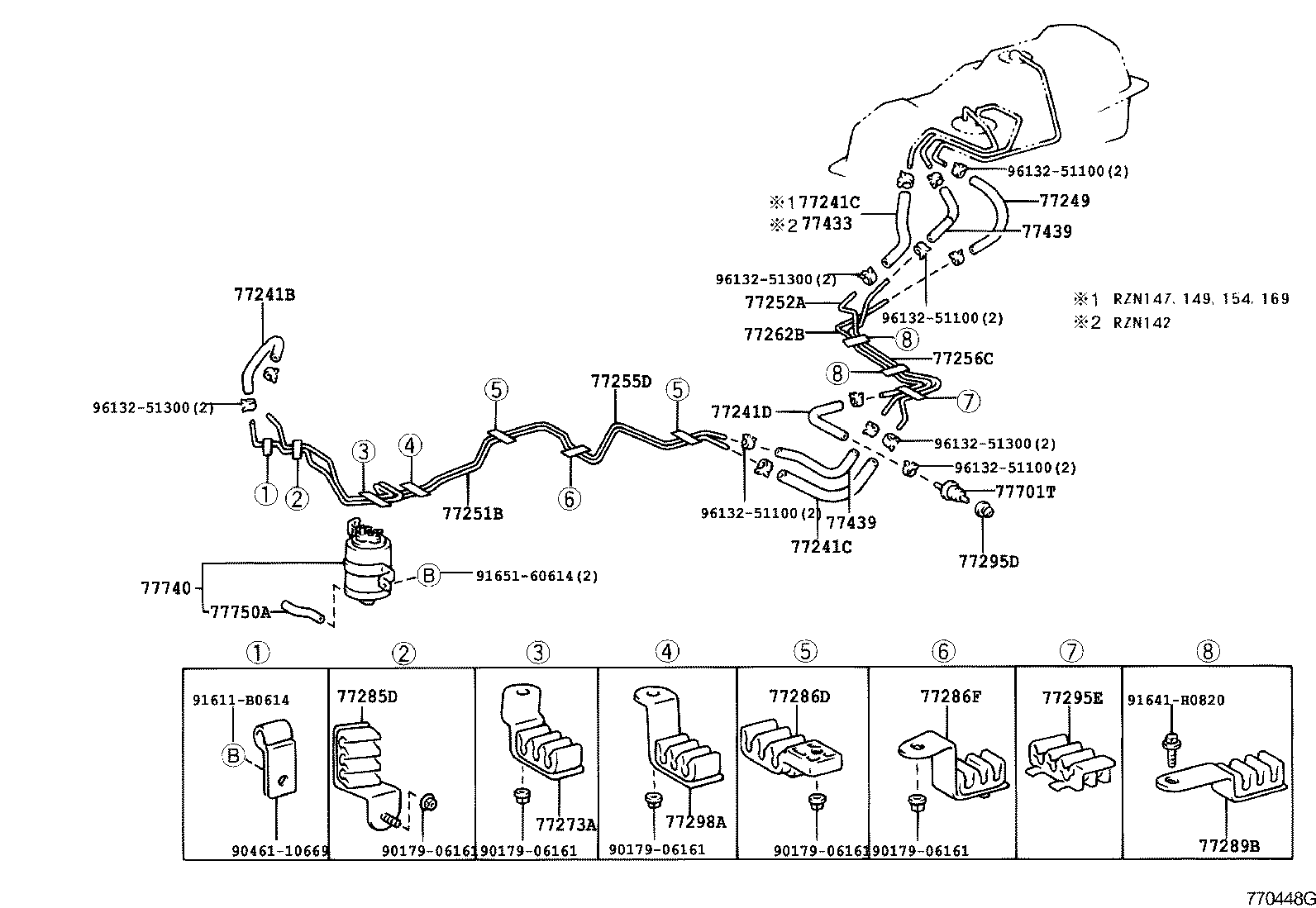

ILLUST NO. 2 OF 2(9708- )RZN142,147,149,154,169..GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95334-08026 |
RZN147,169..GCC;RZN147,169..RHD..CBR;RZN142,144,149,154..CBR L=260 |
1 | ||
| 95334-08026 |
RZN142,144,147,149,154,169..CBR L=260 |
1 | ||
| 95334-08026 |
RZN142,147..RHD..SCB..CBR L=260 |
1 | ||
| 77279-35060 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
1 | ||
| 95334-08026 |
RZN142,147..CBR L=260 |
1 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 95334-08022 |
RZN147,149,154,169..CBR |
2 | ||
| 95334-08022 |
RZN147..GCC;RZN149,154..CBR;RZN147..RHD..CBR;RZN169..SCB..CBR;RZN169..DCB..GCC;RZN169..RHD..DCB..GEN;RZN147..LHD..SCB..GEN |
2 | ||
| 95333-08030 |
LN150..SR;LN152..DSL;LN167..DCB..TH;LN152..DEFI..TH;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DSL..(ARL,SA);KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN146,147,166,17#,19#..DLX..(ARL,GCC,GEN,SA) *H,L=220,ID=7.6 |
2 | ||
| 95334-08022 |
RZN147..RHD..SCB..CBR |
2 | ||
| 95334-08022 |
RZN147..GEN |
2 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 95334-08022 |
RZN147,149,154,169..CBR |
2 | ||
| 95334-08022 |
RZN147..GCC;RZN149,154..CBR;RZN147..RHD..CBR;RZN169..SCB..CBR;RZN169..DCB..GCC;RZN169..RHD..DCB..GEN;RZN147..LHD..SCB..GEN |
2 | ||
| 95333-08030 |
LN150..SR;LN152..DSL;LN167..DCB..TH;LN152..DEFI..TH;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DSL..(ARL,SA);KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN146,147,166,17#,19#..DLX..(ARL,GCC,GEN,SA) *H,L=220,ID=7.6 |
2 | ||
| 95334-08022 |
RZN147..RHD..SCB..CBR |
2 | ||
| 95334-08022 |
RZN147..GEN |
2 | ||
| 77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06020 |
RZN142,147,149,169..CBR..(GEN,SA);KZN165,190,LN14#,15#,16#,17#,19#,RZN154..CBR,DEFI,DSL,TDE *H,L=140 |
1 | ||
| 95333-06020 |
LN145,166..RHD;LN145..DCB..TH;RZN147..RHD..SCB..CBR;KZN165,190,LN140,147,15#,167,172,192,RZN142..ARL,SA,TH *H,L=140 |
1 | ||
| 95333-06020 |
RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU *H,L=150 |
1 | ||
| 95333-06020 |
RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU *H,L=150 |
1 | ||
| 95333-06020 |
LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN *H,L=140 |
1 | ||
| 95333-06020 |
RZN147..RHD..SCB..CBR;KZN165,190,LN140,145,16#,192,RZN142..RHD..(GEN,SA) *H,L=140 |
1 | ||
| 95333-06020 |
RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU *H,L=150 |
1 | ||
| 95333-06020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147..GEN..CBU *H,L=150 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-35120 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77249-35120 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147..GEN..CBU |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-3D230 |
RZN142,147..SCB..GEN |
1 | ||
| 77251-3D230 |
RZN147..RHD..SCB..GEN |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-35360 |
LN150,152,17#,RZN147,149,154,169..(DCB,SCB,XTR)..(CBR,DEFI,DSL);KZN165,190,LN145,146,147,155,157,16#,19#..(DCB,SCB)..(DEFI,DSL,TDE) |
1 | ||
| 77252-35360 |
LN150,152,17#,RZN154..CBR,DEFI,DSL;KZN165,190,LN145,146,147,155,157,16#,19#,RZN147,149,169..(DCB,SCB,THDCB,THSCB)..(CBR,DEFI,DSL,TDE) |
1 | ||
| 77252-35360 |
KZN190..DLX;LN167,RZN147..RHD..SCB..(GEN,SA);KZN165,LN145,166,192..RHD..(GEN,SA) |
1 | ||
| 77252-35360 |
LN145..LHD..IV3;LN145,166,171,191,RZN147..GEN..CBU |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-35800 |
LN140,141,145,147,155,157,16#,192..SCB |
1 | ||
| 77255-35800 |
LN155..LHD;LN140,141,145,147,16#,192..(SCB,THSCB)..(ARL,GCC,GEN,SA) |
1 | ||
| 77255-35800 |
LN155..LHD;LN140,141,145,147,16#,192..SCB..(ARL,GCC,GEN,SA) |
1 | ||
| 77255-35770 |
RZN142,144,149,169..SCB..CBR;RZN147,148,168,194..SCB,THSCB;RZN149..(SCB,THSCB)..DLX..EFI;RZN169..(SCB,THSCB)..(ARL,SA) |
1 | ||
| 77255-35770 |
RZN169..DLX..SA;RZN148,149,168..SCB..GEN;RZN142,147,194..RHD..SCB..(GEN,SA) |
1 | ||
| 77255-35770 |
RZN142,147,148,16#..SCB..GEN..CBU |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-35050 |
LN150,152,17#,RZN154,174;KZN165,190,LN145,146,147,155,157,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,SCB,THDCB,THSCB |
1 | ||
| 77256-35050 |
RZN169..DCB..SA;RZN169..DLX..SA;RZN148,168..DLX..GEN;KZN165,LN192,RZN149,194..GEN,SA;LN167,RZN147..RHD..SCB..(GEN,SA);KZN190,LN145,166..RHD..DLX..(GEN,SA) |
1 | ||
| 77256-35050 |
LN145..LHD..IV3;LN145,166,171,191,RZN147,148,154,16#,193..GEN..CBU |
1 | ||
| 77256-35050 |
RZN149,154,169..CBR;RZN154,169..(DCB,SCB,XTR)..(ARL,SA);LN150,152,17#,RZN147,174..DCB,SCB,XTR;RZN148,149,168..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,190,LN145,146,147,155,157,16#,19#,RZN19#..(DCB,SCB)..(DEFI,DSL,EFI,TDE) |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-35060 |
LN150,152,17#,RZN154,174;KZN165,190,LN145,146,147,155,157,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,SCB,THDCB,THSCB |
1 | ||
| 77262-35060 |
RZN169..DCB..SA;RZN169..DLX..SA;RZN148,168..DLX..GEN;KZN165,LN192,RZN149,194..GEN,SA;LN167,RZN147..RHD..SCB..(GEN,SA);KZN190,LN145,166..RHD..DLX..(GEN,SA) |
1 | ||
| 77262-35060 |
RZN149,154,169..CBR;RZN154,169..(DCB,SCB,XTR)..(ARL,SA);LN150,152,17#,RZN147,174..DCB,SCB,XTR;RZN148,149,168..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,190,LN145,146,147,155,157,16#,19#,RZN19#..(DCB,SCB)..(DEFI,DSL,EFI,TDE) |
1 | ||
| 77262-35060 |
LN145..LHD..IV3;LN145,166,171,191,RZN147,148,154,16#,193..GEN..CBU |
1 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-35020 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77273-35020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35320 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77285-35320 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35020 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
2 | ||
| 77286-35020 |
LN145..LHD..IV3;LN145,166,191,RZN142,147,148,16#,193..GEN..CBU |
2 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35040 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77286-35040 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-35020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
2 | ||
| 77289-35020 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
2 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-35170 |
LN152,167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN150..XTR..SR;KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN192,RZN142,147,149,169..(CBR,DEFI,DSL)..(GEN,SA,TH);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN154..DLX..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 77295-35170 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147..GEN..CBU |
1 | ||
| 77295E - GROMMET, FUEL TUBE | ||||
| 77295-35160 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77295-35160 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-35010 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77298-35010 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35030 |
RZN147..RHD..SCB..GEN |
2 | ||
| 77439-35030 |
RZN142,147,148,154,16#,193..GEN..CBU |
2 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35030 |
RZN147..RHD..SCB..GEN |
2 | ||
| 77439-35030 |
RZN142,147,148,154,16#,193..GEN..CBU |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10067 |
LN145,166..RHD;LN145..DCB..TH;RZN147..RHD..SCB..CBR;KZN165,190,LN140,147,15#,167,172,192,RZN142..ARL,SA,TH |
1 | ||
| 90917-10067 |
LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN |
1 | ||
| 90917-10067 |
RZN142,147,149,169..CBR..(GEN,SA);KZN165,190,LN14#,15#,16#,17#,19#,RZN154..CBR,DEFI,DSL,TDE |
1 | ||
| 90917-10067 |
RZN147..RHD..SCB..CBR;KZN165,190,LN140,145,16#,192,RZN142..RHD..(GEN,SA) |
1 | ||
| 90917-10090 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147..GEN..CBU |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-35430 |
RZN147..RHD..CBR;RZN142,154..GEN,SA |
1 | ||
| 77740-35430 |
RZN142,147..RHD..SCB..CBR |
1 | ||
| 77740-35430 |
RZN142,147..GEN |
1 | ||
| 77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER) | ||||
| 90445-12122 |
RZN169..CBR..GCC;RZN169..RHD..CBR;RZN142,144,147,149,154..CBR |
1 | ||
| 90445-12122 |
RZN142,147..GEN |
1 | ||
| 90445-12122 |
RZN142,144,147,149,154,169..CBR |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90461-10669 | ||||
| 91611-B0614 | ||||
| 91641-H0820 | ||||
| 91651-60614 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||

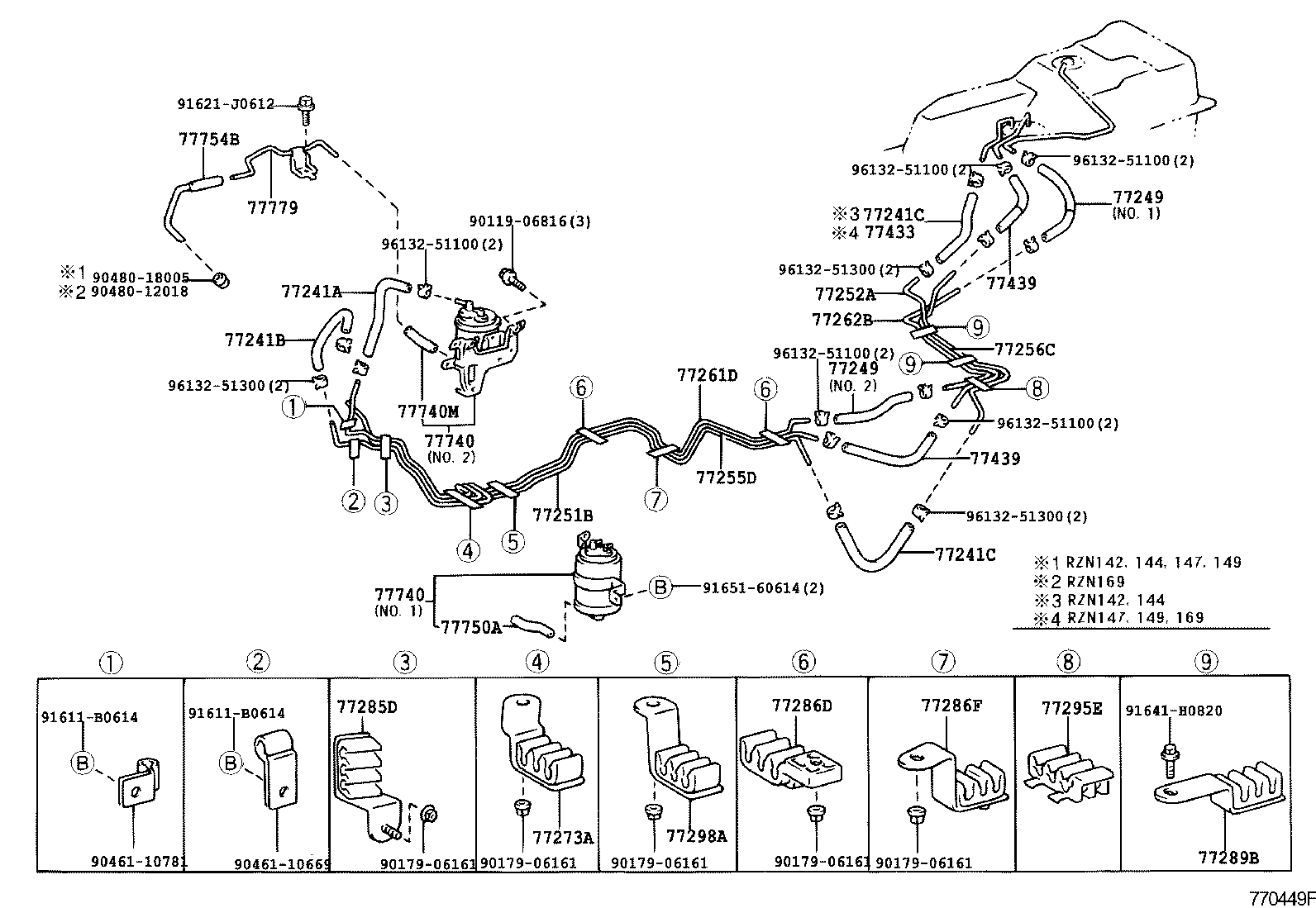

ILLUST NO. 2 OF 2(9708- )RZN142,144,147,149,169..ARL,GCC,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95334-08026 |
RZN147,169..GCC;RZN147,169..RHD..CBR;RZN142,144,149,154..CBR L=260 |
1 | ||
| 95334-08026 |
RZN142,144,147,149,154,169..CBR L=260 |
1 | ||
| 95334-08026 |
RZN142,147..RHD..SCB..CBR L=260 |
1 | ||
| 77279-35060 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
1 | ||
| 95334-08026 |
RZN142,147..CBR L=260 |
1 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 95334-08022 |
RZN147,149,154,169..CBR |
2 | ||
| 95334-08022 |
RZN147..GCC;RZN149,154..CBR;RZN147..RHD..CBR;RZN169..SCB..CBR;RZN169..DCB..GCC;RZN169..RHD..DCB..GEN;RZN147..LHD..SCB..GEN |
2 | ||
| 95333-08030 |
LN150..SR;LN152..DSL;LN167..DCB..TH;LN152..DEFI..TH;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DSL..(ARL,SA);KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN146,147,166,17#,19#..DLX..(ARL,GCC,GEN,SA) *H,L=220,ID=7.6 |
2 | ||
| 95334-08022 |
RZN147..RHD..SCB..CBR |
2 | ||
| 95334-08022 |
RZN147..GEN |
2 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 95334-08022 |
RZN147,149,154,169..CBR |
2 | ||
| 95334-08022 |
RZN147..GCC;RZN149,154..CBR;RZN147..RHD..CBR;RZN169..SCB..CBR;RZN169..DCB..GCC;RZN169..RHD..DCB..GEN;RZN147..LHD..SCB..GEN |
2 | ||
| 95333-08030 |
LN150..SR;LN152..DSL;LN167..DCB..TH;LN152..DEFI..TH;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DSL..(ARL,SA);KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN146,147,166,17#,19#..DLX..(ARL,GCC,GEN,SA) *H,L=220,ID=7.6 |
2 | ||
| 95334-08022 |
RZN147..RHD..SCB..CBR |
2 | ||
| 95334-08022 |
RZN147..GEN |
2 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-35120 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77249-35120 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147..GEN..CBU |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-35120 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77249-35120 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147..GEN..CBU |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-3D230 |
RZN142,147..SCB..GEN |
1 | ||
| 77251-3D230 |
RZN147..RHD..SCB..GEN |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-35360 |
LN150,152,17#,RZN147,149,154,169..(DCB,SCB,XTR)..(CBR,DEFI,DSL);KZN165,190,LN145,146,147,155,157,16#,19#..(DCB,SCB)..(DEFI,DSL,TDE) |
1 | ||
| 77252-35360 |
LN150,152,17#,RZN154..CBR,DEFI,DSL;KZN165,190,LN145,146,147,155,157,16#,19#,RZN147,149,169..(DCB,SCB,THDCB,THSCB)..(CBR,DEFI,DSL,TDE) |
1 | ||
| 77252-35360 |
KZN190..DLX;LN167,RZN147..RHD..SCB..(GEN,SA);KZN165,LN145,166,192..RHD..(GEN,SA) |
1 | ||
| 77252-35360 |
LN145..LHD..IV3;LN145,166,171,191,RZN147..GEN..CBU |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-35800 |
LN140,141,145,147,155,157,16#,192..SCB |
1 | ||
| 77255-35800 |
LN155..LHD;LN140,141,145,147,16#,192..(SCB,THSCB)..(ARL,GCC,GEN,SA) |
1 | ||
| 77255-35800 |
LN155..LHD;LN140,141,145,147,16#,192..SCB..(ARL,GCC,GEN,SA) |
1 | ||
| 77255-35770 |
RZN142,144,149,169..SCB..CBR;RZN147,148,168,194..SCB,THSCB;RZN149..(SCB,THSCB)..DLX..EFI;RZN169..(SCB,THSCB)..(ARL,SA) |
1 | ||
| 77255-35770 |
RZN169..DLX..SA;RZN148,149,168..SCB..GEN;RZN142,147,194..RHD..SCB..(GEN,SA) |
1 | ||
| 77255-35770 |
RZN142,147,148,16#..SCB..GEN..CBU |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-35050 |
LN150,152,17#,RZN154,174;KZN165,190,LN145,146,147,155,157,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,SCB,THDCB,THSCB |
1 | ||
| 77256-35050 |
RZN169..DCB..SA;RZN169..DLX..SA;RZN148,168..DLX..GEN;KZN165,LN192,RZN149,194..GEN,SA;LN167,RZN147..RHD..SCB..(GEN,SA);KZN190,LN145,166..RHD..DLX..(GEN,SA) |
1 | ||
| 77256-35050 |
LN145..LHD..IV3;LN145,166,171,191,RZN147,148,154,16#,193..GEN..CBU |
1 | ||
| 77256-35050 |
RZN149,154,169..CBR;RZN154,169..(DCB,SCB,XTR)..(ARL,SA);LN150,152,17#,RZN147,174..DCB,SCB,XTR;RZN148,149,168..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,190,LN145,146,147,155,157,16#,19#,RZN19#..(DCB,SCB)..(DEFI,DSL,EFI,TDE) |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-35060 |
LN150,152,17#,RZN154,174;KZN165,190,LN145,146,147,155,157,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,SCB,THDCB,THSCB |
1 | ||
| 77262-35060 |
RZN169..DCB..SA;RZN169..DLX..SA;RZN148,168..DLX..GEN;KZN165,LN192,RZN149,194..GEN,SA;LN167,RZN147..RHD..SCB..(GEN,SA);KZN190,LN145,166..RHD..DLX..(GEN,SA) |
1 | ||
| 77262-35060 |
RZN149,154,169..CBR;RZN154,169..(DCB,SCB,XTR)..(ARL,SA);LN150,152,17#,RZN147,174..DCB,SCB,XTR;RZN148,149,168..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,190,LN145,146,147,155,157,16#,19#,RZN19#..(DCB,SCB)..(DEFI,DSL,EFI,TDE) |
1 | ||
| 77262-35060 |
LN145..LHD..IV3;LN145,166,171,191,RZN147,148,154,16#,193..GEN..CBU |
1 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-35020 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77273-35020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35320 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77285-35320 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35020 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
2 | ||
| 77286-35020 |
LN145..LHD..IV3;LN145,166,191,RZN142,147,148,16#,193..GEN..CBU |
2 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35040 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77286-35040 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-35020 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
2 | ||
| 77289-35020 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
2 | ||
| 77295E - GROMMET, FUEL TUBE | ||||
| 77295-35160 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77295-35160 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-35010 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77298-35010 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35030 |
RZN147..RHD..SCB..GEN |
2 | ||
| 77439-35030 |
RZN142,147,148,154,16#,193..GEN..CBU |
2 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35030 |
RZN147..RHD..SCB..GEN |
2 | ||
| 77439-35030 |
RZN142,147,148,154,16#,193..GEN..CBU |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-35430 |
RZN147..RHD..CBR;RZN142,154..GEN,SA |
1 | ||
| 77740-35430 |
RZN142,147..RHD..SCB..CBR |
1 | ||
| 77740-35430 |
RZN142,147..GEN |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-35430 |
RZN147..RHD..CBR;RZN142,154..GEN,SA |
1 | ||
| 77740-35430 |
RZN142,147..RHD..SCB..CBR |
1 | ||
| 77740-35430 |
RZN142,147..GEN |
1 | ||
| 77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER) | ||||
| 90445-12122 |
RZN169..CBR..GCC;RZN169..RHD..CBR;RZN142,144,147,149,154..CBR |
1 | ||
| 90445-12122 |
RZN142,147..GEN |
1 | ||
| 90445-12122 |
RZN142,144,147,149,154,169..CBR |
1 | ||
| Common parts | ||||
| 90119-06816 | ||||
| 90179-06161 | ||||
| 90461-10669 | ||||
| 90461-10781 | ||||
| 90480-12018 | ||||
| 90480-18005 | ||||
| 91611-B0614 | ||||
| 91621-J0612 | ||||
| 91641-H0820 | ||||
| 91651-60614 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 1 OF 2(9708- )KDN165,190,KZN165,190,LN140,145,147,15#,16#,172,192,RZN142,147,149,154,1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-35210 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN;RZN148,149,168..DLX..EFI..GEN |
1 | ||
| 77011-35210 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN;RZN148,149,168..DLX..EFI..GEN |
1 | ||
| 77011-35210 |
LN145..LHD..IV3;LN147..SCB..IV3;RZN149..SCB..CO;KZN190,RZN149,194..SR..(GCC,SA);LN145,147..(DCB,THDCB)..(ARL,TH);LN145,RZN148,154,169..(GCC,GEN,SA)..CBU;RZN148,169..(DCB,SCB,THDCB)..DLX..(ARL,CO);LN152,RZN149..(DCB,THDCB,XTR)..DLX..(ARL,CO,GCC)..CBU;LN167,17#,RZN168,174,193..(DCB,SCB,THDCB,XTR)..(ARL,CO,GEN,SA);KDN145,16#,190,KZN165,LN146,166,19#,RZN147..(DCB,SCB,THDCB)..(CBR,DCR,DEFI,DSL,TDE) |
1 | ||
| 77011-35210 |
LN145..LHD..IV3;LN147..SCB..IV3;RZN149..SCB..CO;KZN190,RZN149,194..SR..(GCC,SA);LN145,147..(DCB,THDCB)..(ARL,TH);LN145,RZN148,154,169..(GCC,GEN,SA)..CBU;RZN148,169..(DCB,SCB,THDCB)..DLX..(ARL,CO);LN152,RZN149..(DCB,THDCB,XTR)..DLX..(ARL,CO,GCC)..CBU;LN167,17#,RZN168,174,193..(DCB,SCB,THDCB,XTR)..(ARL,CO,GEN,SA);KDN145,16#,190,KZN165,LN146,166,19#,RZN147..(DCB,SCB,THDCB)..(CBR,DCR,DEFI,DSL,TDE) |
1 | ||
| 77011-04020 |
LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN (L) |
1 | ||
| 77011-04020 |
LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN (L) |
1 | ||
| 77011-35210 |
LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN (J) |
1 | ||
| 77011-35210 |
LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN (J) |
1 | ||
| 77011-04020 |
LN145..LHD..IV3;LN145,RZN149,154..(CO,GCC,GEN,SA)..CBU;KDN165,190,KZN165,190,LN146,147,152,16#,17#,19#,RZN147,148,16#,19#..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA) (L) |
1 | ||
| 77011-04020 |
LN145..LHD..IV3;LN145,RZN149,154..(CO,GCC,GEN,SA)..CBU;KDN165,190,KZN165,190,LN146,147,152,16#,17#,19#,RZN147,148,16#,19#..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA) (L) |
1 | ||
| 77011-35210 |
LN145..LHD..IV3;LN145,RZN149,154..(CO,GCC,GEN,SA)..CBU;KDN165,190,KZN165,190,LN146,147,152,16#,17#,19#,RZN147,148,16#,19#..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA) (J) |
1 | ||
| 77011-35210 |
LN145..LHD..IV3;LN145,RZN149,154..(CO,GCC,GEN,SA)..CBU;KDN165,190,KZN165,190,LN146,147,152,16#,17#,19#,RZN147,148,16#,19#..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA) (J) |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-35060 |
LN145,166,RZN147..RHD..SCB..GEN |
1 | ||
| 77018-35060 |
LN145,166,RZN147..RHD..SCB..GEN |
1 | ||
| 77018-35060 |
KZN190..SCB..SR;LN145..LHD..IV3;LN147..SCB..IV3;RZN148,149..SCB..(ARL,CO,GCC);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN,SA)..CBU;KZN165,LN16#,17#,192,RZN147,154,16#,174,194,VZN167,172..(SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA) |
1 | ||
| 77018-35060 |
KZN190..SCB..SR;LN145..LHD..IV3;LN147..SCB..IV3;RZN148,149..SCB..(ARL,CO,GCC);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN,SA)..CBU;KZN165,LN16#,17#,192,RZN147,154,16#,174,194,VZN167,172..(SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA) |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32040 |
LN192;LN152,167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN150..XTR..SR;KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 77023-32040 |
LN192;LN152,167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN150..XTR..SR;KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 77023-32030 |
RZN142,144,147,149,154,169..CBR |
1 | ||
| 77023-32030 |
RZN142,144,147,149,154,169..CBR |
1 | ||
| 77023-32030 |
RZN142,147..CBR |
1 | ||
| 77023-32030 |
RZN142,147..CBR |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77050-35090 |
LN145,166,RZN147,169..RHD..SCB..GEN |
1 | ||
| 77050-35090 |
LN145,166,RZN147,169..RHD..SCB..GEN |
1 | ||
| 77050-35091 |
KZN165..(SCB,THSCB)..SR..CBU;LN145,166,RZN147,169..RHD..SCB..(CBR,DSL)..GEN..CBU |
1 | ||
| 77050-35091 |
KZN165..(SCB,THSCB)..SR..CBU;LN145,166,RZN147,169..RHD..SCB..(CBR,DSL)..GEN..CBU |
1 | ||
| 77050-35091 |
LN145,166,RZN147,169..RHD..SCB..GEN..CBU |
1 | ||
| 77050-35091 |
LN145,166,RZN147,169..RHD..SCB..GEN..CBU |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-35010 |
LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 77051-35010 |
LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 77051-35010 |
KZN190..DCB..DLX;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU;KZN165,RZN169,194..DCB..SA |
1 | ||
| 77051-35010 |
KZN190..DCB..DLX;RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU;KZN165,RZN169,194..DCB..SA |
1 | ||
| 77051-35010 |
KZN165..SR..CBU;RZN144,149,154,169..CBR;RZN147,149,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA);LN141,145,155,157,166,RZN142,147,148,168..DLX..(GCC,GEN,TH)..CBU;KZN190,LN146,147,150,152,167,17#,19#,RZN174,19#..(DCB,SADCB,THDCB,THXTR,XTR)..CBU |
1 | ||
| 77051-35010 |
KZN165..SR..CBU;RZN144,149,154,169..CBR;RZN147,149,154,169..(DCB,THDCB,THXTR,XTR)..(ARL,SA);LN141,145,155,157,166,RZN142,147,148,168..DLX..(GCC,GEN,TH)..CBU;KZN190,LN146,147,150,152,167,17#,19#,RZN174,19#..(DCB,SADCB,THDCB,THXTR,XTR)..CBU |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3D908 |
LN145,147,15#,RZN147,149,154..(SCB,THSCB,THXTR,XTR)..(CBR,DEFI,DSL)..(ARL,GCC,GEN,TH) |
1 | ||
| 77001-3D908 |
LN145,147,15#,RZN147,149,154..(SCB,THSCB,THXTR,XTR)..(CBR,DEFI,DSL)..(ARL,GCC,GEN,TH) |
1 | ||
| 77001-3D908 |
LN145,RZN147..RHD..SCB..(GEN,SA) |
1 | ||
| 77001-3D908 |
LN145,RZN147..RHD..SCB..(GEN,SA) |
1 | ||
| 77001-3D908 |
LN145,147,15#,RZN147,149,154..(SCB,THSCB,THXTR,XTR)..(CBR,DEFI,DSL) |
1 | ||
| 77001-3D908 |
LN145,147,15#,RZN147,149,154..(SCB,THSCB,THXTR,XTR)..(CBR,DEFI,DSL) |
1 | ||
| 77001-3D908 |
LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77001-3D908 |
LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77001-3D908 |
LN145..LHD..IV3;LN147..SCB..IV3;RZN147..SCB..(GCC,GEN);LN145,152..(SCB,XTR)..(ARL,GEN,SA)..CBU |
1 | ||
| 77001-3D908 |
LN145..LHD..IV3;LN147..SCB..IV3;RZN147..SCB..(GCC,GEN);LN145,152..(SCB,XTR)..(ARL,GEN,SA)..CBU |
1 | ||
| 77131 - BRACKET, FUEL TANK FILLER PIPE SUPPORT | ||||
| 77131-35060 |
RZN148,168..SCB..GEN..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU |
1 | ||
| 77131-35060 |
RZN148,168..SCB..GEN..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU |
1 | ||
| 77131-35060 |
RZN148,149,168..SCB..GEN..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU |
1 | ||
| 77131-35060 |
RZN148,149,168..SCB..GEN..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU |
1 | ||
| 77131-35060 |
RZN169..(SCB,THSCB)..ARL..CBU;RZN147..RHD..(SCB,THSCB)..(ARL,GEN)..CBU;LN167,RZN148,149,168..(SCB,THSCB)..MTM..(ARL,GEN)..CBU;KZN165,LN145,166,172,RZN154,174..RHD..(SCB,THXTR,XTR)..(ARL,GEN)..CBU |
1 | ||
| 77131-35060 |
RZN169..(SCB,THSCB)..ARL..CBU;RZN147..RHD..(SCB,THSCB)..(ARL,GEN)..CBU;LN167,RZN148,149,168..(SCB,THSCB)..MTM..(ARL,GEN)..CBU;KZN165,LN145,166,172,RZN154,174..RHD..(SCB,THXTR,XTR)..(ARL,GEN)..CBU |
1 | ||
| 77131-35060 |
KZN165,LN141,145,147,16#,17#,RZN14#,154,16#,174..(SCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN)..CBU |
1 | ||
| 77131-35060 |
KZN165,LN141,145,147,16#,17#,RZN14#,154,16#,174..(SCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN)..CBU |
1 | ||
| 77131-35060 |
LN145,166,171,RZN142,147,148,154,16#..(SCB,XTR)..GEN..CBU |
1 | ||
| 77131-35060 |
LN145,166,171,RZN142,147,148,154,16#..(SCB,XTR)..GEN..CBU |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35160 |
LN145,RZN147..RHD..SCB..GEN (J) |
1 | ||
| 77161-35160 |
LN145,RZN147..RHD..SCB..GEN (J) |
1 | ||
| 77161-04010 |
LN145,RZN147..RHD..SCB..GEN (L) |
1 | ||
| 77161-04010 |
LN145,RZN147..RHD..SCB..GEN (L) |
1 | ||
| 77161-35160 |
LN145..LHD..IV3;LN147..SCB..IV3;RZN147,154..SCB,XTR;RZN148,149..SCB..(ARL,CO,GCC);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN,SA)..CBU |
1 | ||
| 77161-35160 |
LN145..LHD..IV3;LN147..SCB..IV3;RZN147,154..SCB,XTR;RZN148,149..SCB..(ARL,CO,GCC);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN,SA)..CBU |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35160 |
LN145,RZN147..RHD..SCB..GEN (J) |
1 | ||
| 77161-35160 |
LN145,RZN147..RHD..SCB..GEN (J) |
1 | ||
| 77161-04010 |
LN145,RZN147..RHD..SCB..GEN (L) |
1 | ||
| 77161-04010 |
LN145,RZN147..RHD..SCB..GEN (L) |
1 | ||
| 77161-35160 |
LN145..LHD..IV3;LN147..SCB..IV3;RZN147,154..SCB,XTR;RZN148,149..SCB..(ARL,CO,GCC);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN,SA)..CBU |
1 | ||
| 77161-35160 |
LN145..LHD..IV3;LN147..SCB..IV3;RZN147,154..SCB,XTR;RZN148,149..SCB..(ARL,CO,GCC);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN,SA)..CBU |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35160 |
LN145,RZN147..RHD..SCB..GEN (J) |
1 | ||
| 77161-35160 |
LN145,RZN147..RHD..SCB..GEN (J) |
1 | ||
| 77161-04010 |
LN145,RZN147..RHD..SCB..GEN (L) |
1 | ||
| 77161-04010 |
LN145,RZN147..RHD..SCB..GEN (L) |
1 | ||
| 77161-35160 |
LN145..LHD..IV3;LN147..SCB..IV3;RZN147,154..SCB,XTR;RZN148,149..SCB..(ARL,CO,GCC);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN,SA)..CBU |
1 | ||
| 77161-35160 |
LN145..LHD..IV3;LN147..SCB..IV3;RZN147,154..SCB,XTR;RZN148,149..SCB..(ARL,CO,GCC);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN,SA)..CBU |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77169-14010 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77169-14010 |
KZN190..SR;LN145..LHD..IV3;LN147..SCB..IV3;LN167..THDCB..SR;LN147,152..(DCB,XTR)..ARL..CBU;LN145,RZN148,174..(ARL,GEN,SA)..CBU;LN167,RZN148..(DCB,SCB)..(ARL,CO,SA);RZN149..(DCB,SCB,THDCB)..(ARL,CO,GCC);KZN165,LN140,141,146,166,19#,RZN142,144,168,19#,VZN167..DCB,SCB,THDCB;KDN165,190,LN17#,RZN147,154,169,VZN172..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,MA,SA) |
1 | ||
| 77169-14010 |
KZN190..SR;LN145..LHD..IV3;LN147..SCB..IV3;LN167..THDCB..SR;LN147,152..(DCB,XTR)..ARL..CBU;LN145,RZN148,174..(ARL,GEN,SA)..CBU;LN167,RZN148..(DCB,SCB)..(ARL,CO,SA);RZN149..(DCB,SCB,THDCB)..(ARL,CO,GCC);KZN165,LN140,141,146,166,19#,RZN142,144,168,19#,VZN167..DCB,SCB,THDCB;KDN165,190,LN17#,RZN147,154,169,VZN172..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,MA,SA) |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-34010 |
RZN148..CO;LN145..DCB..TH;LN167..SCB..IV3;LN145..LHD..IV3;RZN149..SCB..CO;LN145,RZN148..(GEN,SA)..CBU;KZN190,RZN149,194..SR..(GCC,SA);LN167,RZN154,16#..CO,GCC,GEN,SA;LN167,RZN149..(DCB,THDCB)..DLX..(ARL,CO,GCC);KDN145,16#,190,LN146,147,191,RZN193..DCB,THDCB;KZN165,LN166,17#,192,RZN147..(DCB,SCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN,MA,SA) |
1 | ||
| 77178-34010 |
RZN148..CO;LN145..DCB..TH;LN167..SCB..IV3;LN145..LHD..IV3;RZN149..SCB..CO;LN145,RZN148..(GEN,SA)..CBU;KZN190,RZN149,194..SR..(GCC,SA);LN167,RZN154,16#..CO,GCC,GEN,SA;LN167,RZN149..(DCB,THDCB)..DLX..(ARL,CO,GCC);KDN145,16#,190,LN146,147,191,RZN193..DCB,THDCB;KZN165,LN166,17#,192,RZN147..(DCB,SCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN,MA,SA) |
1 | ||
| 77178-34010 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN (J) |
1 | ||
| 77178-34010 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN (J) |
1 | ||
| 77178-04010 |
LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN (L) |
1 | ||
| 77178-04010 |
LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN (L) |
1 | ||
| 77178-04010 |
LN145..LHD..IV3;LN145,RZN149,154..(CO,GCC,GEN,SA)..CBU;KDN165,190,KZN165,190,LN146,147,152,16#,17#,19#,RZN147,148,16#,19#..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA) (L) |
1 | ||
| 77178-04010 |
LN145..LHD..IV3;LN145,RZN149,154..(CO,GCC,GEN,SA)..CBU;KDN165,190,KZN165,190,LN146,147,152,16#,17#,19#,RZN147,148,16#,19#..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA) (L) |
1 | ||
| 77178-34010 |
LN145..LHD..IV3;LN145,RZN149,154..(CO,GCC,GEN,SA)..CBU;KDN165,190,KZN165,190,LN146,147,152,16#,17#,19#,RZN147,148,16#,19#..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA) (J) |
1 | ||
| 77178-34010 |
LN145..LHD..IV3;LN145,RZN149,154..(CO,GCC,GEN,SA)..CBU;KDN165,190,KZN165,190,LN146,147,152,16#,17#,19#,RZN147,148,16#,19#..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA) (J) |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
KZN190..SR;LN145..LHD..IV3;LN147..SCB..IV3;LN167..THDCB..SR;LN167,RZN148..(DCB,SCB)..(ARL,CO,SA);RZN149..(DCB,SCB,THDCB)..(ARL,CO,GCC);LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU;KDN165,190,LN147,17#,RZN154,174,VZN172..(DCB,XTR)..(ARL,GEN,MA);KZN165,LN140,141,146,166,19#,RZN142,144,147,16#,19#,VZN167..DCB,SCB,THDCB |
1 | ||
| 77179-26010 |
KZN190..SR;LN145..LHD..IV3;LN147..SCB..IV3;LN167..THDCB..SR;LN167,RZN148..(DCB,SCB)..(ARL,CO,SA);RZN149..(DCB,SCB,THDCB)..(ARL,CO,GCC);LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU;KDN165,190,LN147,17#,RZN154,174,VZN172..(DCB,XTR)..(ARL,GEN,MA);KZN165,LN140,141,146,166,19#,RZN142,144,147,16#,19#,VZN167..DCB,SCB,THDCB |
1 | ||
| 77179-26010 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77179-26010 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35540 |
LN145,166,RZN147..RHD..SCB..GEN..CBU |
1 | ||
| 77201-35540 |
LN145,166,RZN147..RHD..SCB..GEN..CBU |
1 | ||
| 77201-35540 |
KZN190..SCB..SR;RZN169..SCB..GEN;RZN142,147..SCB..(GCC,GEN);KZN165,LN140,141,145,16#,192,RZN148,168..SCB..(ARL,GCC,GEN,MA,SA)..CBU |
1 | ||
| 77201-35540 |
KZN190..SCB..SR;RZN169..SCB..GEN;RZN142,147..SCB..(GCC,GEN);KZN165,LN140,141,145,16#,192,RZN148,168..SCB..(ARL,GCC,GEN,MA,SA)..CBU |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95313-13022 |
LN145,166,RZN147..RHD..SCB..GEN..CBU L=220 |
1 | ||
| 95313-13022 |
LN145,166,RZN147..RHD..SCB..GEN..CBU L=220 |
1 | ||
| 95313-13022 |
KZN190..SCB..SR;RZN149..SCB..(ARL,CO,GCC)..CBU;KZN165,LN140,141,145,16#,192,RZN142,144,147,148,16#,194,VZN167..SCB..(ARL,CO,GCC,GEN,MA,SA)..CBU L=220 |
1 | ||
| 95313-13022 |
KZN190..SCB..SR;RZN149..SCB..(ARL,CO,GCC)..CBU;KZN165,LN140,141,145,16#,192,RZN142,144,147,148,16#,194,VZN167..SCB..(ARL,CO,GCC,GEN,MA,SA)..CBU L=220 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-35570 |
RZN147,149,154..(SCB,XTR)..CBR..(GCC,GEN) |
1 | ||
| 77203-35570 |
RZN147,149,154..(SCB,XTR)..CBR..(GCC,GEN) |
1 | ||
| 77203-35580 |
LN152..XTR..IV3;LN145,147..SCB..(ARL,GEN) |
1 | ||
| 77203-35580 |
LN152..XTR..IV3;LN145,147..SCB..(ARL,GEN) |
1 | ||
| 77203-35570 |
RZN147..SCB..(GCC,GEN) |
1 | ||
| 77203-35570 |
RZN147..SCB..(GCC,GEN) |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35310 |
LN145,166,RZN147..RHD..SCB..GEN..CBU |
1 | ||
| 77213-35310 |
LN145,166,RZN147..RHD..SCB..GEN..CBU |
1 | ||
| 77213-35310 |
KZN190..SCB..SR;RZN149..SCB..(ARL,CO,GCC)..CBU;KZN165,LN140,141,145,16#,192,RZN142,144,147,148,16#,194,VZN167..SCB..(ARL,CO,GCC,GEN,MA,SA)..CBU |
1 | ||
| 77213-35310 |
KZN190..SCB..SR;RZN149..SCB..(ARL,CO,GCC)..CBU;KZN165,LN140,141,145,16#,192,RZN142,144,147,148,16#,194,VZN167..SCB..(ARL,CO,GCC,GEN,MA,SA)..CBU |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-35050 |
RZN169..(SCB,THSCB)..(ARL,SA)..CBU;RZN147,148,168,194..(SCB,THSCB)..CBU;KZN165,RZN149..(SCB,THSCB)..DLX..(EFI,TDE)..CBU;KZN190,LN140,141,145,147,155,157,16#,192,RZN142,144,149,169,YN140..(SCB,THSCB)..(CBR,DEFI,DSL,TDE)..CBU |
1 | ||
| 77290-35050 |
RZN169..(SCB,THSCB)..(ARL,SA)..CBU;RZN147,148,168,194..(SCB,THSCB)..CBU;KZN165,RZN149..(SCB,THSCB)..DLX..(EFI,TDE)..CBU;KZN190,LN140,141,145,147,155,157,16#,192,RZN142,144,149,169,YN140..(SCB,THSCB)..(CBR,DEFI,DSL,TDE)..CBU |
1 | ||
| 77290-35060 |
RZN148,168..SCB..GEN..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU W(FUEL LID OPENER) |
1 | ||
| 77290-35060 |
RZN148,168..SCB..GEN..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU W(FUEL LID OPENER) |
1 | ||
| 77290-35050 |
RZN169..DLX..SA;KZN190,RZN148,149,168..SCB..DLX..(GEN,SA)..CBU;LN140,145,16#,192,RZN142,147,194..RHD..SCB..(GEN,SA)..CBU |
1 | ||
| 77290-35050 |
RZN169..DLX..SA;KZN190,RZN148,149,168..SCB..DLX..(GEN,SA)..CBU;LN140,145,16#,192,RZN142,147,194..RHD..SCB..(GEN,SA)..CBU |
1 | ||
| 77290-35060 |
LN192,RZN148,168..(SCB,XTR)..(DSL,EFI)..(GEN,TH)..CBU;LN141,145,155,157,166,RZN142,144,147,149,169..SCB..(CBR,DEFI,DSL)..(GCC,GEN,TH)..CBU W(FUEL LID OPENER) |
1 | ||
| 77290-35060 |
LN192,RZN148,168..(SCB,XTR)..(DSL,EFI)..(GEN,TH)..CBU;LN141,145,155,157,166,RZN142,144,147,149,169..SCB..(CBR,DEFI,DSL)..(GCC,GEN,TH)..CBU W(FUEL LID OPENER) |
1 | ||
| 77290-35060 |
LN145,166,RZN142,147,148,16#..SCB..GEN..CBU W(FUEL LID OPENER) |
1 | ||
| 77290-35060 |
LN145,166,RZN142,147,148,16#..SCB..GEN..CBU W(FUEL LID OPENER) |
1 | ||
| 77290-35050 |
LN145,166,RZN142,147,148,16#..SCB..GEN..CBU |
1 | ||
| 77290-35050 |
LN145,166,RZN142,147,148,16#..SCB..GEN..CBU |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35140 |
LN145..LHD..IV3;LN167..THDCB..SR;LN167..THSCB..CBU;KDN150,151,KZN190,RZN194..SR;LN147,152..(DCB,XTR)..ARL..CBU;LN145,RZN148,174..(ARL,GEN,SA)..CBU;LN167,RZN148..(DCB,SCB)..(ARL,CO,SA);RZN149..(DCB,SCB,THDCB)..(ARL,CO,GCC);KDN165,190,LN147..(SCB,XTR)..(IV1,IV3);KDN16#,190,LN140,141,192,RZN142,144..SCB,SRWGN;KDN165,190,LN150,17#,RZN154,VZN172..(DCB,XTR)..DLX;KZN165,LN146,166,191,RZN147,16#,193,VZN167..DCB,SCB,THDCB,THSCB |
1 | ||
| 77295-35140 |
LN145..LHD..IV3;LN167..THDCB..SR;LN167..THSCB..CBU;KDN150,151,KZN190,RZN194..SR;LN147,152..(DCB,XTR)..ARL..CBU;LN145,RZN148,174..(ARL,GEN,SA)..CBU;LN167,RZN148..(DCB,SCB)..(ARL,CO,SA);RZN149..(DCB,SCB,THDCB)..(ARL,CO,GCC);KDN165,190,LN147..(SCB,XTR)..(IV1,IV3);KDN16#,190,LN140,141,192,RZN142,144..SCB,SRWGN;KDN165,190,LN150,17#,RZN154,VZN172..(DCB,XTR)..DLX;KZN165,LN146,166,191,RZN147,16#,193,VZN167..DCB,SCB,THDCB,THSCB |
1 | ||
| 77295-35140 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77295-35140 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-35071 |
RZN148,168..SCB..CBU;LN141,145,155,157,166,RZN142,144,147,149,169..SCB..(CBR,DEFI,DSL)..(GCC,GEN,TH)..CBU W(FUEL LID OPENER) |
1 | ||
| 77305-35071 |
RZN148,168..SCB..CBU;LN141,145,155,157,166,RZN142,144,147,149,169..SCB..(CBR,DEFI,DSL)..(GCC,GEN,TH)..CBU W(FUEL LID OPENER) |
1 | ||
| 77305-35060 |
KZN165..SCB..DLX..CBU;KZN190,LN140,141,145,147,155,157,16#,192,RZN14#,16#,194,YN140..(SCB,THSCB)..CBU |
1 | ||
| 77305-35060 |
KZN165..SCB..DLX..CBU;KZN190,LN140,141,145,147,155,157,16#,192,RZN14#,16#,194,YN140..(SCB,THSCB)..CBU |
1 | ||
| 77305-35070 |
LN141,145,155,157,166,RZN14#,16#..SCB..MTM..(GCC,GEN,TH)..CBU W(FUEL LID OPENER) |
1 | ||
| 77305-35070 |
LN141,145,155,157,166,RZN14#,16#..SCB..MTM..(GCC,GEN,TH)..CBU W(FUEL LID OPENER) |
1 | ||
| 77305-35061 |
RZN169..(SCB,THSCB)..DLX..(ARL,SA)..CBU;KZN190,RZN149..(SCB,THSCB)..DLX..(EFI,TDE)..(ARL,GEN,SA)..CBU;LN147,167,RZN147,148,168,194..(SCB,THSCB)..(ARL,GCC,GEN,SA)..CBU;KZN165,LN140,141,145,155,157,166,192,RZN142,144,149,169..SCB..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN,SA,TH)..CBU |
1 | ||
| 77305-35061 |
RZN169..(SCB,THSCB)..DLX..(ARL,SA)..CBU;KZN190,RZN149..(SCB,THSCB)..DLX..(EFI,TDE)..(ARL,GEN,SA)..CBU;LN147,167,RZN147,148,168,194..(SCB,THSCB)..(ARL,GCC,GEN,SA)..CBU;KZN165,LN140,141,145,155,157,166,192,RZN142,144,149,169..SCB..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN,SA,TH)..CBU |
1 | ||
| 77305-35071 |
LN141,145,166,RZN14#,16#..SCB..MTM..(GCC,GEN)..CBU W(FUEL LID OPENER) |
1 | ||
| 77305-35071 |
LN141,145,166,RZN14#,16#..SCB..MTM..(GCC,GEN)..CBU W(FUEL LID OPENER) |
1 | ||
| 77305-35071 |
RZN148,168..SCB..GEN..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU W(FUEL LID OPENER) |
1 | ||
| 77305-35071 |
RZN148,168..SCB..GEN..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU W(FUEL LID OPENER) |
1 | ||
| 77305-35061 |
KZN190..SCB..SR;LN145..SCB..(GEN,SA)..CBU;KDN155,KZN165,LN140,141,155,16#,192,RZN14#,16#,194,VZN167..(SCB,THSCB)..MTM..(ARL,CO,GCC,GEN,SA,TH)..CBU |
1 | ||
| 77305-35061 |
KZN190..SCB..SR;LN145..SCB..(GEN,SA)..CBU;KDN155,KZN165,LN140,141,155,16#,192,RZN14#,16#,194,VZN167..(SCB,THSCB)..MTM..(ARL,CO,GCC,GEN,SA,TH)..CBU |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
RZN19#;RZN169..DCB..SA;RZN169..DLX..SA;RZN149..SCB..EFI..GEN;RZN148,168..DLX..GEN..CBU;RZN142,144,147,149,154,169,YN140..CBR |
1 | ||
| 77310-48010 |
RZN19#;RZN169..DCB..SA;RZN169..DLX..SA;RZN149..SCB..EFI..GEN;RZN148,168..DLX..GEN..CBU;RZN142,144,147,149,154,169,YN140..CBR |
1 | ||
| 77310-12150 |
LN192..CBU;LN167..DEFI..TH;LN167..DSL..CBU;LN192..DEFI..IV1;LN145..LHD..DCB..DLX;KZN165,LN150,152..XTR..SR;LN145..RHD..DCB..GEN..CBU;KZN165..SR..(ARL,SA)..CBU;LN167..DCB..DLX..DEFI..ARL;KZN165,LN145..SCB..DLX..CBU;LN167..(SCB,THDCB,THSCB)..DLX..DEFI..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)..CBU |
1 | ||
| 77310-12150 |
LN192..CBU;LN167..DEFI..TH;LN167..DSL..CBU;LN192..DEFI..IV1;LN145..LHD..DCB..DLX;KZN165,LN150,152..XTR..SR;LN145..RHD..DCB..GEN..CBU;KZN165..SR..(ARL,SA)..CBU;LN167..DCB..DLX..DEFI..ARL;KZN165,LN145..SCB..DLX..CBU;LN167..(SCB,THDCB,THSCB)..DLX..DEFI..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)..CBU |
1 | ||
| 77310-35070 |
RZN14#,154,16#,193..GCC,GEN |
1 | ||
| 77310-35070 |
RZN14#,154,16#,193..GCC,GEN |
1 | ||
| 77310-48010 |
RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 77310-48010 |
RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU |
1 | ||
| 77316-16010 |
RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU |
1 | ||
| 77316-16010 |
LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 77316-16010 |
LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-35030 |
RZN154..ARL;RZN148,168,174..(SCB,THXTR,XTR)..CBU;KZN165,LN167..(SCB,THSCB,XTR)..SR..CBU;LN141,145,15#,166,17#,192,RZN142,144,147,149,154,169..(SCB,THXTR,XTR)..(CBR,DEFI,DSL)..(ARL,GCC,GEN,TH)..CBU |
1 | ||
| 77360-35030 |
RZN154..ARL;RZN148,168,174..(SCB,THXTR,XTR)..CBU;KZN165,LN167..(SCB,THSCB,XTR)..SR..CBU;LN141,145,15#,166,17#,192,RZN142,144,147,149,154,169..(SCB,THXTR,XTR)..(CBR,DEFI,DSL)..(ARL,GCC,GEN,TH)..CBU |
1 | ||
| 77360-35030 |
RZN148,168..SCB..GEN..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU |
1 | ||
| 77360-35030 |
RZN148,168..SCB..GEN..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU |
1 | ||
| 77360-35030 |
LN150,RZN174..DLX;RZN149..SCB..(CO,GCC);LN145,152..(SCB,XTR)..(ARL,GEN)..CBU;KZN165,RZN147,169..(SCB,XTR)..(GCC,GEN,TH)..CBU;KDN150,151,16#,190,LN141,166,17#,RZN142,144,148,154,168,VZN172..(SCB,XTR)..(ARL,GCC,GEN,MA,TH)..CBU |
1 | ||
| 77360-35030 |
LN150,RZN174..DLX;RZN149..SCB..(CO,GCC);LN145,152..(SCB,XTR)..(ARL,GEN)..CBU;KZN165,RZN147,169..(SCB,XTR)..(GCC,GEN,TH)..CBU;KDN150,151,16#,190,LN141,166,17#,RZN142,144,148,154,168,VZN172..(SCB,XTR)..(ARL,GCC,GEN,MA,TH)..CBU |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
RZN148,168..SCB..GEN..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU |
1 | ||
| 77377-12050 |
RZN148,168..SCB..GEN..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU |
1 | ||
| 77377-12050 |
LN145,166,171,RZN142,147,148,154,16#..(SCB,XTR)..GEN..CBU |
1 | ||
| 77377-12050 |
LN145,166,171,RZN142,147,148,154,16#..(SCB,XTR)..GEN..CBU |
1 | ||
| 77377-12050 |
RZN154..ARL;RZN148,168,174..(SCB,THXTR,XTR)..CBU;KZN165,LN167..(SCB,THSCB,XTR)..SR..CBU;LN141,145,15#,166,17#,192,RZN142,144,147,149,154,169..(SCB,THXTR,XTR)..(CBR,DEFI,DSL)..(ARL,GCC,GEN,TH)..CBU |
1 | ||
| 77377-12050 |
RZN154..ARL;RZN148,168,174..(SCB,THXTR,XTR)..CBU;KZN165,LN167..(SCB,THSCB,XTR)..SR..CBU;LN141,145,15#,166,17#,192,RZN142,144,147,149,154,169..(SCB,THXTR,XTR)..(CBR,DEFI,DSL)..(ARL,GCC,GEN,TH)..CBU |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77380-26010 |
LN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN |
1 | ||
| 77380-26010 |
LN145..LHD..IV3;LN167..THDCB..SR;LN167..THSCB..CBU;KDN150,151,KZN190,RZN194..SR;LN147,152..(DCB,XTR)..ARL..CBU;LN145,RZN148,174..(ARL,GEN,SA)..CBU;LN167,RZN148..(DCB,SCB)..(ARL,CO,SA);RZN149..(DCB,SCB,THDCB)..(ARL,CO,GCC);KDN165,190,LN147..(SCB,XTR)..(IV1,IV3);KDN16#,190,LN140,141,192,RZN142,144..SCB,SRWGN;KDN165,190,LN150,17#,RZN154,VZN172..(DCB,XTR)..DLX;KZN165,LN146,166,191,RZN147,16#,193,VZN167..DCB,SCB,THDCB,THSCB |
1 | ||
| 77380-26010 |
LN145..LHD..IV3;LN167..THDCB..SR;LN167..THSCB..CBU;KDN150,151,KZN190,RZN194..SR;LN147,152..(DCB,XTR)..ARL..CBU;LN145,RZN148,174..(ARL,GEN,SA)..CBU;LN167,RZN148..(DCB,SCB)..(ARL,CO,SA);RZN149..(DCB,SCB,THDCB)..(ARL,CO,GCC);KDN165,190,LN147..(SCB,XTR)..(IV1,IV3);KDN16#,190,LN140,141,192,RZN142,144..SCB,SRWGN;KDN165,190,LN150,17#,RZN154,VZN172..(DCB,XTR)..DLX;KZN165,LN146,166,191,RZN147,16#,193,VZN167..DCB,SCB,THDCB,THSCB |
1 | ||
| Common parts | ||||
| 90080-54035 | ||||
| 90105-12116 | ||||
| 90119-06595 | ||||
| 90119-08667 | ||||
| 90149-50057 | ||||
| 90159-50219 | ||||
| 90159-60032 | ||||
| 90167-T0003 | ||||
| 90201-06547 | ||||
| 90269-04059 | ||||
| 90430-12245 | ||||
| 90460-26001 | ||||
| 90460-46003 | ||||
| 90464-00042 | ||||
| 90464-00786 | ||||
| 90467-11061 | ||||
| 90541-06058 | ||||
| 90541-09024 | ||||
| 91611-60618 | ||||
| 91621-J0614 | ||||
| 93319-A4010 | ||||
| 93560-15014 | ||||
| 94130-60600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
