4708 - BRAKE TUBE & CLAMP

RZN147R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006

Engine 1RZ

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

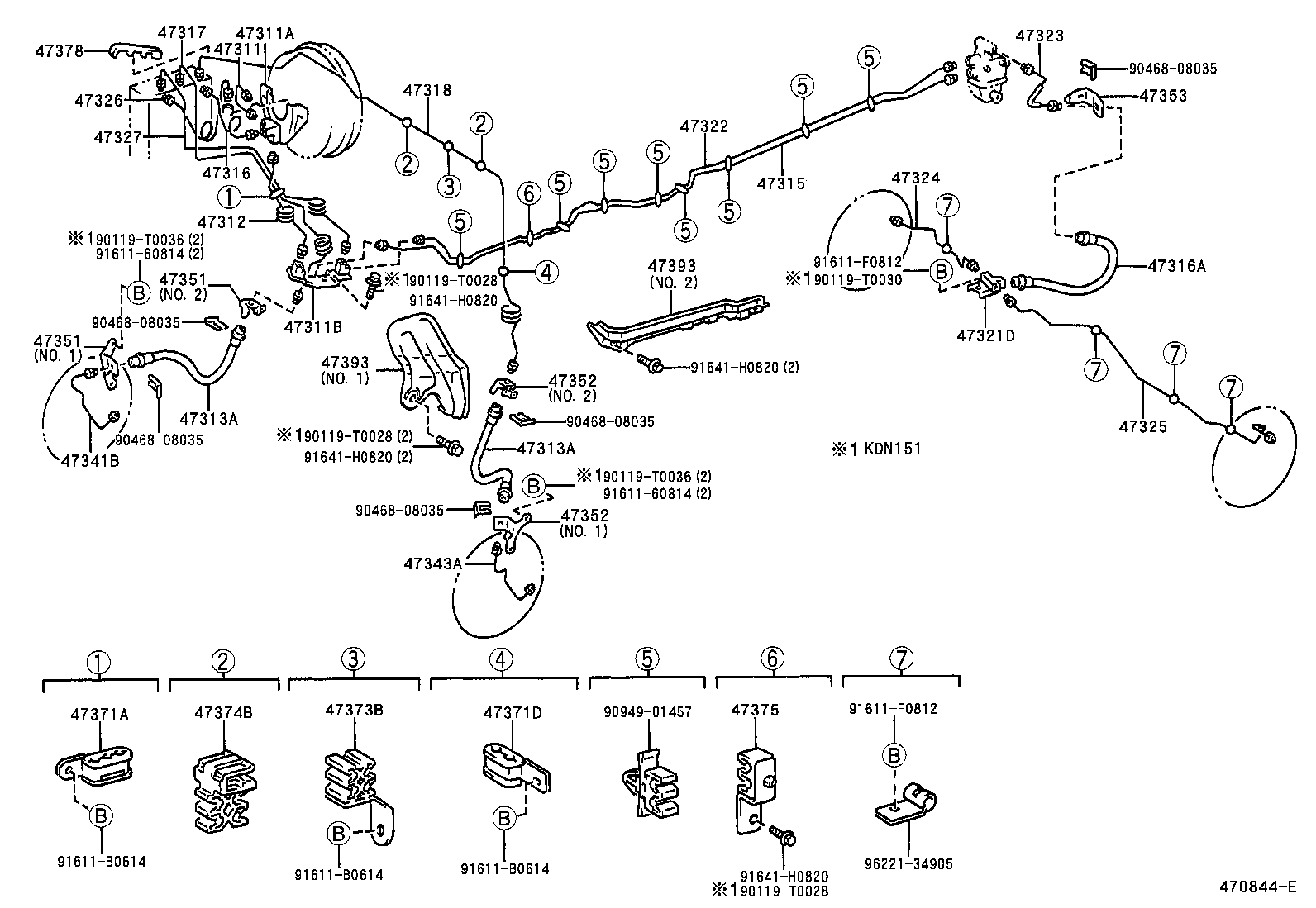

ILLUST NO. 1 OF 3(9708- )RZN147..RHD..GEN ; (9708- )KDN145,15#,LN145,15#..RHD..GEN,SA,TH

Click highlighted areas on diagram

Part #	Description	Period	Qty
47190B - VALVE ASSY, BLEND PROPORTIONING
47150-35050	LN145..LHD..IV3;LN145,RZN142,147,148..GEN..CBU	08/2001 - 06/2005	1
47150-35050	RZN148..DLX..GEN;LN145,RZN142,147,149..GEN	08/1997 - 12/2999	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-35450	RZN169..SA;RZN147..RHD..SCB..CBR;KZN190,LN140,145,16#,192,RZN142,194..RHD..(GEN,SA)	09/2001 - 03/2002	1
47311-35450	RZN169..ARL,SA;RZN169..RHD..CBR;LN167,RZN147..RHD..(ARL,GEN,SA);KZN165,LN166,172,RZN149,154,174..RHD..(ARL,GEN,TH);KZN190,LN140,145,147,152,192,RZN142,194,YN140..RHD..(DCB,SADCB,SCB,XTR)..(ARL,GEN,SA)	08/1999 - 09/2001	1
47311-35450	LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN	03/2002 - 12/2999	1
47311-35450	LN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA)	08/1997 - 08/1999	1
47311-35450	KZN190..SR;LN147..SCB..IV3;KZN165..THDCB..SR;LN147,167..DCB..DLX;RZN149..ATM..DLX..ARL;LN167..SCB,THDCB,THSCB;KZN165..(DCB,SCB)..ARL;RZN149..THDCB..MTM..DLX;RZN169..RHD..(SCB,THSCB);LN145..RHD..(GEN,SA)..CBU;RZN169..RHD..(DCB,THDCB)..DLX;RZN149..(DCB,SCB,THSCB)..MTM..ARL;KDN165,190,LN140,166,172,192,RZN142,147,154,174,194,VZN167,172..RHD..(ARL,GEN,MA,SA)	08/2001 - 06/2005	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90904-13043	RZN169..SA;RZN147..RHD..SCB..CBR;KZN190,LN140,145,16#,192,RZN142,194..RHD..(GEN,SA)	09/2001 - 03/2002	1
90904-13043	LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN	03/2002 - 12/2999	1
90904-13043	RZN169..ARL,SA;RZN169..RHD..CBR;KZN190,LN140,145,167,192,RZN142,147,194,YN140..RHD;KZN165,LN147,15#,166,172,RZN149,154,174..RHD..(ARL,GEN,TH)	08/1997 - 09/2001	1
90904-13043	LN147..IV3;LN167..ARL,SA;RZN169..SCB..SA;KZN190,RZN194..SR;LN145,152..RHD..(ARL,GEN,SA)..CBU;LN145,147..RHD..(DCB,THDCB)..(ARL,TH);LN140,150,155,192,RZN142,147..RHD..DLX;KZN165,LN166,172,RZN149,154,169,174,VZN167,172..RHD..(ARL,GEN,MA)	08/2001 - 06/2005	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90904-12054	LN150..SR;LN145..DCB..GEN;LN145..LHD..DLX..TH;LN145..SCB..(GEN,TH);RZN148,149..DLX..EFI..GEN;LN141,146,152,155,157,RZN142,144,147,149,154..(CBR,DEFI,DSL)..(GCC,GEN,TH)	08/1997 - 12/2999	1
90904-12054	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D370	LN150,152..SR;RZN147..RHD..GEN;LN145..RHD..DCB..GEN;LN145,155,157..RHD..SCB..(GEN,TH)	08/1997 - 12/2999	1
47312-3D370	LN145,RZN147..RHD..GEN..CBU	08/2001 - 06/2005	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-3D081	LN150..SR;LN147,152..DSL;LN152..DEFI..TH;LN145..RHD..DCB..GEN;LN152..XTR..DEFI..IV3;LN140,145,155,157,RZN142,154,YN140..RHD..(SCB,XTR);LN147,RZN147,149..RHD..(DCB,SCB)..DLX..(CBR,DEFI,EFI)	08/1997 - 12/2999	1
47313-3D081	LN145,RZN147..RHD..GEN..CBU	08/2001 - 06/2005	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02952	LN14#,15#,RZN14#,154..DCB,SCB,XTR (J)	03/2001 - 08/2001	2
90947-02952	LN14#,15#,RZN14#,154,YN140	08/1997 - 03/2001	2
90947-02952	RZN148..DLX..CBU;LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN	09/2001 - 03/2002	2
90947-02952	RZN148..DLX..CBU;LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN	08/2001 - 09/2001	2
90947-02952	LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN;RZN148..DLX..GEN..CBU	03/2002 - 12/2999	2
90947-02952	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02952	LN14#,15#,RZN14#,154..DCB,SCB,XTR (J)	03/2001 - 08/2001	2
90947-02952	LN14#,15#,RZN14#,154,YN140	08/1997 - 03/2001	2
90947-02952	RZN148..DLX..CBU;LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN	09/2001 - 03/2002	2
90947-02952	RZN148..DLX..CBU;LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN	08/2001 - 09/2001	2
90947-02952	LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN;RZN148..DLX..GEN..CBU	03/2002 - 12/2999	2
90947-02952	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02956	RZN154..CBR;RZN148..DLX..GEN;LN145,RZN142,147,149..GEN	08/1997 - 12/2999	1
90947-02956	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47321 - TUBE, REAR BRAKE, NO.1
47321-35800	LN150..SR;LN147,152..DSL;LN152..DEFI..TH;LN145..RHD..DCB..GEN;LN152..XTR..DEFI..IV3;LN140,145,155,157,RZN142,154,YN140..RHD..(SCB,XTR);LN147,RZN147,149..RHD..(DCB,SCB)..DLX..(CBR,DEFI,EFI)	08/1997 - 12/2999	1
47321-35800	LN145,RZN147..RHD..GEN..CBU	08/2001 - 06/2005	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10198	LN14#,15#,RZN14#,154,YN140	08/1997 - 08/2000	1
90413-10198	RZN147..RHD;RZN147..GCC;LN14#,15#,RZN142,144,148,149,154,YN140	08/2000 - 08/2001	1
90413-10198	LN147..IV3;LN145..LHD..DLX..TH;RZN148..DLX..GEN..CBU;LN147..(DCB,THDCB)..DLX;RZN147..RHD..(SCB,THSCB);LN145..RHD..(GEN,SA)..CBU;LN140,155,RZN142,149,154..DLX..(ARL,SA,TH)	08/2001 - 12/2999	1
90413-10198	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47322 - TUBE, REAR BRAKE, NO.2
47322-35810	RZN148..DLX..GEN;LN145,RZN147,149..GEN	08/1997 - 12/2999	1
47322-35810	LN145..LHD..IV3;LN145,RZN147,148..GEN..CBU	08/2001 - 06/2005	1
47323 - TUBE, REAR BRAKE, NO.3
47323-35200	RZN154..CBR;RZN148..DLX..GEN;LN145,RZN142,147,149..GEN	08/1997 - 12/2999	1
47323-35200	RZN148,149..CO;LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 11/2005	1
47324 - TUBE, REAR BRAKE, NO.4
47324-35270	RZN148..DLX..CBU;RZN147..RHD..SCB..CBR;LN140,145,RZN142..RHD..(GEN,SA)..CBU	09/2001 - 10/2001	1
47324-35260	LN14#,RZN14#,154	08/1997 - 05/1998	1
47324-35270	LN145,147,152,RZN142,147,148,149,154..ARL,GEN	05/1998 - 10/2000	1
47324-35270	LN147..IV3;LN147..DCB,THDCB;RZN148..DLX..CBU;RZN147..RHD..(SCB,THSCB);LN140,RZN142,149,154..RHD;LN145..RHD..(GEN,SA)..CBU	08/2001 - 09/2001	1
47324-35270	RZN147..RHD..SCB..CBR;RZN148..DLX..GEN..CBU;LN140,145,RZN142..RHD..(GEN,SA)..CBU	10/2001 - 12/2999	1
47324-35270	LN140,145,147,152,RZN142,147,148,149,154..ARL,GEN,SA	10/2000 - 08/2001	1
47324-35270	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47325 - TUBE, REAR BRAKE, NO.5
47325-35320	RZN154..CBR;RZN154..XTR..ARL;LN140,145,147,152,RZN142,147,148,149..DLX..(ARL,GEN,SA)	10/2000 - 09/2001	1
47325-35320	LN145,147,152,RZN142,147,148,149,154..ARL,GEN	05/1998 - 10/2000	1
47325-35320	RZN148,149..DLX..GEN;RZN147..RHD..SCB..CBR;LN140,145,RZN142..RHD..(GEN,SA)	09/2001 - 12/2999	1
47325-35300	LN145,147,RZN142,147,148,149,154..ARL,GEN	08/1997 - 05/1998	1
47325-35320	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-35150	LN14#,15#,RZN14#,154,YN140	08/1997 - 09/2000	1
47341-35150	LN152..XTR..IV3;RZN154..XTR..ARL;RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);LN147,RZN147,148..(DCB,SCB)..DLX..(ARL,GCC,GEN,SA);LN140,141,145,146,RZN142,144,149,154,YN140..(CBR,DSL)..(GCC,GEN,SA)	09/2000 - 12/2999	1
47341-35150	LN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU	08/2001 - 12/2999	1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-35150	LN152..XTR..IV3;RZN154..XTR..ARL;RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);LN147,RZN147,148..(DCB,SCB)..DLX..(ARL,GCC,GEN,SA);LN140,141,145,146,RZN142,144,149,154,YN140..(CBR,DSL)..(GCC,GEN,SA)	09/2000 - 12/2999	1
47343-35150	LN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU	08/2001 - 12/2999	1
47343-35150	LN14#,15#,RZN14#,154,YN140	08/1997 - 09/2000	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35280	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.1	08/1997 - 03/2006	1
47351-35290	LN150..SR;LN145..DCB..IV3;LN145..LHD..IV3;LN152..DEFI..TH;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN154..RHD..(DSL,EFI);LN145,RZN144,149..(CBR,DSL)..(GCC,GEN,SA)..CBU;LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.2	08/1997 - 03/2006	1
47351-35290	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,151,LN140,141,146,155,RZN142,144,147,154 NO.2	08/2001 - 11/2005	1
47351-35280	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154 NO.1	08/2001 - 11/2005	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35280	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.1	08/1997 - 03/2006	1
47351-35290	LN150..SR;LN145..DCB..IV3;LN145..LHD..IV3;LN152..DEFI..TH;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN154..RHD..(DSL,EFI);LN145,RZN144,149..(CBR,DSL)..(GCC,GEN,SA)..CBU;LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.2	08/1997 - 03/2006	1
47351-35290	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,151,LN140,141,146,155,RZN142,144,147,154 NO.2	08/2001 - 11/2005	1
47351-35280	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154 NO.1	08/2001 - 11/2005	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35380	LN150..SR;LN145..DCB..IV3;LN145..LHD..IV3;LN152..DEFI..TH;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN154..RHD..(DSL,EFI);LN145,RZN144,149..(CBR,DSL)..(GCC,GEN,SA)..CBU;LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.2	08/1997 - 03/2006	1
47352-35320	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.1	08/1997 - 03/2006	1
47352-35380	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,151,LN140,141,146,155,RZN142,144,147,154 NO.2	08/2001 - 11/2005	1
47352-35320	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154 NO.1	08/2001 - 11/2005	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35380	LN150..SR;LN145..DCB..IV3;LN145..LHD..IV3;LN152..DEFI..TH;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN154..RHD..(DSL,EFI);LN145,RZN144,149..(CBR,DSL)..(GCC,GEN,SA)..CBU;LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.2	08/1997 - 03/2006	1
47352-35320	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.1	08/1997 - 03/2006	1
47352-35380	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,151,LN140,141,146,155,RZN142,144,147,154 NO.2	08/2001 - 11/2005	1
47352-35320	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154 NO.1	08/2001 - 11/2005	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47352-35330	RZN154..CBR;RZN148..DLX..GEN;LN145,RZN142,147,149..GEN	08/1997 - 12/2999	1
47352-35330	RZN148,149..CO;LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 11/2005	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35230	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
47371-35230	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
47371D - CLAMP, BRAKE TUBE, NO.8
47372-35080	LN167..DSL;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..RHD..DCB..GEN;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN192,RZN169..RHD..(CBR,DEFI,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..RHD..(SCB,THXTR,XTR)..DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN140,147,155,157,166,172,RZN142,147,149,154,174,YN140..RHD..DLX..(ARL,GEN,SA,TH)	08/1997 - 12/2999	1
47372-35080	LN145,166,RZN147,169..RHD..GEN..CBU	08/2001 - 06/2005	1
47373B - CLAMP, BRAKE TUBE, NO.3
47373-35060	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
47373-35060	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
47374B - CLAMP, BRAKE TUBE, NO.4
47372-35150	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
47372-35150	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
47375 - CLAMP, BRAKE TUBE, NO.5
47372-35030	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47372-35030	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35180	LN152..IV3;RZN154..ARL;RZN144,149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN147,RZN142,147,148..DLX..(ARL,GCC,GEN,SA) NO.2	08/1997 - 12/2999	1
47393-35170	LN152..IV3;RZN154..ARL;RZN144,149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN147,RZN142,147,148..DLX..(ARL,GCC,GEN,SA) NO.1	08/1997 - 12/2999	1
47393-35180	RZN142,147,148,154..GEN..CBU NO.2	08/2001 - 06/2005	1
47393-35170	RZN142,147,148,154..GEN..CBU NO.1	08/2001 - 06/2005	1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35180	LN152..IV3;RZN154..ARL;RZN144,149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN147,RZN142,147,148..DLX..(ARL,GCC,GEN,SA) NO.2	08/1997 - 12/2999	1
47393-35170	LN152..IV3;RZN154..ARL;RZN144,149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN147,RZN142,147,148..DLX..(ARL,GCC,GEN,SA) NO.1	08/1997 - 12/2999	1
47393-35180	RZN142,147,148,154..GEN..CBU NO.2	08/2001 - 06/2005	1
47393-35170	RZN142,147,148,154..GEN..CBU NO.1	08/2001 - 06/2005	1
47931 - BRACKET, LOAD SENSING VALVE
47931-35120	RZN148,168..DLX..GEN;LN166,RZN154,169..DLX..(CBR,DSL)..GEN;LN145,171,191,RZN142,147,149,193..GEN	08/1997 - 12/2999	1
47931-35120	RZN148,149..CO;LN145..LHD..IV3;LN145,RZN148..GEN..CBU;LN166,171,191,RZN142,147,154,16#,193..CO,GEN,MA	08/2001 - 11/2005	1
Common parts
90119-T0028
90119-T0030
90119-T0036
90468-08035
90949-01457
91511-B0845
91611-60814
91611-B0614
91611-F0812
91641-H0820
96221-34905

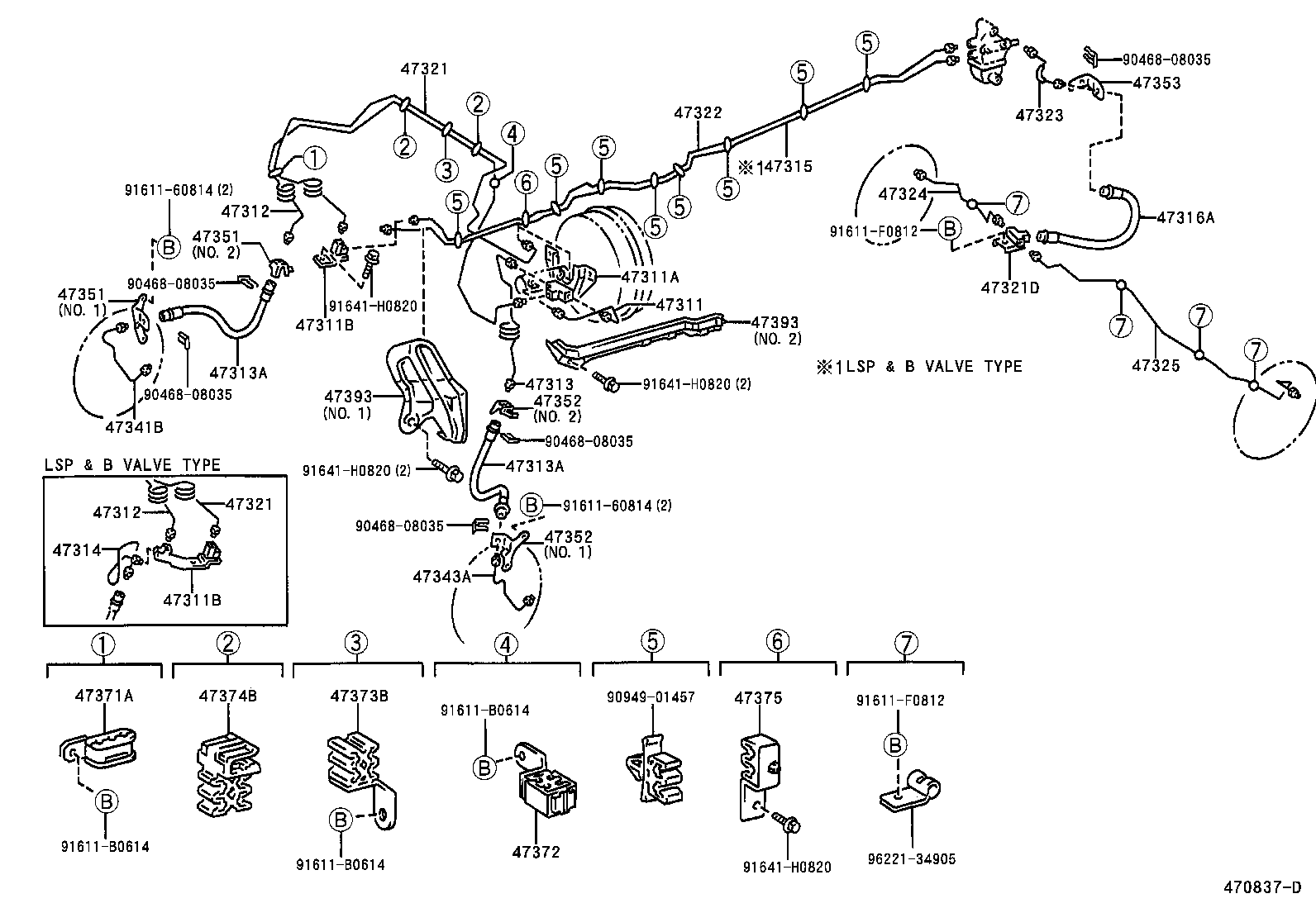

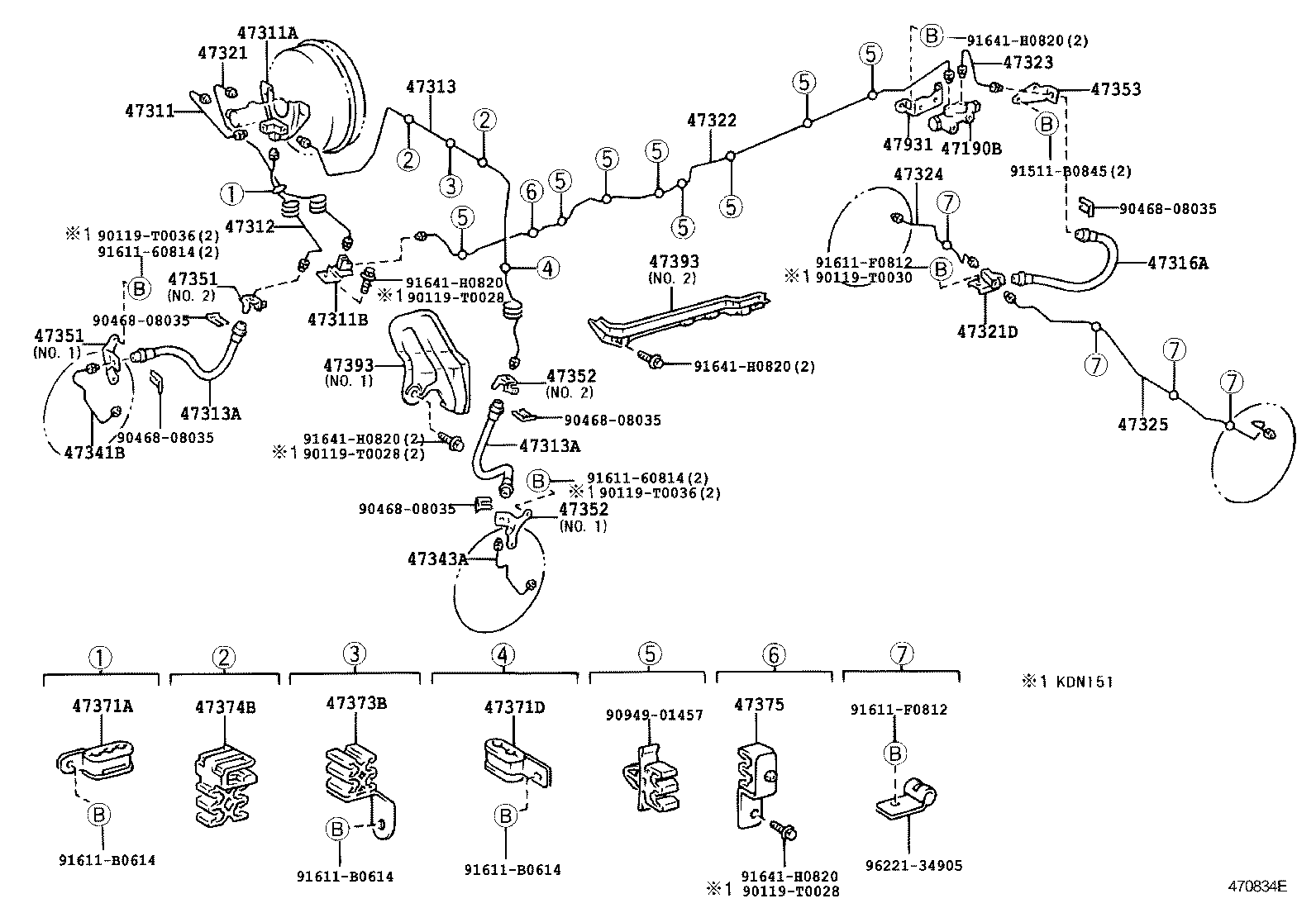

ILLUST NO. 1 OF 3(9708- )LN145..LHD..GEN ; (9708- )RZN148..GEN..CBU ; (9708- )LN141,146,RZN

Click highlighted areas on diagram

W(LSPV)

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-35450	RZN169..SA;RZN147..RHD..SCB..CBR;KZN190,LN140,145,16#,192,RZN142,194..RHD..(GEN,SA)	09/2001 - 03/2002	1
47311-35450	RZN169..ARL,SA;RZN169..RHD..CBR;LN167,RZN147..RHD..(ARL,GEN,SA);KZN165,LN166,172,RZN149,154,174..RHD..(ARL,GEN,TH);KZN190,LN140,145,147,152,192,RZN142,194,YN140..RHD..(DCB,SADCB,SCB,XTR)..(ARL,GEN,SA)	08/1999 - 09/2001	1
47311-35450	LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN	03/2002 - 12/2999	1
47311-35450	LN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA)	08/1997 - 08/1999	1
47311-35450	KZN190..SR;LN147..SCB..IV3;KZN165..THDCB..SR;LN147,167..DCB..DLX;RZN149..ATM..DLX..ARL;LN167..SCB,THDCB,THSCB;KZN165..(DCB,SCB)..ARL;RZN149..THDCB..MTM..DLX;RZN169..RHD..(SCB,THSCB);LN145..RHD..(GEN,SA)..CBU;RZN169..RHD..(DCB,THDCB)..DLX;RZN149..(DCB,SCB,THSCB)..MTM..ARL;KDN165,190,LN140,166,172,192,RZN142,147,154,174,194,VZN167,172..RHD..(ARL,GEN,MA,SA)	08/2001 - 06/2005	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90904-13043	RZN169..SA;RZN147..RHD..SCB..CBR;KZN190,LN140,145,16#,192,RZN142,194..RHD..(GEN,SA)	09/2001 - 03/2002	1
90904-13043	LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN	03/2002 - 12/2999	1
90904-13043	RZN169..ARL,SA;RZN169..RHD..CBR;KZN190,LN140,145,167,192,RZN142,147,194,YN140..RHD;KZN165,LN147,15#,166,172,RZN149,154,174..RHD..(ARL,GEN,TH)	08/1997 - 09/2001	1
90904-13043	LN147..IV3;LN167..ARL,SA;RZN169..SCB..SA;KZN190,RZN194..SR;LN145,152..RHD..(ARL,GEN,SA)..CBU;LN145,147..RHD..(DCB,THDCB)..(ARL,TH);LN140,150,155,192,RZN142,147..RHD..DLX;KZN165,LN166,172,RZN149,154,169,174,VZN167,172..RHD..(ARL,GEN,MA)	08/2001 - 06/2005	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90904-12054	LN150..SR;LN145..DCB..GEN;LN145..LHD..DLX..TH;LN145..SCB..(GEN,TH);RZN148,149..DLX..EFI..GEN;LN141,146,152,155,157,RZN142,144,147,149,154..(CBR,DEFI,DSL)..(GCC,GEN,TH)	08/1997 - 12/2999	1
90904-12054	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90904-12054	LN150..SR;LN145..DCB..GEN;LN145..LHD..DLX..TH;LN145..SCB..(GEN,TH);RZN148,149..DLX..EFI..GEN;LN141,146,152,155,157,RZN142,144,147,149,154..(CBR,DEFI,DSL)..(GCC,GEN,TH)	08/1997 - 12/2999	1
90904-12054	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D370	LN150,152..SR;RZN147..RHD..GEN;LN145..RHD..DCB..GEN;LN145,155,157..RHD..SCB..(GEN,TH)	08/1997 - 12/2999	1
47312-3D370	LN145,RZN147..RHD..GEN..CBU	08/2001 - 06/2005	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D370	LN150,152..SR;RZN147..RHD..GEN;LN145..RHD..DCB..GEN;LN145,155,157..RHD..SCB..(GEN,TH)	08/1997 - 12/2999	1
47312-3D370	LN145,RZN147..RHD..GEN..CBU	08/2001 - 06/2005	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-3D081	LN150..SR;LN147,152..DSL;LN152..DEFI..TH;LN145..RHD..DCB..GEN;LN152..XTR..DEFI..IV3;LN140,145,155,157,RZN142,154,YN140..RHD..(SCB,XTR);LN147,RZN147,149..RHD..(DCB,SCB)..DLX..(CBR,DEFI,EFI)	08/1997 - 12/2999	1
47313-3D081	LN145,RZN147..RHD..GEN..CBU	08/2001 - 06/2005	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02952	LN14#,15#,RZN14#,154..DCB,SCB,XTR (J)	03/2001 - 08/2001	2
90947-02952	LN14#,15#,RZN14#,154,YN140	08/1997 - 03/2001	2
90947-02952	RZN148..DLX..CBU;LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN	09/2001 - 03/2002	2
90947-02952	RZN148..DLX..CBU;LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN	08/2001 - 09/2001	2
90947-02952	LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN;RZN148..DLX..GEN..CBU	03/2002 - 12/2999	2
90947-02952	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02952	LN14#,15#,RZN14#,154..DCB,SCB,XTR (J)	03/2001 - 08/2001	2
90947-02952	LN14#,15#,RZN14#,154,YN140	08/1997 - 03/2001	2
90947-02952	RZN148..DLX..CBU;LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN	09/2001 - 03/2002	2
90947-02952	RZN148..DLX..CBU;LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN	08/2001 - 09/2001	2
90947-02952	LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN;RZN148..DLX..GEN..CBU	03/2002 - 12/2999	2
90947-02952	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02956	RZN154..CBR;RZN148..DLX..GEN;LN145,RZN142,147,149..GEN	08/1997 - 12/2999	1
90947-02956	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47321 - TUBE, REAR BRAKE, NO.1
47321-35800	LN150..SR;LN147,152..DSL;LN152..DEFI..TH;LN145..RHD..DCB..GEN;LN152..XTR..DEFI..IV3;LN140,145,155,157,RZN142,154,YN140..RHD..(SCB,XTR);LN147,RZN147,149..RHD..(DCB,SCB)..DLX..(CBR,DEFI,EFI)	08/1997 - 12/2999	1
47321-35800	LN145,RZN147..RHD..GEN..CBU	08/2001 - 06/2005	1
47321 - TUBE, REAR BRAKE, NO.1
47321-35800	LN150..SR;LN147,152..DSL;LN152..DEFI..TH;LN145..RHD..DCB..GEN;LN152..XTR..DEFI..IV3;LN140,145,155,157,RZN142,154,YN140..RHD..(SCB,XTR);LN147,RZN147,149..RHD..(DCB,SCB)..DLX..(CBR,DEFI,EFI)	08/1997 - 12/2999	1
47321-35800	LN145,RZN147..RHD..GEN..CBU	08/2001 - 06/2005	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10198	LN14#,15#,RZN14#,154,YN140	08/1997 - 08/2000	1
90413-10198	RZN147..RHD;RZN147..GCC;LN14#,15#,RZN142,144,148,149,154,YN140	08/2000 - 08/2001	1
90413-10198	LN147..IV3;LN145..LHD..DLX..TH;RZN148..DLX..GEN..CBU;LN147..(DCB,THDCB)..DLX;RZN147..RHD..(SCB,THSCB);LN145..RHD..(GEN,SA)..CBU;LN140,155,RZN142,149,154..DLX..(ARL,SA,TH)	08/2001 - 12/2999	1
90413-10198	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47322 - TUBE, REAR BRAKE, NO.2
47322-35810	RZN148..DLX..GEN;LN145,RZN147,149..GEN	08/1997 - 12/2999	1
47322-35810	LN145..LHD..IV3;LN145,RZN147,148..GEN..CBU	08/2001 - 06/2005	1
47323 - TUBE, REAR BRAKE, NO.3
47323-35200	RZN154..CBR;RZN148..DLX..GEN;LN145,RZN142,147,149..GEN	08/1997 - 12/2999	1
47323-35200	RZN148,149..CO;LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 11/2005	1
47324 - TUBE, REAR BRAKE, NO.4
47324-35270	RZN148..DLX..CBU;RZN147..RHD..SCB..CBR;LN140,145,RZN142..RHD..(GEN,SA)..CBU	09/2001 - 10/2001	1
47324-35260	LN14#,RZN14#,154	08/1997 - 05/1998	1
47324-35270	LN145,147,152,RZN142,147,148,149,154..ARL,GEN	05/1998 - 10/2000	1
47324-35270	LN147..IV3;LN147..DCB,THDCB;RZN148..DLX..CBU;RZN147..RHD..(SCB,THSCB);LN140,RZN142,149,154..RHD;LN145..RHD..(GEN,SA)..CBU	08/2001 - 09/2001	1
47324-35270	RZN147..RHD..SCB..CBR;RZN148..DLX..GEN..CBU;LN140,145,RZN142..RHD..(GEN,SA)..CBU	10/2001 - 12/2999	1
47324-35270	LN140,145,147,152,RZN142,147,148,149,154..ARL,GEN,SA	10/2000 - 08/2001	1
47324-35270	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47325 - TUBE, REAR BRAKE, NO.5
47325-35320	RZN154..CBR;RZN154..XTR..ARL;LN140,145,147,152,RZN142,147,148,149..DLX..(ARL,GEN,SA)	10/2000 - 09/2001	1
47325-35320	LN145,147,152,RZN142,147,148,149,154..ARL,GEN	05/1998 - 10/2000	1
47325-35320	RZN148,149..DLX..GEN;RZN147..RHD..SCB..CBR;LN140,145,RZN142..RHD..(GEN,SA)	09/2001 - 12/2999	1
47325-35300	LN145,147,RZN142,147,148,149,154..ARL,GEN	08/1997 - 05/1998	1
47325-35320	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-35150	LN14#,15#,RZN14#,154,YN140	08/1997 - 09/2000	1
47341-35150	LN152..XTR..IV3;RZN154..XTR..ARL;RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);LN147,RZN147,148..(DCB,SCB)..DLX..(ARL,GCC,GEN,SA);LN140,141,145,146,RZN142,144,149,154,YN140..(CBR,DSL)..(GCC,GEN,SA)	09/2000 - 12/2999	1
47341-35150	LN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU	08/2001 - 12/2999	1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-35150	LN152..XTR..IV3;RZN154..XTR..ARL;RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);LN147,RZN147,148..(DCB,SCB)..DLX..(ARL,GCC,GEN,SA);LN140,141,145,146,RZN142,144,149,154,YN140..(CBR,DSL)..(GCC,GEN,SA)	09/2000 - 12/2999	1
47343-35150	LN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU	08/2001 - 12/2999	1
47343-35150	LN14#,15#,RZN14#,154,YN140	08/1997 - 09/2000	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35280	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.1	08/1997 - 03/2006	1
47351-35290	LN150..SR;LN145..DCB..IV3;LN145..LHD..IV3;LN152..DEFI..TH;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN154..RHD..(DSL,EFI);LN145,RZN144,149..(CBR,DSL)..(GCC,GEN,SA)..CBU;LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.2	08/1997 - 03/2006	1
47351-35290	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,151,LN140,141,146,155,RZN142,144,147,154 NO.2	08/2001 - 11/2005	1
47351-35280	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154 NO.1	08/2001 - 11/2005	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35280	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.1	08/1997 - 03/2006	1
47351-35290	LN150..SR;LN145..DCB..IV3;LN145..LHD..IV3;LN152..DEFI..TH;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN154..RHD..(DSL,EFI);LN145,RZN144,149..(CBR,DSL)..(GCC,GEN,SA)..CBU;LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.2	08/1997 - 03/2006	1
47351-35290	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,151,LN140,141,146,155,RZN142,144,147,154 NO.2	08/2001 - 11/2005	1
47351-35280	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154 NO.1	08/2001 - 11/2005	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35380	LN150..SR;LN145..DCB..IV3;LN145..LHD..IV3;LN152..DEFI..TH;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN154..RHD..(DSL,EFI);LN145,RZN144,149..(CBR,DSL)..(GCC,GEN,SA)..CBU;LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.2	08/1997 - 03/2006	1
47352-35320	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.1	08/1997 - 03/2006	1
47352-35380	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,151,LN140,141,146,155,RZN142,144,147,154 NO.2	08/2001 - 11/2005	1
47352-35320	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154 NO.1	08/2001 - 11/2005	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35380	LN150..SR;LN145..DCB..IV3;LN145..LHD..IV3;LN152..DEFI..TH;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN154..RHD..(DSL,EFI);LN145,RZN144,149..(CBR,DSL)..(GCC,GEN,SA)..CBU;LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.2	08/1997 - 03/2006	1
47352-35320	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.1	08/1997 - 03/2006	1
47352-35380	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,151,LN140,141,146,155,RZN142,144,147,154 NO.2	08/2001 - 11/2005	1
47352-35320	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154 NO.1	08/2001 - 11/2005	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47352-35330	RZN154..CBR;RZN148..DLX..GEN;LN145,RZN142,147,149..GEN	08/1997 - 12/2999	1
47352-35330	RZN148,149..CO;LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 11/2005	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35230	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
47371-35230	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
47373B - CLAMP, BRAKE TUBE, NO.3
47373-35060	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
47373-35060	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
47374B - CLAMP, BRAKE TUBE, NO.4
47372-35150	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
47372-35150	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
47375 - CLAMP, BRAKE TUBE, NO.5
47372-35030	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47372-35030	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35180	LN152..IV3;RZN154..ARL;RZN144,149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN147,RZN142,147,148..DLX..(ARL,GCC,GEN,SA) NO.2	08/1997 - 12/2999	1
47393-35170	LN152..IV3;RZN154..ARL;RZN144,149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN147,RZN142,147,148..DLX..(ARL,GCC,GEN,SA) NO.1	08/1997 - 12/2999	1
47393-35180	RZN142,147,148,154..GEN..CBU NO.2	08/2001 - 06/2005	1
47393-35170	RZN142,147,148,154..GEN..CBU NO.1	08/2001 - 06/2005	1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35180	LN152..IV3;RZN154..ARL;RZN144,149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN147,RZN142,147,148..DLX..(ARL,GCC,GEN,SA) NO.2	08/1997 - 12/2999	1
47393-35170	LN152..IV3;RZN154..ARL;RZN144,149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN147,RZN142,147,148..DLX..(ARL,GCC,GEN,SA) NO.1	08/1997 - 12/2999	1
47393-35180	RZN142,147,148,154..GEN..CBU NO.2	08/2001 - 06/2005	1
47393-35170	RZN142,147,148,154..GEN..CBU NO.1	08/2001 - 06/2005	1
Common parts
90468-08035
90949-01457
91611-60814
91611-B0614
91611-F0812
91641-H0820
96221-34905

ILLUST NO. 1 OF 3(9708- )LN157..DSL ; (9708- )KDN145,15#,LN145,147,150,152,155,RZN147,149,154.

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-35450	RZN169..SA;RZN147..RHD..SCB..CBR;KZN190,LN140,145,16#,192,RZN142,194..RHD..(GEN,SA)	09/2001 - 03/2002	1
47311-35450	RZN169..ARL,SA;RZN169..RHD..CBR;LN167,RZN147..RHD..(ARL,GEN,SA);KZN165,LN166,172,RZN149,154,174..RHD..(ARL,GEN,TH);KZN190,LN140,145,147,152,192,RZN142,194,YN140..RHD..(DCB,SADCB,SCB,XTR)..(ARL,GEN,SA)	08/1999 - 09/2001	1
47311-35450	LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN	03/2002 - 12/2999	1
47311-35450	LN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA)	08/1997 - 08/1999	1
47311-35450	KZN190..SR;LN147..SCB..IV3;KZN165..THDCB..SR;LN147,167..DCB..DLX;RZN149..ATM..DLX..ARL;LN167..SCB,THDCB,THSCB;KZN165..(DCB,SCB)..ARL;RZN149..THDCB..MTM..DLX;RZN169..RHD..(SCB,THSCB);LN145..RHD..(GEN,SA)..CBU;RZN169..RHD..(DCB,THDCB)..DLX;RZN149..(DCB,SCB,THSCB)..MTM..ARL;KDN165,190,LN140,166,172,192,RZN142,147,154,174,194,VZN167,172..RHD..(ARL,GEN,MA,SA)	08/2001 - 06/2005	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90904-13043	RZN169..SA;RZN147..RHD..SCB..CBR;KZN190,LN140,145,16#,192,RZN142,194..RHD..(GEN,SA)	09/2001 - 03/2002	1
90904-13043	LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN	03/2002 - 12/2999	1
90904-13043	RZN169..ARL,SA;RZN169..RHD..CBR;KZN190,LN140,145,167,192,RZN142,147,194,YN140..RHD;KZN165,LN147,15#,166,172,RZN149,154,174..RHD..(ARL,GEN,TH)	08/1997 - 09/2001	1
90904-13043	LN147..IV3;LN167..ARL,SA;RZN169..SCB..SA;KZN190,RZN194..SR;LN145,152..RHD..(ARL,GEN,SA)..CBU;LN145,147..RHD..(DCB,THDCB)..(ARL,TH);LN140,150,155,192,RZN142,147..RHD..DLX;KZN165,LN166,172,RZN149,154,169,174,VZN167,172..RHD..(ARL,GEN,MA)	08/2001 - 06/2005	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90904-12054	LN150..SR;LN145..DCB..GEN;LN145..LHD..DLX..TH;LN145..SCB..(GEN,TH);RZN148,149..DLX..EFI..GEN;LN141,146,152,155,157,RZN142,144,147,149,154..(CBR,DEFI,DSL)..(GCC,GEN,TH)	08/1997 - 12/2999	1
90904-12054	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D370	LN150,152..SR;RZN147..RHD..GEN;LN145..RHD..DCB..GEN;LN145,155,157..RHD..SCB..(GEN,TH)	08/1997 - 12/2999	1
47312-3D370	LN145,RZN147..RHD..GEN..CBU	08/2001 - 06/2005	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02952	LN14#,15#,RZN14#,154..DCB,SCB,XTR (J)	03/2001 - 08/2001	2
90947-02952	LN14#,15#,RZN14#,154,YN140	08/1997 - 03/2001	2
90947-02952	RZN148..DLX..CBU;LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN	09/2001 - 03/2002	2
90947-02952	RZN148..DLX..CBU;LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN	08/2001 - 09/2001	2
90947-02952	LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN;RZN148..DLX..GEN..CBU	03/2002 - 12/2999	2
90947-02952	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02952	LN14#,15#,RZN14#,154..DCB,SCB,XTR (J)	03/2001 - 08/2001	2
90947-02952	LN14#,15#,RZN14#,154,YN140	08/1997 - 03/2001	2
90947-02952	RZN148..DLX..CBU;LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN	09/2001 - 03/2002	2
90947-02952	RZN148..DLX..CBU;LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN	08/2001 - 09/2001	2
90947-02952	LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN;RZN148..DLX..GEN..CBU	03/2002 - 12/2999	2
90947-02952	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02956	RZN154..CBR;RZN148..DLX..GEN;LN145,RZN142,147,149..GEN	08/1997 - 12/2999	1
90947-02956	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10198	LN14#,15#,RZN14#,154,YN140	08/1997 - 08/2000	1
90413-10198	RZN147..RHD;RZN147..GCC;LN14#,15#,RZN142,144,148,149,154,YN140	08/2000 - 08/2001	1
90413-10198	LN147..IV3;LN145..LHD..DLX..TH;RZN148..DLX..GEN..CBU;LN147..(DCB,THDCB)..DLX;RZN147..RHD..(SCB,THSCB);LN145..RHD..(GEN,SA)..CBU;LN140,155,RZN142,149,154..DLX..(ARL,SA,TH)	08/2001 - 12/2999	1
90413-10198	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47322 - TUBE, REAR BRAKE, NO.2
47322-35810	RZN148..DLX..GEN;LN145,RZN147,149..GEN	08/1997 - 12/2999	1
47322-35810	LN145..LHD..IV3;LN145,RZN147,148..GEN..CBU	08/2001 - 06/2005	1
47323 - TUBE, REAR BRAKE, NO.3
47323-35200	RZN154..CBR;RZN148..DLX..GEN;LN145,RZN142,147,149..GEN	08/1997 - 12/2999	1
47323-35200	RZN148,149..CO;LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 11/2005	1
47324 - TUBE, REAR BRAKE, NO.4
47324-35270	RZN148..DLX..CBU;RZN147..RHD..SCB..CBR;LN140,145,RZN142..RHD..(GEN,SA)..CBU	09/2001 - 10/2001	1
47324-35260	LN14#,RZN14#,154	08/1997 - 05/1998	1
47324-35270	LN145,147,152,RZN142,147,148,149,154..ARL,GEN	05/1998 - 10/2000	1
47324-35270	LN147..IV3;LN147..DCB,THDCB;RZN148..DLX..CBU;RZN147..RHD..(SCB,THSCB);LN140,RZN142,149,154..RHD;LN145..RHD..(GEN,SA)..CBU	08/2001 - 09/2001	1
47324-35270	RZN147..RHD..SCB..CBR;RZN148..DLX..GEN..CBU;LN140,145,RZN142..RHD..(GEN,SA)..CBU	10/2001 - 12/2999	1
47324-35270	LN140,145,147,152,RZN142,147,148,149,154..ARL,GEN,SA	10/2000 - 08/2001	1
47324-35270	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47325 - TUBE, REAR BRAKE, NO.5
47325-35320	RZN154..CBR;RZN154..XTR..ARL;LN140,145,147,152,RZN142,147,148,149..DLX..(ARL,GEN,SA)	10/2000 - 09/2001	1
47325-35320	LN145,147,152,RZN142,147,148,149,154..ARL,GEN	05/1998 - 10/2000	1
47325-35320	RZN148,149..DLX..GEN;RZN147..RHD..SCB..CBR;LN140,145,RZN142..RHD..(GEN,SA)	09/2001 - 12/2999	1
47325-35300	LN145,147,RZN142,147,148,149,154..ARL,GEN	08/1997 - 05/1998	1
47325-35320	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-35150	LN14#,15#,RZN14#,154,YN140	08/1997 - 09/2000	1
47341-35150	LN152..XTR..IV3;RZN154..XTR..ARL;RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);LN147,RZN147,148..(DCB,SCB)..DLX..(ARL,GCC,GEN,SA);LN140,141,145,146,RZN142,144,149,154,YN140..(CBR,DSL)..(GCC,GEN,SA)	09/2000 - 12/2999	1
47341-35150	LN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU	08/2001 - 12/2999	1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-35150	LN152..XTR..IV3;RZN154..XTR..ARL;RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);LN147,RZN147,148..(DCB,SCB)..DLX..(ARL,GCC,GEN,SA);LN140,141,145,146,RZN142,144,149,154,YN140..(CBR,DSL)..(GCC,GEN,SA)	09/2000 - 12/2999	1
47343-35150	LN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU	08/2001 - 12/2999	1
47343-35150	LN14#,15#,RZN14#,154,YN140	08/1997 - 09/2000	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35280	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.1	08/1997 - 03/2006	1
47351-35290	LN150..SR;LN145..DCB..IV3;LN145..LHD..IV3;LN152..DEFI..TH;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN154..RHD..(DSL,EFI);LN145,RZN144,149..(CBR,DSL)..(GCC,GEN,SA)..CBU;LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.2	08/1997 - 03/2006	1
47351-35290	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,151,LN140,141,146,155,RZN142,144,147,154 NO.2	08/2001 - 11/2005	1
47351-35280	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154 NO.1	08/2001 - 11/2005	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35280	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.1	08/1997 - 03/2006	1
47351-35290	LN150..SR;LN145..DCB..IV3;LN145..LHD..IV3;LN152..DEFI..TH;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN154..RHD..(DSL,EFI);LN145,RZN144,149..(CBR,DSL)..(GCC,GEN,SA)..CBU;LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.2	08/1997 - 03/2006	1
47351-35290	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,151,LN140,141,146,155,RZN142,144,147,154 NO.2	08/2001 - 11/2005	1
47351-35280	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154 NO.1	08/2001 - 11/2005	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35380	LN150..SR;LN145..DCB..IV3;LN145..LHD..IV3;LN152..DEFI..TH;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN154..RHD..(DSL,EFI);LN145,RZN144,149..(CBR,DSL)..(GCC,GEN,SA)..CBU;LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.2	08/1997 - 03/2006	1
47352-35320	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.1	08/1997 - 03/2006	1
47352-35380	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,151,LN140,141,146,155,RZN142,144,147,154 NO.2	08/2001 - 11/2005	1
47352-35320	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154 NO.1	08/2001 - 11/2005	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35380	LN150..SR;LN145..DCB..IV3;LN145..LHD..IV3;LN152..DEFI..TH;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN154..RHD..(DSL,EFI);LN145,RZN144,149..(CBR,DSL)..(GCC,GEN,SA)..CBU;LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.2	08/1997 - 03/2006	1
47352-35320	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.1	08/1997 - 03/2006	1
47352-35380	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,151,LN140,141,146,155,RZN142,144,147,154 NO.2	08/2001 - 11/2005	1
47352-35320	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154 NO.1	08/2001 - 11/2005	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47352-35330	RZN154..CBR;RZN148..DLX..GEN;LN145,RZN142,147,149..GEN	08/1997 - 12/2999	1
47352-35330	RZN148,149..CO;LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 11/2005	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35230	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
47371-35230	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
47371D - CLAMP, BRAKE TUBE, NO.8
47372-35080	LN167..DSL;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..RHD..DCB..GEN;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN192,RZN169..RHD..(CBR,DEFI,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..RHD..(SCB,THXTR,XTR)..DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN140,147,155,157,166,172,RZN142,147,149,154,174,YN140..RHD..DLX..(ARL,GEN,SA,TH)	08/1997 - 12/2999	1
47372-35080	LN145,166,RZN147,169..RHD..GEN..CBU	08/2001 - 06/2005	1
47373B - CLAMP, BRAKE TUBE, NO.3
47373-35060	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
47373-35060	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
47374B - CLAMP, BRAKE TUBE, NO.4
47372-35150	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
47372-35150	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
47375 - CLAMP, BRAKE TUBE, NO.5
47372-35030	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47372-35030	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35180	LN152..IV3;RZN154..ARL;RZN144,149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN147,RZN142,147,148..DLX..(ARL,GCC,GEN,SA) NO.2	08/1997 - 12/2999	1
47393-35170	LN152..IV3;RZN154..ARL;RZN144,149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN147,RZN142,147,148..DLX..(ARL,GCC,GEN,SA) NO.1	08/1997 - 12/2999	1
47393-35180	RZN142,147,148,154..GEN..CBU NO.2	08/2001 - 06/2005	1
47393-35170	RZN142,147,148,154..GEN..CBU NO.1	08/2001 - 06/2005	1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35180	LN152..IV3;RZN154..ARL;RZN144,149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN147,RZN142,147,148..DLX..(ARL,GCC,GEN,SA) NO.2	08/1997 - 12/2999	1
47393-35170	LN152..IV3;RZN154..ARL;RZN144,149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN147,RZN142,147,148..DLX..(ARL,GCC,GEN,SA) NO.1	08/1997 - 12/2999	1
47393-35180	RZN142,147,148,154..GEN..CBU NO.2	08/2001 - 06/2005	1
47393-35170	RZN142,147,148,154..GEN..CBU NO.1	08/2001 - 06/2005	1
Common parts
90119-T0028
90119-T0030
90119-T0036
90468-08035
90949-01457
91611-60814
91611-B0614
91611-F0812
91641-H0820
96221-34905

ILLUST NO. 2 OF 3(9708- )KDN145,150,151,16#,190,KZN165,LN147,152,167,172,RZN147,149,154,174,VZN16

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty	Price
Common parts
90179-06074
91631-60814
Linked diagrams
8202

ILLUST NO. 1 OF 3(9708- )LN145,152..ARL,SA ; (9708- )KDN16#,190,KZN165,190,LN140,147,RZN142,14

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-35450	RZN169..SA;RZN147..RHD..SCB..CBR;KZN190,LN140,145,16#,192,RZN142,194..RHD..(GEN,SA)	09/2001 - 03/2002	1
47311-35450	RZN169..ARL,SA;RZN169..RHD..CBR;LN167,RZN147..RHD..(ARL,GEN,SA);KZN165,LN166,172,RZN149,154,174..RHD..(ARL,GEN,TH);KZN190,LN140,145,147,152,192,RZN142,194,YN140..RHD..(DCB,SADCB,SCB,XTR)..(ARL,GEN,SA)	08/1999 - 09/2001	1
47311-35450	LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN	03/2002 - 12/2999	1
47311-35450	LN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(ARL,GEN,SA)	08/1997 - 08/1999	1
47311-35450	KZN190..SR;LN147..SCB..IV3;KZN165..THDCB..SR;LN147,167..DCB..DLX;RZN149..ATM..DLX..ARL;LN167..SCB,THDCB,THSCB;KZN165..(DCB,SCB)..ARL;RZN149..THDCB..MTM..DLX;RZN169..RHD..(SCB,THSCB);LN145..RHD..(GEN,SA)..CBU;RZN169..RHD..(DCB,THDCB)..DLX;RZN149..(DCB,SCB,THSCB)..MTM..ARL;KDN165,190,LN140,166,172,192,RZN142,147,154,174,194,VZN167,172..RHD..(ARL,GEN,MA,SA)	08/2001 - 06/2005	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90904-13043	RZN169..SA;RZN147..RHD..SCB..CBR;KZN190,LN140,145,16#,192,RZN142,194..RHD..(GEN,SA)	09/2001 - 03/2002	1
90904-13043	LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN	03/2002 - 12/2999	1
90904-13043	RZN169..ARL,SA;RZN169..RHD..CBR;KZN190,LN140,145,167,192,RZN142,147,194,YN140..RHD;KZN165,LN147,15#,166,172,RZN149,154,174..RHD..(ARL,GEN,TH)	08/1997 - 09/2001	1
90904-13043	LN147..IV3;LN167..ARL,SA;RZN169..SCB..SA;KZN190,RZN194..SR;LN145,152..RHD..(ARL,GEN,SA)..CBU;LN145,147..RHD..(DCB,THDCB)..(ARL,TH);LN140,150,155,192,RZN142,147..RHD..DLX;KZN165,LN166,172,RZN149,154,169,174,VZN167,172..RHD..(ARL,GEN,MA)	08/2001 - 06/2005	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90904-12054	LN150..SR;LN145..DCB..GEN;LN145..LHD..DLX..TH;LN145..SCB..(GEN,TH);RZN148,149..DLX..EFI..GEN;LN141,146,152,155,157,RZN142,144,147,149,154..(CBR,DEFI,DSL)..(GCC,GEN,TH)	08/1997 - 12/2999	1
90904-12054	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D370	LN150,152..SR;RZN147..RHD..GEN;LN145..RHD..DCB..GEN;LN145,155,157..RHD..SCB..(GEN,TH)	08/1997 - 12/2999	1
47312-3D370	LN145,RZN147..RHD..GEN..CBU	08/2001 - 06/2005	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-3D081	LN150..SR;LN147,152..DSL;LN152..DEFI..TH;LN145..RHD..DCB..GEN;LN152..XTR..DEFI..IV3;LN140,145,155,157,RZN142,154,YN140..RHD..(SCB,XTR);LN147,RZN147,149..RHD..(DCB,SCB)..DLX..(CBR,DEFI,EFI)	08/1997 - 12/2999	1
47313-3D081	LN145,RZN147..RHD..GEN..CBU	08/2001 - 06/2005	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02952	LN14#,15#,RZN14#,154..DCB,SCB,XTR (J)	03/2001 - 08/2001	2
90947-02952	LN14#,15#,RZN14#,154,YN140	08/1997 - 03/2001	2
90947-02952	RZN148..DLX..CBU;LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN	09/2001 - 03/2002	2
90947-02952	RZN148..DLX..CBU;LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN	08/2001 - 09/2001	2
90947-02952	LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN;RZN148..DLX..GEN..CBU	03/2002 - 12/2999	2
90947-02952	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02952	LN14#,15#,RZN14#,154..DCB,SCB,XTR (J)	03/2001 - 08/2001	2
90947-02952	LN14#,15#,RZN14#,154,YN140	08/1997 - 03/2001	2
90947-02952	RZN148..DLX..CBU;LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN	09/2001 - 03/2002	2
90947-02952	RZN148..DLX..CBU;LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN	08/2001 - 09/2001	2
90947-02952	LN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN;RZN148..DLX..GEN..CBU	03/2002 - 12/2999	2
90947-02952	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02956	RZN154..CBR;RZN148..DLX..GEN;LN145,RZN142,147,149..GEN	08/1997 - 12/2999	1
90947-02956	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47321 - TUBE, REAR BRAKE, NO.1
47321-35800	LN150..SR;LN147,152..DSL;LN152..DEFI..TH;LN145..RHD..DCB..GEN;LN152..XTR..DEFI..IV3;LN140,145,155,157,RZN142,154,YN140..RHD..(SCB,XTR);LN147,RZN147,149..RHD..(DCB,SCB)..DLX..(CBR,DEFI,EFI)	08/1997 - 12/2999	1
47321-35800	LN145,RZN147..RHD..GEN..CBU	08/2001 - 06/2005	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10198	LN14#,15#,RZN14#,154,YN140	08/1997 - 08/2000	1
90413-10198	RZN147..RHD;RZN147..GCC;LN14#,15#,RZN142,144,148,149,154,YN140	08/2000 - 08/2001	1
90413-10198	LN147..IV3;LN145..LHD..DLX..TH;RZN148..DLX..GEN..CBU;LN147..(DCB,THDCB)..DLX;RZN147..RHD..(SCB,THSCB);LN145..RHD..(GEN,SA)..CBU;LN140,155,RZN142,149,154..DLX..(ARL,SA,TH)	08/2001 - 12/2999	1
90413-10198	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47322 - TUBE, REAR BRAKE, NO.2
47322-35810	RZN148..DLX..GEN;LN145,RZN147,149..GEN	08/1997 - 12/2999	1
47322-35810	LN145..LHD..IV3;LN145,RZN147,148..GEN..CBU	08/2001 - 06/2005	1
47323 - TUBE, REAR BRAKE, NO.3
47323-35200	RZN154..CBR;RZN148..DLX..GEN;LN145,RZN142,147,149..GEN	08/1997 - 12/2999	1
47323-35200	RZN148,149..CO;LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 11/2005	1
47324 - TUBE, REAR BRAKE, NO.4
47324-35270	RZN148..DLX..CBU;RZN147..RHD..SCB..CBR;LN140,145,RZN142..RHD..(GEN,SA)..CBU	09/2001 - 10/2001	1
47324-35260	LN14#,RZN14#,154	08/1997 - 05/1998	1
47324-35270	LN145,147,152,RZN142,147,148,149,154..ARL,GEN	05/1998 - 10/2000	1
47324-35270	LN147..IV3;LN147..DCB,THDCB;RZN148..DLX..CBU;RZN147..RHD..(SCB,THSCB);LN140,RZN142,149,154..RHD;LN145..RHD..(GEN,SA)..CBU	08/2001 - 09/2001	1
47324-35270	RZN147..RHD..SCB..CBR;RZN148..DLX..GEN..CBU;LN140,145,RZN142..RHD..(GEN,SA)..CBU	10/2001 - 12/2999	1
47324-35270	LN140,145,147,152,RZN142,147,148,149,154..ARL,GEN,SA	10/2000 - 08/2001	1
47324-35270	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47325 - TUBE, REAR BRAKE, NO.5
47325-35320	RZN154..CBR;RZN154..XTR..ARL;LN140,145,147,152,RZN142,147,148,149..DLX..(ARL,GEN,SA)	10/2000 - 09/2001	1
47325-35320	LN145,147,152,RZN142,147,148,149,154..ARL,GEN	05/1998 - 10/2000	1
47325-35320	RZN148,149..DLX..GEN;RZN147..RHD..SCB..CBR;LN140,145,RZN142..RHD..(GEN,SA)	09/2001 - 12/2999	1
47325-35300	LN145,147,RZN142,147,148,149,154..ARL,GEN	08/1997 - 05/1998	1
47325-35320	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-35150	LN14#,15#,RZN14#,154,YN140	08/1997 - 09/2000	1
47341-35150	LN152..XTR..IV3;RZN154..XTR..ARL;RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);LN147,RZN147,148..(DCB,SCB)..DLX..(ARL,GCC,GEN,SA);LN140,141,145,146,RZN142,144,149,154,YN140..(CBR,DSL)..(GCC,GEN,SA)	09/2000 - 12/2999	1
47341-35150	LN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU	08/2001 - 12/2999	1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-35150	LN152..XTR..IV3;RZN154..XTR..ARL;RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);LN147,RZN147,148..(DCB,SCB)..DLX..(ARL,GCC,GEN,SA);LN140,141,145,146,RZN142,144,149,154,YN140..(CBR,DSL)..(GCC,GEN,SA)	09/2000 - 12/2999	1
47343-35150	LN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU	08/2001 - 12/2999	1
47343-35150	LN14#,15#,RZN14#,154,YN140	08/1997 - 09/2000	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35280	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.1	08/1997 - 03/2006	1
47351-35290	LN150..SR;LN145..DCB..IV3;LN145..LHD..IV3;LN152..DEFI..TH;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN154..RHD..(DSL,EFI);LN145,RZN144,149..(CBR,DSL)..(GCC,GEN,SA)..CBU;LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.2	08/1997 - 03/2006	1
47351-35290	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,151,LN140,141,146,155,RZN142,144,147,154 NO.2	08/2001 - 11/2005	1
47351-35280	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154 NO.1	08/2001 - 11/2005	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35280	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.1	08/1997 - 03/2006	1
47351-35290	LN150..SR;LN145..DCB..IV3;LN145..LHD..IV3;LN152..DEFI..TH;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN154..RHD..(DSL,EFI);LN145,RZN144,149..(CBR,DSL)..(GCC,GEN,SA)..CBU;LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.2	08/1997 - 03/2006	1
47351-35290	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,151,LN140,141,146,155,RZN142,144,147,154 NO.2	08/2001 - 11/2005	1
47351-35280	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154 NO.1	08/2001 - 11/2005	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35380	LN150..SR;LN145..DCB..IV3;LN145..LHD..IV3;LN152..DEFI..TH;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN154..RHD..(DSL,EFI);LN145,RZN144,149..(CBR,DSL)..(GCC,GEN,SA)..CBU;LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.2	08/1997 - 03/2006	1
47352-35320	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.1	08/1997 - 03/2006	1
47352-35380	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,151,LN140,141,146,155,RZN142,144,147,154 NO.2	08/2001 - 11/2005	1
47352-35320	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154 NO.1	08/2001 - 11/2005	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35380	LN150..SR;LN145..DCB..IV3;LN145..LHD..IV3;LN152..DEFI..TH;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN154..RHD..(DSL,EFI);LN145,RZN144,149..(CBR,DSL)..(GCC,GEN,SA)..CBU;LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.2	08/1997 - 03/2006	1
47352-35320	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH) NO.1	08/1997 - 03/2006	1
47352-35380	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,150,151,LN140,141,146,155,RZN142,144,147,154 NO.2	08/2001 - 11/2005	1
47352-35320	LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154 NO.1	08/2001 - 11/2005	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47352-35330	RZN154..CBR;RZN148..DLX..GEN;LN145,RZN142,147,149..GEN	08/1997 - 12/2999	1
47352-35330	RZN148,149..CO;LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 11/2005	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35230	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
47371-35230	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
47371D - CLAMP, BRAKE TUBE, NO.8
47372-35080	LN167..DSL;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..RHD..DCB..GEN;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN192,RZN169..RHD..(CBR,DEFI,DSL);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..RHD..(SCB,THXTR,XTR)..DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN140,147,155,157,166,172,RZN142,147,149,154,174,YN140..RHD..DLX..(ARL,GEN,SA,TH)	08/1997 - 12/2999	1
47372-35080	LN145,166,RZN147,169..RHD..GEN..CBU	08/2001 - 06/2005	1
47373B - CLAMP, BRAKE TUBE, NO.3
47373-35060	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
47373-35060	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
47374B - CLAMP, BRAKE TUBE, NO.4
47372-35150	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
47372-35150	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	2
47375 - CLAMP, BRAKE TUBE, NO.5
47372-35030	LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU	08/2001 - 06/2005	1
47372-35030	LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35180	LN152..IV3;RZN154..ARL;RZN144,149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN147,RZN142,147,148..DLX..(ARL,GCC,GEN,SA) NO.2	08/1997 - 12/2999	1
47393-35170	LN152..IV3;RZN154..ARL;RZN144,149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN147,RZN142,147,148..DLX..(ARL,GCC,GEN,SA) NO.1	08/1997 - 12/2999	1
47393-35180	RZN142,147,148,154..GEN..CBU NO.2	08/2001 - 06/2005	1
47393-35170	RZN142,147,148,154..GEN..CBU NO.1	08/2001 - 06/2005	1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35180	LN152..IV3;RZN154..ARL;RZN144,149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN147,RZN142,147,148..DLX..(ARL,GCC,GEN,SA) NO.2	08/1997 - 12/2999	1
47393-35170	LN152..IV3;RZN154..ARL;RZN144,149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN147,RZN142,147,148..DLX..(ARL,GCC,GEN,SA) NO.1	08/1997 - 12/2999	1
47393-35180	RZN142,147,148,154..GEN..CBU NO.2	08/2001 - 06/2005	1
47393-35170	RZN142,147,148,154..GEN..CBU NO.1	08/2001 - 06/2005	1
Common parts
90119-T0028
90119-T0030
90119-T0036
90468-08035
90949-01457
91611-60814
91611-B0614
91611-F0812
91641-H0820
96221-34905

ILLUST NO. 3 OF 3(0108- )KDN145,15#,KZN190,LN14#,150,155,157,16#,17#,19#,RZN14#,154,16#,174,19#,V

Click highlighted areas on diagram

W(LSPV)

Part #	Description	Period	Qty
47931 - BRACKET, LOAD SENSING VALVE
47931-35120	RZN148,168..DLX..GEN;LN166,RZN154,169..DLX..(CBR,DSL)..GEN;LN145,171,191,RZN142,147,149,193..GEN	08/1997 - 12/2999	1
47931-35120	RZN148,168..DLX..GEN;LN166,RZN154,169..DLX..(CBR,DSL)..GEN;LN145,171,191,RZN142,147,149,193..GEN	08/1997 - 12/2999	1
47931-35120	RZN148,149..CO;LN145..LHD..IV3;LN145,RZN148..GEN..CBU;LN166,171,191,RZN142,147,154,16#,193..CO,GEN,MA	08/2001 - 11/2005	1
47931-35120	RZN148,149..CO;LN145..LHD..IV3;LN145,RZN148..GEN..CBU;LN166,171,191,RZN142,147,154,16#,193..CO,GEN,MA	08/2001 - 11/2005	1
Common parts
90119-08B11
90170-08016
90201-08062
90201-23360
91131-50840
91641-H0820
94130-00802
94512-00800
94612-10800

ILLUST NO. 3 OF 3(9708-0108) ; (0108- )LN152..IV3 ; (0108-)KDN190..DCB ; (0108- )LN147,152

Click highlighted areas on diagram

W(LSPV)

Part #	Description	Period	Qty
47931 - BRACKET, LOAD SENSING VALVE
47931-35120	RZN148,168..DLX..GEN;LN166,RZN154,169..DLX..(CBR,DSL)..GEN;LN145,171,191,RZN142,147,149,193..GEN	08/1997 - 12/2999	1
47931-35120	RZN148,168..DLX..GEN;LN166,RZN154,169..DLX..(CBR,DSL)..GEN;LN145,171,191,RZN142,147,149,193..GEN	08/1997 - 12/2999	1
47931-35120	RZN148,149..CO;LN145..LHD..IV3;LN145,RZN148..GEN..CBU;LN166,171,191,RZN142,147,154,16#,193..CO,GEN,MA	08/2001 - 11/2005	1
47931-35120	RZN148,149..CO;LN145..LHD..IV3;LN145,RZN148..GEN..CBU;LN166,171,191,RZN142,147,154,16#,193..CO,GEN,MA	08/2001 - 11/2005	1
Common parts
90119-08B11
90170-08016
90201-08062
90201-23360
91131-50840
91641-H0820
94130-00802
94512-00800
94612-10800

RZN147R-TRMDS (1997)

ILLUST NO. 1 OF 3(9708- )RZN147..RHD..GEN ; (9708- )KDN145,15#,LN145,15#..RHD..GEN,SA,TH

ILLUST NO. 1 OF 3(9708- )LN145..LHD..GEN ; (9708- )RZN148..GEN..CBU ; (9708- )LN141,146,RZN

ILLUST NO. 1 OF 3(9708- )LN157..DSL ; (9708- )KDN145,15#,LN145,147,150,152,155,RZN147,149,154.

ILLUST NO. 2 OF 3(9708- )KDN145,150,151,16#,190,KZN165,LN147,152,167,172,RZN147,149,154,174,VZN16

ILLUST NO. 1 OF 3(9708- )LN145,152..ARL,SA ; (9708- )KDN16#,190,KZN165,190,LN140,147,RZN142,14

ILLUST NO. 3 OF 3(0108- )KDN145,15#,KZN190,LN14#,150,155,157,16#,17#,19#,RZN14#,154,16#,174,19#,V

ILLUST NO. 3 OF 3(9708-0108) ; (0108- )LN152..IV3 ; (0108-)KDN190..DCB ; (0108- )LN147,152

Part Price Details
