RZN147R-TRMDS (1997)
Toyota Hilux
(9708- )LN140,145,147,152,16#,172,192..RHD..ARL,GEN,MA,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-3D800 |
RZN142,147..RHD |
1 | ||
| 44610-3D800 |
RZN142,147,YN140..RHD |
1 | ||
| 44702 - TUBE SUB-ASSY, AIR, NO.1 | ||||
| 44702-35010 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
KZN165..XTR;RZN169..DCB..SA;RZN169..RHD..CBR;KZN165..SCB..DLX;KZN165..DCB..DLX..CBU;RZN169..DLX..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);KZN190,RZN142,147,149,154,174,YN140..RHD..DLX |
1 | ||
| 44730-35010 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..DEFI..TH;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 44730-10010 |
KZN190..SR;KDN145,150,151,16#,190,KZN165,RZN142,147,149,154,169,174,194,VZN167,172..RHD |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
6 | ||
| 96133-41500 |
RZN142,147,169..RHD..CBR |
5 | ||
| 96133-41500 |
RZN142,147,149,154,169,174,194,VZN167,172..RHD |
5 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
6 | ||
| 96133-41500 |
RZN142,147,169..RHD..CBR |
5 | ||
| 96133-41500 |
RZN142,147,149,154,169,174,194,VZN167,172..RHD |
5 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
6 | ||
| 96133-41500 |
RZN142,147,169..RHD..CBR |
5 | ||
| 96133-41500 |
RZN142,147,149,154,169,174,194,VZN167,172..RHD |
5 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
6 | ||
| 96133-41500 |
RZN142,147,169..RHD..CBR |
5 | ||
| 96133-41500 |
RZN142,147,149,154,169,174,194,VZN167,172..RHD |
5 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
6 | ||
| 96133-41500 |
RZN142,147,169..RHD..CBR |
5 | ||
| 96133-41500 |
RZN142,147,149,154,169,174,194,VZN167,172..RHD |
5 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
6 | ||
| 96133-41500 |
RZN142,147,169..RHD..CBR |
5 | ||
| 96133-41500 |
RZN142,147,149,154,169,174,194,VZN167,172..RHD |
5 | ||
| 44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP) | ||||
| 90405-09184 |
LN152..IV3;LN155..LHD;LN167..DCB..DLX..ARL;LN167,192..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,17#,191..DLX..(ARL,GEN,SA) |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-35130 |
LN145..DCB..TH;LN145..LHD..IV3;LN155,RZN142..LHD;LN167..THDCB..DEFI;LN167..DSL..(ARL,SA);LN145..(GEN,SA)..CBU;LN147..(DCB,SCB)..DSL;LN145,152..(DCB,XTR)..IV3;LN147..(DCB,SCB)..DEFI..CBU;LN140,141,146,166,17#,19#,RZN147,YN140..DLX..(CBR,DSL,EFI) |
1 | ||
| 44731-35130 |
RZN147..RHD..SCB..CBR;LN140,145,166..RHD..(GEN,SA)..CBU |
1 | ||
| 44731-35130 |
RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU |
1 | ||
| 44731-35130 |
LN145..LHD..IV3;LN145,155..LHD..TH;LN145..(GEN,SA)..CBU;LN147,152..(DCB,XTR)..ARL..CBU;KDN165,190,LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
LN147..IV3;RZN147..THSCB;LN147..DCB,THDCB;LN145,155..LHD..TH;RZN147..RHD..SCB..CBR;LN145..RHD..(GEN,SA)..CBU;LN140,16#,172,192,RZN142..RHD..DLX |
2 | ||
| 44735-30010 |
LN147..IV3;LN145..LHD..IV3;LN147..DCB,THDCB;LN145,155..LHD..TH;LN145,152..(ARL,GEN,SA)..CBU;KDN165,190,LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
2 | ||
| 44735-30010 |
LN167,RZN147..RHD..SCB..(GEN,SA);LN140,145,166,192,RZN142..RHD..(GEN,SA)..CBU |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-35070 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
1 | ||
| 44774-35110 |
RZN142,147,169..RHD..CBR |
1 | ||
| 44774-35110 |
RZN142,147..RHD..CBR |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-35030 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-35060 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
KZN190..SR;LN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;LN145,155..LHD..TH;KDN166,KZN165,RZN148,149..ARL,CO,GCC,SA,TH;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU;KDN165,190,LN140,141,146,16#,17#,19#,RZN142,144,147,154,16#,174,19#,VZN167,172..ARL,CO,GCC,GEN,MA,SA |
2 | ||
| 44785-35020 |
LN152..IV3;KZN165..XTR;RZN169..DCB..SA;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN147..THSCB..DEFI..CBU;RZN149..DLX..EFI..(ARL,GEN);LN147..(DCB,SCB)..DLX..DEFI;KZN165,RZN194..SR..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN155,RZN144,149,154..LHD..(CBR,DSL);KZN165,RZN154..(SCB,THXTR,XTR)..DLX..ARL;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN147,167,RZN169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN190,LN140,141,145,146,166,17#,19#,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| Common parts | ||||
| 90179-08057 | ||||
| 91621-B0625 | ||||
| Linked diagrams | ||||
| 8401 | ||||

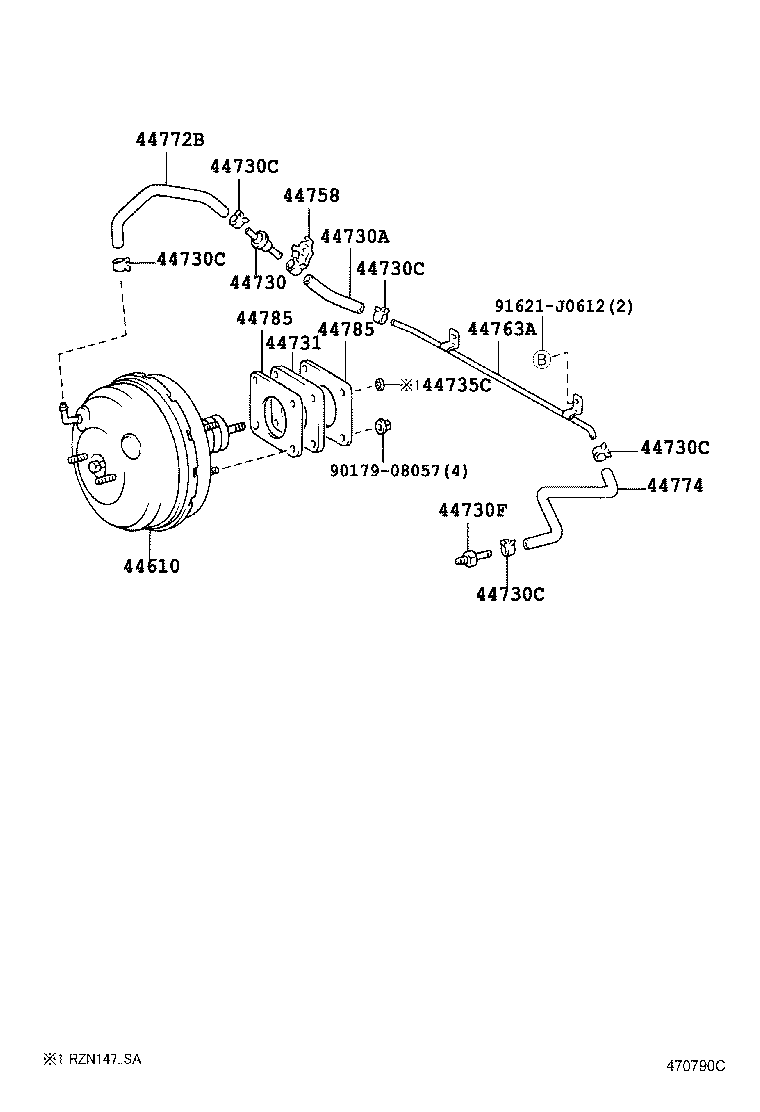

(9708- )RZN142,147,149,154,169,174,194,VZN167,172,YN140..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-3D800 |
RZN142,147..RHD |
1 | ||
| 44610-3D800 |
RZN142,147,YN140..RHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
KZN165..XTR;RZN169..DCB..SA;RZN169..RHD..CBR;KZN165..SCB..DLX;KZN165..DCB..DLX..CBU;RZN169..DLX..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);KZN190,RZN142,147,149,154,174,YN140..RHD..DLX |
1 | ||
| 44730-35010 |
LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..DEFI..TH;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 44730-10010 |
KZN190..SR;KDN145,150,151,16#,190,KZN165,RZN142,147,149,154,169,174,194,VZN167,172..RHD |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 95446-09100 |
KZN190..SR;LN145,155,166..LHD;RZN142,147,149,154,169..RHD;KDN145,150,151,16#,190,KZN165,LN141,146,171,191,RZN174,194,VZN167,172 |
1 | ||
| 95446-09100 |
KZN165..XTR;RZN169..DCB..SA;RZN169..RHD..CBR;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);KZN165..DCB..DLX..CBU;LN145,155,166..LHD..DLX;RZN142,147,154,194..RHD;RZN149,169..DLX..(ARL,SA);KZN190,LN141,146,171,191,RZN174,YN140..DLX |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
6 | ||
| 96133-41500 |
RZN142,147,169..RHD..CBR |
5 | ||
| 96133-41500 |
RZN142,147,149,154,169,174,194,VZN167,172..RHD |
5 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
6 | ||
| 96133-41500 |
RZN142,147,169..RHD..CBR |
5 | ||
| 96133-41500 |
RZN142,147,149,154,169,174,194,VZN167,172..RHD |
5 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
6 | ||
| 96133-41500 |
RZN142,147,169..RHD..CBR |
5 | ||
| 96133-41500 |
RZN142,147,149,154,169,174,194,VZN167,172..RHD |
5 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
6 | ||
| 96133-41500 |
RZN142,147,169..RHD..CBR |
5 | ||
| 96133-41500 |
RZN142,147,149,154,169,174,194,VZN167,172..RHD |
5 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
6 | ||
| 96133-41500 |
RZN142,147,169..RHD..CBR |
5 | ||
| 96133-41500 |
RZN142,147,149,154,169,174,194,VZN167,172..RHD |
5 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-35130 |
LN145..DCB..TH;LN145..LHD..IV3;LN155,RZN142..LHD;LN167..THDCB..DEFI;LN167..DSL..(ARL,SA);LN145..(GEN,SA)..CBU;LN147..(DCB,SCB)..DSL;LN145,152..(DCB,XTR)..IV3;LN147..(DCB,SCB)..DEFI..CBU;LN140,141,146,166,17#,19#,RZN147,YN140..DLX..(CBR,DSL,EFI) |
1 | ||
| 44731-35130 |
RZN147..RHD..SCB..CBR;LN140,145,166..RHD..(GEN,SA)..CBU |
1 | ||
| 44731-35130 |
RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU |
1 | ||
| 44731-35130 |
LN145..LHD..IV3;LN145,155..LHD..TH;LN145..(GEN,SA)..CBU;LN147,152..(DCB,XTR)..ARL..CBU;KDN165,190,LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
LN147..IV3;RZN147..THSCB;LN147..DCB,THDCB;LN145,155..LHD..TH;RZN147..RHD..SCB..CBR;LN145..RHD..(GEN,SA)..CBU;LN140,16#,172,192,RZN142..RHD..DLX |
2 | ||
| 44735-30010 |
LN147..IV3;LN145..LHD..IV3;LN147..DCB,THDCB;LN145,155..LHD..TH;LN145,152..(ARL,GEN,SA)..CBU;KDN165,190,LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA |
2 | ||
| 44735-30010 |
LN167,RZN147..RHD..SCB..(GEN,SA);LN140,145,166,192,RZN142..RHD..(GEN,SA)..CBU |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35070 |
KZN165..XTR;RZN169..DCB..SA;RZN169..RHD..CBR;KZN165..SCB..DLX;KZN165..DCB..DLX..CBU;RZN169..DLX..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);KZN190,RZN142,147,149,154,174,YN140..RHD..DLX |
1 | ||
| 44758-35070 |
KZN190..SR;KDN145,150,151,16#,190,KZN165,RZN142,147,149,154,169,174,194,VZN167,172..RHD |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-35030 |
RZN169..DCB..SA;RZN169..RHD..CBR;RZN149,169..DLX..(ARL,SA);RZN142,147,154,174,194,YN140..RHD |
1 | ||
| 44763-35030 |
RZN147,169..RHD..GEN |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-35340 |
KZN165..XTR;RZN169..DCB..SA;RZN169..RHD..CBR;KZN165..SCB..DLX;KZN165..DCB..DLX..CBU;RZN169..DLX..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);KZN190,RZN142,147,149,154,174,YN140..RHD..DLX |
1 | ||
| 44772-35340 |
KZN190..SR;KDN145,150,151,16#,190,KZN165,RZN142,147,149,154,169,174,194,VZN167,172..RHD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-35070 |
LN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA) |
1 | ||
| 44774-35110 |
RZN142,147,169..RHD..CBR |
1 | ||
| 44774-35110 |
RZN142,147..RHD..CBR |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
KZN190..SR;LN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;LN145,155..LHD..TH;KDN166,KZN165,RZN148,149..ARL,CO,GCC,SA,TH;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU;KDN165,190,LN140,141,146,16#,17#,19#,RZN142,144,147,154,16#,174,19#,VZN167,172..ARL,CO,GCC,GEN,MA,SA |
2 | ||
| 44785-35020 |
LN152..IV3;KZN165..XTR;RZN169..DCB..SA;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN147..THSCB..DEFI..CBU;RZN149..DLX..EFI..(ARL,GEN);LN147..(DCB,SCB)..DLX..DEFI;KZN165,RZN194..SR..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN155,RZN144,149,154..LHD..(CBR,DSL);KZN165,RZN154..(SCB,THXTR,XTR)..DLX..ARL;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN147,167,RZN169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN190,LN140,141,145,146,166,17#,19#,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
KZN190..SR;LN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;LN145,155..LHD..TH;KDN166,KZN165,RZN148,149..ARL,CO,GCC,SA,TH;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU;KDN165,190,LN140,141,146,16#,17#,19#,RZN142,144,147,154,16#,174,19#,VZN167,172..ARL,CO,GCC,GEN,MA,SA |
2 | ||
| 44785-35020 |
LN152..IV3;KZN165..XTR;RZN169..DCB..SA;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN147..THSCB..DEFI..CBU;RZN149..DLX..EFI..(ARL,GEN);LN147..(DCB,SCB)..DLX..DEFI;KZN165,RZN194..SR..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN155,RZN144,149,154..LHD..(CBR,DSL);KZN165,RZN154..(SCB,THXTR,XTR)..DLX..ARL;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN147,167,RZN169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN190,LN140,141,145,146,166,17#,19#,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA) |
2 | ||
| Common parts | ||||
| 90179-08057 | ||||
| 91621-J0612 | ||||
