RZN147R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006
Engine 1RZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )1RZ

Click highlighted areas on diagram

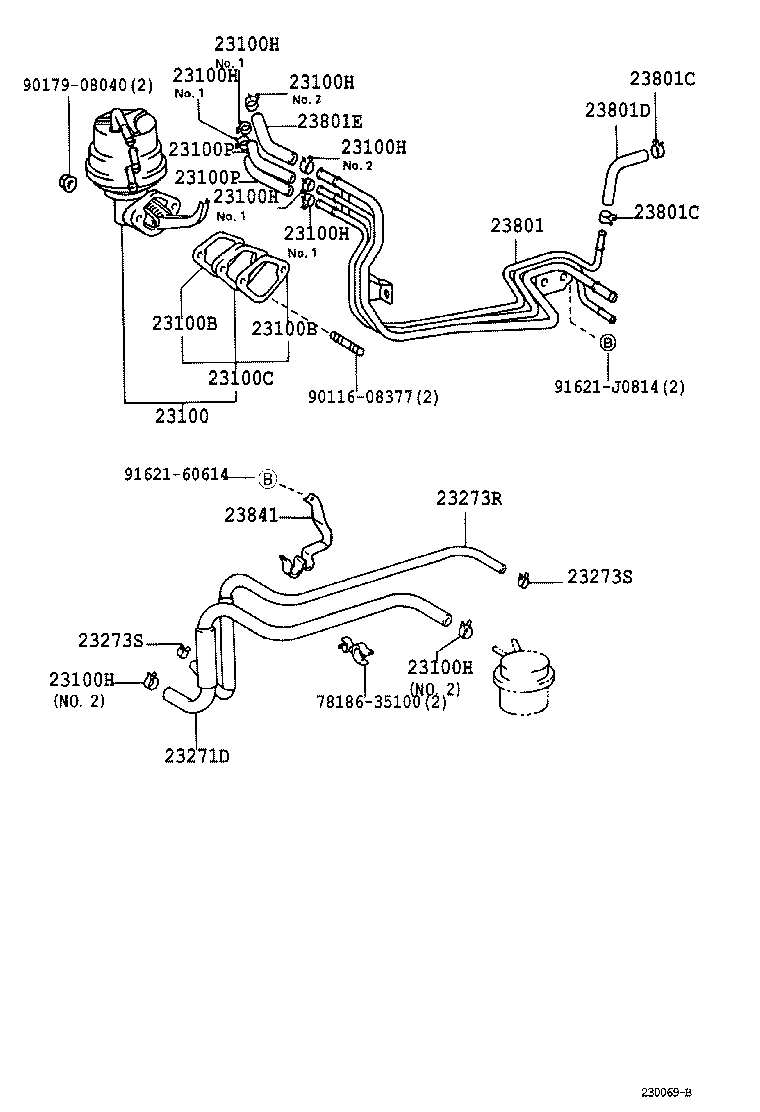

diagram 23100 23100B 23100B 23100C 23100H 23100H 23100H 23100H 23100H 23100H 23100H 23100H 23100P 23100P 23271D 23273R 23273S 23273S 23801 23801C 23801C 23801D 23801E 23841 7818635100 9011608377 9017908040 9162160614 91621J0814
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-79076

1RZ..RZN147..RHD..SCB..GEN

 1
23100-79076

1RZ..RZN142,147

 1
23100B - GASKET, FUEL PUMP
90923-05019

1RZ..RZN142,147

 2
90923-05019

1RZ..RZN142,147

 2
23100B - GASKET, FUEL PUMP
90923-05019

1RZ..RZN142,147

 2
90923-05019

1RZ..RZN142,147

 2
23100C - INSULATOR, FUEL PUMP
90923-06010

1RZ..RZN142,147

 1
90923-06010

1RZ..RZN142,147

 1
23100H - CLIP(FOR FUEL HOSE)
96132-41100

1RZ..RZN142,147

NO.1

 4
96132-41500

1RZ..RZN147;1RZ..RZN142..LHD

NO.2

 4
96132-41500

1RZ..RZN147..RHD..SCB

NO.2

 4
96132-41500

1RZ..RZN142,147..GEN

 2
96132-51100

1RZ..RZN142,147..GEN

NO.1

 4
96132-41500

1RZ..RZN147..RHD..SCB..GEN

 2
23100H - CLIP(FOR FUEL HOSE)
96132-41100

1RZ..RZN142,147

NO.1

 4
96132-41500

1RZ..RZN147;1RZ..RZN142..LHD

NO.2

 4
96132-41500

1RZ..RZN147..RHD..SCB

NO.2

 4
96132-41500

1RZ..RZN142,147..GEN

 2
96132-51100

1RZ..RZN142,147..GEN

NO.1

 4
96132-41500

1RZ..RZN147..RHD..SCB..GEN

 2
23100H - CLIP(FOR FUEL HOSE)
96132-41100

1RZ..RZN142,147

NO.1

 4
96132-41500

1RZ..RZN147;1RZ..RZN142..LHD

NO.2

 4
96132-41500

1RZ..RZN147..RHD..SCB

NO.2

 4
96132-41500

1RZ..RZN142,147..GEN

 2
96132-51100

1RZ..RZN142,147..GEN

NO.1

 4
96132-41500

1RZ..RZN147..RHD..SCB..GEN

 2
23100H - CLIP(FOR FUEL HOSE)
96132-41100

1RZ..RZN142,147

NO.1

 4
96132-41500

1RZ..RZN147;1RZ..RZN142..LHD

NO.2

 4
96132-41500

1RZ..RZN147..RHD..SCB

NO.2

 4
96132-41500

1RZ..RZN142,147..GEN

 2
96132-51100

1RZ..RZN142,147..GEN

NO.1

 4
96132-41500

1RZ..RZN147..RHD..SCB..GEN

 2
23100H - CLIP(FOR FUEL HOSE)
96132-41100

1RZ..RZN142,147

NO.1

 4
96132-41500

1RZ..RZN147;1RZ..RZN142..LHD

NO.2

 4
96132-41500

1RZ..RZN147..RHD..SCB

NO.2

 4
96132-41500

1RZ..RZN142,147..GEN

 2
96132-51100

1RZ..RZN142,147..GEN

NO.1

 4
96132-41500

1RZ..RZN147..RHD..SCB..GEN

 2
23100H - CLIP(FOR FUEL HOSE)
96132-41100

1RZ..RZN142,147

NO.1

 4
96132-41500

1RZ..RZN147;1RZ..RZN142..LHD

NO.2

 4
96132-41500

1RZ..RZN147..RHD..SCB

NO.2

 4
96132-41500

1RZ..RZN142,147..GEN

 2
96132-51100

1RZ..RZN142,147..GEN

NO.1

 4
96132-41500

1RZ..RZN147..RHD..SCB..GEN

 2
23100H - CLIP(FOR FUEL HOSE)
96132-41100

1RZ..RZN142,147

NO.1

 4
96132-41500

1RZ..RZN147;1RZ..RZN142..LHD

NO.2

 4
96132-41500

1RZ..RZN147..RHD..SCB

NO.2

 4
96132-41500

1RZ..RZN142,147..GEN

 2
96132-51100

1RZ..RZN142,147..GEN

NO.1

 4
96132-41500

1RZ..RZN147..RHD..SCB..GEN

 2
23100H - CLIP(FOR FUEL HOSE)
96132-41100

1RZ..RZN142,147

NO.1

 4
96132-41500

1RZ..RZN147;1RZ..RZN142..LHD

NO.2

 4
96132-41500

1RZ..RZN147..RHD..SCB

NO.2

 4
96132-41500

1RZ..RZN142,147..GEN

 2
96132-51100

1RZ..RZN142,147..GEN

NO.1

 4
96132-41500

1RZ..RZN147..RHD..SCB..GEN

 2
23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE)
95333-06020

1RZ..RZN142,147

 2
95333-06020

1RZ..RZN142,147

 2
23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE)
95333-06020

1RZ..RZN142,147

 2
95333-06020

1RZ..RZN142,147

 2
23271D - HOSE, FUEL, NO.1
23271-75080

1RZ..RZN142,147

 1
23271-75080

1RZ..RZN142,147

 1
23271-75220

1RZ..RZN142,147..GEN

 1
23273R - HOSE, FUEL, NO.2(FOR FUEL RETURN TUBE)
23273-75100

1RZ..RZN142,147..GEN

 1
23273-75100

1RZ..RZN142,147

 1
23273S - CLIP, HOSE(FOR FUEL HOSE NO.2)
96135-41100

1RZ,3RZF..RZN142,144,147,149,154,169

 2
96135-51100

1RZ..RZN142,147..GEN

 2
23273S - CLIP, HOSE(FOR FUEL HOSE NO.2)
96135-41100

1RZ,3RZF..RZN142,144,147,149,154,169

 2
96135-51100

1RZ..RZN142,147..GEN

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-75011

1RZ..RZN142,147

 1
23811-75011

1RZ..RZN142,147

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-51100

1RZ..RZN142,147

 2
96132-41100

1RZ..RZN142,147

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-51100

1RZ..RZN142,147

 2
96132-41100

1RZ..RZN142,147

 2
23801D - HOSE, FUEL PIPE, NO.1
95334-06012

1RZ..RZN142,147

*H,L=120

 1
95334-06012

1RZ..RZN142,147

*H,L=120

 1
23801E - HOSE, FUEL PIPE, NO.2
23271-75070

1RZ..RZN142,147

 1
23271-75070

1RZ..RZN142,147

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-75020

1RZ,3RZF..RZN142,144,147,149,154,169

 1
23841-75020

1RZ..RZN142,147..GEN

 1
Common parts
78186-35100
90116-08377
90179-08040
91621-60614
91621-J0814
