RZN147R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006
Engine 1RZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )1RZ,3RZF

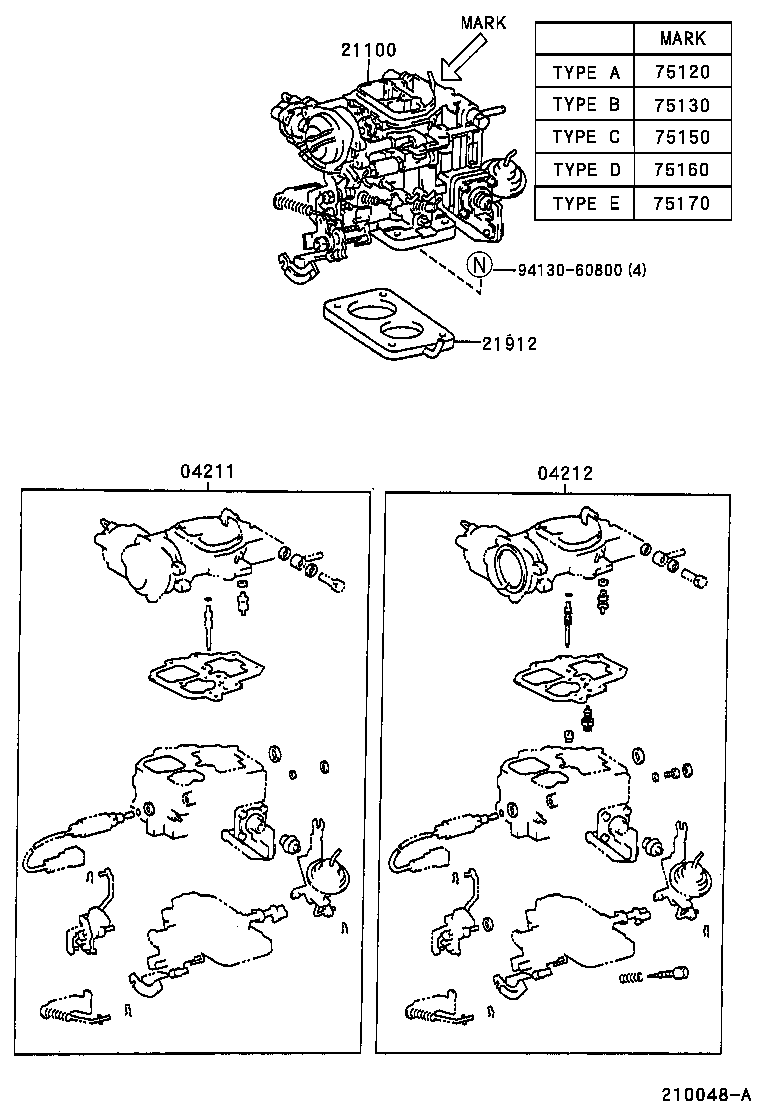

Click highlighted areas on diagram

diagram 04211 04212 21100 21912 9413060800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-75160

1RZ..RZN147..RHD..SCB..GEN

TYPE D:REFER TO ILLUSTRATION

 1
04211-75150

1RZ..RZN142,147..GEN

 1
04212 - GASKET KIT, CARBURETOR
04212-75011

1RZ..RZN142,147..GEN

TYPE D:REFER TO ILLUSTRATION

 1
04212-75011

1RZ..RZN147..RHD..SCB..GEN

TYPE D:REFER TO ILLUSTRATION

 1
21100 - CARBURETOR ASSY
21100-75160

1RZ..RZN142,147..GEN

TYPE D:REFER TO ILLUSTRATION

 1
21100-75160

1RZ..RZN142,147..GEN

TYPE D:REFER TO ILLUSTRATION

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-75010

1RZ..RZN142,147

 1
21912-75010

1RZ..RZN142,147

 1
Common parts
94130-60800
