RZN147R-TRMDS (1997)
Toyota Hilux
(9708- )1RZ#,2RZFE
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-76070 |
2RZFE..RZN168..SCB..CBU;1RZ..RZN147..RHD..SCB..GEN 12V 1.2KW |
1 | ||
| 28011-26042 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA) 12V 1.0KW |
1 | ||
| 28011-26042 |
2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZ,2RZFE..RZN142,147,168,193 12V 1.0KW |
1 | ||
| 28011-76070 |
2RZFE..RZN168..SCB..CBU;1RZ,2RZFE..RZN142,147,193..GEN 12V 1.2KW |
1 | ||

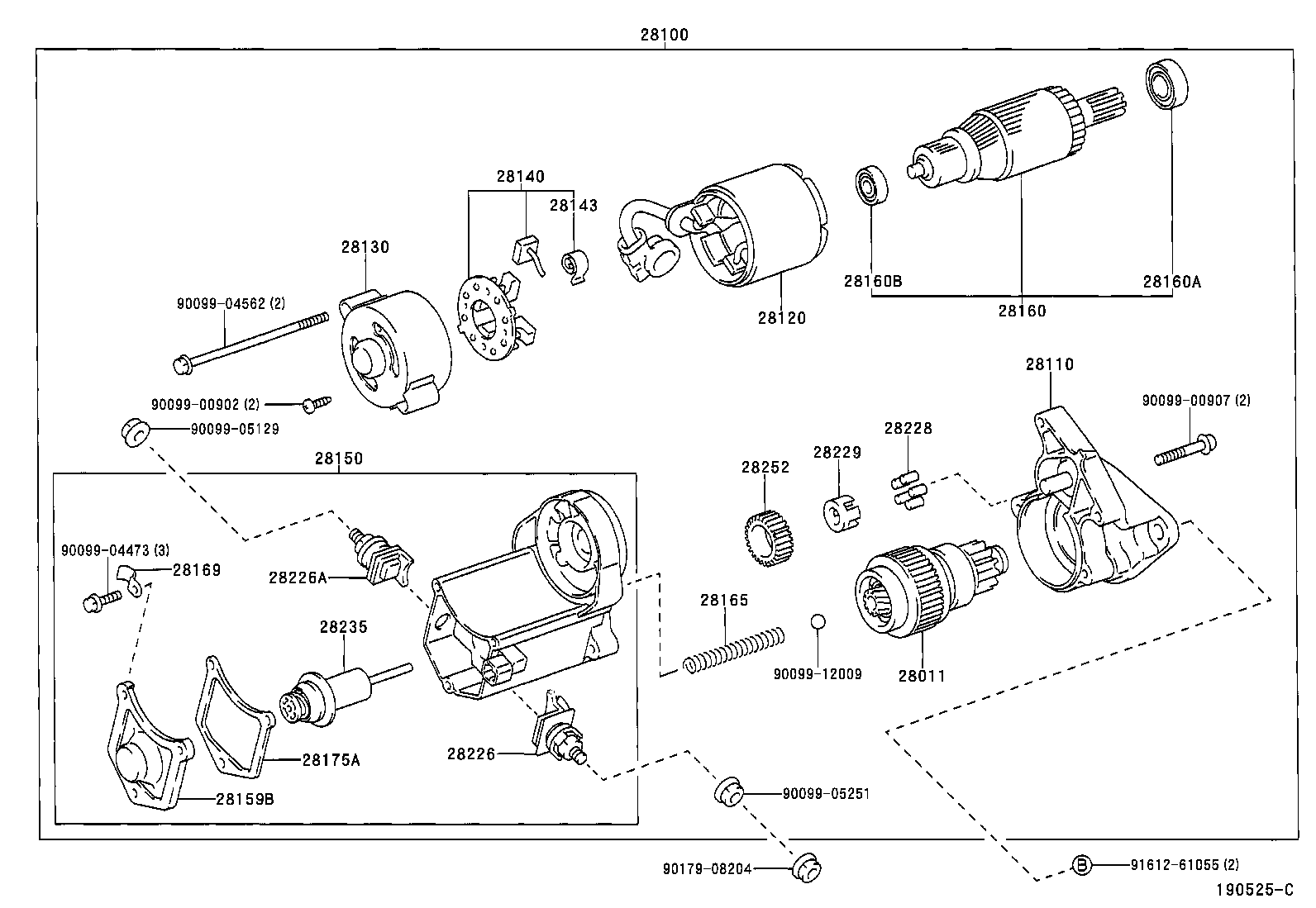

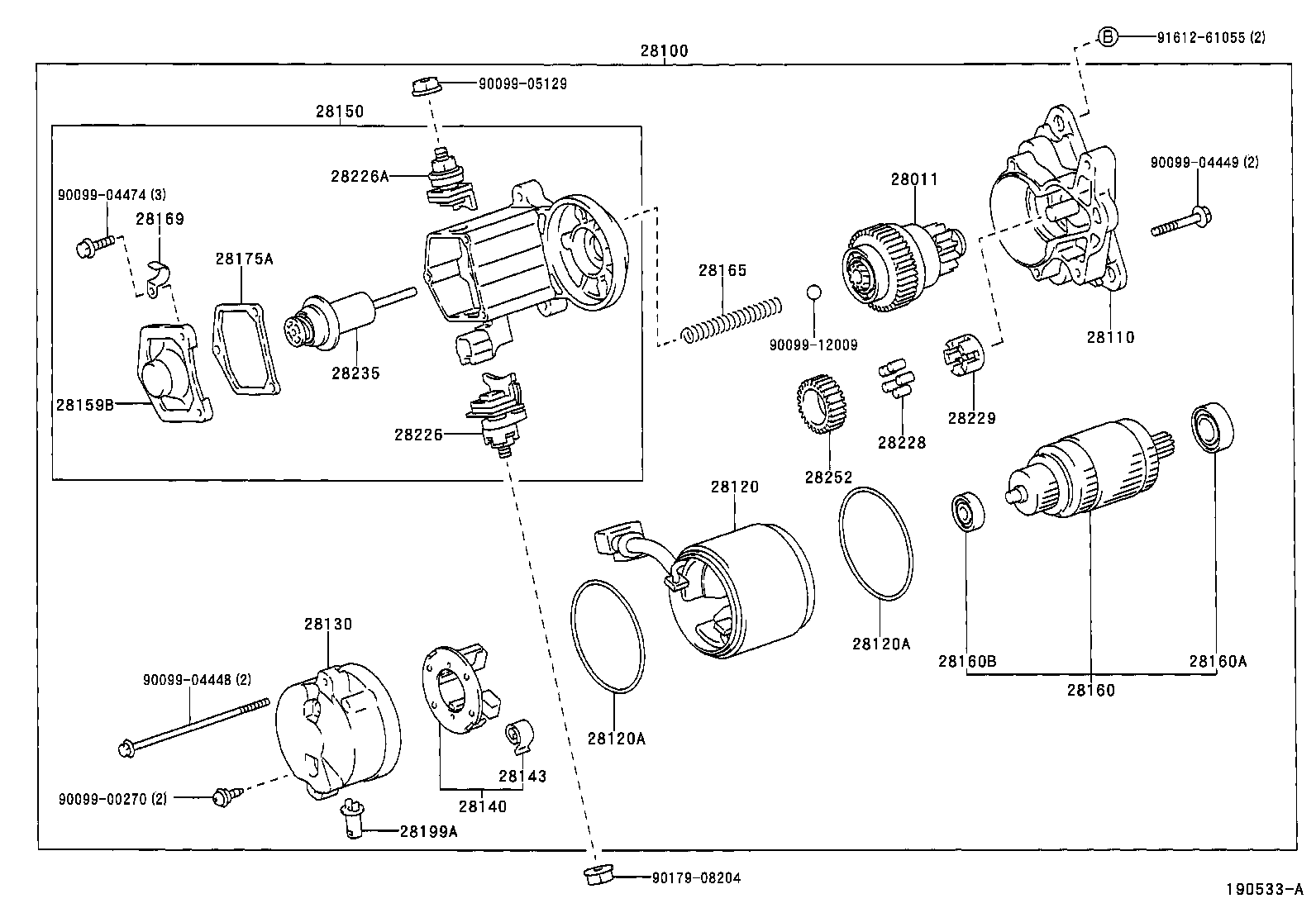

| 28100 - STARTER ASSY | ||||
| 28100-75070 |
1RZ#,2RZFE..RZN142,147,148,168,193..DLX..(ARL,GCC,GEN,SA) 12V 1.0KW |
1 | ||
| 28100-75130 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.2KW |
1 | ||
| 28100-75070 |
2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZ,2RZFE..RZN142,147,168,193 12V 1.0KW |
1 | ||
| 28100-75130 |
1RZ,2RZFE..RZN142,147,148,168,193..GEN 12V 1.2KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-75070 |
1RZ#,2RZFE..RZN142,147,148,168,193 12V 1.0KW |
1 | ||
| 28110-75070 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28110-75070 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28110-75070 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28110-75090 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28110-75070 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28110-75070 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28110-75070 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28110-75090 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-16180 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.2KW |
1 | ||
| 28120-26071 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA) 12V 1.0KW |
1 | ||
| 28120-26071 |
2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZ,2RZFE..RZN142,147,168,193 12V 1.0KW |
1 | ||
| 28120-16180 |
1RZ,2RZFE..RZN142,147,148,168,193..GEN 12V 1.2KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15020 |
1RZ#,2RZFE..RZN142,147,148,168,193 12V 1.0KW |
1 | ||
| 28130-15020 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28130-15020 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28130-15020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28130-75130 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28130-15020 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28130-75130 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28130-15020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28130-15020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-76060 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.2KW |
1 | ||
| 28140-26070 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA) 12V 1.0KW |
1 | ||
| 28140-26070 |
2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZ,2RZFE..RZN142,147,168,193 12V 1.0KW |
1 | ||
| 28140-76060 |
1RZ,2RZFE..RZN142,147,148,168,193..GEN 12V 1.2KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW,1.4KW |
4 | ||
| 90099-17112 |
1RZ#,2RZFE,3RZF,2Y..RZN14#,154,16#,193,YN140 12V 1.0KW,1.4KW |
4 | ||
| 90099-17112 |
2RZFE..RZN148,168..DLX;1RZ..RZN147..RHD..SCB..GEN 12V 1.0KW,1.4KW |
4 | ||
| 90099-17112 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW,1.4KW |
4 | ||
| 90099-17112 |
2RZFE..RZN148..GEN..IV3;2RZFE..RZN168..SCB..CBU;1RZ..RZN147..RHD..SCB..GEN 12V 1.0KW,1.4KW |
4 | ||
| 28143-76060 |
1RZ..RZN147..RHD..SCB..GEN |
4 | ||
| 90099-17112 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW,1.4KW |
4 | ||
| 90099-17112 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW,1.4KW |
4 | ||
| 90099-17112 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW,1.4KW |
4 | ||
| 28143-76060 |
1RZ..RZN147..RHD..SCB..GEN |
4 | ||
| 90099-17112 |
2RZFE..RZN168..SCB..CBU;1RZ..RZN147..RHD..SCB..GEN 12V 1.0KW,1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-75130 |
2RZFE..RZN168..SCB..CBU;1RZ..RZN147..RHD..SCB..GEN 12V 1.2KW |
1 | ||
| 28150-75070 |
1RZ#,2RZFE..RZN142,147,148,168,193..DLX..(ARL,GCC,GEN,SA) 12V 1.0KW |
1 | ||
| 28150-75070 |
2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZ,2RZFE..RZN142,147,168,193 12V 1.0KW |
1 | ||
| 28150-75130 |
2RZFE..RZN168..SCB..CBU;1RZ,2RZFE..RZN142,147,193..GEN 12V 1.2KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 28159-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28159-10040 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28159-10040 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28159-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28159-55050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28159-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28159-10040 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28159-55050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA) 12V 1.0KW |
1 | ||
| 28160-76060 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.2KW |
1 | ||
| 28160-26071 |
2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZ,2RZFE..RZN142,147,168,193 12V 1.0KW |
1 | ||
| 28160-76060 |
1RZ,2RZFE..RZN142,147,148,168,193..GEN 12V 1.2KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 28253-45020 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28253-45020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28253-45020 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 90099-10196 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28253-45020 |
2RZFE..RZN148,168..DLX..GEN..CBU;1RZ#..RZN147..RHD..(SCB,THSCB)..(ARL,GEN) 12V 1.0KW |
1 | ||
| 28160B - BEARING, STARTER ARMATURE, NO.2 | ||||
| 90099-10113 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 90099-10113 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 90099-10197 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 90099-10113 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 90099-10113 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 28165-26040 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28165-26040 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28165-76070 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28165-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28165-76070 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28165-26040 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28165-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28165-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 28169-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28169-10040 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28169-10040 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28169-55050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28169-10040 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28169-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28169-55050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28169-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28175-10040 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 28175-10040 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28175-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28175-10040 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28175-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28175-55050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28175-55050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28175-10040 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-70040 |
1RZ#,2RZFE..RZN142,147,148,168,193 12V 1.0KW |
1 | ||
| 28226-70040 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28226-70040 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28226-22050 |
1RZ..RZN147..RHD..SCB..GEN 12V 1.2KW |
1 | ||
| 28226-70040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28226-70040 |
2RZFE..RZN148,168..DLX..GEN..CBU;1RZ#..RZN147..RHD..(SCB,THSCB)..(ARL,GEN) 12V 1.0KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
3RZF..RZN149..SR..GEN;3RZF..RZN169..LHD..GEN;1RZ#,2RZFE..RZN142,147,148,168,193 12V 1.0KW,2.0KW |
1 | ||
| 28226-72010 |
1RZ#,2RZFE..RZN142,147,148,168,193 12V 1.0KW,2.0KW |
1 | ||
| 28226-72010 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW,2.0KW |
1 | ||
| 28226-72010 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW,2.0KW |
1 | ||
| 28226-72010 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW,2.0KW |
1 | ||
| 28226-72010 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW,2.0KW |
1 | ||
| 28226-72010 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW,2.0KW |
1 | ||
| 28226-74070 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28226-74070 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28226-72010 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW,2.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
3RZFE..RZN169..ARL,SA;1RZ..RZN147..RHD..SCB;2L..LN145..RHD..(GEN,SA);5LE,1RZE,2RZFE,3RZFE..LN152,167,192,RZN147,148,149,168..DLX..(ARL,GEN,SA);1KZTE,2L,3L,5LE,1RZ,3RZFE..KZN165,190,LN140,147,166,172,RZN142,154,174,194..RHD |
5 | ||
| 28228-26040 |
2L,5L#..LN145,152,167..ARL,GEN,SA;1KZTE,2L,3L,5LE..KZN165,190,LN140,141,146,147,166,17#;3L,5L#,1RZ#,2RZFE,3RZ#,2Y..LN19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN,SA) |
5 | ||
| 28228-26040 |
1KZTE,2L,3L,5L,1RZ#,2RZFE,3RZ#,2Y..KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA |
5 | ||
| 28228-26040 |
2RZFE..RZN168..SCB..CBU;1RZ..RZN147..RHD..SCB..GEN;2L,3L..LN145,166..RHD..GEN..CBU |
5 | ||
| 28228-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU;2L,3L..LN145,166..RHD..GEN..CBU |
5 | ||
| 28228-26040 |
3RZFE..RZN169..SA;1RZ..RZN147..RHD..SCB;2RZFE,3RZFE..RZN148,149,168..DLX..GEN;1KZTE,2L,3L,5LE,1RZ,3RZFE..KZN165,190,LN140,145,16#,192,RZN142,194..RHD..(GEN,SA) |
5 | ||
| 28228-26040 |
2L,3L..LN145,166..RHD..GEN;1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
5 | ||
| 28228-26040 |
2L,3L..LN145,166..RHD..GEN;1RZ..RZN147..RHD..SCB..GEN |
5 | ||
| 28228-26040 |
3RZFE..RZN169..SA;1RZ..RZN147..RHD..SCB;2RZFE,3RZFE..RZN148,149,168..DLX..GEN;1KZTE,2L,3L,5LE,1RZ,3RZFE..KZN165,190,LN140,145,16#,192,RZN142,194..RHD..(GEN,SA) |
5 | ||
| 28228-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU;2L,3L..LN145,166..RHD..GEN..CBU |
5 | ||
| 28228-26040 |
2L,3L,5L,1RZ#,2RZFE,3RZ#,2Y..LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140 |
5 | ||
| 28228-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU;2L,3L..LN145,166..RHD..GEN..CBU |
5 | ||
| 28228-26040 |
1RZ..RZN147..RHD..SCB..GEN;2L,3L..LN145,166..RHD..GEN..CBU |
5 | ||
| 28228-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU;2L,3L..LN145,166..RHD..GEN..CBU |
5 | ||
| 28228-26040 |
2RZFE..RZN148..GEN..IV3;2RZFE..RZN168..SCB..CBU;2L,3L..LN145,166..RHD..GEN;1RZ..RZN147..RHD..SCB..GEN |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 28229-26040 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28229-26040 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28229-26040 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28229-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28229-74070 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28229-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28229-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28229-74070 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28235-35080 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 28235-55050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28235-55050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28235-35080 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28235-35080 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28235-35080 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28235-35080 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28235-35080 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 28254-45020 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28254-45020 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28254-74070 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28254-45020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28254-74070 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28254-45020 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28254-45020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28254-45020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90179-08204 | ||||
| 91612-61055 | ||||
(9708- )1RZ,2RZFE..GCC,GEN,SA
12V 1.4KW,COLD SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-76070 |
2RZFE..RZN168..SCB..CBU;1RZ..RZN147..RHD..SCB..GEN 12V 1.2KW |
1 | ||
| 28011-26042 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA) 12V 1.0KW |
1 | ||
| 28011-26042 |
2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZ,2RZFE..RZN142,147,168,193 12V 1.0KW |
1 | ||
| 28011-76070 |
2RZFE..RZN168..SCB..CBU;1RZ,2RZFE..RZN142,147,193..GEN 12V 1.2KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-75070 |
1RZ#,2RZFE..RZN142,147,148,168,193..DLX..(ARL,GCC,GEN,SA) 12V 1.0KW |
1 | ||
| 28100-75130 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.2KW |
1 | ||
| 28100-75070 |
2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZ,2RZFE..RZN142,147,168,193 12V 1.0KW |
1 | ||
| 28100-75130 |
1RZ,2RZFE..RZN142,147,148,168,193..GEN 12V 1.2KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-75070 |
1RZ#,2RZFE..RZN142,147,148,168,193 12V 1.0KW |
1 | ||
| 28110-75070 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28110-75070 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28110-75070 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28110-75090 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28110-75070 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28110-75070 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28110-75070 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28110-75090 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-16180 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.2KW |
1 | ||
| 28120-26071 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA) 12V 1.0KW |
1 | ||
| 28120-26071 |
2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZ,2RZFE..RZN142,147,168,193 12V 1.0KW |
1 | ||
| 28120-16180 |
1RZ,2RZFE..RZN142,147,148,168,193..GEN 12V 1.2KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
2L,3L..LN145,166..RHD..GEN;1RZ..RZN147..RHD..SCB..GEN |
2 | ||
| 90099-14064 |
1RZ..RZN147..RHD..SCB..GEN;2L,3L..LN145,166..RHD..GEN..CBU |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
2L,3L..LN145,166..RHD..GEN;1RZ..RZN147..RHD..SCB..GEN |
2 | ||
| 90099-14064 |
1RZ..RZN147..RHD..SCB..GEN;2L,3L..LN145,166..RHD..GEN..CBU |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15020 |
1RZ#,2RZFE..RZN142,147,148,168,193 12V 1.0KW |
1 | ||
| 28130-15020 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28130-15020 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28130-15020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28130-75130 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28130-15020 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28130-75130 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28130-15020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28130-15020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-76060 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.2KW |
1 | ||
| 28140-26070 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA) 12V 1.0KW |
1 | ||
| 28140-26070 |
2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZ,2RZFE..RZN142,147,168,193 12V 1.0KW |
1 | ||
| 28140-76060 |
1RZ,2RZFE..RZN142,147,148,168,193..GEN 12V 1.2KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW,1.4KW |
4 | ||
| 90099-17112 |
1RZ#,2RZFE,3RZF,2Y..RZN14#,154,16#,193,YN140 12V 1.0KW,1.4KW |
4 | ||
| 90099-17112 |
2RZFE..RZN148,168..DLX;1RZ..RZN147..RHD..SCB..GEN 12V 1.0KW,1.4KW |
4 | ||
| 90099-17112 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW,1.4KW |
4 | ||
| 90099-17112 |
2RZFE..RZN148..GEN..IV3;2RZFE..RZN168..SCB..CBU;1RZ..RZN147..RHD..SCB..GEN 12V 1.0KW,1.4KW |
4 | ||
| 28143-76060 |
1RZ..RZN147..RHD..SCB..GEN |
4 | ||
| 90099-17112 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW,1.4KW |
4 | ||
| 90099-17112 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW,1.4KW |
4 | ||
| 90099-17112 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW,1.4KW |
4 | ||
| 28143-76060 |
1RZ..RZN147..RHD..SCB..GEN |
4 | ||
| 90099-17112 |
2RZFE..RZN168..SCB..CBU;1RZ..RZN147..RHD..SCB..GEN 12V 1.0KW,1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-75130 |
2RZFE..RZN168..SCB..CBU;1RZ..RZN147..RHD..SCB..GEN 12V 1.2KW |
1 | ||
| 28150-75070 |
1RZ#,2RZFE..RZN142,147,148,168,193..DLX..(ARL,GCC,GEN,SA) 12V 1.0KW |
1 | ||
| 28150-75070 |
2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZ,2RZFE..RZN142,147,168,193 12V 1.0KW |
1 | ||
| 28150-75130 |
2RZFE..RZN168..SCB..CBU;1RZ,2RZFE..RZN142,147,193..GEN 12V 1.2KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 28159-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28159-10040 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28159-10040 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28159-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28159-55050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28159-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28159-10040 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28159-55050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA) 12V 1.0KW |
1 | ||
| 28160-76060 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.2KW |
1 | ||
| 28160-26071 |
2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZ,2RZFE..RZN142,147,168,193 12V 1.0KW |
1 | ||
| 28160-76060 |
1RZ,2RZFE..RZN142,147,148,168,193..GEN 12V 1.2KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 28253-45020 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28253-45020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28253-45020 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 90099-10196 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28253-45020 |
2RZFE..RZN148,168..DLX..GEN..CBU;1RZ#..RZN147..RHD..(SCB,THSCB)..(ARL,GEN) 12V 1.0KW |
1 | ||
| 28160B - BEARING, STARTER ARMATURE, NO.2 | ||||
| 90099-10113 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 90099-10113 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 90099-10197 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 90099-10113 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 90099-10113 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 28165-26040 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28165-26040 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28165-76070 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28165-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28165-76070 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28165-26040 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28165-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28165-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 28169-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28169-10040 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28169-10040 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28169-55050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28169-10040 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28169-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28169-55050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28169-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 28175-10040 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28175-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28175-10040 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28175-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28175-10040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28175-55050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28175-55050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28175-10040 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-74110 |
2L,3L..LN145,166..RHD..GEN;1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28199-74110 |
1RZ..RZN147..RHD..SCB..GEN;2L,3L..LN145,166..RHD..GEN..CBU |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-70040 |
1RZ#,2RZFE..RZN142,147,148,168,193 12V 1.0KW |
1 | ||
| 28226-70040 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28226-70040 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28226-22050 |
1RZ..RZN147..RHD..SCB..GEN 12V 1.2KW |
1 | ||
| 28226-70040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28226-70040 |
2RZFE..RZN148,168..DLX..GEN..CBU;1RZ#..RZN147..RHD..(SCB,THSCB)..(ARL,GEN) 12V 1.0KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
3RZF..RZN149..SR..GEN;3RZF..RZN169..LHD..GEN;1RZ#,2RZFE..RZN142,147,148,168,193 12V 1.0KW,2.0KW |
1 | ||
| 28226-72010 |
1RZ#,2RZFE..RZN142,147,148,168,193 12V 1.0KW,2.0KW |
1 | ||
| 28226-72010 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW,2.0KW |
1 | ||
| 28226-72010 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW,2.0KW |
1 | ||
| 28226-72010 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW,2.0KW |
1 | ||
| 28226-72010 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW,2.0KW |
1 | ||
| 28226-72010 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW,2.0KW |
1 | ||
| 28226-74070 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28226-74070 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28226-72010 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW,2.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
3RZFE..RZN169..ARL,SA;1RZ..RZN147..RHD..SCB;2L..LN145..RHD..(GEN,SA);5LE,1RZE,2RZFE,3RZFE..LN152,167,192,RZN147,148,149,168..DLX..(ARL,GEN,SA);1KZTE,2L,3L,5LE,1RZ,3RZFE..KZN165,190,LN140,147,166,172,RZN142,154,174,194..RHD |
5 | ||
| 28228-26040 |
2L,5L#..LN145,152,167..ARL,GEN,SA;1KZTE,2L,3L,5LE..KZN165,190,LN140,141,146,147,166,17#;3L,5L#,1RZ#,2RZFE,3RZ#,2Y..LN19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN,SA) |
5 | ||
| 28228-26040 |
1KZTE,2L,3L,5L,1RZ#,2RZFE,3RZ#,2Y..KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA |
5 | ||
| 28228-26040 |
2RZFE..RZN168..SCB..CBU;1RZ..RZN147..RHD..SCB..GEN;2L,3L..LN145,166..RHD..GEN..CBU |
5 | ||
| 28228-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU;2L,3L..LN145,166..RHD..GEN..CBU |
5 | ||
| 28228-26040 |
3RZFE..RZN169..SA;1RZ..RZN147..RHD..SCB;2RZFE,3RZFE..RZN148,149,168..DLX..GEN;1KZTE,2L,3L,5LE,1RZ,3RZFE..KZN165,190,LN140,145,16#,192,RZN142,194..RHD..(GEN,SA) |
5 | ||
| 28228-26040 |
2L,3L..LN145,166..RHD..GEN;1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
5 | ||
| 28228-26040 |
2L,3L..LN145,166..RHD..GEN;1RZ..RZN147..RHD..SCB..GEN |
5 | ||
| 28228-26040 |
3RZFE..RZN169..SA;1RZ..RZN147..RHD..SCB;2RZFE,3RZFE..RZN148,149,168..DLX..GEN;1KZTE,2L,3L,5LE,1RZ,3RZFE..KZN165,190,LN140,145,16#,192,RZN142,194..RHD..(GEN,SA) |
5 | ||
| 28228-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU;2L,3L..LN145,166..RHD..GEN..CBU |
5 | ||
| 28228-26040 |
2L,3L,5L,1RZ#,2RZFE,3RZ#,2Y..LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140 |
5 | ||
| 28228-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU;2L,3L..LN145,166..RHD..GEN..CBU |
5 | ||
| 28228-26040 |
1RZ..RZN147..RHD..SCB..GEN;2L,3L..LN145,166..RHD..GEN..CBU |
5 | ||
| 28228-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU;2L,3L..LN145,166..RHD..GEN..CBU |
5 | ||
| 28228-26040 |
2RZFE..RZN148..GEN..IV3;2RZFE..RZN168..SCB..CBU;2L,3L..LN145,166..RHD..GEN;1RZ..RZN147..RHD..SCB..GEN |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 28229-26040 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28229-26040 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28229-26040 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28229-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28229-74070 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28229-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28229-26040 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28229-74070 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28235-35080 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 28235-55050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28235-55050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28235-35080 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| 28235-35080 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28235-35080 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28235-35080 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28235-35080 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
1RZ#,2RZFE,2Y..RZN142,147,148,168,193,YN140 12V 1.0KW |
1 | ||
| 28254-45020 |
1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX 12V 1.0KW |
1 | ||
| 28254-45020 |
2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB 12V 1.0KW |
1 | ||
| 28254-74070 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28254-45020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU 12V 1.0KW |
1 | ||
| 28254-74070 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 28254-45020 |
2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX 12V 1.0KW |
1 | ||
| 28254-45020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU 12V 1.0KW |
1 | ||
| 28254-45020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90099-00270 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-04474 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08204 | ||||
| 91612-61055 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
