RZN147R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006
Engine 1RZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )1RZ

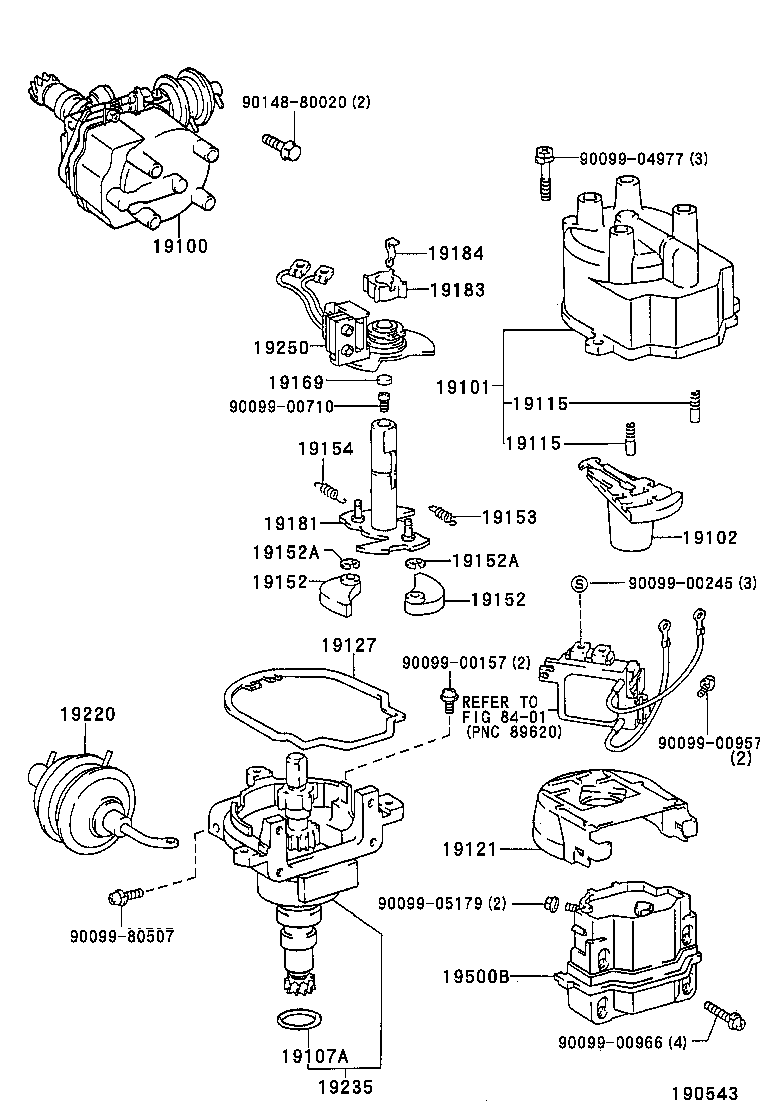

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19115 19121 19127 19152 19152 19152A 19152A 19153 19154 19169 19181 19183 19184 19220 19235 19250 19500B 8401 9009900157 9009900245 9009900710 9009900957 9009900966 9009904977 9009905179 9009980507 9014880020
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19020-75080

1RZ..RZN142,147

 1
19020-75081

1RZ..RZN142,147

 1
19020-75081

1RZ..RZN142,147

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-75010

1RZ#..RZN142,147

 1
19101-75010

1RZ#..RZN142,147

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11370

1RZ..RZN142,147

 1
19102-16010

1RZ#..RZN142,147;3RZF..RZN169..GCC

 1
19102-16010

1RZ#..RZN142,147

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14091

1RZ#..RZN142,147

 1
90099-14091

1RZ#..RZN142,147

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

1RZ#,3RZF..RZN142,144,147,149,154,169

 2
19115-63010

3RZF..RZN169..GCC;3RZF..RZN169..RHD;1RZ#,3RZF..RZN142,144,147,149,154

 2
19115-63010

1RZ#..RZN142,147

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

1RZ#,3RZF..RZN142,144,147,149,154,169

 2
19115-63010

3RZF..RZN169..GCC;3RZF..RZN169..RHD;1RZ#,3RZF..RZN142,144,147,149,154

 2
19115-63010

1RZ#..RZN142,147

 2
19121 - COVER, DUST PROOF
19121-11080

1RZ#,3RZF..RZN142,144,147,149,154,169

 1
19121-11080

3RZF..RZN169..GCC;3RZF..RZN169..RHD;1RZ#,3RZF..RZN142,144,147,149,154

 1
19121-11080

1RZ#..RZN142,147

 1
19127 - PACKING, DUST PROOF
19127-15120

3RZF..RZN169..GCC;3RZF..RZN169..RHD;1RZ#,3RZF..RZN142,144,147,149,154

 1
19127-15120

1RZ#..RZN142,147

 1
19127-15120

1RZ#,3RZF..RZN142,144,147,149,154,169

 1
19152 - WEIGHT, GOVERNOR
19152-15160

1RZ,3RZF..RZN142,144,147,149,154,169

 2
19152-15160

1RZ..RZN142,147

 2
19152-15160

3RZF..RZN169..GCC;3RZF..RZN169..RHD;1RZ,3RZF..RZN142,144,147,149,154

 2
19152 - WEIGHT, GOVERNOR
19152-15160

1RZ,3RZF..RZN142,144,147,149,154,169

 2
19152-15160

1RZ..RZN142,147

 2
19152-15160

3RZF..RZN169..GCC;3RZF..RZN169..RHD;1RZ,3RZF..RZN142,144,147,149,154

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122

1RZ..RZN142,147

 2
90099-07122

1RZ..RZN142,147

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122

1RZ..RZN142,147

 2
90099-07122

1RZ..RZN142,147

 2
19153 - SPRING, GOVERNOR, A
19153-75020

1RZ..RZN142,147

 1
19153-75020

1RZ..RZN142,147

 1
19154 - SPRING, GOVERNOR, B
19154-75020

1RZ..RZN142,147

 1
19154-75020

1RZ..RZN142,147

 1
19169 - STOPPER, CAM GREASE
19169-63011

1RZ,3RZF..RZN142,144,147,149,154,169

 1
19169-63011

3RZF..RZN169..GCC;3RZF..RZN169..RHD;1RZ,3RZF..RZN142,144,147,149,154

 1
19169-63011

1RZ..RZN142,147

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-75010

1RZ..RZN147..RHD..SCB..GEN

 1
19181-75010

1RZ..RZN142,147

 1
19181-75010

1RZ..RZN142,147

 1
19181-75010

1RZ..RZN147..RHD..SCB..GEN

 1
19183 - ROTOR, SIGNAL
19183-15010

1RZ..RZN142,147

 1
19183-15010

1RZ..RZN142,147

 1
19184 - SPRING, ROTOR SET
19184-63010

3RZF..RZN169..GCC;3RZF..RZN169..RHD;1RZ,3RZF..RZN142,144,147,149,154

 1
19184-63010

1RZ,3RZF..RZN142,144,147,149,154,169

 1
19184-63010

1RZ..RZN142,147

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-75100

1RZ..RZN142,147

 1
19220-75100

1RZ..RZN142,147

 1
19235 - HOUSING, DISTRIBUTOR
19235-75040

1RZ..RZN142,147

 1
19235-75040

1RZ..RZN142,147

 1
19250 - GENERATOR ASSY, SIGNAL
19251-16100

3RZF..RZN169..GCC;3RZF..RZN169..RHD;1RZ,3RZF..RZN142,144,147,149,154

 1
19251-16100

1RZ..RZN142,147

 1
19251-16100

1RZ,3RZF..RZN142,144,147,149,154,169

 1
19500B - COIL ASSY, IGNITION
90919-02164

1RZ#..RZN142,147

 1
90919-02164

1RZ#..RZN142,147

 1
Common parts
90099-00157
90099-00245
90099-00710
90099-00957
90099-00966
90099-04977
90099-05179
90099-80507
90148-80020
Linked diagrams
8401
