RZN147R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006
Engine 1RZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )1RZ..GEN

Click highlighted areas on diagram

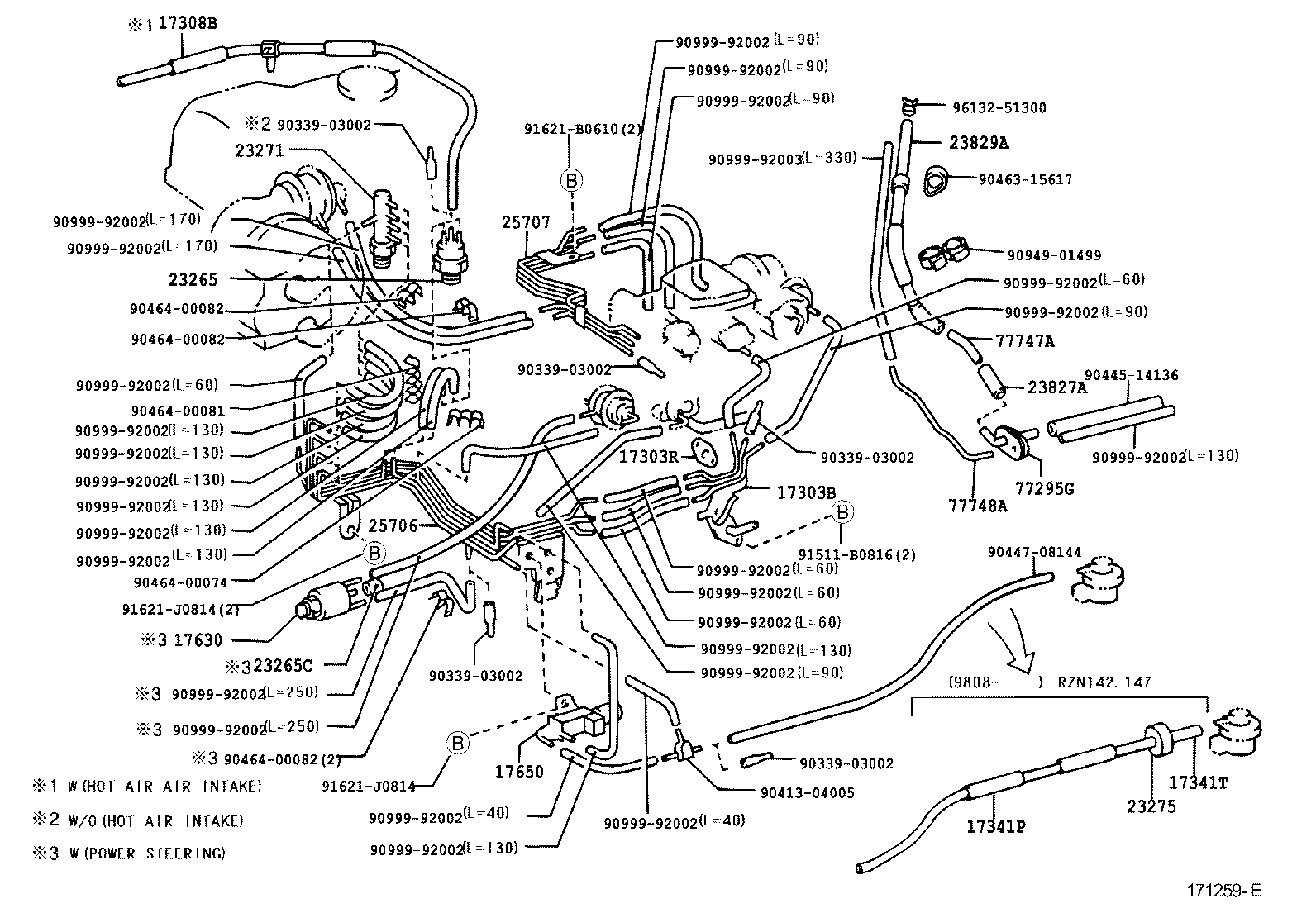

diagram 17303B 17303R 17308B 17341P 17341T 17630 17650 23265 23265C 23271 23275 23827A 23829A 25706 25707 77295G 77747A 77748A 9033903002 9033903002 9033903002 9033903002 9033903002 9041304005 9044514136 9044708144 9046315617 9046400074 9046400081 9046400082 9046400082 9046400082 9094901499 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 91511B0816 91621B0610 91621J0814 91621J0814 9613251300
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-75030

1RZ..RZN142,147

 1
17303-75030

1RZ..RZN142,147..GCC,GEN

 1
17303-75030

1RZ..RZN142,147..GCC,GEN

 1
17303-75030

1RZ..RZN142,147

 1
17303R - GASKET(FOR AIR PIPE)
17376-75010

1RZ..RZN142,147

 1
17376-75010

1RZ..RZN142,147..GCC,GEN

 1
17376-75010

1RZ..RZN142,147

 1
17376-75010

1RZ..RZN142,147..GCC,GEN

 1
17341P - HOSE, AIR
17341-75100

1RZ..RZN142,147

 1
17341-75100

1RZ..RZN142,147..GEN

 1
17341T - HOSE, AIR, NO.1
90999-92002

1RZ..RZN142,147..GEN

 1
90999-92002

1RZ..RZN142,147

 1
17630 - VALVE ASSY, AIR CONTROL
17630-28020

1RZ..RZN147;1RZ..RZN142..LHD

 1
17630-28020

1RZ..RZN142,147..GEN

 1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-75170

1RZ..RZN142,147

 1
25860-75170

1RZ..RZN142,147..GCC,GEN

 1
25860-75170

1RZ..RZN142,147..GCC,GEN

 1
25860-75170

1RZ..RZN142,147

 1
23265 - FILTER, GAS, NO.1
90917-11041

1RZ#,3RZF..RZN142,144,147,149,154,169

 1
90917-11041

1RZ..RZN142,147..GEN

 1
23265C - FILTER, GAS
90925-06007

1RZ..RZN147;1RZ..RZN142..LHD

 1
90925-06007

1RZ..RZN142,147..GCC,GEN

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02082

1RZ..RZN142,147..GCC,GEN

 1
90925-02082

1RZ..RZN142,147

 1
90925-02082

1RZ,3RZF..RZN142,144,147,149,154,169

 1
90925-02082

3RZF..RZN169..GCC;3RZF..RZN169..RHD;1RZ,3RZF..RZN142,144,147,149,154

 1
90925-02082

1RZ..RZN142,147..GCC,GEN

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-04006

1RZ..RZN142,147

 1
90925-04006

1RZ..RZN142,147..GEN

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-75170

1RZ,3RZF..RZN142,144,147,149,154,169..GCC,GEN

 1
23827-75100

1RZ,3RZF..RZN142,144,147,149,154,169

 1
23827-75170

1RZ..RZN142,147..GEN

 1
23827-75170

3RZF..RZN169..GCC;3RZF..RZN169..RHD;1RZ,3RZF..RZN142,144,147,149,154..GCC,GEN

 1
23829A - HOSE, FUEL VAPOR FEED
23829-75250

1RZ,3RZF..RZN142,144,147,149,154,169..GCC,GEN

 1
23829-75210

3RZF..RZN149..DLX..GEN;1RZ,3RZF..RZN142,144,154;1RZ,3RZF..RZN147,169..RHD;1RZ,3RZF..RZN147,149,169..GCC

 1
23829-75250

3RZF..RZN169..GCC;3RZF..RZN169..RHD;1RZ,3RZF..RZN142,144,147,149,154..GCC,GEN

 1
23829-75250

1RZ..RZN142,147..GEN

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-75012

1RZ..RZN142,147

 1
25706-75012

1RZ..RZN142,147..GCC,GEN

 1
25706-75012

1RZ..RZN142,147..GCC,GEN

 1
25706-75012

1RZ..RZN142,147

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-75011

1RZ..RZN142,147..GCC,GEN

 1
25707-75011

1RZ..RZN142,147

 1
25707-75011

1RZ..RZN142,147..GCC,GEN

 1
25707-75011

1RZ..RZN142,147

 1
77295G - GROMMET, FUEL HOSE
77295-35200

RZN169..CBR..GCC;RZN169..RHD..CBR;RZN142,144,147,149,154..CBR..(GCC,GEN)

 1
77295-35200

RZN142,144,147,149,154,169..GCC,GEN

 1
77295-35190

RZN142,144,147,149,154,169..CBR

 1
77295-35200

RZN142,147..GEN

 1
77747A - TUBE, CHARCOAL CANISTER, NO.1
77747-35030

RZN169..CBR..GCC;RZN169..RHD..CBR;RZN142,144,147,149,154..CBR..(GCC,GEN)

 1
77747-35030

RZN142,144,147,149,154,169..GCC,GEN

 1
77747-35030

RZN142,147..GEN

 1
77747-35020

RZN142,144,147,149,154,169..CBR

 1
77748A - TUBE, CHARCOAL CANISTER, NO.2
77748-35020

RZN142,144,147,149,154,169..CBR

 1
77748-35030

RZN142,144,147,149,154,169..GCC,GEN

 1
77748-35030

RZN142,147..GEN

 1
77748-35030

RZN169..CBR..GCC;RZN169..RHD..CBR;RZN142,144,147,149,154..CBR..(GCC,GEN)

 1
Common parts
90339-03002
90413-04005
90445-14136
90447-08144
90463-15617
90464-00074
90464-00081
90464-00082
90949-01499
90999-92002
90999-92003
91511-B0816
91621-B0610
91621-J0814
96132-51300

(9708-0108)2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA ; (9808-0009)5L..LN157 ;

Click highlighted areas on diagram

diagram 25706 25760 25860 25860 25860 2606 4301 88031R 88031R 88892S 9017906204 9041304008 9041304008 9044508331 9044704027 9044704056 9044704056 9046400369 9092901366 9092901386 9092901386 9099992002 9099992002 9099992002 9099992002 9099992002 91611B0616 9162140812 9162261014 9541340033 9541340033 9541349933 9541349936
Part # Description Qty Price
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-75012

1RZ..RZN142,147

 1
25706-75012

1RZ..RZN142,147..GCC,GEN

 1
25706-75012

1RZ..RZN142,147..GCC,GEN

 1
25706-75012

1RZ..RZN142,147

 1
Common parts
90179-06204
90413-04008
90445-08331
90447-04027
90447-04056
90464-00369
90929-01366
90929-01386
90999-92002
91611-B0616
91621-40812
91622-61014
95413-40033
95413-49933
95413-49936
Linked diagrams
2606
4301

(9708- )1RZ..RZN147..GEN

Click highlighted areas on diagram

CHINA SPEC

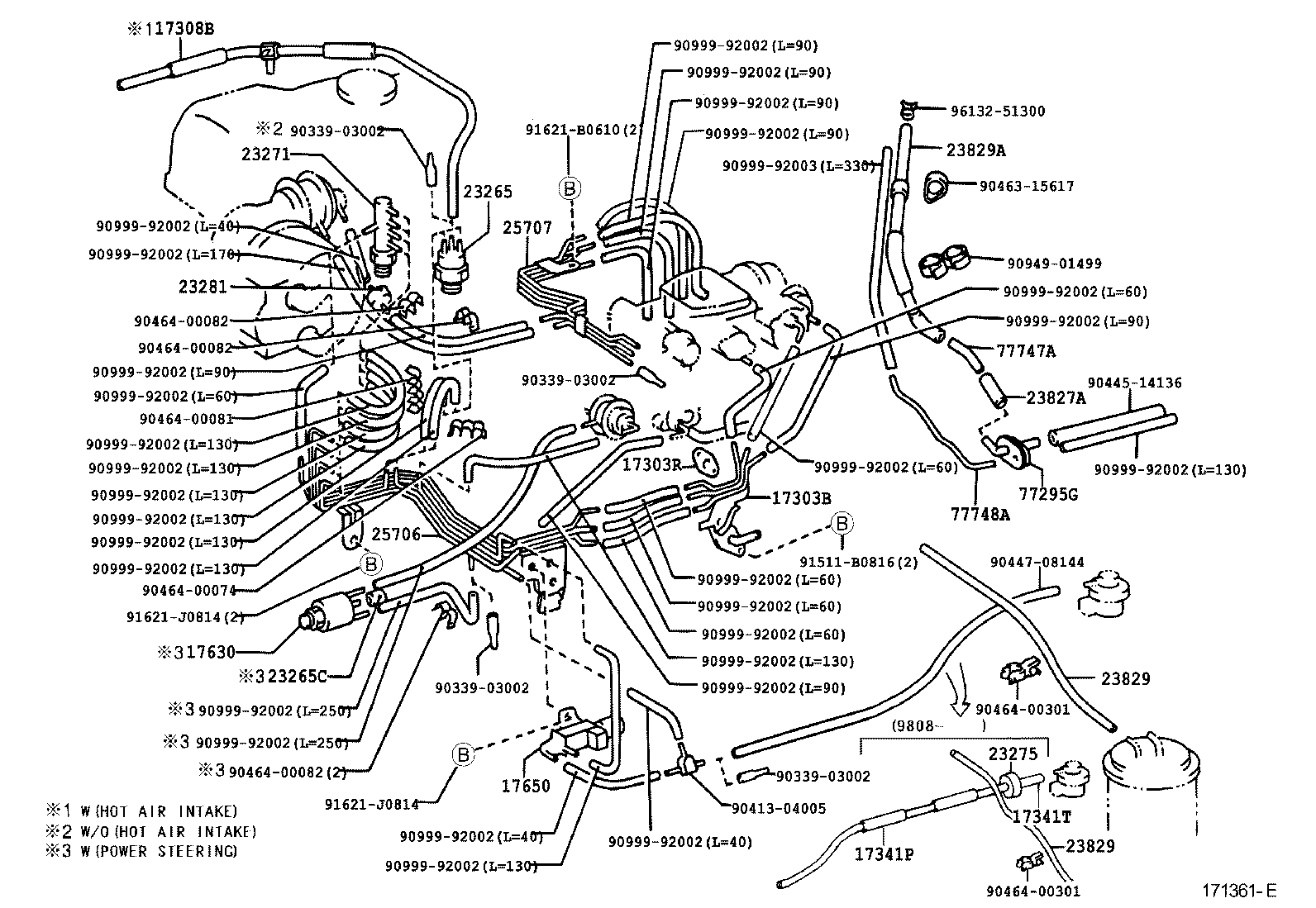

diagram 17303B 17303R 17308B 17341P 17341T 17630 17650 23265 23265C 23271 23275 23281 23827A 23829 23829 23829A 25706 25707 77295G 77747A 77748A 9033903002 9033903002 9033903002 9033903002 9041304005 9044514136 9044708144 9046315617 9046400074 9046400081 9046400082 9046400082 9046400082 9046400301 9046400301 9094901499 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 91511B0816 91621B0610 91621J0814 91621J0814 9613251300
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-75030

1RZ..RZN142,147

 1
17303-75030

1RZ..RZN142,147..GCC,GEN

 1
17303-75030

1RZ..RZN142,147..GCC,GEN

 1
17303-75030

1RZ..RZN142,147

 1
17303R - GASKET(FOR AIR PIPE)
17376-75010

1RZ..RZN142,147

 1
17376-75010

1RZ..RZN142,147..GCC,GEN

 1
17376-75010

1RZ..RZN142,147

 1
17376-75010

1RZ..RZN142,147..GCC,GEN

 1
17341P - HOSE, AIR
17341-75100

1RZ..RZN142,147

 1
17341-75100

1RZ..RZN142,147..GEN

 1
17341T - HOSE, AIR, NO.1
90999-92002

1RZ..RZN142,147..GEN

 1
90999-92002

1RZ..RZN142,147

 1
17630 - VALVE ASSY, AIR CONTROL
17630-28020

1RZ..RZN147;1RZ..RZN142..LHD

 1
17630-28020

1RZ..RZN142,147..GEN

 1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-75170

1RZ..RZN142,147

 1
25860-75170

1RZ..RZN142,147..GCC,GEN

 1
25860-75170

1RZ..RZN142,147..GCC,GEN

 1
25860-75170

1RZ..RZN142,147

 1
23265 - FILTER, GAS, NO.1
90917-11041

1RZ#,3RZF..RZN142,144,147,149,154,169

 1
90917-11041

1RZ..RZN142,147..GEN

 1
23265C - FILTER, GAS
90925-06007

1RZ..RZN147;1RZ..RZN142..LHD

 1
90925-06007

1RZ..RZN142,147..GCC,GEN

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02082

1RZ..RZN142,147..GCC,GEN

 1
90925-02082

1RZ..RZN142,147

 1
90925-02082

1RZ,3RZF..RZN142,144,147,149,154,169

 1
90925-02082

3RZF..RZN169..GCC;3RZF..RZN169..RHD;1RZ,3RZF..RZN142,144,147,149,154

 1
90925-02082

1RZ..RZN142,147..GCC,GEN

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-04006

1RZ..RZN142,147

 1
90925-04006

1RZ..RZN142,147..GEN

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-75170

1RZ,3RZF..RZN142,144,147,149,154,169..GCC,GEN

 1
23827-75100

1RZ,3RZF..RZN142,144,147,149,154,169

 1
23827-75170

1RZ..RZN142,147..GEN

 1
23827-75170

3RZF..RZN169..GCC;3RZF..RZN169..RHD;1RZ,3RZF..RZN142,144,147,149,154..GCC,GEN

 1
23829A - HOSE, FUEL VAPOR FEED
23829-75250

1RZ,3RZF..RZN142,144,147,149,154,169..GCC,GEN

 1
23829-75210

3RZF..RZN149..DLX..GEN;1RZ,3RZF..RZN142,144,154;1RZ,3RZF..RZN147,169..RHD;1RZ,3RZF..RZN147,149,169..GCC

 1
23829-75250

3RZF..RZN169..GCC;3RZF..RZN169..RHD;1RZ,3RZF..RZN142,144,147,149,154..GCC,GEN

 1
23829-75250

1RZ..RZN142,147..GEN

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-75012

1RZ..RZN142,147

 1
25706-75012

1RZ..RZN142,147..GCC,GEN

 1
25706-75012

1RZ..RZN142,147..GCC,GEN

 1
25706-75012

1RZ..RZN142,147

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-75011

1RZ..RZN142,147..GCC,GEN

 1
25707-75011

1RZ..RZN142,147

 1
25707-75011

1RZ..RZN142,147..GCC,GEN

 1
25707-75011

1RZ..RZN142,147

 1
77295G - GROMMET, FUEL HOSE
77295-35200

RZN169..CBR..GCC;RZN169..RHD..CBR;RZN142,144,147,149,154..CBR..(GCC,GEN)

 1
77295-35200

RZN142,144,147,149,154,169..GCC,GEN

 1
77295-35190

RZN142,144,147,149,154,169..CBR

 1
77295-35200

RZN142,147..GEN

 1
77747A - TUBE, CHARCOAL CANISTER, NO.1
77747-35030

RZN169..CBR..GCC;RZN169..RHD..CBR;RZN142,144,147,149,154..CBR..(GCC,GEN)

 1
77747-35030

RZN142,144,147,149,154,169..GCC,GEN

 1
77747-35030

RZN142,147..GEN

 1
77747-35020

RZN142,144,147,149,154,169..CBR

 1
77748A - TUBE, CHARCOAL CANISTER, NO.2
77748-35020

RZN142,144,147,149,154,169..CBR

 1
77748-35030

RZN142,144,147,149,154,169..GCC,GEN

 1
77748-35030

RZN142,147..GEN

 1
77748-35030

RZN169..CBR..GCC;RZN169..RHD..CBR;RZN142,144,147,149,154..CBR..(GCC,GEN)

 1
Common parts
90339-03002
90413-04005
90445-14136
90447-08144
90463-15617
90464-00074
90464-00081
90464-00082
90464-00301
90949-01499
90999-92002
90999-92003
91511-B0816
91621-B0610
91621-J0814
96132-51300
