RZN147R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006
Engine 1RZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )1RZ

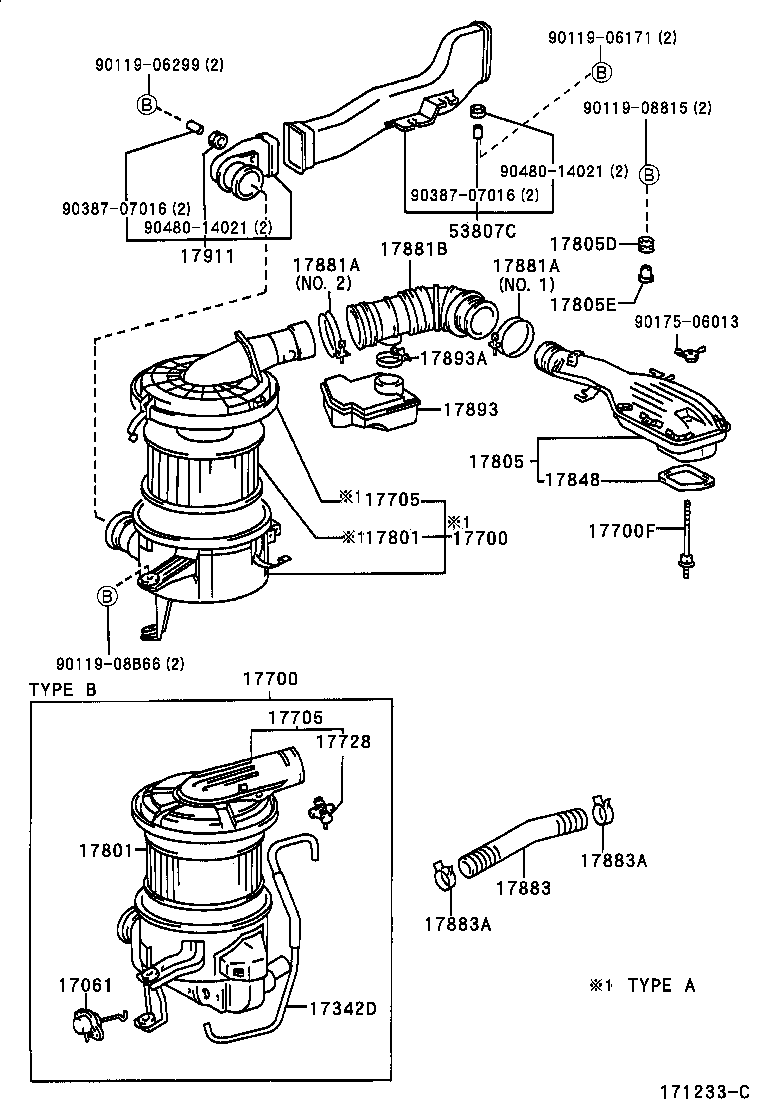

Click highlighted areas on diagram

diagram 17061 17342D 17700 17700 17700F 17705 17705 17728 17801 17801 17805 17805D 17805E 17848 17881A 17881A 17881B 17883 17883A 17883A 17893 17893A 17911 53807C 9011906171 9011906299 9011908815 9011908B66 9017506013 9038707016 9038707016 9048014021 9048014021
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-75260

1RZ..RZN147;1RZ,3RZF..RZN142,144,149,154,169..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
17700-75260

1RZ..RZN147..RHD..SCB..GEN

TYPE A:REFER TO ILLUSTRATION

 1
17700-75260

1RZ..RZN142,147..GEN

TYPE A:REFER TO ILLUSTRATION

 1
17700 - CLEANER ASSY, AIR
17700-75260

1RZ..RZN147;1RZ,3RZF..RZN142,144,149,154,169..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
17700-75260

1RZ..RZN147..RHD..SCB..GEN

TYPE A:REFER TO ILLUSTRATION

 1
17700-75260

1RZ..RZN142,147..GEN

TYPE A:REFER TO ILLUSTRATION

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06024

1RZ..RZN142,147

 1
90116-06024

1RZ..RZN142,147

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-75200

1RZ..RZN147;1RZ,3RZF..RZN142,144,149,154,169..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
17705-75200

1RZ..RZN147..RHD..SCB..GEN

TYPE A:REFER TO ILLUSTRATION

 1
17705-75200

1RZ..RZN142,147..GEN

TYPE A:REFER TO ILLUSTRATION

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-75200

1RZ..RZN147;1RZ,3RZF..RZN142,144,149,154,169..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
17705-75200

1RZ..RZN147..RHD..SCB..GEN

TYPE A:REFER TO ILLUSTRATION

 1
17705-75200

1RZ..RZN142,147..GEN

TYPE A:REFER TO ILLUSTRATION

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-62010

3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD..(SCB,XTR);3RZFE..RZN149,169..(DCB,SCB)..DLX..ARL;2RZFE,3RZFE..RZN148,168,174..(DCB,SCB,XTR)..DLX..CBU;1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193..DCB,SCB,XTR

TYPE A:REFER TO ILLUSTRATION

 1
17801-62010

1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU

TYPE A:REFER TO ILLUSTRATION

 1
17801-62010

1RZ,2RZFE..RZN142,147,148,168,193..DLX..GEN..CBU

TYPE A:REFER TO ILLUSTRATION

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-62010

3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD..(SCB,XTR);3RZFE..RZN149,169..(DCB,SCB)..DLX..ARL;2RZFE,3RZFE..RZN148,168,174..(DCB,SCB,XTR)..DLX..CBU;1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193..DCB,SCB,XTR

TYPE A:REFER TO ILLUSTRATION

 1
17801-62010

1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU

TYPE A:REFER TO ILLUSTRATION

 1
17801-62010

1RZ,2RZFE..RZN142,147,148,168,193..DLX..GEN..CBU

TYPE A:REFER TO ILLUSTRATION

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-75160

1RZ..RZN142,147

 1
17805-75160

1RZ..RZN142,147

 1
17805D - GROMMET(FOR INTAKE AIR CONNECTOR)
90540-12009

1RZ..RZN142,147

 2
90540-12009

1RZ..RZN142,147

 2
17805E - COLLAR(FOR INTAKE AIR CONNECTOR)
90389-09016

1RZ..RZN142,147

 2
90389-09016

1RZ..RZN142,147

 2
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

1RZ..RZN142,147

 1
17848-35010

1RZ,3RZF..RZN142,144,147,149,154,169

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

NO.1

 1
96111-10900

3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

NO.2

 1
96111-10900

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

NO.2

 1
96111-10830

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

NO. 1

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

NO.1

 1
96111-10900

3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

NO.2

 1
96111-10900

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

NO.2

 1
96111-10830

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

NO. 1

 1
17881B - HOSE, AIR CLEANER, NO.1
17881-75110

3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

 1
17881-75110

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

 1
17893 - RESONATOR, INTAKE AIR
17893-75050

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

 1
17893-75050

3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

 1
17893A - CLAMP, HOSE
96111-10480

3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

 1
96111-10480

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-35010

3RZFE..RZN154,169,194..ARL,SA;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

 1
52810-35010

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

 1
52810-35010

1RZ..RZN147..RHD..SCB;3RZFE..RZN169..DCB..SA;3RZFE..RZN169..DLX..SA;1RZ,3RZFE..RZN142,194..SA;2RZFE,3RZFE..RZN148,149,168..DLX..GEN

 1
53807C - DUCT SUB-ASSY, FRONT FENDER AIR, RH
53807-35050

RZN147,174,19#;RZN169..DCB..SA;RZN154,169..DLX..(ARL,SA);RZN142,144,149,154,169..CBR;RZN148,149,168..DLX..EFI..(ARL,GEN)

 1
53807-35050

RZN142,147,148,154,16#,193..GEN..CBU

 1
Common parts
90119-06171
90119-06299
90119-08815
90119-08B66
90175-06013
90387-07016
90480-14021
