RZN147R-TRMDS (1997)
Toyota Hilux

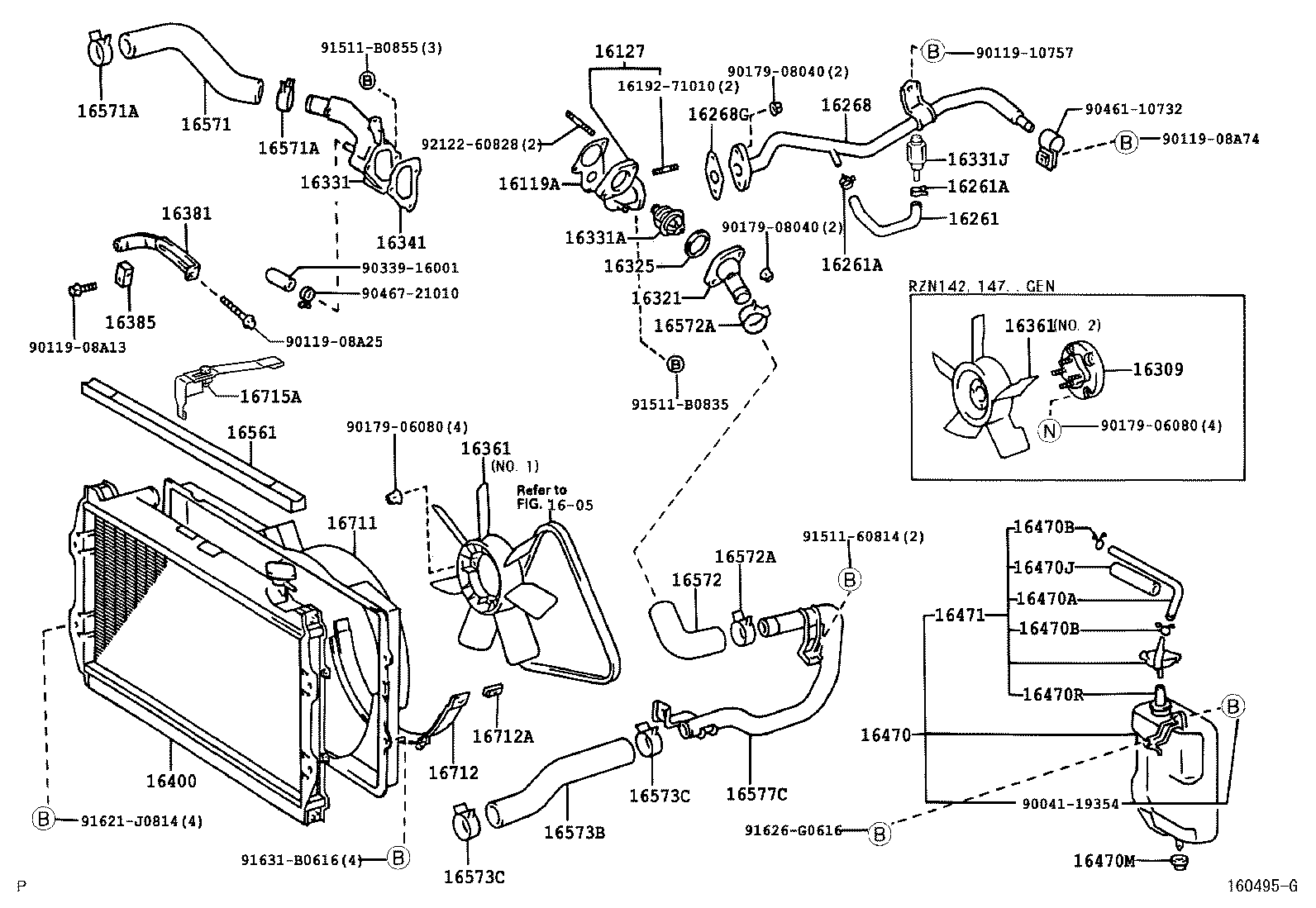

ILLUST NO. 1 OF 2(9708- )1RZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16119A - GASKET, THERMOSTAT GUIDE | ||||
| 16119-75020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 16119-75020 |
2RZFE..RZN148..GEN..CBU;2RZFE,3RZFE..RZN148,149..ARL,CO,GCC;1RZ#,2RZFE,3RZFE..RZN142,144,147,154,16#,174,19# |
1 | ||
| 16119-75020 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 16119-75020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 16127 - PLATE, WATER PUMP THERMOSTAT GUIDE | ||||
| 16127-75020 |
1RZ#..RZN142,147 |
1 | ||
| 16127-75020 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 16127-75020 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 16127-75020 |
1RZ..RZN142,147..GEN |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75010 |
1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN |
1 | ||
| 16261-75010 |
1RZ..RZN142,147..GEN |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
3RZFE..RZN149..GEN;1RZ..RZN147..DCB..SA;3RZFE..RZN194..SADCB;3RZFE..RZN149,169..(THDCB,THSCB)..DLX;1RZ,2RZFE,3RZFE..RZN142,147,148,154,168,174,193..(DCB,SCB,THXTR)..DLX..(ARL,GCC,GEN) |
2 | ||
| 96135-51300 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
3RZFE..RZN149..GEN;1RZ..RZN147..DCB..SA;3RZFE..RZN194..SADCB;3RZFE..RZN149,169..(THDCB,THSCB)..DLX;1RZ,2RZFE,3RZFE..RZN142,147,148,154,168,174,193..(DCB,SCB,THXTR)..DLX..(ARL,GCC,GEN) |
2 | ||
| 96135-51300 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75010 |
1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN |
1 | ||
| 16268-75010 |
1RZ..RZN142,147..GEN |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 17175-75010 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 17175-75010 |
3RZFE..RZN149..GEN;3RZFE..RZN194..SADCB;3RZFE..RZN149..(THDCB,THSCB)..DLX;1RZ,2RZFE,3RZF..RZN142,144,147,149,154,169,193..GCC,GEN;1RZ,3RZFE..RZN147,169..(DCB,THDCB,THSCB)..DLX..(ARL,SA);1RZE,2RZFE,3RZFE..RZN147,148,154,168,174..(DCB,SCB,THSCB,THXTR)..DLX..(ARL,GEN) |
1 | ||
| 16309 - SHAFT SUB-ASSY, FAN DRIVE | ||||
| 16309-75010 |
1RZ..RZN142,147..GEN |
1 | ||
| 16309-75010 |
1RZ..RZN142,147..GEN |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-75010 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 16321-75010 |
1RZ#..RZN142,147 |
1 | ||
| 16321-75010 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 16321-75010 |
1RZ..RZN142,147..GEN |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-76010 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 16325-76010 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 16325-76010 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 16325-76010 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-75010 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 16304-75010 |
1RZ#..RZN142,147 |
1 | ||
| 16304-75010 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 16304-75010 |
1RZ..RZN142,147..GEN |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03101 |
1RZ#,2RZFE,3RZ#..RZN14#,16#,193 *WAX 82-95 |
1 | ||
| 90916-03120 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 *WAX 82-95 |
1 | ||
| 90916-03120 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN *WAX 82-95 |
1 | ||
| 90916-03120 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN *WAX 82-95 |
1 | ||
| 90916-03120 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU *WAX 82-95 |
1 | ||
| 16331J - THERMOSTAT, MANIFOLD | ||||
| 90916-03087 |
1RZ..RZN142,147 |
1 | ||
| 90916-03087 |
1RZ..RZN142,147..GCC,GEN |
1 | ||
| 90916-03087 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 90916-03087 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 90916-03087 |
1RZ..RZN142,147..GCC,GEN |
1 | ||
| 90916-03087 |
1RZ..RZN142,147 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-75010 |
1RZ#..RZN142,147 |
1 | ||
| 16341-75010 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 16341-75010 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 16341-75010 |
1RZ..RZN142,147..GEN |
1 | ||
| 16361 - FAN | ||||
| 16361-44032 |
1RZ..RZN142,147..GEN NO.2 |
1 | ||
| 16361-44032 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 16361-44032 |
1RZ..RZN142,147..GEN |
1 | ||
| 16361 - FAN | ||||
| 16361-44032 |
1RZ..RZN142,147..GEN NO.2 |
1 | ||
| 16361-44032 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 16361-44032 |
1RZ..RZN142,147..GEN |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-75040 |
1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19# |
1 | ||
| 16381-75050 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 16381-75050 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 16381-75050 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 16381-75050 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-75030 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 16385-75030 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 16385-75030 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 16385-75030 |
1RZ..RZN142,147..RHD..SCB;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||

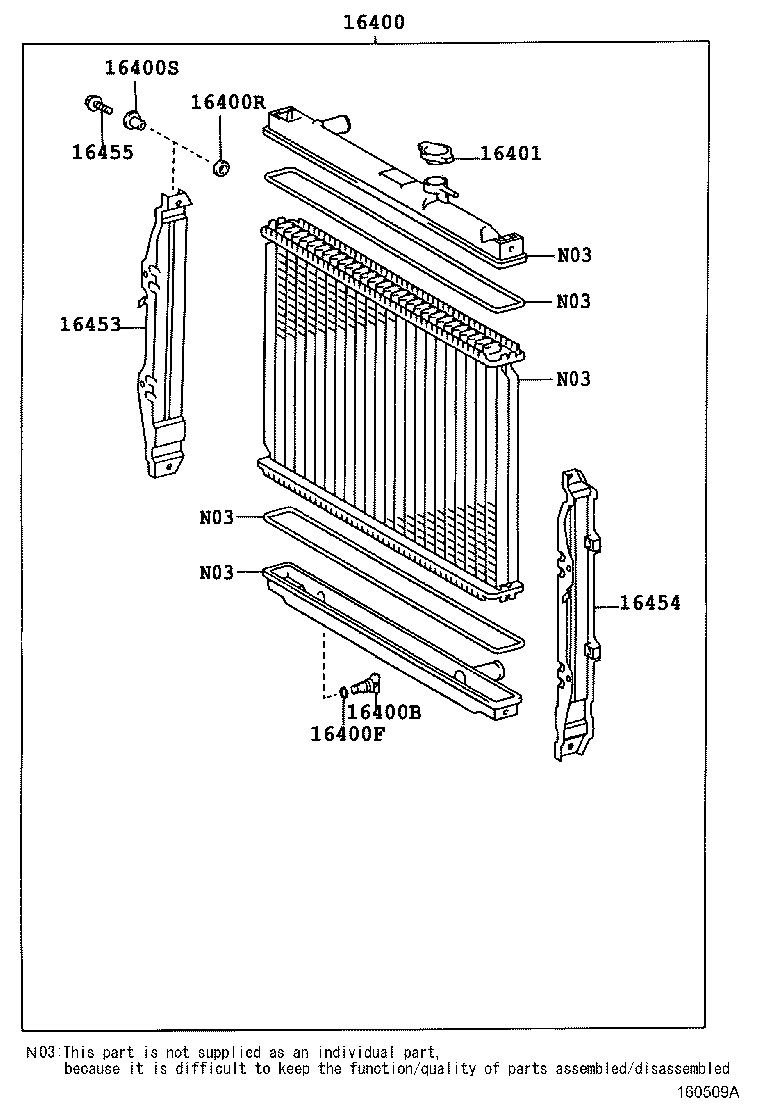

| 16400 - RADIATOR ASSY | ||||
| 16400-75260 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU |
1 | ||
| 16400-75260 |
1RZ,2RZFE..RZN142,147,148,168,193..GEN..CBU |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75060 |
1RZ#..RZN142,147 |
1 | ||
| 16470-75060 |
1RZ#..RZN142,147..DCB,SCB |
1 | ||
| 16470-75060 |
1RZ..RZN142,147..GEN |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12067 |
1RZ#..RZN142,147 L=330 |
1 | ||
| 90445-12067 |
1RZE..RZN147;1RZ..RZN142,147..RHD..SCB L=330 |
1 | ||
| 90445-12067 |
1RZ..RZN142,147..RHD..SCB L=330 |
1 | ||
| 90445-12067 |
1RZ#..RZN147..RHD..(SCB,THSCB)..(ARL,GEN) L=330 |
1 | ||
| 90445-12067 |
1RZ..RZN147..RHD..SCB..GEN L=330 |
1 | ||
| 90445-12067 |
1RZ..RZN147..RHD..SCB..GEN L=330 |
1 | ||
| 90445-12067 |
1RZ..RZN147..RHD..SCB..GEN L=330 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19# |
2 | ||
| 90467-11085 |
3RZFE..RZN169..SA;1RZ..RZN147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX;3RZFE..RZN169..(DCB,SCB)..DLX..ARL;3RZFE..RZN149..(DCB,SCB)..DLX..(ARL,GEN);1RZ,3RZFE..RZN142,154,174,194..RHD..(DCB,SCB,XTR) |
2 | ||
| 90467-11085 |
1RZ..RZN147..RHD..SCB;1RZ,3RZFE..RZN142,169,194..SA;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
2 | ||
| 90467-11085 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
2 | ||
| 90467-11085 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU |
2 | ||
| 90467-11085 |
1RZ#,2RZFE,3RZF..RZN14#,154,16#,193;3RZFE..RZN149,154,169,174,194..DCB,SADCB,SCB,XTR |
2 | ||
| 90467-11085 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU |
2 | ||
| 90467-11085 |
2RZFE..RZN148..DLX..CBU;3RZFE..RZN149,169..(DCB,SCB)..DLX..ARL;1RZ,3RZFE..RZN147,154..RHD..(SCB,XTR)..(ARL,GEN);1RZE,2RZFE,3RZFE..RZN147,168,174..(DCB,SCB,THSCB,XTR)..DLX |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19# |
2 | ||
| 90467-11085 |
3RZFE..RZN169..SA;1RZ..RZN147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX;3RZFE..RZN169..(DCB,SCB)..DLX..ARL;3RZFE..RZN149..(DCB,SCB)..DLX..(ARL,GEN);1RZ,3RZFE..RZN142,154,174,194..RHD..(DCB,SCB,XTR) |
2 | ||
| 90467-11085 |
1RZ..RZN147..RHD..SCB;1RZ,3RZFE..RZN142,169,194..SA;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
2 | ||
| 90467-11085 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
2 | ||
| 90467-11085 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU |
2 | ||
| 90467-11085 |
1RZ#,2RZFE,3RZF..RZN14#,154,16#,193;3RZFE..RZN149,154,169,174,194..DCB,SADCB,SCB,XTR |
2 | ||
| 90467-11085 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU |
2 | ||
| 90467-11085 |
2RZFE..RZN148..DLX..CBU;3RZFE..RZN149,169..(DCB,SCB)..DLX..ARL;1RZ,3RZFE..RZN147,154..RHD..(SCB,XTR)..(ARL,GEN);1RZE,2RZFE,3RZFE..RZN147,168,174..(DCB,SCB,THSCB,XTR)..DLX |
2 | ||
| 16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK) | ||||
| 16478-46020 |
1RZ#..RZN142,147 L=200 |
1 | ||
| 16478-46020 |
1RZE..RZN147;1RZ..RZN142,147..RHD..SCB L=200 |
1 | ||
| 16478-46020 |
1RZ..RZN147..RHD..SCB..GEN L=200 |
1 | ||
| 16478-46020 |
1RZ..RZN147..RHD..SCB..GEN L=200 |
1 | ||
| 16478-46020 |
1RZ#..RZN147..RHD..(SCB,THSCB)..(ARL,GEN) L=200 |
1 | ||
| 16478-46020 |
1RZ..RZN142,147..RHD..SCB L=200 |
1 | ||
| 16478-46020 |
1RZ..RZN147..RHD..SCB..GEN L=200 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-25025 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 90480-25025 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1RZ#,2RZFE,3RZF..RZN14#,154,16#,193;3RZFE..RZN149,154,169,174,194..DCB,SADCB,SCB,XTR *H,L=240 |
1 | ||
| 90445-12078 |
3RZFE..RZN169..SA;1RZ..RZN147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX;3RZFE..RZN169..(DCB,SCB)..DLX..ARL;3RZFE..RZN149..(DCB,SCB)..DLX..(ARL,GEN);1RZ,3RZFE..RZN142,154,174,194..RHD..(DCB,SCB,XTR) *H,L=240 |
1 | ||
| 90445-12078 |
1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19# *H,L=240 |
1 | ||
| 90445-12078 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN *H,L=240 |
1 | ||
| 90445-12078 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU *H,L=240 |
1 | ||
| 90445-12078 |
1RZ..RZN147..RHD..SCB;1RZ,3RZFE..RZN142,169,194..SA;2RZFE,3RZFE..RZN148,149,168..DLX..GEN *H,L=240 |
1 | ||
| 90445-12078 |
2RZFE..RZN148..DLX..CBU;3RZFE..RZN149,169..(DCB,SCB)..DLX..ARL;1RZ,3RZFE..RZN147,154..RHD..(SCB,XTR)..(ARL,GEN);1RZE,2RZFE,3RZFE..RZN147,168,174..(DCB,SCB,THSCB,XTR)..DLX *H,L=240 |
1 | ||
| 90445-12078 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU *H,L=240 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-75050 |
1RZ#..RZN142,147 |
1 | ||
| 16405-75050 |
1RZ#..RZN142,147..DCB,SCB |
1 | ||
| 16405-75050 |
1RZ..RZN142,147..GEN |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-54050 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU PLANT NO.P11 |
1 | ||
| 16561-54010 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN THAILAND PRODUCT |
1 | ||
| 16561-54010 |
3RZFE..RZN169..SA;1RZ..RZN147..RHD..SCB;2RZFE..RZN148..DLX..CBU;3RZFE..RZN149,169..DLX..ARL;1RZE,2RZFE..RZN147,168..DLX;1RZ,3RZFE..RZN142,154,174,194..RHD THAILAND PRODUCT |
1 | ||
| 16561-54050 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU PLANT NO.P11 |
1 | ||
| 16561-54010 |
1RZ..RZN147..RHD..SCB;1RZ,3RZFE..RZN142,169,194..SA;2RZFE,3RZFE..RZN148,149,168..DLX..GEN THAILAND PRODUCT |
1 | ||
| 16561-54010 |
1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19# |
1 | ||
| 16561-54050 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU PLANT NO.P11 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-75090 |
1RZ#..RZN142,147 |
1 | ||
| 16571-75090 |
1RZ#..RZN142,147 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
2 | ||
| 90467-37005 |
2RZFE..RZN148..GEN..CBU;2RZFE,3RZFE..RZN148,149,174..(DCB,SCB,THXTR,XTR)..(ARL,CO,GCC);1RZ#,2RZFE,3RZFE..RZN142,144,147,154,16#,19#..DCB,SCB,THDCB,THSCB,XTR |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
2 | ||
| 90467-37005 |
2RZFE..RZN148..GEN..CBU;2RZFE,3RZFE..RZN148,149,174..(DCB,SCB,THXTR,XTR)..(ARL,CO,GCC);1RZ#,2RZFE,3RZFE..RZN142,144,147,154,16#,19#..DCB,SCB,THDCB,THSCB,XTR |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-75120 |
1RZ#..RZN142,147 |
1 | ||
| 16572-75120 |
1RZ..RZN142,147..GEN |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37005 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
2 | ||
| 90467-37005 |
2RZFE..RZN148..GEN..CBU;2RZFE,3RZFE..RZN148,149..ARL,CO,GCC;1RZ#,2RZFE,3RZFE..RZN142,144,147,154,16#,174,19# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37005 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
2 | ||
| 90467-37005 |
2RZFE..RZN148..GEN..CBU;2RZFE,3RZFE..RZN148,149..ARL,CO,GCC;1RZ#,2RZFE,3RZFE..RZN142,144,147,154,16#,174,19# |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-75020 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);3RZFE..RZN149..DLX..(ARL,GEN);2RZFE,3RZF..RZN148,16#..DLX..GEN;1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,193 |
1 | ||
| 16573-75020 |
2RZFE..RZN148..GEN..CBU;3RZFE..RZN169,174..ARL,GEN,SA;2RZFE,3RZFE..RZN148,149..(DCB,SCB)..(ARL,CO,GCC);1RZ#,2RZFE,3RZFE..RZN142,144,147,154,168,19#..DCB,SCB,THSCB,XTR |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-37005 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
2 | ||
| 90467-37005 |
2RZFE..RZN148..GEN..CBU;2RZFE,3RZFE..RZN148,149,174..(DCB,SCB,THXTR,XTR)..(ARL,CO,GCC);1RZ#,2RZFE,3RZFE..RZN142,144,147,154,16#,19#..DCB,SCB,THDCB,THSCB,XTR |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-37005 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
2 | ||
| 90467-37005 |
2RZFE..RZN148..GEN..CBU;2RZFE,3RZFE..RZN148,149,174..(DCB,SCB,THXTR,XTR)..(ARL,CO,GCC);1RZ#,2RZFE,3RZFE..RZN142,144,147,154,16#,19#..DCB,SCB,THDCB,THSCB,XTR |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-75020 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 16577-75020 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-75080 |
1RZ#..RZN142,147 |
1 | ||
| 16711-75080 |
1RZ..RZN142,147..GEN |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75050 |
1RZ#..RZN142,147 |
1 | ||
| 16712-75050 |
1RZ..RZN142,147..GEN |
1 | ||
| 16712A - CLIP | ||||
| 90468-06092 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
2 | ||
| 90468-06092 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
2 | ||
| Common parts | ||||
| 16192-71010 | ||||
| 90041-19354 | ||||
| 90119-08A13 | ||||
| 90119-08A25 | ||||
| 90119-08A74 | ||||
| 90119-10757 | ||||
| 90179-06080 | ||||
| 90179-08040 | ||||
| 90339-16001 | ||||
| 90461-10732 | ||||
| 90467-21010 | ||||
| 91511-60814 | ||||
| 91511-B0835 | ||||
| 91511-B0855 | ||||
| 91621-J0814 | ||||
| 91626-G0616 | ||||
| 91631-B0616 | ||||
| 92122-60828 | ||||
| Linked diagrams | ||||
| 1605 | ||||
ILLUST NO. 2 OF 2(9708- )1RZ#,2RZFE,3RZ#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-75260 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU |
1 | ||
| 16400-75260 |
1RZ,2RZFE..RZN142,147,148,168,193..GEN..CBU |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 23322-54010 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3RZFE..RZN169,194;1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,193..ARL,GCC,GEN |
1 | ||
| 16492-21050 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU COLOMBIA CKD SPEC |
1 | ||
| 16492-21050 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
2 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-75180 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
2 | ||
| 16444-75180 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-75180 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
2 | ||
| 16445-75180 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-62100 |
3RZFE..RZN169,194;1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,193..ARL,GCC,GEN |
1 | ||
| 16401-5B630 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149,169..DLX..(ARL,SA);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193..ARL,GCC,GEN |
1 | ||
| 16401-5B630 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-75230 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 16453-75230 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-75230 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 16454-75230 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
4 | ||
| 91651-B0820 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
4 | ||
Part Price Details
Loading price information...
Part Number:
Price:
