RZN147R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006
Engine 1RZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )1RZ#

Click highlighted areas on diagram

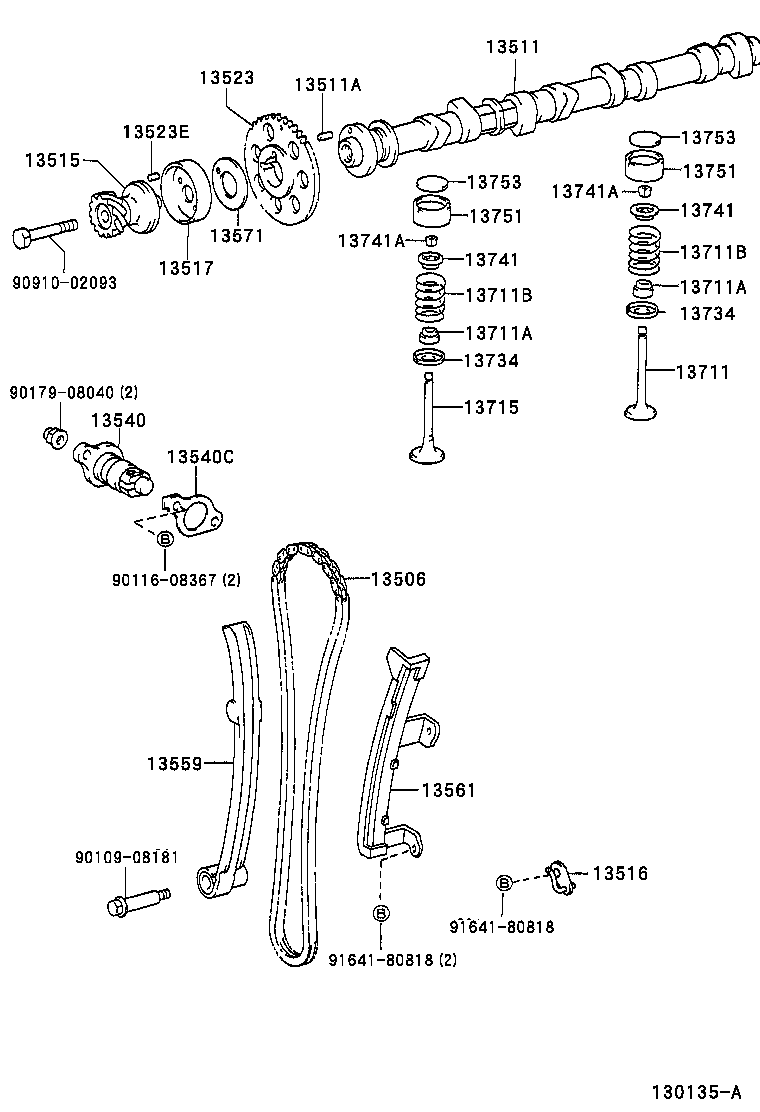

diagram 13506 13511 13511A 13515 13516 13517 13523 13523E 13540 13540C 13559 13561 13571 13711 13711A 13711A 13711B 13711B 13715 13734 13734 13741 13741 13741A 13741A 13751 13751 13753 13753 9010908181 9011608367 9017908040 9091002093 9164180818 9164180818
Part # Description Qty Price
13506 - CHAIN SUB-ASSY
13506-75010

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ,2RZFE..RZN142,147,148,168,193..DLX..(GCC,GEN)

 1
13506-75010

1RZ,2RZFE..RZN142,147,148,168,193..GEN..CBU

 1
13511 - CAMSHAFT
13501-75010

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 1
13501-75010

1RZ..RZN142,147..GEN

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-06068

3RZFE..RZN194..SADCB;1RZ..RZN147..DCB..SA;1RZE,3RZFE..RZN147,154,169,174..DLX..ARL;2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ,2RZFE,3RZF..RZN142,144,147,149,154,169,193..GCC,GEN

L=11,OD=6

 1
90250-06068

1RZ,2RZFE..RZN142,147,148,168,193..GEN..CBU

L=11,OD=6

 1
13515 - GEAR, DISTRIBUTOR DRIVE
13515-75010

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 1
13515-75010

1RZ#..RZN142,147..ARL,GCC,GEN

 1
13515-75010

1RZ#..RZN142,147..ARL,GCC,GEN

 1
13515-75010

1RZ#..RZN142,147

 1
13516 - JET, OIL
13516-75020

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ,2RZFE..RZN142,147,148,168,193..DLX..(GCC,GEN)

 1
13516-75020

1RZ,2RZFE..RZN142,147,148,168,193..GEN..CBU

 1
13517 - CAM, FUEL PUMP DRIVE
13517-37010

1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 1
13517-37010

1RZ..RZN142,147

 1
13517-37010

1RZ..RZN142,147..GCC,GEN

 1
13517-37010

1RZ..RZN142,147..GCC,GEN

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-75010

3RZFE..RZN194..SADCB;1RZ..RZN147..DCB..SA;3RZFE..RZN149..DLX..(ARL,GEN);1RZE,3RZFE..RZN147,154,169,174..DLX..ARL;1RZ,3RZF..RZN142,144,147,149,154,169..GCC,GEN

 1
13523-75010

1RZ..RZN142,147..GEN

 1
13523E - PIN, STRAIGHT(FOR TIMING GEAR)
90250-05021

1RZ#..RZN142,147..ARL,GCC,GEN

 1
90250-05021

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 1
90250-05021

1RZ#..RZN142,147

 1
90250-05021

1RZ#..RZN142,147..ARL,GCC,GEN

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-75020

3RZFE..RZN194..SADCB;1RZ..RZN147..DCB..SA;1RZE,3RZFE..RZN147,154,169,174..DLX..ARL;2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ,2RZFE,3RZF..RZN142,144,147,149,154,169,193..GCC,GEN

 1
13540-75020

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

 1
13540C - GASKET(FOR CHAIN TENSIONER)
13552-75010

3RZFE..RZN194..SADCB;1RZ..RZN147..DCB..SA;1RZE,3RZFE..RZN147,154,169,174..DLX..ARL;2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ,2RZFE,3RZF..RZN142,144,147,149,154,169,193..GCC,GEN

 1
13552-75010

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

 1
13559 - SLIPPER, CHAIN TENSIONER
13559-76010

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ,2RZFE..RZN142,147,148,168,193..DLX..(GCC,GEN)

 1
13559-76010

1RZ,2RZFE..RZN142,147,148,168,193..GEN..CBU

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-76020

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ,2RZFE..RZN142,147,148,168,193..DLX..(GCC,GEN)

 1
13561-76020

1RZ,2RZFE..RZN142,147,148,168,193..GEN..CBU

 1
13711 - VALVE, INTAKE
13711-75020

1RZ..RZN142,147

 4
13711-75021

1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 4
13711-75021

1RZ..RZN142,147..GEN

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02110

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 8
90913-02110

1RZ..RZN142,147..GEN

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02110

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 8
90913-02110

1RZ..RZN142,147..GEN

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-45033

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 8
90501-45033

1RZ..RZN142,147..GEN

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-45033

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 8
90501-45033

1RZ..RZN142,147..GEN

 8
13715 - VALVE, EXHAUST
13715-75020

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 4
13715-75020

1RZ..RZN142,147..GEN

 4
13734 - SEAT, VALVE SPRING
13734-75010

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 8
13734-75010

1RZ..RZN142,147..GEN

 8
13734 - SEAT, VALVE SPRING
13734-75010

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 8
13734-75010

1RZ..RZN142,147..GEN

 8
13741 - RETAINER, VALVE SPRING
13741-43010

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 8
13741-43010

1RZ..RZN142,147..GEN

 8
13741 - RETAINER, VALVE SPRING
13741-43010

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 8
13741-43010

1RZ..RZN142,147..GEN

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03014

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 16
90913-03014

1RZ..RZN142,147..GEN

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03014

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 16
90913-03014

1RZ..RZN142,147..GEN

 16
13751 - LIFTER, VALVE
13751-64011

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 8
13751-64011

1RZ..RZN142,147..GEN

 8
13751 - LIFTER, VALVE
13751-64011

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

 8
13751-64011

1RZ..RZN142,147..GEN

 8
13753 - SHIM, VALVE ADJUSTING
13753-65620

1RZ#..RZN142,147

T=2.30

 8
13753-65640

1RZ#..RZN142,147

T=2.35

 8
13753-65660

1RZ#..RZN142,147

T=2.40

 8
13753-65600

1RZ#..RZN142,147

T=2.25

 8
13753-65700

1RZ#..RZN142,147

T=2.50

 8
13753-6B030

1RZ#..RZN142,147

T=3.05

 8
13753-65780

1RZ#..RZN142,147

T=2.70

 8
13753-65680

1RZ#..RZN142,147

T=2.45

 8
13753-65800

1RZ#..RZN142,147

T=2.75

 8
13753-65880

1RZ#..RZN142,147

T=2.95

 8
13753-65720

1RZ#..RZN142,147

T=2.55

 8
13753-65740

1RZ#..RZN142,147

T=2.60

 8
13753-6B090

1RZ#..RZN142,147

T=3.20

 8
13753-6B070

1RZ#..RZN142,147

T=3.15

 8
13753-65820

1RZ#..RZN142,147

T=2.80

 8
13753-65840

1RZ#..RZN142,147

T=2.85

 8
13753-6B170

1RZ#..RZN142,147

T=3.40

 8
13753-65860

1RZ#..RZN142,147

T=2.90

 8
13753-6B050

1RZ#..RZN142,147

T=3.10

 8
13753-6B010

1RZ#..RZN142,147

T=3.00

 8
13753-65760

1RZ#..RZN142,147

T=2.65

 8
13753-6B130

1RZ#..RZN142,147

T=3.30

 8
13753-6B110

1RZ#..RZN142,147

T=3.25

 8
13753-6B150

1RZ#..RZN142,147

T=3.35

 8
13753-65600

1RZ..RZN142,147..GEN

T=2.25

 8
13753-65660

1RZ..RZN142,147..GEN

T=2.40

 8
13753-65640

1RZ..RZN142,147..GEN

T=2.35

 8
13753-65780

1RZ..RZN142,147..GEN

T=2.70

 8
13753-65700

1RZ..RZN142,147..GEN

T=2.50

 8
13753-65680

1RZ..RZN142,147..GEN

T=2.45

 8
13753-65800

1RZ..RZN142,147..GEN

T=2.75

 8
13753-6B030

1RZ..RZN142,147..GEN

T=3.05

 8
13753-6B050

1RZ..RZN142,147..GEN

T=3.10

 8
13753-65860

1RZ..RZN142,147..GEN

T=2.90

 8
13753-65840

1RZ..RZN142,147..GEN

T=2.85

 8
13753-6B010

1RZ..RZN142,147..GEN

T=3.00

 8
13753-65880

1RZ..RZN142,147..GEN

T=2.95

 8
13753-65740

1RZ..RZN142,147..GEN

T=2.60

 8
13753-6B150

1RZ..RZN142,147..GEN

T=3.35

 8
13753-6B130

1RZ..RZN142,147..GEN

T=3.30

 8
13753-65620

1RZ..RZN142,147..GEN

T=2.30

 8
13753-6B070

1RZ..RZN142,147..GEN

T=3.15

 8
13753-6B170

1RZ..RZN142,147..GEN

T=3.40

 8
13753-65820

1RZ..RZN142,147..GEN

T=2.80

 8
13753-6B090

1RZ..RZN142,147..GEN

T=3.20

 8
13753-65720

1RZ..RZN142,147..GEN

T=2.55

 8
13753-6B110

1RZ..RZN142,147..GEN

T=3.25

 8
13753-65760

1RZ..RZN142,147..GEN

T=2.65

 8
13753 - SHIM, VALVE ADJUSTING
13753-65620

1RZ#..RZN142,147

T=2.30

 8
13753-65640

1RZ#..RZN142,147

T=2.35

 8
13753-65660

1RZ#..RZN142,147

T=2.40

 8
13753-65600

1RZ#..RZN142,147

T=2.25

 8
13753-65700

1RZ#..RZN142,147

T=2.50

 8
13753-6B030

1RZ#..RZN142,147

T=3.05

 8
13753-65780

1RZ#..RZN142,147

T=2.70

 8
13753-65680

1RZ#..RZN142,147

T=2.45

 8
13753-65800

1RZ#..RZN142,147

T=2.75

 8
13753-65880

1RZ#..RZN142,147

T=2.95

 8
13753-65720

1RZ#..RZN142,147

T=2.55

 8
13753-65740

1RZ#..RZN142,147

T=2.60

 8
13753-6B090

1RZ#..RZN142,147

T=3.20

 8
13753-6B070

1RZ#..RZN142,147

T=3.15

 8
13753-65820

1RZ#..RZN142,147

T=2.80

 8
13753-65840

1RZ#..RZN142,147

T=2.85

 8
13753-6B170

1RZ#..RZN142,147

T=3.40

 8
13753-65860

1RZ#..RZN142,147

T=2.90

 8
13753-6B050

1RZ#..RZN142,147

T=3.10

 8
13753-6B010

1RZ#..RZN142,147

T=3.00

 8
13753-65760

1RZ#..RZN142,147

T=2.65

 8
13753-6B130

1RZ#..RZN142,147

T=3.30

 8
13753-6B110

1RZ#..RZN142,147

T=3.25

 8
13753-6B150

1RZ#..RZN142,147

T=3.35

 8
13753-65600

1RZ..RZN142,147..GEN

T=2.25

 8
13753-65660

1RZ..RZN142,147..GEN

T=2.40

 8
13753-65640

1RZ..RZN142,147..GEN

T=2.35

 8
13753-65780

1RZ..RZN142,147..GEN

T=2.70

 8
13753-65700

1RZ..RZN142,147..GEN

T=2.50

 8
13753-65680

1RZ..RZN142,147..GEN

T=2.45

 8
13753-65800

1RZ..RZN142,147..GEN

T=2.75

 8
13753-6B030

1RZ..RZN142,147..GEN

T=3.05

 8
13753-6B050

1RZ..RZN142,147..GEN

T=3.10

 8
13753-65860

1RZ..RZN142,147..GEN

T=2.90

 8
13753-65840

1RZ..RZN142,147..GEN

T=2.85

 8
13753-6B010

1RZ..RZN142,147..GEN

T=3.00

 8
13753-65880

1RZ..RZN142,147..GEN

T=2.95

 8
13753-65740

1RZ..RZN142,147..GEN

T=2.60

 8
13753-6B150

1RZ..RZN142,147..GEN

T=3.35

 8
13753-6B130

1RZ..RZN142,147..GEN

T=3.30

 8
13753-65620

1RZ..RZN142,147..GEN

T=2.30

 8
13753-6B070

1RZ..RZN142,147..GEN

T=3.15

 8
13753-6B170

1RZ..RZN142,147..GEN

T=3.40

 8
13753-65820

1RZ..RZN142,147..GEN

T=2.80

 8
13753-6B090

1RZ..RZN142,147..GEN

T=3.20

 8
13753-65720

1RZ..RZN142,147..GEN

T=2.55

 8
13753-6B110

1RZ..RZN142,147..GEN

T=3.25

 8
13753-65760

1RZ..RZN142,147..GEN

T=2.65

 8
Common parts
90109-08181
90116-08367
90179-08040
90910-02093
91641-80818
