RZN147R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006
Engine 1RZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )1RZ#,2RZFE,3RZ#

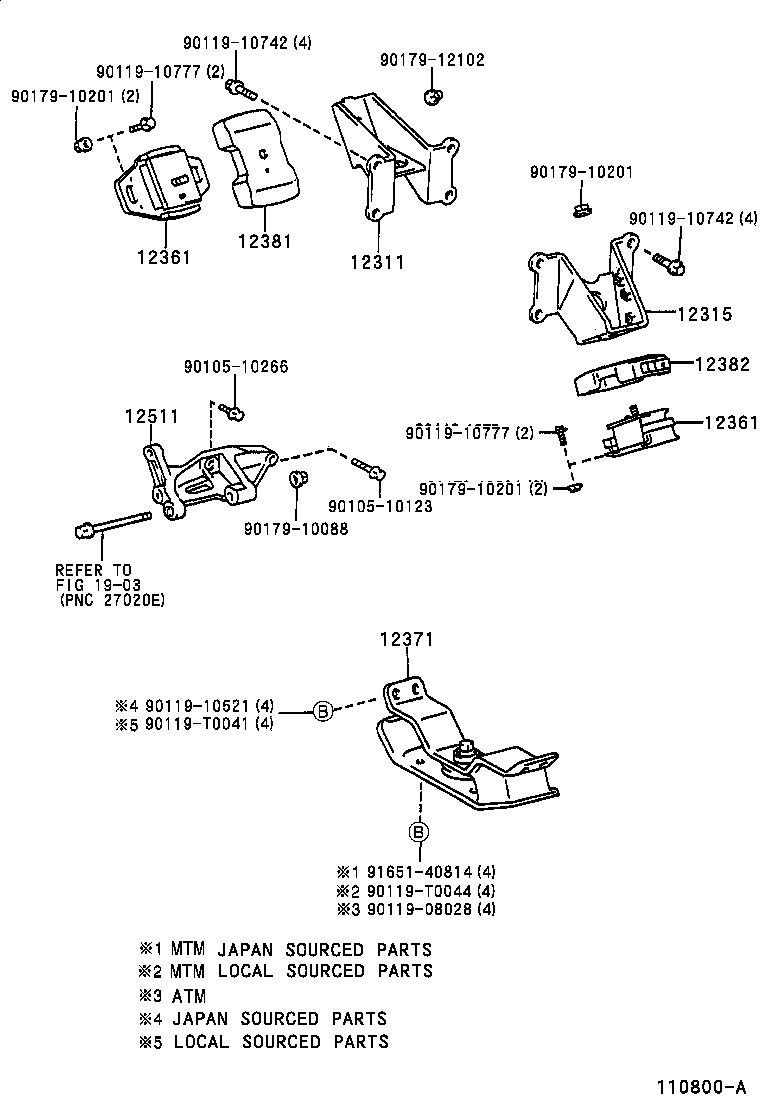

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12382 12511 1903 9010510123 9010510266 9011908028 9011910521 9011910742 9011910742 9011910777 9011910777 90119T0041 90119T0044 9017910088 9017910201 9017910201 9017910201 9017912102 9165140814
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-75080

1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN

 1
12311-75080

3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

 1
12311-75080

1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN

 1
12311-75080

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-75070

3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

 1
12315-75070

1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN

 1
12315-75070

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

 1
12315-75070

1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35090

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

 2
12361-35090

3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35090

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

 2
12361-35090

3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-75050

3RZFE..RZN154..MTM..ARL;1RZ#,3RZF..RZN142,144,147,149,154;2RZFE,3RZFE..RZN148,149..MTM..DLX..(ARL,GEN)

 1
12371-75050

2RZFE..RZN148..DLX..GEN;1RZ..RZN142,147..RHD..SCB

 1
12371-75050

1RZ,2RZFE,3RZFE..RZN142,147,148,154..GEN..CBU

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-75020

3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

 1
12381-75020

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

 1
12382 - STABILIZER, ENGINE MOUNTING, LH
12382-75020

3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

 1
12382-75020

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-75041

1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN

 1
12511-75041

3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

 1
12511-75041

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

 1
12511-75041

1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN

 1
Common parts
90105-10123
90105-10266
90119-08028
90119-10521
90119-10742
90119-10777
90119-T0041
90119-T0044
90179-10088
90179-10201
90179-12102
91651-40814
Linked diagrams
1903
