RZN147R-TRMDS (1997)
Toyota Hilux
(9708- )1RZ#

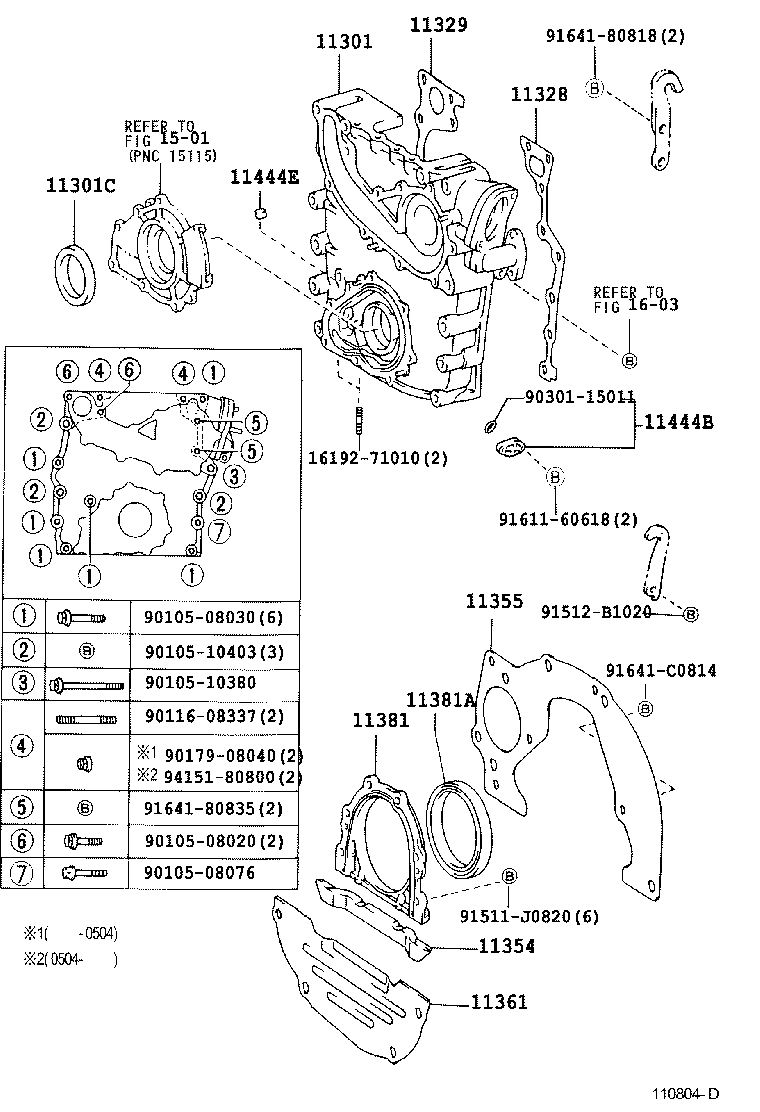

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301 - CASE SUB-ASSY, TIMING GEAR | ||||
| 11301-75050 |
1RZ#..RZN142,147 |
1 | ||
| 11301-75050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 11301-75050 |
1RZ#..RZN142,147..ARL,GEN,SA |
1 | ||
| 11301-75050 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-48021 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 KOYO |
1 | ||
| 90311-48020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN NOK |
1 | ||
| 90311-48014 |
1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19# |
1 | ||
| 90311-48020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN NOK |
1 | ||
| 90311-48021 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN KOYO |
1 | ||
| 90311-48020 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 NOK |
1 | ||
| 90311-48020 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 90311-48021 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN KOYO |
1 | ||
| 90311-48020 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU KOYO |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-75010 |
1RZ#,2RZFE..RZN142,147,148,168,193..DLX |
1 | ||
| 11328-75010 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN |
1 | ||
| 11328-75010 |
2RZFE..RZN148,168..DLX;1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 11328-75010 |
1RZ,2RZFE..RZN142,147,148,168,193..GEN..CBU |
1 | ||
| 11329 - GASKET, TIMING GEAR REAR COVER | ||||
| 11329-75010 |
1RZ#,2RZFE..RZN142,147,148,168,193..DLX |
1 | ||
| 11329-75010 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN |
1 | ||
| 11329-75010 |
2RZFE..RZN148,168..DLX;1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 11329-75010 |
1RZ,2RZFE..RZN142,147,148,168,193..GEN..CBU |
1 | ||
| 11354 - SEAL, FLYWHEEL HOUSING DUST | ||||
| 11354-75010 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 11354-75010 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-75010 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 11355-75010 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 11355-75010 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 11355-75010 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 11361 - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-75020 |
3RZFE..RZN169..DCB..SA;3RZFE..RZN154,174,194..RHD;3RZFE..RZN169..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 11361-75020 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-75010 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 11381-75010 |
3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193 |
1 | ||
| 11381-75010 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| 11381-75010 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-88005 |
1RZ..RZN147..RHD..SCB;1RZ,3RZFE..RZN142,169,194..SA;2RZFE,3RZFE..RZN148,149,168..DLX..GEN NOK |
1 | ||
| 90311-88003 |
1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19# |
1 | ||
| 90311-88005 |
1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19# NOK |
1 | ||
| 90311-88004 |
1RZ#,2RZFE,3RZ#..RZN14#,154,16#,174,19# ARS |
1 | ||
| 90311-88005 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN NOK |
1 | ||
| 90311-88004 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 90311-88005 |
3RZFE..RZN169..SA;1RZ..RZN147..RHD..SCB;3RZFE..RZN169..DLX..ARL;1RZ,3RZFE..RZN142,154,174,194..RHD;1RZE,2RZFE,3RZFE..RZN147,148,149,168..DLX..(ARL,GEN) NOK |
1 | ||
| 90311-88005 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN NOK |
1 | ||
| 90311-88004 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 90311-88004 |
1RZ..RZN147..RHD..SCB..GEN |
1 | ||
| 90311-88005 |
1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 90311-88005 |
1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN |
1 | ||
| Common parts | ||||
| 16192-71010 | ||||
| 90105-08020 | ||||
| 90105-08030 | ||||
| 90105-08076 | ||||
| 90105-10380 | ||||
| 90105-10403 | ||||
| 90116-08337 | ||||
| 90179-08040 | ||||
| 90301-15011 | ||||
| 91511-J0820 | ||||
| 91512-B1020 | ||||
| 91611-60618 | ||||
| 91641-80818 | ||||
| 91641-80835 | ||||
| 91641-C0814 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1501 | ||||
| 1603 | ||||
