RZN147R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006
Engine 1RZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )1RZ#

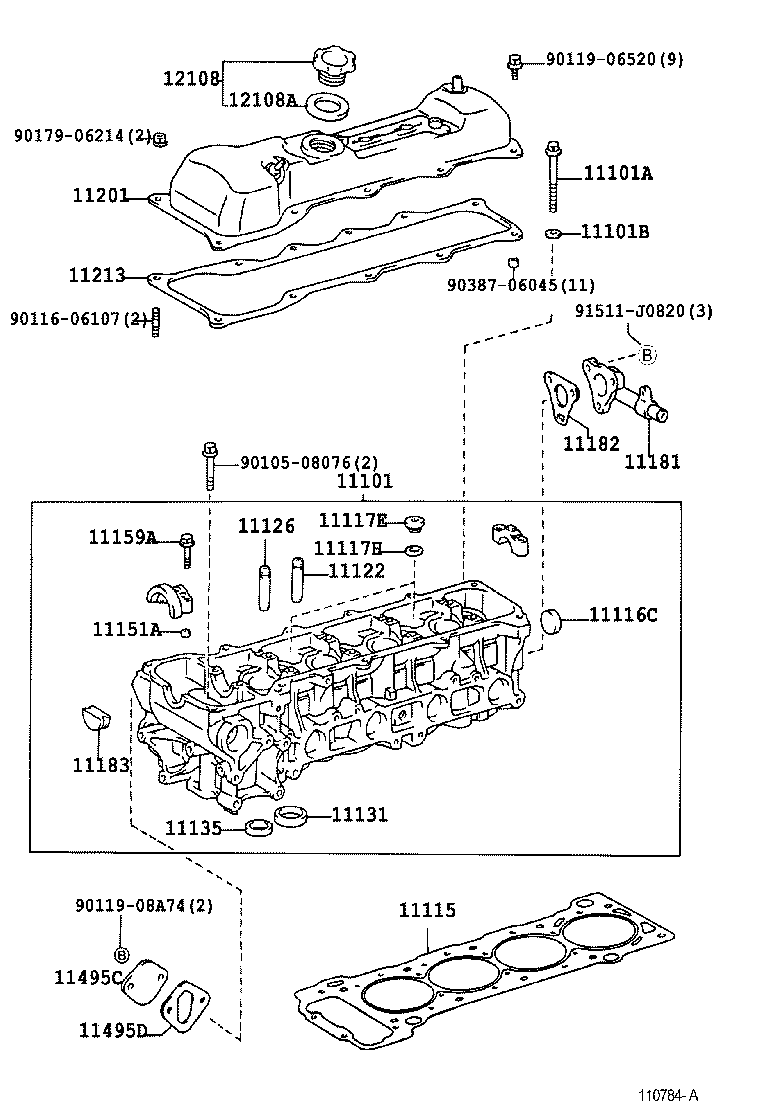

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11116C 11117E 11117H 11122 11126 11131 11135 11151A 11159A 11181 11182 11183 11201 11213 11495C 11495D 12108 12108A 9010508076 9011606107 9011906520 9011908A74 9017906214 9038706045 91511J0820
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-75011

1RZ#..RZN142,147

 1
11101-75012

1RZ..RZN147..RHD..SCB..GEN

 1
11101-75012

1RZ#..RZN142,147

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02091

1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN

 10
90910-02091

3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

 10
90910-02091

1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN

 10
90910-02091

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12222

1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN

 10
90201-12222

1RZ,2RZFE,3RZFE..RZN142,147,148,154,16#,193..GEN..CBU

 10
90201-12222

1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN

 10
90201-12222

3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193

 10
11115 - GASKET, CYLINDER HEAD
11115-75010

1RZ#..RZN142,147

T=1.25

 1
11115-75010

1RZ..RZN147..RHD..SCB..GEN

T=1.25

 1
11115-75010

1RZ..RZN147..RHD..SCB..GEN

T=1.25

 1
11115-75010

1RZ..RZN142,147..GEN

T=1.25

 1
11116C - PLUG, TIGHT, NO.3
96411-42800

1RZ#..RZN142,147..ARL,GCC,GEN

 1
96411-42800

1RZ#..RZN142,147..ARL,GCC,GEN

 1
96411-42800

1RZ#..RZN142,147

 1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-20012

1RZ..RZN142,147..GEN

 8
11117H - GASKET(FOR WATER HOLE)
90430-20004

1RZ..RZN142,147..GEN

 8
11122 - BUSH, INTAKE VALVE GUIDE
11122-75010

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

STD

 4
11123-75010

1RZE..RZN147;1RZ..RZN147..DCB..SA;1RZ..RZN142,147..GCC,GEN

O/S 0.05

 4
11123-75010

1RZ#..RZN142,147

O/S 0.05

 4
11122-75010

1RZ#..RZN142,147

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-75010

1RZ..RZN147..RHD..SCB..GEN

STD

 4
11123-75010

1RZ..RZN147..RHD..SCB..GEN

O/S 0.05

 4
11123-75010

1RZ#..RZN142,147

O/S 0.05

 4
11122-75010

1RZ#..RZN142,147

STD

 4
11131 - SEAT, INTAKE VALVE
11131-75010

1RZ#..RZN142,147

STD

 4
11132-75010

1RZ#..RZN142,147

O/S 0.03

 4
11131-75011

1RZ#..RZN142,147

STD

 8
11131-75011

1RZ..RZN147..RHD..SCB..GEN

STD

 8
11132-75011

1RZ#..RZN142,147

O/S 0.03

 4
11132-75011

1RZ..RZN147..RHD..SCB..GEN

O/S 0.03

 4
11135 - SEAT, EXHAUST VALVE
11135-75010

1RZ..RZN147..RHD..SCB..GEN

STD

 8
11136-75010

1RZ..RZN147..RHD..SCB..GEN

O/S 0.03

 4
11136-75010

1RZ#..RZN142,147

O/S 0.03

 4
11135-75010

1RZ#..RZN142,147

STD

 8
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

1RZ..RZN142,147..GEN

L=8,OD=11

 40
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08772

1RZ..RZN142,147..GEN

 40
11181 - PLATE, CYLINDER HEAD, REAR
11181-75040

1RZ..RZN147..RHD..SCB..GEN

 1
11181-75040

1RZ..RZN147..RHD..SCB..GEN

 1
11181-75040

1RZ#..RZN142,147

 1
11181-75040

1RZ..RZN142,147..GEN

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-75020

1RZ..RZN147..RHD..SCB..GEN

 1
11182-75020

1RZ..RZN147..RHD..SCB..GEN

 1
11182-75020

1RZ#..RZN142,147

 1
11182-75020

1RZ..RZN142,147..GEN

 1
11183 - PLUG, SEMICIRCULAR
11183-62010

1RZ#..RZN142,147

 1
11183-62010

1RZ..RZN147..RHD..SCB..GEN

 1
11183-62010

1RZ..RZN147..RHD..SCB..GEN

 1
11183-62010

1RZ..RZN142,147..GEN

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-75010

1RZ#..RZN142,147

 1
11201-75010

1RZ..RZN147..RHD..SCB..GEN

 1
11201-75010

1RZ..RZN147..RHD..SCB..GEN

 1
11201-75010

1RZ#..RZN142,147

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-75020

1RZ#..RZN142,147

 1
11213-75020

1RZ..RZN147..RHD..SCB..GEN

 1
11213-75020

1RZ..RZN147..RHD..SCB..GEN

 1
11213-75020

1RZ#..RZN142,147

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-73011

1RZ..RZN147..RHD..SCB..GEN

 1
12180-73011

1RZ#..RZN142,147

 1
12180-73011

1RZ..RZN147..RHD..SCB..GEN

 1
12180-73011

1RZ..RZN142,147..GEN

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-73010

1RZ..RZN147..RHD..SCB..GEN

 1
12195-73010

1RZ#..RZN142,147

 1
12195-73010

1RZ..RZN147..RHD..SCB..GEN

 1
12195-73010

1RZ..RZN142,147..GEN

 1
Common parts
90105-08076
90116-06107
90119-06520
90119-08A74
90179-06214
90387-06045
91511-J0820
