RZN147R-TRMDS (1997)

Toyota Hilux

Production Aug 1997 - Mar 2006
Engine 1RZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

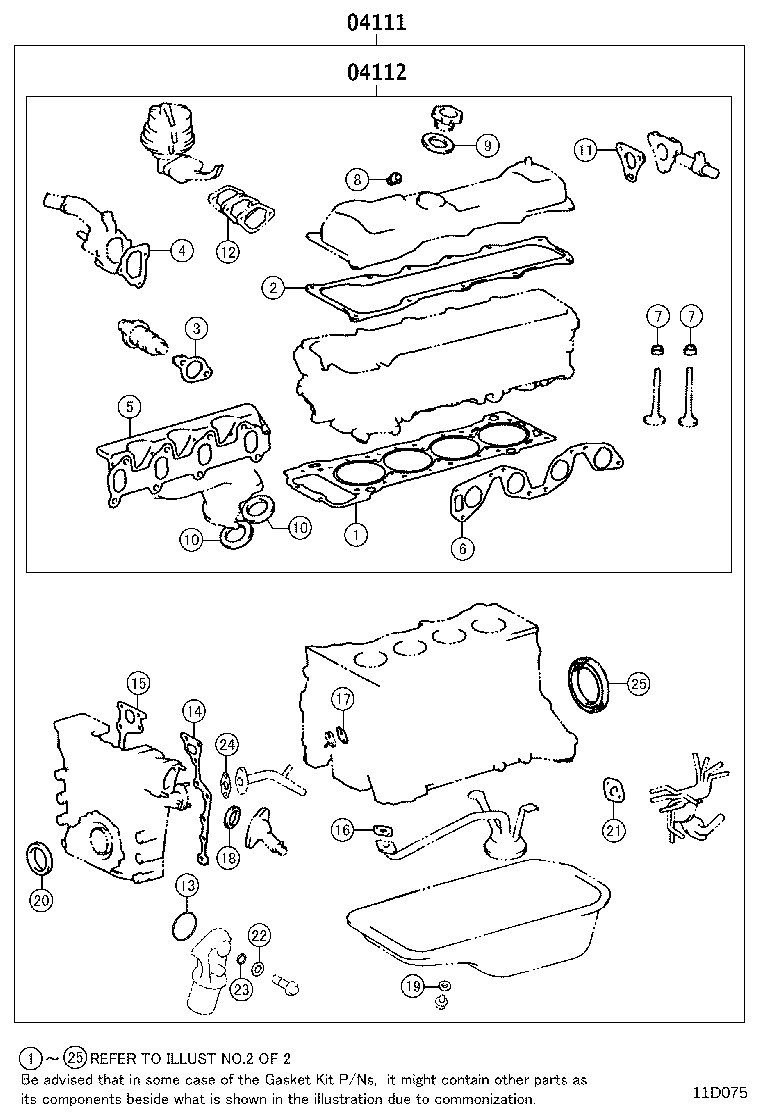

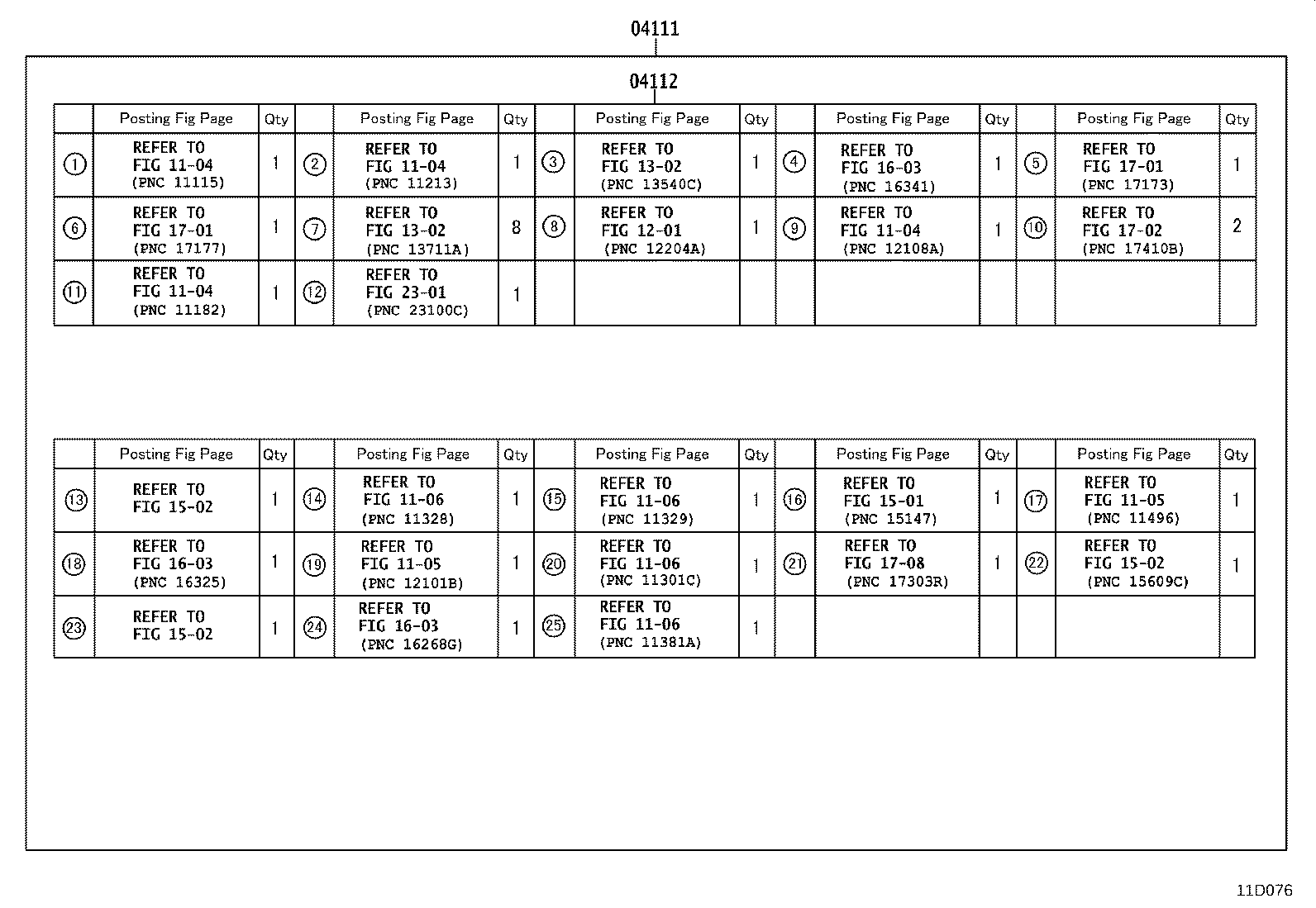

ILLUST NO. 1 OF 2(9708-0506)1RZ

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-75141

1RZ..RZN147..RHD..SCB..GEN

 1
04111-75142

1RZ..RZN147..RHD..SCB..GEN

 1
04111-75330

1RZ..RZN147..RHD..SCB..GEN

 1
04111-75141

1RZ..RZN142,147

 1
04111-75142

1RZ..RZN142,147..GEN,SA

 1
04111-75140

1RZ..RZN142,147

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-75320

1RZ..RZN147..RHD..SCB..GEN

 1
04112-75140

1RZ..RZN142,147..GEN,SA

 1
04112-75140

1RZ..RZN142,147..RHD..SCB

 1
04112-75140

1RZ..RZN147..RHD..SCB..GEN

 1

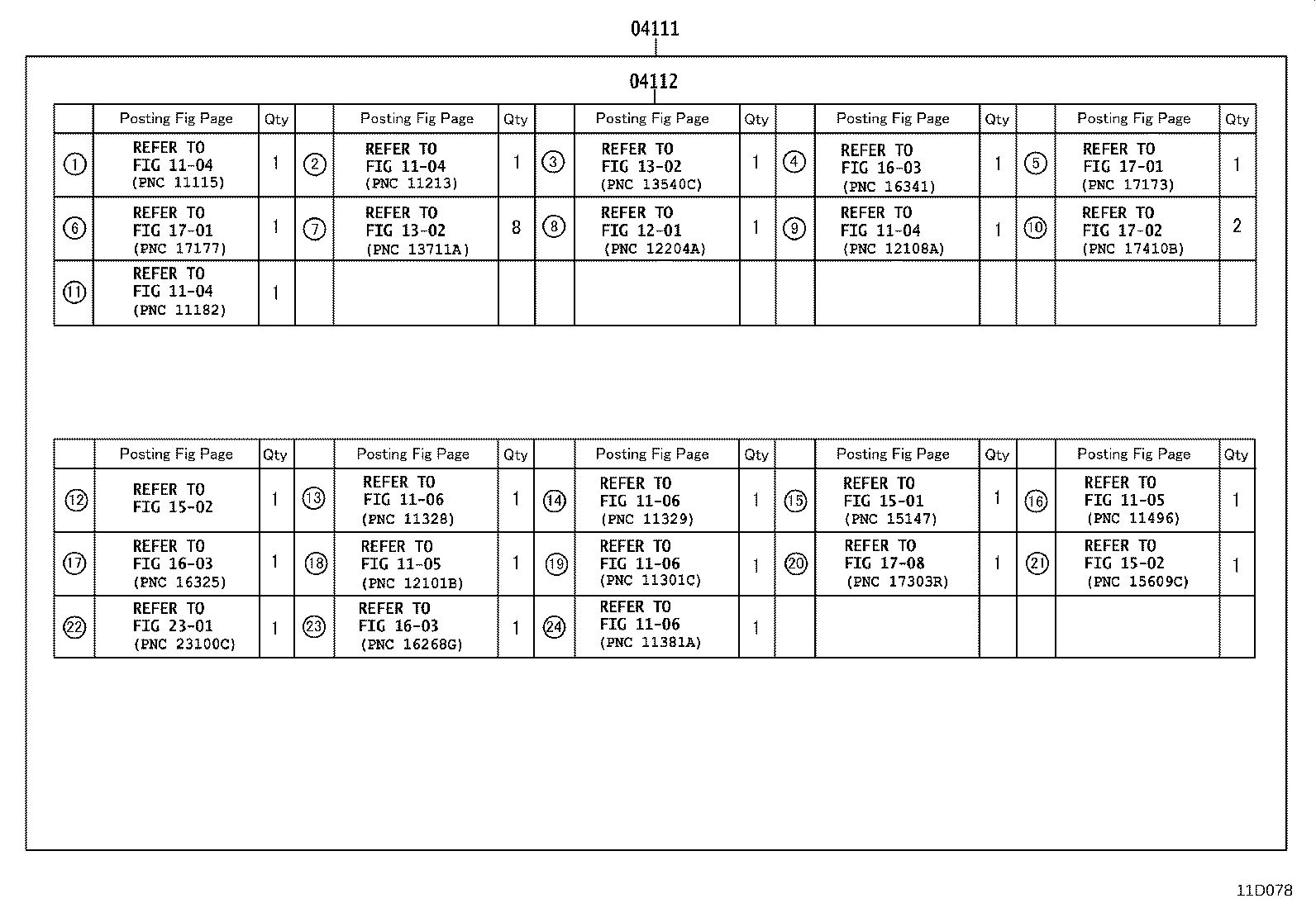

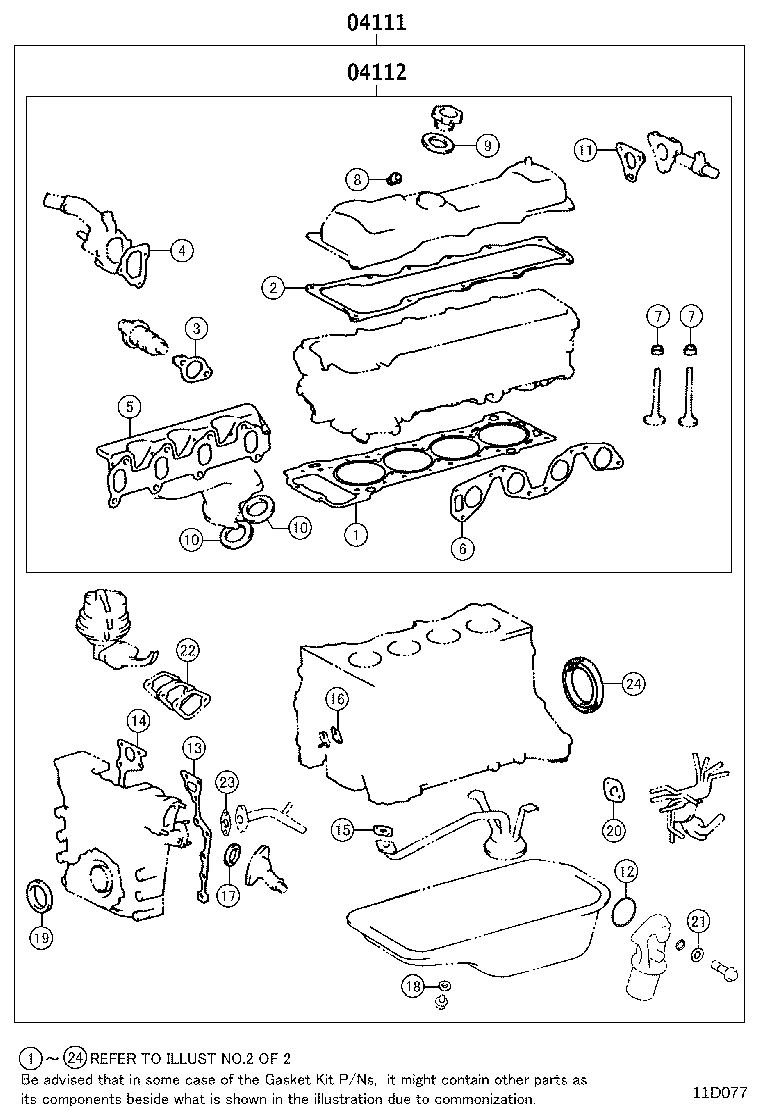

ILLUST NO. 2 OF 2(9708-0506)1RZ

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1104 1105 1105 1106 1106 1106 1106 1201 1302 1302 1501 1502 1502 1502 1603 1603 1603 1701 1701 1702 1708 2301
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-75141

1RZ..RZN147..RHD..SCB..GEN

 1
04111-75142

1RZ..RZN147..RHD..SCB..GEN

 1
04111-75330

1RZ..RZN147..RHD..SCB..GEN

 1
04111-75141

1RZ..RZN142,147

 1
04111-75142

1RZ..RZN142,147..GEN,SA

 1
04111-75140

1RZ..RZN142,147

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-75320

1RZ..RZN147..RHD..SCB..GEN

 1
04112-75140

1RZ..RZN142,147..GEN,SA

 1
04112-75140

1RZ..RZN142,147..RHD..SCB

 1
04112-75140

1RZ..RZN147..RHD..SCB..GEN

 1
