RZN147L-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jun 2005
Engine 1RZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )LN141,145,146,155,RZN14#,154..LHD

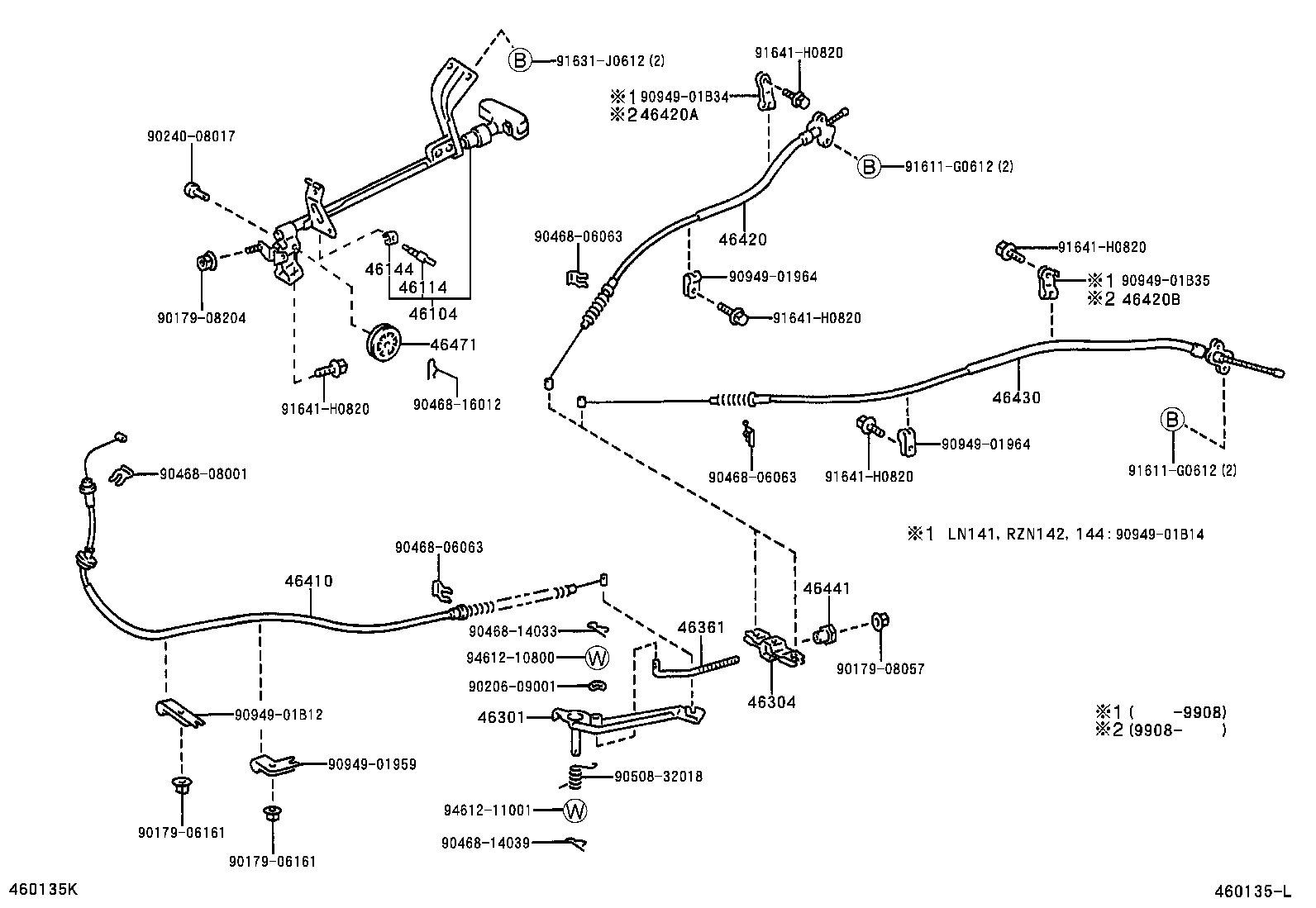

Click highlighted areas on diagram

diagram 46104 46114 46144 46301 46304 46361 46410 46420 46420A 46420B 46430 46441 46471 9017906161 9017906161 9017908057 9017908204 9020609001 9024008017 9046806063 9046806063 9046806063 9046808001 9046814033 9046814039 9046816012 9050832018 9094901959 9094901964 9094901964 9094901B12 9094901B14 9094901B34 9094901B35 91611G0612 91611G0612 91631J0612 91641H0820 91641H0820 91641H0820 91641H0820 91641H0820 9461210800 9461211001
Part # Description Qty Price
46104 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46104-35040

RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX;LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)

 1
46104-35040

RZN148..GEN..CBU;RZN148,149..CO,GCC;LN141,145,146,155,166,171,191,RZN142,144,147,154,16#,193..LHD

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

KZN190..SR;LN147..IV3;LN145..LHD..IV3;LN147..DCB,THDCB;RZN149..ARL,CO,GCC;LN145,155,RZN148..LHD..(CO,TH);LN145,152,RZN148..(ARL,GEN,SA)..CBU;KDN165,190,KZN165,LN140,141,146,16#,17#,19#,RZN142,144,147,154,16#,174,19#,VZN167,172..ARL,CO,GCC,GEN,MA,SA

 1
46114-20010

LN152..IV3;RZN169..DCB..SA;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN155,RZN144,149,154..LHD..(CBR,DSL);KZN165,RZN154..(SCB,THXTR,XTR)..DLX..ARL;LN167,RZN169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA)

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-30020

LN152..IV3;RZN169..DCB..SA;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN155,RZN144,149,154..LHD..(CBR,DSL);KZN165,RZN154..(SCB,THXTR,XTR)..DLX..ARL;LN167,RZN169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA)

 1
46144-30020

KZN190..SR;LN147..IV3;LN145..LHD..IV3;LN147..DCB,THDCB;RZN149..ARL,CO,GCC;LN145,155,RZN148..LHD..(CO,TH);LN145,152,RZN148..(ARL,GEN,SA)..CBU;KDN165,190,KZN165,LN140,141,146,16#,17#,19#,RZN142,144,147,154,16#,174,19#,VZN167,172..ARL,CO,GCC,GEN,MA,SA

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-35180

RZN148..GEN..CBU;RZN148,149..CO,GCC;LN141,145,146,155,RZN142,144,147,154..LHD

 1
46301-35180

LN145,RZN148,149..LHD..DLX..(DSL,EFI)..(GEN,TH);LN141,146,155,RZN142,144,147,149,154..LHD..(CBR,DSL)

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-28010

LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)

 1
46304-28010

LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154

 1
46361 - ROD, PARKING BRAKE PULL
46361-35110

LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)

 1
46361-35110

LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-35860

LN145,RZN148,149..LHD..DLX..(DSL,EFI)..(GEN,TH);LN141,146,155,RZN142,144,147,149,154..LHD..(CBR,DSL)

 1
46410-35860

RZN148..GEN..CBU;RZN148,149..CO,GCC;LN141,145,146,155,RZN142,144,147,154..LHD

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-35690

LN145,147,RZN147,148,149..ARL,GEN

 1
46420-35691

LN145,146,147,RZN147,148,149..ARL,GCC,GEN

 1
46420-35640

LN145,146,147,RZN147,148,149

 1
46420-35691

RZN149..CBR;RZN149..DLX..EFI..(ARL,GEN);LN145,146,147,RZN147,148..DLX..(ARL,GCC,GEN,SA)

 1
46420-35691

LN147..IV3;LN146,RZN147;LN145..LHD..IV3;LN147..DCB,THDCB;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46421-35010

LN145,146,147,152,RZN147,148,149,154..ARL,GCC,GEN

 1
46421-35010

LN145..LHD..IV3;LN145,RZN147,148,154..GEN..CBU

 1
46421-35010

LN152..IV3;RZN154..ARL;RZN149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN145,146,147,RZN147,148..DLX..(ARL,GCC,GEN,SA)

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46431-35010

LN145,146,147,152,RZN147,148,149,154..ARL,GCC,GEN

 1
46431-35010

LN145..LHD..IV3;LN145,RZN147,148,154..GEN..CBU

 1
46431-35010

LN152..IV3;RZN154..ARL;RZN149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN145,146,147,RZN147,148..DLX..(ARL,GCC,GEN,SA)

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-35530

LN145,147,RZN147,148,149..ARL,GEN

 1
46430-35531

RZN149..CBR;RZN149..DLX..EFI..(ARL,GEN);LN145,146,147,RZN147,148..DLX..(ARL,GCC,GEN,SA)

 1
46430-35490

LN145,146,147,RZN147,148,149

 1
46430-35531

LN145..LHD..IV3;LN145,RZN147,148..GEN..CBU

 1
46430-35531

LN145,146,147,RZN147,148,149..ARL,GCC,GEN

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-35020

LN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)

 1
46441-35020

LN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN145,15#,LN140,141,146,155,RZN142,144,147,154

 1
46471 - PULLEY, WIRE
46471-30010

LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)

 1
46471-30010

LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU

 1
Common parts
90179-06161
90179-08057
90179-08204
90206-09001
90240-08017
90468-06063
90468-08001
90468-14033
90468-14039
90468-16012
90508-32018
90949-01959
90949-01964
90949-01B12
90949-01B14
90949-01B34
90949-01B35
91611-G0612
91631-J0612
91641-H0820
94612-10800
94612-11001
