RN55L-MDV (1986)

Toyota Hilux

Production Jan 1986 - Aug 1988
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8601- )LN5#,6#,RN50,55,YN5#,6#

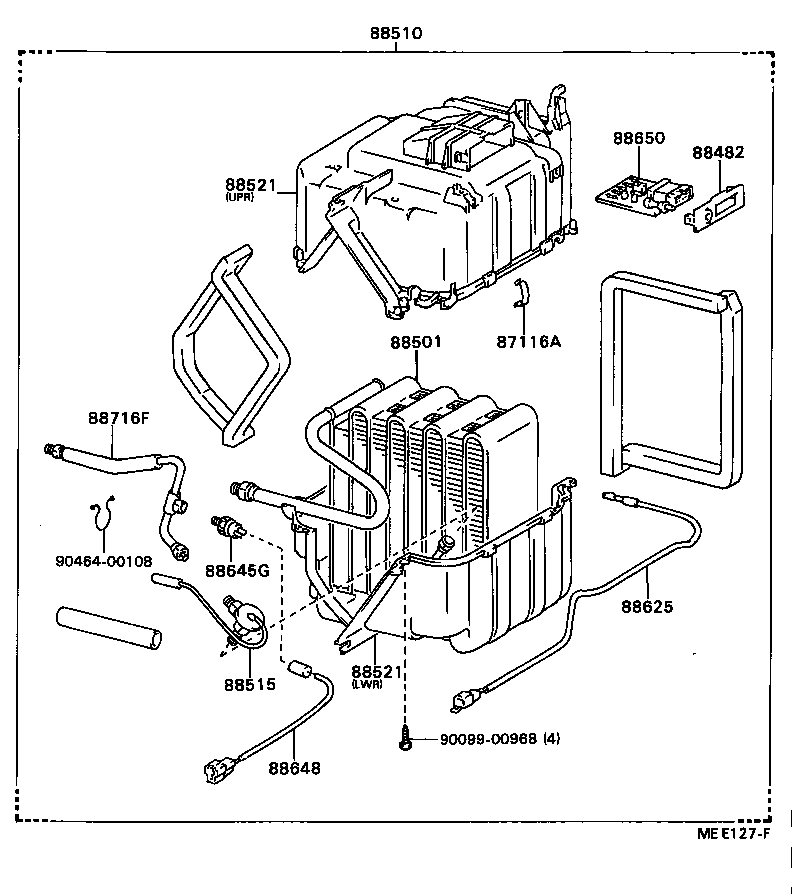

Click highlighted areas on diagram

diagram 87116A 88482 88501 88510 88515 88521 88521 88625 88645G 88648 88650 88716F 9009900968 9046400108
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6#..ARL,GEN,ME,SA

 4
88482 - CAP, COOLER
88482-60010

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6#..ARL,GEN,ME,SA

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-89106

LN5#,65,YN50,52,55,57,6#..LHD..(GEN,ME)

 1
88510 - UNIT ASSY, COOLER
88510-89118

RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)

 1
88515 - VALVE, COOLER EXPANSION
88515-16030

LN56..LHD..RCB..EUR..CBU;LN5#,6#,RN5#,YN50,52,55,57,6#..ARL,GEN,ME,SA

 1
88521 - CASE, COOLER UNIT
88521-89102

LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)

UPPER

 1
88521-89103

LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)

LOWER

 1
88521 - CASE, COOLER UNIT
88521-89102

LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)

UPPER

 1
88521-89103

LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)

LOWER

 1
88625 - THERMISTOR, COOLER, NO.1
88625-89101

LN5#,6#,RN5#,YN5#,6#..ARL,GEN,ME,SA

 1
88645G - SWITCH, PRESSURE
88645-12020

LN56..LHD..EUR..CBU;LN5#,6#,YN50,52,55,57,6#..ARL,GEN,ME,SA

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16010

RN5#,YN50,52,55,57,6#..ARL,GEN,ME,SA

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-89146

LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)

 1
Common parts
90099-00968
90464-00108

ILLUST NO. 2 OF 3(8601- )LN5#,6#,RN50,55,YN5#,6#

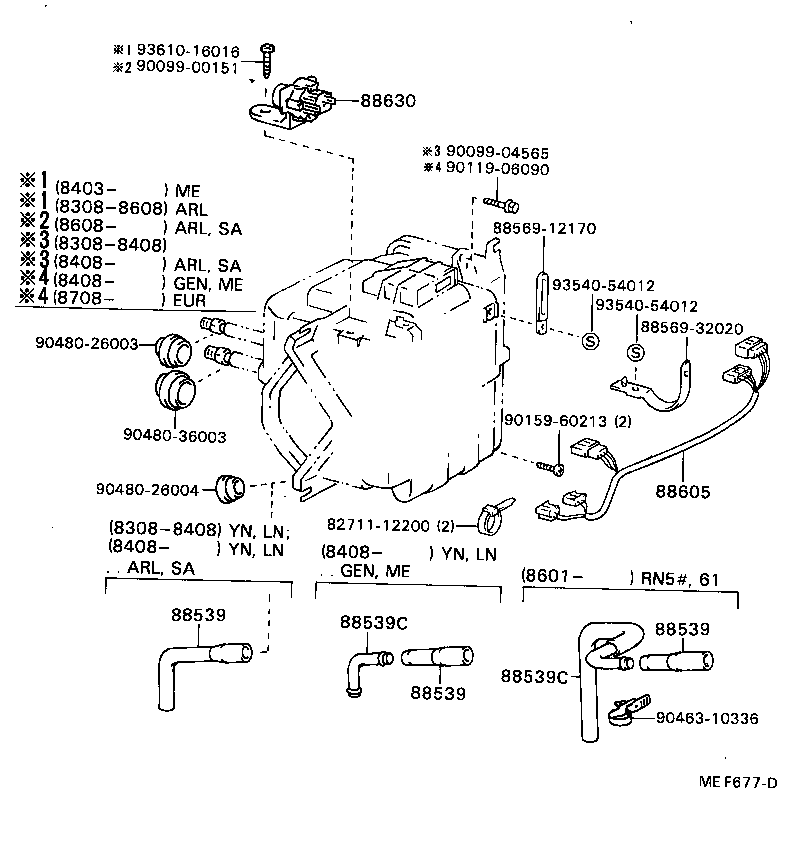

Click highlighted areas on diagram

diagram 8271112200 88539 88539 88539 88539C 88539C 8856912170 8856932020 88605 88630 9009900151 9009904565 9011906090 9015960213 9046310336 9048026003 9048026004 9048036003 9354054012 9354054012 9361016016
Part # Description Qty Price
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-89106

LN50,55,65,YN50,52,55,57,6#..LHD..(DLX,STD)..(GEN,ME)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-89106

LN50,55,65,YN50,52,55,57,6#..LHD..(DLX,STD)..(GEN,ME)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-89106

LN50,55,65,YN50,52,55,57,6#..LHD..(DLX,STD)..(GEN,ME)

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-89111

RN5#

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-89111

RN5#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-89124

YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME,SA)

 1
88605-89131

RN5#

 1
88630 - RELAY ASSY, COOLER
88630-60020

RN5#

 1
Common parts
82711-12200
88569-12170
88569-32020
90099-00151
90099-04565
90119-06090
90159-60213
90463-10336
90480-26003
90480-26004
90480-36003
93540-54012
93610-16016
