RN55L-MDV (1986)

Toyota Hilux

Production Jan 1986 - Aug 1988
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8608)

Click highlighted areas on diagram

diagram 52105 52105 52106 52106 52107A 52107A 52111 52111 52111C 52111C 52111C 52112D 52112D 52113D 52113D 52401A 52402A 52501 52501 9011912015 9011912015 9011912073 9011912073 9017908096 9017908096 9017908096 9017908096 9017908096 9017908096 9017908096 9017908096 9017908096 9018906050 9018906050 9166640618 9166640618
Part # Description Qty Price
52111 - BUMPER ASSY, FRONT
52111-39515

YN50,52,55,57..ME

 1
52111-39565

RN5#,YN50,52,55,57..ME

W/BUMPER GUARD

 1
52111 - BUMPER ASSY, FRONT
52111-39515

YN50,52,55,57..ME

 1
52111-39565

RN5#,YN50,52,55,57..ME

W/BUMPER GUARD

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08035

RN50,55,YN50,52,55,57,60,63,65,67..ME

CHROME PLATED

 6
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08035

RN50,55,YN50,52,55,57,60,63,65,67..ME

CHROME PLATED

 6
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08035

RN50,55,YN50,52,55,57,60,63,65,67..ME

CHROME PLATED

 6
52401A - GUARD SUB-ASSY, FRONT BUMPER, RH
52401-39045

RN5#,YN50,52,55,57..ME

 1
52402A - GUARD SUB-ASSY, FRONT BUMPER, LH
52402-39015

RN5#,YN50,52,55,57..ME

 1
52501 - FILLER SUB-ASSY, FRONT BUMPER
52501-89102

LN5#,6#,RN5#,YN5#,6#

 1
52501 - FILLER SUB-ASSY, FRONT BUMPER
52501-89102

LN5#,6#,RN5#,YN5#,6#

 1
Common parts
90119-12015
90119-12073
90179-08096
90189-06050
91666-40618

(8608- )LN5#,RN5#,YN5#

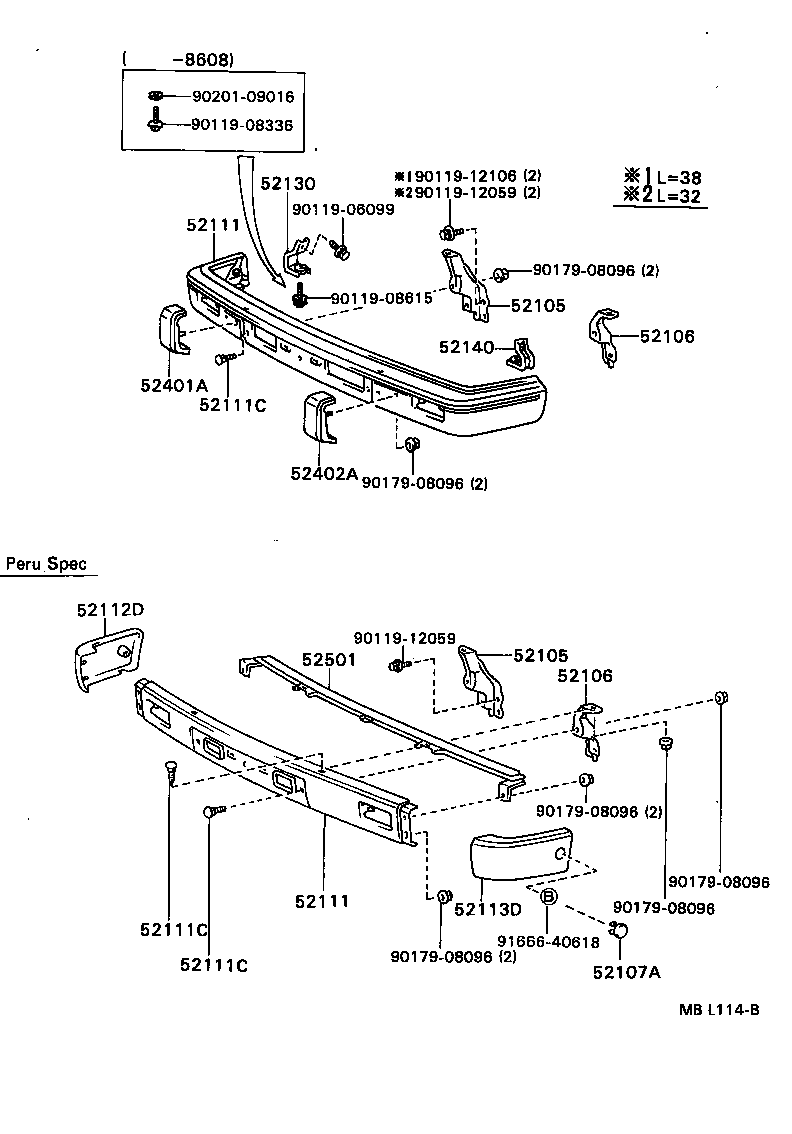

Click highlighted areas on diagram

diagram 52105 52105 52106 52106 52107A 52111 52111 52111C 52111C 52111C 52112D 52113D 52130 52140 52401A 52402A 52501 9011906099 9011908336 9011908615 9011912059 9011912059 9011912106 9017908096 9017908096 9017908096 9017908096 9017908096 9017908096 9020109016 9166640618
Part # Description Qty Price
52111 - BUMPER ASSY, FRONT
52111-39515

YN50,52,55,57..ME

 1
52111-39565

RN5#,YN50,52,55,57..ME

W/BUMPER GUARD

 1
52111 - BUMPER ASSY, FRONT
52111-39515

YN50,52,55,57..ME

 1
52111-39565

RN5#,YN50,52,55,57..ME

W/BUMPER GUARD

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08035

RN50,55,YN50,52,55,57,60,63,65,67..ME

CHROME PLATED

 6
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08035

RN50,55,YN50,52,55,57,60,63,65,67..ME

CHROME PLATED

 6
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08035

RN50,55,YN50,52,55,57,60,63,65,67..ME

CHROME PLATED

 6
52401A - GUARD SUB-ASSY, FRONT BUMPER, RH
52401-39045

RN5#,YN50,52,55,57..ME

 1
52402A - GUARD SUB-ASSY, FRONT BUMPER, LH
52402-39015

RN5#,YN50,52,55,57..ME

 1
52501 - FILLER SUB-ASSY, FRONT BUMPER
52501-89102

LN5#,6#,RN5#,YN5#,6#

 1
Common parts
90119-06099
90119-08336
90119-08615
90119-12059
90119-12106
90179-08096
90201-09016
91666-40618
