RN55L-MDPV (1986)

Toyota Hilux

Production Jan 1986 - Aug 1988
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8608)LN55,56,61,65,YN50,52,55,57,60,63,65,67..DLX

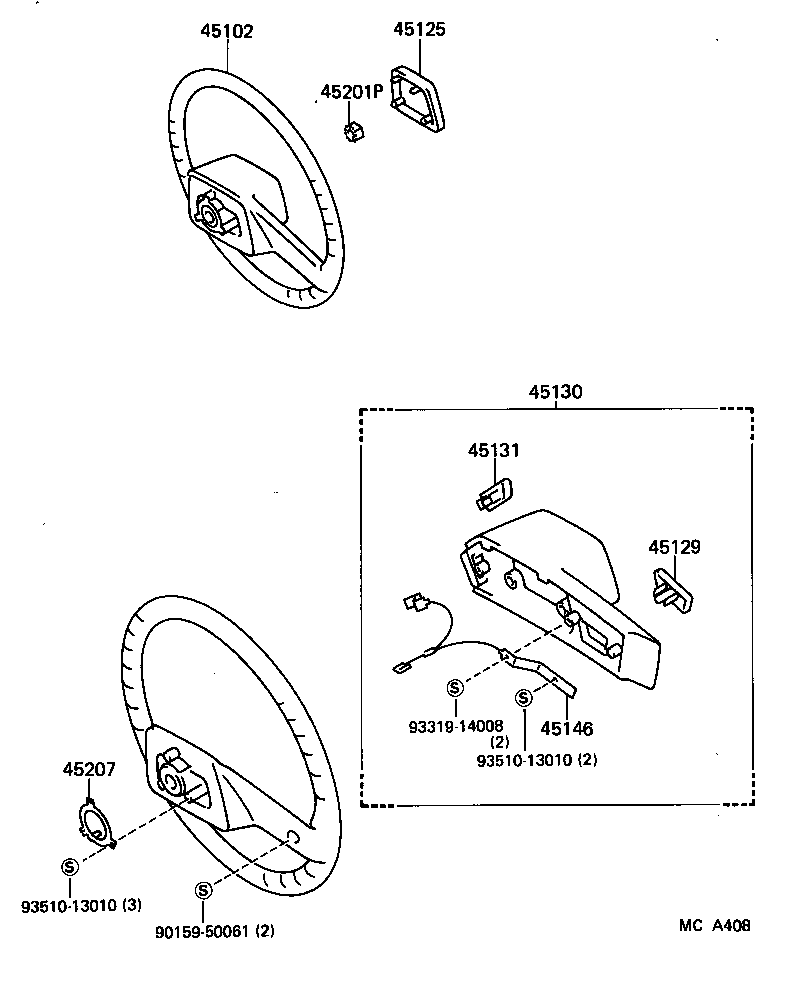

Click highlighted areas on diagram

diagram 45102 45125 45129 45130 45131 45146 45201P 45207 9015950061 9331914008 9351013010 9351013010
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-35220

RN5#,YN50,52,55,57..ME

URETHANE

 1
45100-3522105

RN5#

URETHANE,BEIGE,BEIGE,TRIM4#

 1
45100-3522103

RN5#

URETHANE,GRAY,GRAY,TRIM1#

 1
45100-3522104

RN5#

URETHANE,BLUE,BLUE,TRIM8#

 1
45125 - MARK, STEERING WHEEL PAD
45125-35090

RN5#,YN50,52,55,57..ME

URETHANE

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

LN5#,6#,RN5#,61,YN5#,6#

 1
45207 - RING, HORN CONTACT
45176-35020

YN57..4FC,5F;YN57..4F..DLX;LN55,56..DLX,SR5;LN5#,YN50,52,55,56..ARL,EUR,ME,SA

URETHANE

 1
Common parts
90159-50061
93319-14008
93510-13010

(8601-8608)RN5#..RCB..5F ; (8608- )RN5# ; (8608- )LN56,65,RN61,YN57,58,6#..SR

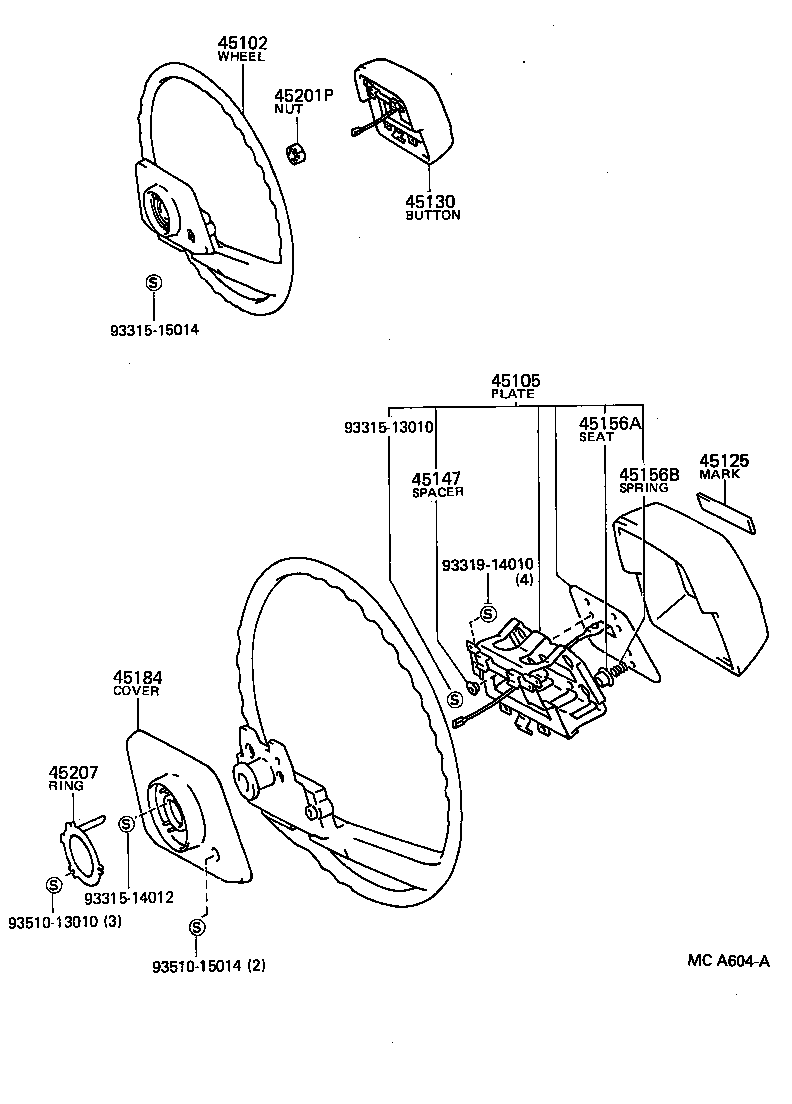

Click highlighted areas on diagram

diagram 45102 45105 45125 45130 45147 45156A 45156B 45184 45201P 45207 9331513010 9331514012 9331515014 9331914010 9351013010 9351015014
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-35220

RN5#,YN50,52,55,57..ME

URETHANE

 1
45100-3522105

RN5#

URETHANE,BEIGE,BEIGE,TRIM4#

 1
45100-3522103

RN5#

URETHANE,GRAY,GRAY,TRIM1#

 1
45100-3522104

RN5#

URETHANE,BLUE,BLUE,TRIM8#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-35020

YN57..4FC,5F;YN57..4F..DLX;LN55,56..DLX,SR5;LN5#,YN50,52,55,56..ARL,EUR,ME,SA

 1
45125 - MARK, STEERING WHEEL PAD
45125-35090

RN5#,YN50,52,55,57..ME

URETHANE

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

LN5#,6#,RN5#,61,YN5#,6#

 1
45207 - RING, HORN CONTACT
45176-35020

YN57..4FC,5F;YN57..4F..DLX;LN55,56..DLX,SR5;LN5#,YN50,52,55,56..ARL,EUR,ME,SA

URETHANE

 1
Common parts
93315-13010
93315-14012
93315-15014
93319-14010
93510-13010
93510-15014
