RN55L-KDPV (1986)
Toyota Hilux

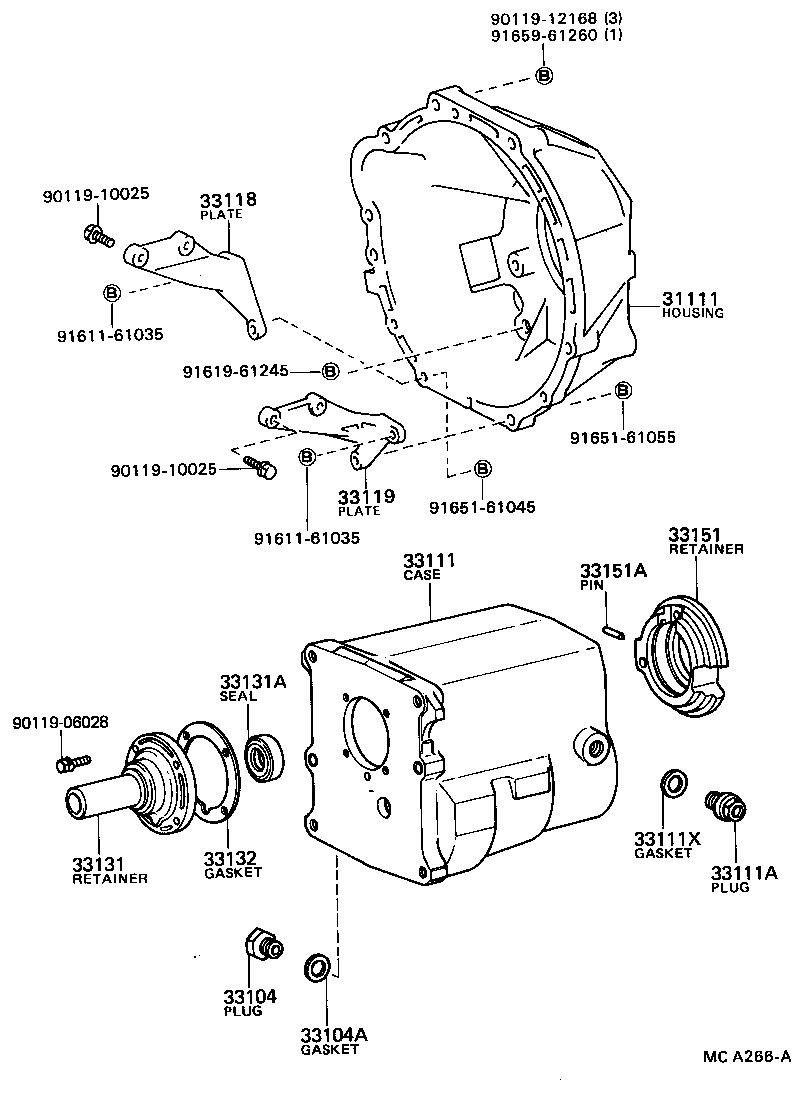

(8308-9108)4H ; (8308- )YN50,55..4F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-30151 |
LN50,55..4F |
1 | ||
| 31111-28010 |
YN50,55..4F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..4F,4H,5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-35031 |
LN50,55,YN50,55..4F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
YN58..4F;YN58..5F..(SR5,STD);LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4H,5F |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-28010 |
YN58..4F;YN58..5F..(SR5,STD);YN50,51,52,55,56,57,6#..4F,4H,5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-30040 |
LN50,55..4F |
1 | ||
| 33119-28010 |
YN58..4F;YN58..5F..(SR5,STD);YN50,51,52,55,56,57,6#..4F,4H,5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-20050 |
LN50,55,YN50,55..4F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32106 |
LN50,55,YN50,55..4F |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-30030 |
LN50,55,YN50,55..4F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-26010 |
LN50,55,YN50,55..4F |
1 | ||
| 33151A - PIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAI | ||||
| 90254-05005 |
LN50,55,YN50,55..4F |
1 | ||
| Common parts | ||||
| 90119-06028 | ||||
| 90119-10025 | ||||
| 90119-12168 | ||||
| 91611-61035 | ||||
| 91619-61245 | ||||
| 91651-61045 | ||||
| 91651-61055 | ||||
| 91659-61260 | ||||

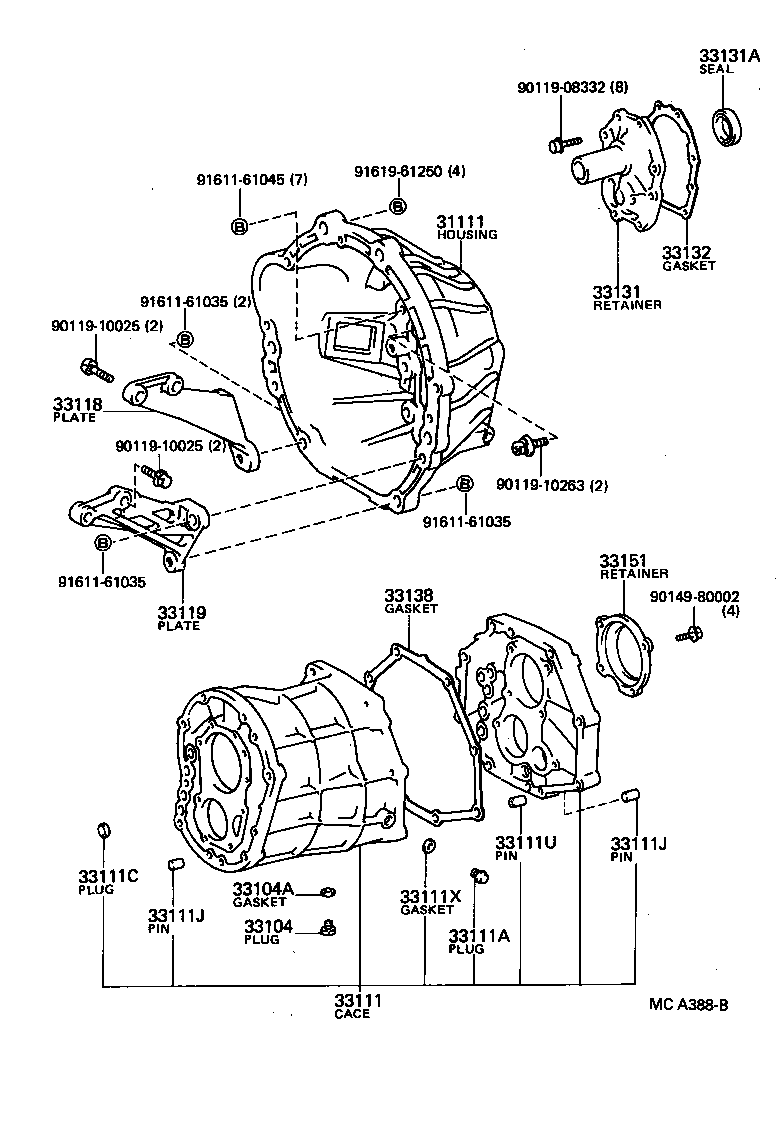

(8601- )RN5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-30151 |
LN50,55..4F |
1 | ||
| 31111-28010 |
YN50,55..4F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..4F,4H,5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-35031 |
LN50,55,YN50,55..4F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
YN58..4F;YN58..5F..(SR5,STD);LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4H,5F |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-28010 |
YN58..4F;YN58..5F..(SR5,STD);YN50,51,52,55,56,57,6#..4F,4H,5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-30040 |
LN50,55..4F |
1 | ||
| 33119-28010 |
YN58..4F;YN58..5F..(SR5,STD);YN50,51,52,55,56,57,6#..4F,4H,5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-20050 |
LN50,55,YN50,55..4F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32106 |
LN50,55,YN50,55..4F |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-30030 |
LN50,55,YN50,55..4F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-26010 |
LN50,55,YN50,55..4F |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10025 | ||||
| 90119-10263 | ||||
| 90149-80002 | ||||
| 91611-61035 | ||||
| 91611-61045 | ||||
| 91619-61250 | ||||
