RN46R-KRQ3 (1979)
Toyota Hilux
(8103-8307)LN36,46..4F

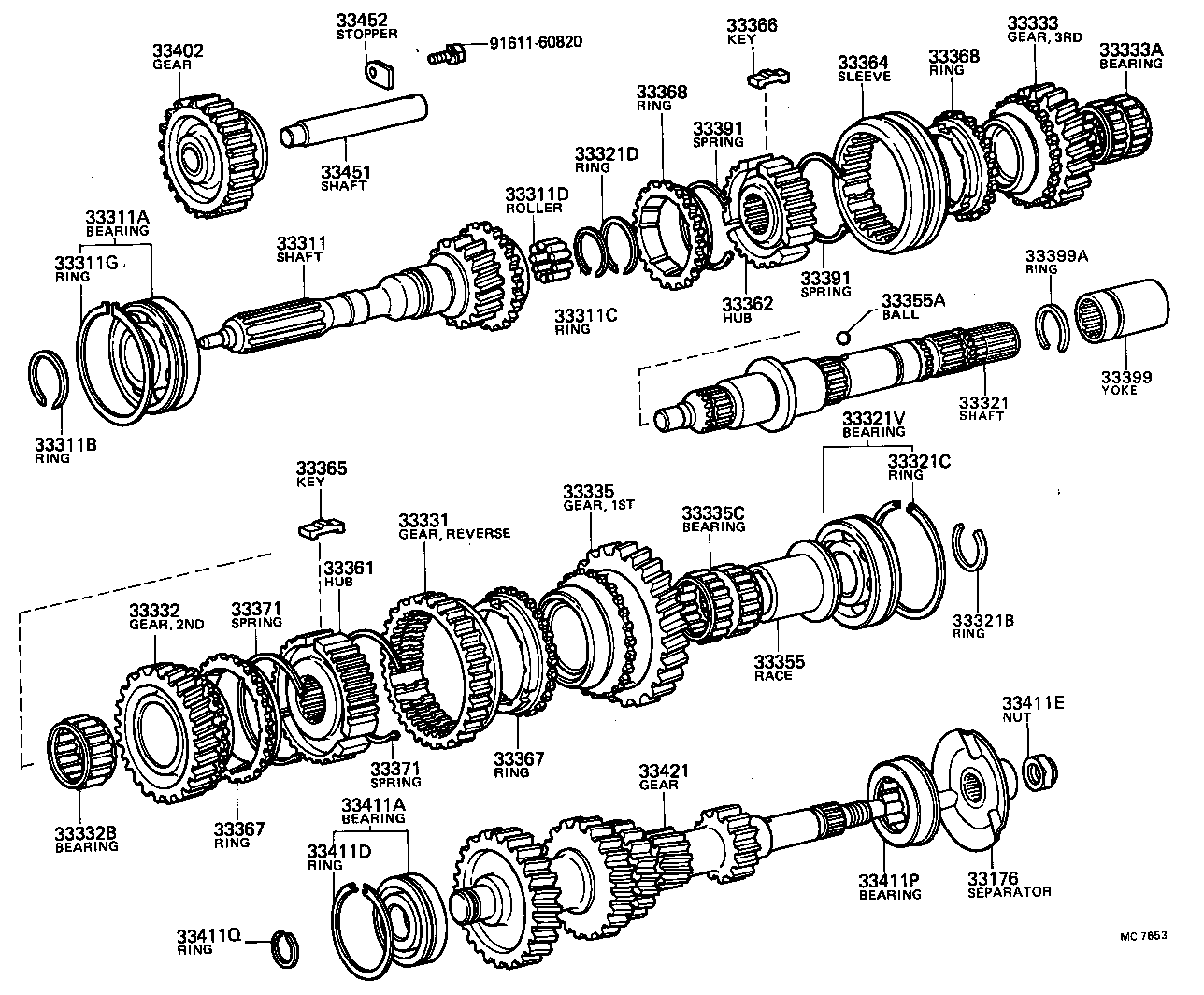

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33311-35040 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN31,36,41..4F,4H |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 97163-06207 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33168 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=2.05,MARK 1,T=2.05-2.10 |
1 | ||
| 90520-33107 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=2.30-2.35,MARK 11,T=2.30-2.35 |
1 | ||
| 90520-33171 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=2.20,MARK 4,T=2.20-2.25 |
1 | ||
| 90520-33169 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=2.10,MARK 2,T=2.10-2.15 |
1 | ||
| 90520-33170 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=2.15,MARK 3,T=2.15-2.20 |
1 | ||
| 90520-33172 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=2.25,MARK 5,T=2.25-2.30 |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| 90521-33006 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06047 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
14 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-35070 |
RN3#,4#..DLX,STD |
1 | ||
| 33321-35080 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-28243 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=1.60-1.65,MARK B,T=1.6 |
1 | ||
| 90520-28244 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=1.70-1.75,MARK C,T=1.7 |
1 | ||
| 90520-28242 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=1.50-1.55,MARK A,T=1.5 |
1 | ||
| 90520-28245 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=1.80-1.85,MARK D,T=1.8 |
1 | ||
| 90520-28246 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=1.90-1.95,MARK E,T=1.9 |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-68185 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=1.75,MARK 5,T=1.75-1.85 |
1 | ||
| 90520-68181 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=1.35,MARK 1,T=1.35-1.45 |
1 | ||
| 90520-68182 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=1.45,MARK 2,T=1.45-1.55 |
1 | ||
| 90520-68184 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=1.65,MARK 4,T=1.65-1.75 |
1 | ||
| 90520-68183 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=1.55,MARK 3,T=1.55-1.65 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28243 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=1.60-1.65,MARK B,T=1.60-1.65 |
1 | ||
| 90520-28245 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=1.80-1.85,MARK D,T=1.80-1.85 |
1 | ||
| 90520-28242 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=1.50-1.55,MARK A,T=1.50-1.55 |
1 | ||
| 90520-28244 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H T=1.70-1.75,MARK C,T=1.70-1.75 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-26010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H N=34 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-35030 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN31,36,41..4F,4H N=28 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-26010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H N=22 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-35010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN31,36,41..4F,4H N=32 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-37050 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
2 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-26011 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-28010 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-26010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-26010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-26010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-26021 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-26021 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-26021 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-26021 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-30013 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-30013 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-30013 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-30013 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
2 | ||
| 33399 - YOKE, TRANSMISSION SLEEVE (MTM) | ||||
| 33399-35011 |
LN36,46,RN36,46 |
1 | ||
| 33399-35010 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 33399A - RING, SHAFT SNAP (FOR TRANSMISSION SLEEVE YOKE) | ||||
| 90520-26002 |
LN36,46,RN36,46 |
1 | ||
| 90520-26002 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-26010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H N=23 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90364-19068 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-35051 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN31,36,41..4F,4H N=32,27,21,14,15 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-30020 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| Common parts | ||||
| 91611-60820 | ||||
