RN46R-KRQ3 (1979)
Toyota Hilux
(8103-8307)L..LN36,46

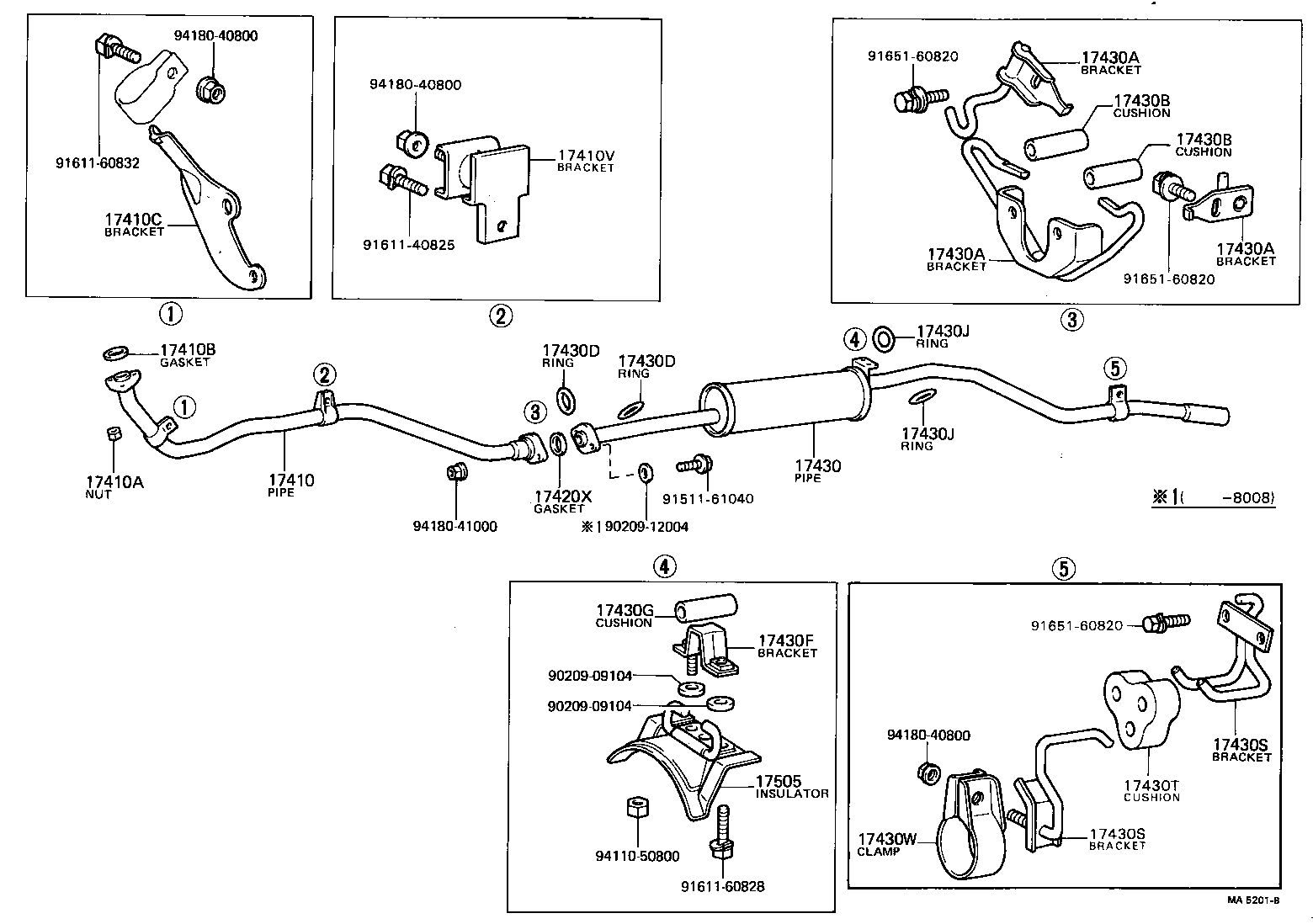

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-34320 |
18R..RN36;18R..RN46..EUR,GEN;18R..RN46..ARL..IV3 |
1 | ||
| 17410-34321 |
18R..RN36;18R..RN46..ARL..IV3;L..LN46..T1..ARL..CBU;18R..RN46..T1..(EUR,GEN,ME,SA) |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10010 |
L,18R..LN3#,4#,RN36,46 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06005 |
18R..RN36;18R..RN46..ARL..IV3;L..LN46..T1..ARL..CBU;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-34200 |
18R..RN31,36,41..T1;18R..RN46..ARL..IV3;L..LN46..T1..ARL..CBU;18R..RN46..T1..(EUR,GEN,ME,SA) |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;L..LN46..T1..ARL..CBU;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-34420 |
18R..RN46..ARL..IV3;L..LN46..T1..ARL..CBU;18R..RN46..T1..(EUR,GEN,ME,SA) |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17503-34020 |
18R..RN36;18R..RN46..ARL..IV3;18R..RN46..T1..(EUR,GEN) CTR |
1 | ||
| 17504-31010 |
L,12R#,18R..LN3#,4#,RN3#,4# RH |
1 | ||
| 17507-31060 |
L,12R#,18R..LN3#,4#,RN3#,4# LH |
1 | ||
| 17503-54010 |
18R..RN36;18R..RN46..ARL..IV3;L..LN46..T1..ARL..CBU;18R..RN46..T1..(EUR,GEN,ME,SA) CTR |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17503-34020 |
18R..RN36;18R..RN46..ARL..IV3;18R..RN46..T1..(EUR,GEN) CTR |
1 | ||
| 17504-31010 |
L,12R#,18R..LN3#,4#,RN3#,4# RH |
1 | ||
| 17507-31060 |
L,12R#,18R..LN3#,4#,RN3#,4# LH |
1 | ||
| 17503-54010 |
18R..RN36;18R..RN46..ARL..IV3;L..LN46..T1..ARL..CBU;18R..RN46..T1..(EUR,GEN,ME,SA) CTR |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17503-34020 |
18R..RN36;18R..RN46..ARL..IV3;18R..RN46..T1..(EUR,GEN) CTR |
1 | ||
| 17504-31010 |
L,12R#,18R..LN3#,4#,RN3#,4# RH |
1 | ||
| 17507-31060 |
L,12R#,18R..LN3#,4#,RN3#,4# LH |
1 | ||
| 17503-54010 |
18R..RN36;18R..RN46..ARL..IV3;L..LN46..T1..ARL..CBU;18R..RN46..T1..(EUR,GEN,ME,SA) CTR |
1 | ||
| 17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 90540-09003 |
L,12R#,18R..LN3#,4#,RN3#,4# |
2 | ||
| 17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 90540-09003 |
L,12R#,18R..LN3#,4#,RN3#,4# |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90301-33001 |
L,12R#,18R..LN3#,4#,RN3#,4# |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90301-33001 |
L,12R#,18R..LN3#,4#,RN3#,4# |
2 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17576-31050 |
L,12R#,18R..LN3#,4#,RN3#,4# |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90540-09003 |
L,12R#,18R..LN3#,4#,RN3#,4# |
1 | ||
| 17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90301-33001 |
L,12R#,18R..LN3#,4#,RN3#,4# |
2 | ||
| 17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90301-33001 |
L,12R#,18R..LN3#,4#,RN3#,4# |
2 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17566-31020 |
L,18R..LN36,46,RN36,46 LWR |
1 | ||
| 17577-34040 |
L,18R..LN36,46,RN36,46 UPR |
1 | ||
| 17566-31020 |
L,12R#,18R..LN36,46,RN3#,4# LWR |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17566-31020 |
L,18R..LN36,46,RN36,46 LWR |
1 | ||
| 17577-34040 |
L,18R..LN36,46,RN36,46 UPR |
1 | ||
| 17566-31020 |
L,12R#,18R..LN36,46,RN3#,4# LWR |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17563-31090 |
L,18R..LN36,46,RN36,46 |
1 | ||
| 17563-31090 |
L,12R#,18R..LN36,46,RN3#,4# |
1 | ||
| 17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90461-23018 |
L,18R..LN36,46,RN36,46 |
1 | ||
| 17505 - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1 | ||||
| 17505-31010 |
L,12R#,18R..LN3#,4#,RN3#,4# |
1 | ||
| Common parts | ||||
| 90209-09104 | ||||
| 90209-12004 | ||||
| 91511-61040 | ||||
| 91611-40825 | ||||
| 91611-60828 | ||||
| 91611-60832 | ||||
| 91651-60820 | ||||
| 94110-50800 | ||||
| 94180-40800 | ||||
| 94180-41000 | ||||
(8308-9508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91511-61035 | ||||
| 91611-60816 | ||||
| 91611-60832 | ||||
| 91611-60840 | ||||
| 91616-40820 | ||||
| 91651-60820 | ||||
| 91651-60840 | ||||
| 91656-60822 | ||||
| 91659-61230 | ||||
| 94180-40800 | ||||
| 94180-41000 | ||||
