RN46R-KRQ (1979)

Toyota Hilux

Production Jan 1979 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7901-8307)LN36,46,RN36,46

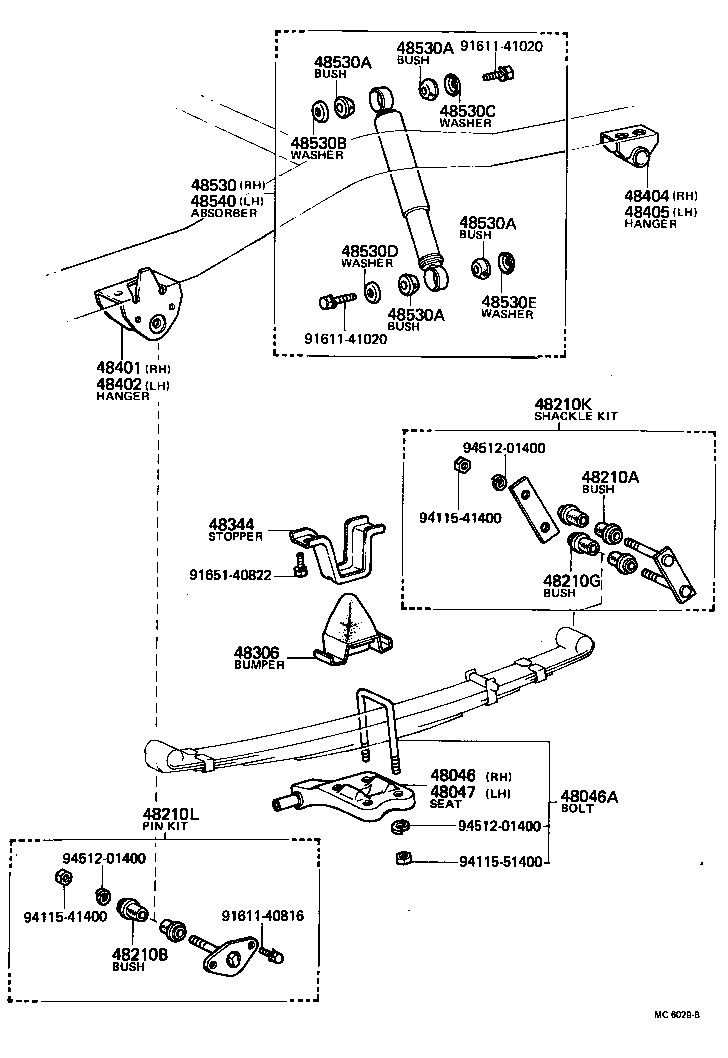

Click highlighted areas on diagram

diagram 48046 48046A 48047 48210A 48210B 48210G 48210K 48210L 48306 48344 48401 48402 48404 48405 48530 48530A 48530A 48530A 48530A 48530B 48530C 48530D 48530E 48540 9161140816 9161141020 9161141020 9165140822 9411541400 9411541400 9411551400 9451201400 9451201400 9451201400
Part # Description Qty Price
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-35040

LN36,46,RN36,46

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-14174

LN36,46,RN36,46

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-35040

LN36,46,RN36,46

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18046

LN3#,4#,RN3#,4#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA)

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18046

LN3#,4#,RN3#,4#

 4
48210K - SHACKLE KIT, REAR SPRING
04483-26010

LN3#,4#,RN3#,4#

 2
48210L - PIN KIT, REAR SPRING
04484-27010

RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA)

 2
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-35040

LN36,46,RN36,46

 2
48344 - STOPPER, BUMPER, REAR
48344-35010

LN36,46,RN36,46

RH

 1
48354-35010

LN36,46,RN36,46

LH

 1
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48414-35050

LN3#,4#,RN3#,4#

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48414-35050

LN3#,4#,RN3#,4#

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48416-35050

LN3#,4#,RN3#,4#

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48416-35050

LN3#,4#,RN3#,4#

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39475

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LN3#,4#,RN3#,4#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LN3#,4#,RN3#,4#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LN3#,4#,RN3#,4#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

LN3#,4#,RN3#,4#

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

LN3#,4#,RN3#,4#

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03012

LN3#,4#,RN3#,4#

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03012

LN3#,4#,RN3#,4#

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

LN3#,4#,RN3#,4#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39475

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)

 1
Common parts
91611-40816
91611-41020
91651-40822
94115-41400
94115-51400
94512-01400
