RN46R-KRQ (1979)
Toyota Hilux
(7808-8312)18R ; (7808- )12R#..GEN,ME,PHL,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

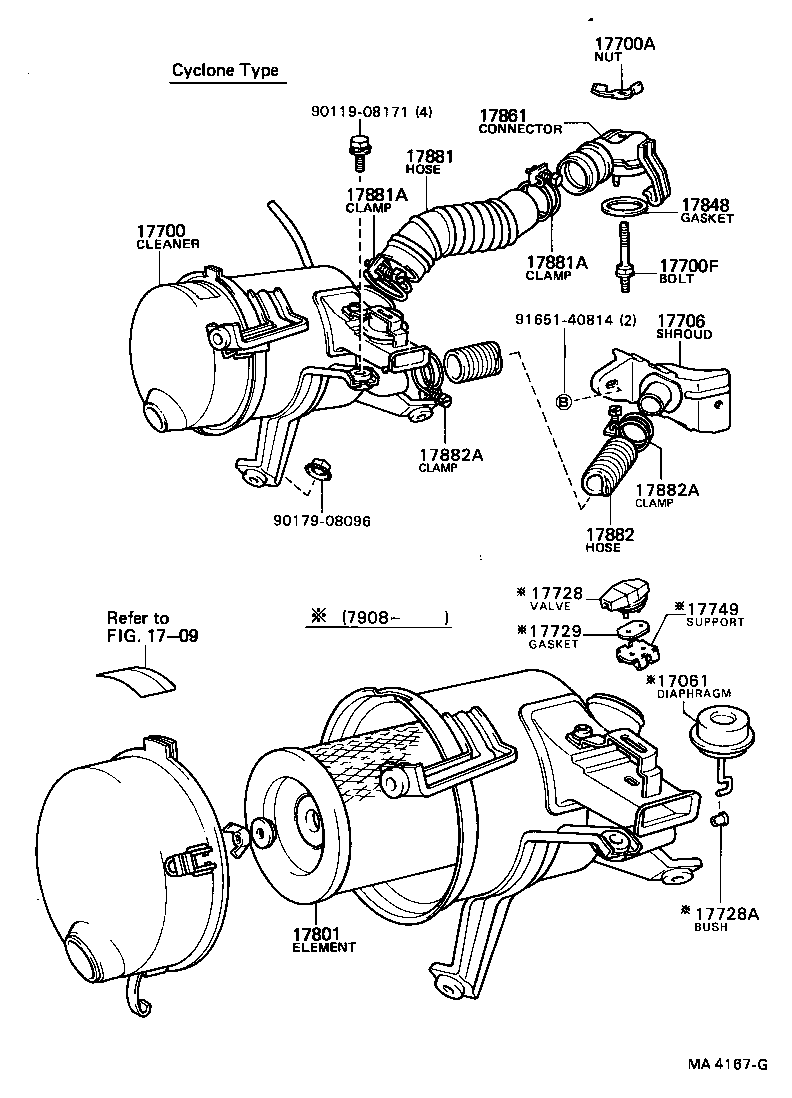

| 17700 - CLEANER ASSY, AIR | ||||
| 17700-34521 |
18R..RN36,46 CYCLONE,W/HOT AIR INTAKE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
18R..RN36,46..ARL,GEN CYCLONE TYPE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
18R..RN36,46..ARL,GEN CYCLONE TYPE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
18R..RN36,46..ARL,GEN CYCLONE TYPE |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-34080 |
18R..RN36,46 CYCLONE TYPE |
1 | ||
| 17861-34070 |
18R..RN36,46..ARL,GEN CYCLONE TYPE |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-34080 |
18R..RN36,46 CYCLONE TYPE |
1 | ||
| 17861-34070 |
18R..RN36,46..ARL,GEN CYCLONE TYPE |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-34080 |
18R..RN36,46 CYCLONE TYPE |
1 | ||
| 17861-34070 |
18R..RN36,46..ARL,GEN CYCLONE TYPE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
18R..RN46..ARL..CBU ID=69 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
18R..RN46..ARL..CBU ID=69 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
18R..RN46..ARL..CBU ID=69 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
18R..RN46..ARL..CBU ID=69 |
2 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-08096 | ||||
| 91656-40820 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7901-8307)18R..RN36,46..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-34521 |
18R..RN36,46 CYCLONE,W/HOT AIR INTAKE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
18R..RN36,46..ARL,GEN CYCLONE TYPE |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-34080 |
18R..RN36,46 CYCLONE TYPE |
1 | ||
| 17861-34070 |
18R..RN36,46..ARL,GEN CYCLONE TYPE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
18R..RN46..ARL..CBU ID=69 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
18R..RN46..ARL..CBU ID=69 |
2 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-08096 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7909- )L..ARL,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-34521 |
18R..RN36,46 CYCLONE,W/HOT AIR INTAKE |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-89103 |
18R..RN46..ARL..CBU |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
18R..RN46..ARL..CBU ID=69 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
18R..RN46..ARL..CBU ID=69 |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-95110 |
18R..RN46..ARL..CBU |
1 | ||
| 17883-89101 |
L..LN3#,4#..4F |
1 | ||
| 17883-89101 |
18R..RN46..ARL..CBU |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-95110 |
18R..RN46..ARL..CBU |
1 | ||
| 17883-89101 |
L..LN3#,4#..4F |
1 | ||
| 17883-89101 |
18R..RN46..ARL..CBU |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-64001 |
18R..RN46..ARL..CBU ID=64 |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-08096 | ||||
| 90179-08143 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 1 OF 3(8308-9508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08171 | ||||
| 91656-40818 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 2 OF 3(8308-9508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 66323-89104 | ||||
| 90119-06072 | ||||
| 90119-06098 | ||||
| 90179-06060 | ||||
| 90201-07470 | ||||
| 90950-01027 | ||||
