RN46L-KR (1979)
Toyota Hilux

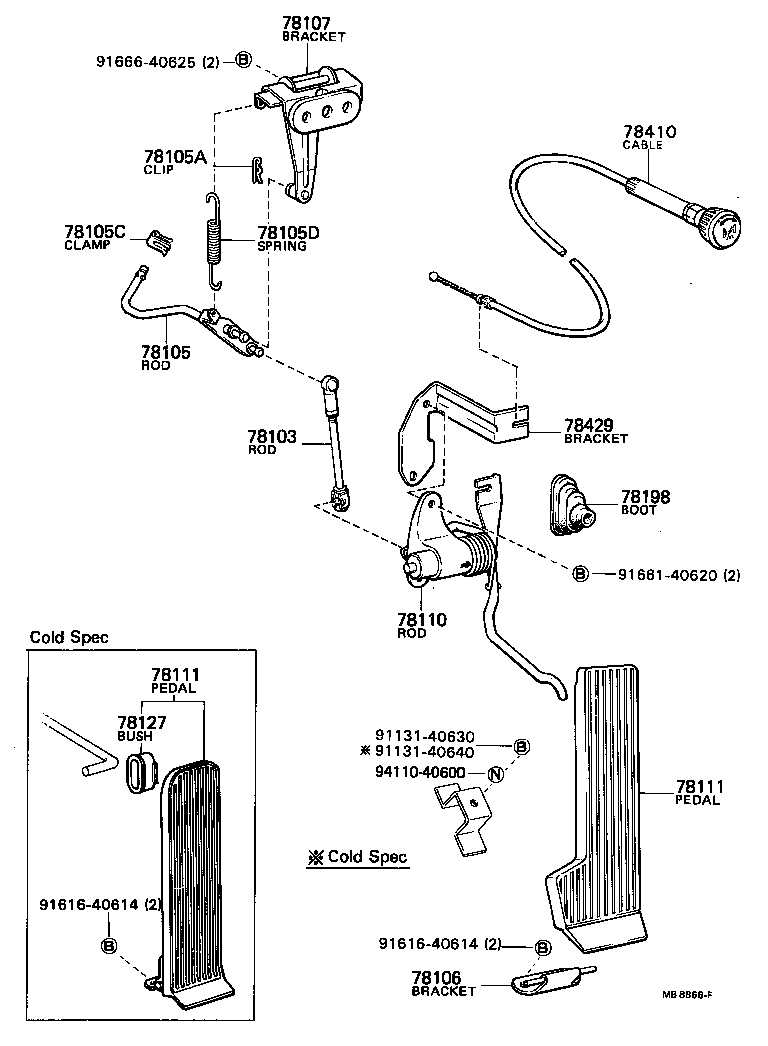

(7901-8307)RN36,46..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78103-89110 |
RN31,36,41,46..LHD |
1 | ||
| 78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3 | ||||
| 78140-95110 |
RN36,46..LHD |
1 | ||
| 78105A - CLIP (FOR ACCELERATOR TORQUE ROD) | ||||
| 90468-16012 |
RN31,36,41;RN30,40..LHD;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 78105C - CLAMP (FOR ACCELERATOR TORQUE ROD) | ||||
| 90463-03110 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 78105D - SPRING (FOR ACCELERATOR TORQUE ROD) | ||||
| 90506-11002 |
RN36,46..LHD |
1 | ||
| 90506-11001 |
RN36,46..LHD |
1 | ||
| 78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT | ||||
| 78011-95110 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 78011-89101 |
LN36,46..LHD |
1 | ||
| 78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD | ||||
| 78170-95111 |
RN36,46..LHD |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-95118 |
RN36,46..LHD |
1 | ||
| 78120-95119 |
RN36,46..LHD..GEN W/THROTTLE KNOB |
1 | ||
| 78120-95127 |
LN36,46..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-89102 |
LN3#,4#,RN3#,4# |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-89102 |
LN3#,4#,RN3#,4# |
1 | ||
| 78198 - BOOT, ACCELERATOR CONNECTING ROD | ||||
| 78199-89104 |
RN3#,4#..LHD |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-95113 |
LN36,46;RN36,46..ARL,GEN,SA |
1 | ||
| 78410-95113 |
LN36,46,RN36,46..ARL,GEN |
1 | ||
| 78410-95110 |
RN46..GEN;RN36..ARL,GEN;RN46..ARL..IV3 |
1 | ||
| 78429 - BRACKET, THROTTLE ROD | ||||
| 78484-95112 |
RN36,46..LHD..GEN |
1 | ||
| Common parts | ||||
| 91131-40630 | ||||
| 91131-40640 | ||||
| 91616-40614 | ||||
| 91661-40620 | ||||
| 91666-40625 | ||||
| 94110-40600 | ||||

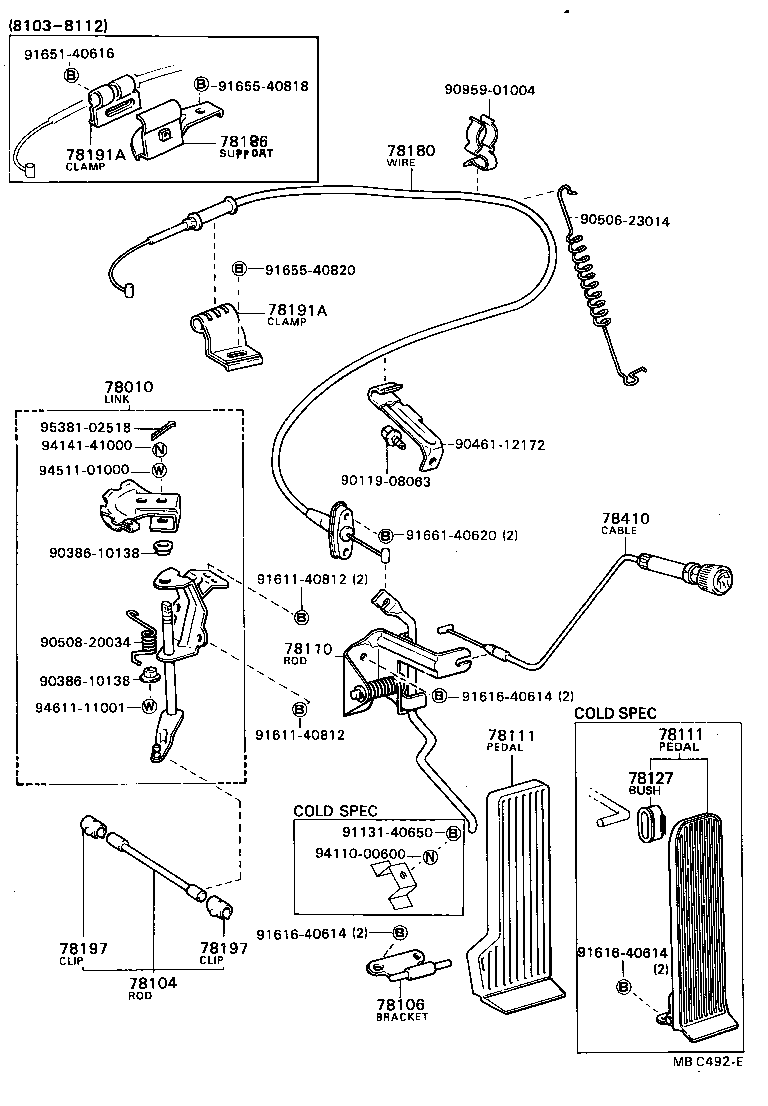

(8103-8307)LN36,46..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78100-89102 |
LN3#,4# |
1 | ||
| 78100-95110 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT | ||||
| 78011-95110 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 78011-89101 |
LN36,46..LHD |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-95118 |
RN36,46..LHD |
1 | ||
| 78120-95119 |
RN36,46..LHD..GEN W/THROTTLE KNOB |
1 | ||
| 78120-95127 |
LN36,46..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-89102 |
LN3#,4#,RN3#,4# |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-89102 |
LN3#,4#,RN3#,4# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-95121 |
LN36,46..LHD |
1 | ||
| 78180-95119 |
LN36,46..LHD |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 90461-10287 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 90461-10287 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-95113 |
LN36,46;RN36,46..ARL,GEN,SA |
1 | ||
| 78410-95113 |
LN36,46,RN36,46..ARL,GEN |
1 | ||
| 78410-95110 |
RN46..GEN;RN36..ARL,GEN;RN46..ARL..IV3 |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90386-10138 | ||||
| 90461-12172 | ||||
| 90506-23014 | ||||
| 90508-20034 | ||||
| 90959-01004 | ||||
| 91131-40650 | ||||
| 91611-40812 | ||||
| 91616-40614 | ||||
| 91651-40616 | ||||
| 91655-40818 | ||||
| 91655-40820 | ||||
| 91661-40620 | ||||
| 94110-00600 | ||||
| 94141-41000 | ||||
| 94511-01000 | ||||
| 94611-11001 | ||||
| 95381-02518 | ||||
