RN41R-MSS (1981)

Toyota Hilux

Production Jan 1981 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8108)

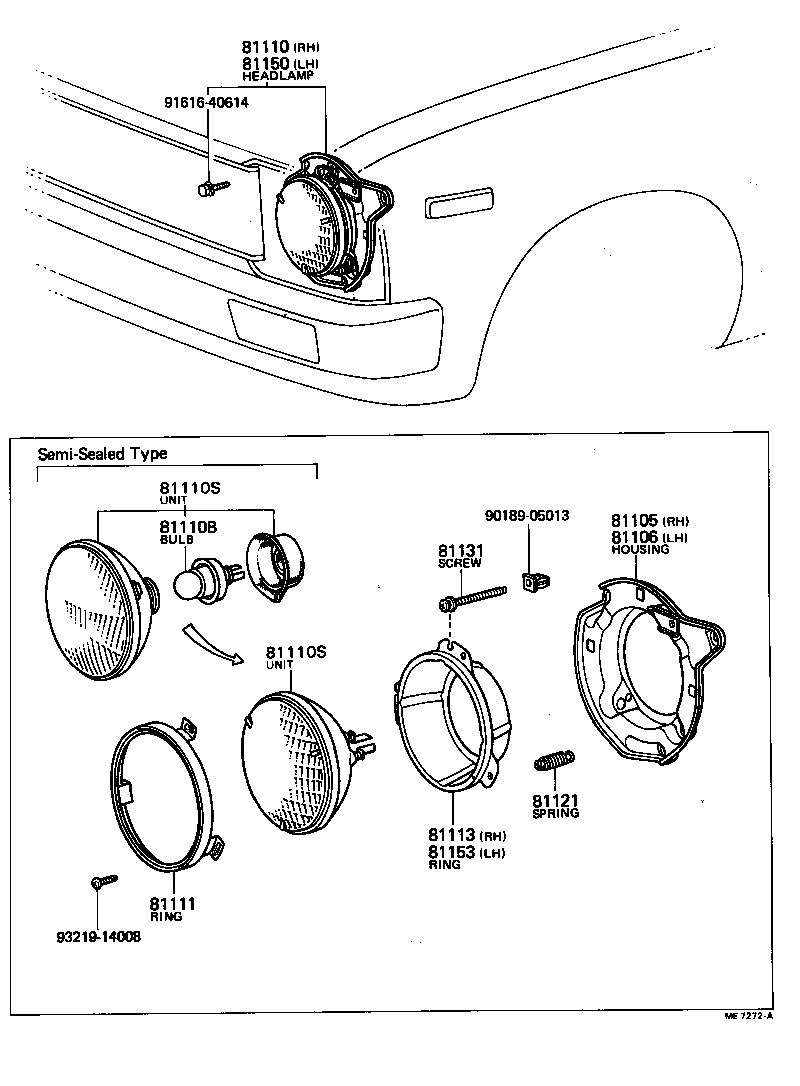

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110S 81110S 81111 81113 81121 81131 81150 81153 9018905013 9161640614 9321914008
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-89117

LN3#,4#,RN3#,4#

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-89117

LN3#,4#,RN3#,4#

 1
81110 - HEADLAMP ASSY, RH
81110-39465

LN3#,4#,RN3#,4#..RHD

 1
81110-39735

LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA)

SEALED HALOGEN

 1
81110-39485

LN3#,4#,RN3#,4#..RHD..(EUR,GEN)

SEMI-SEALED,WHITE

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

LN3#,4#,RN3#,4#..EUR,GEN

12V 45/40W,WHITE,12V 45/40W,WHITE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-01022

LN3#,4#,RN3#,4#..RHD

12V 60/50W,*WB,12V 60/50W

 2
90981-04015

LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA)

12V 65/55W,*WB,12V 65/55W,SEALED HALOGEN

 2
90981-01028

LN3#,4#,RN3#,4#..RHD..(EUR,GEN)

12V 45/40W,*WSB,SEMI-SEALED,WHITE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-01022

LN3#,4#,RN3#,4#..RHD

12V 60/50W,*WB,12V 60/50W

 2
90981-04015

LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA)

12V 65/55W,*WB,12V 65/55W,SEALED HALOGEN

 2
90981-01028

LN3#,4#,RN3#,4#..RHD..(EUR,GEN)

12V 45/40W,*WSB,SEMI-SEALED,WHITE

 2
81111 - RING, SEALED BEAM RETAINING
81111-89117

LN3#,4#,RN3#,4#

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81153-95188

LN3#,4#,RN3#,4#

 1
81121 - SPRING, HEADLAMP TENSION
81121-62010

LN3#,4#,RN3#,4#

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

LN3#,4#,RN3#,4#

 4
81150 - HEADLAMP ASSY, LH
81150-39465

LN3#,4#,RN3#,4#..RHD

 1
81150-39735

LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA)

SEALED HALOGEN

 1
81150-39485

LN3#,4#,RN3#,4#..RHD..(EUR,GEN)

SEMI-SEALED,WHITE

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-89117

LN3#,4#,RN3#,4#

 1
Common parts
90189-05013
91616-40614
93219-14008

(8108- )

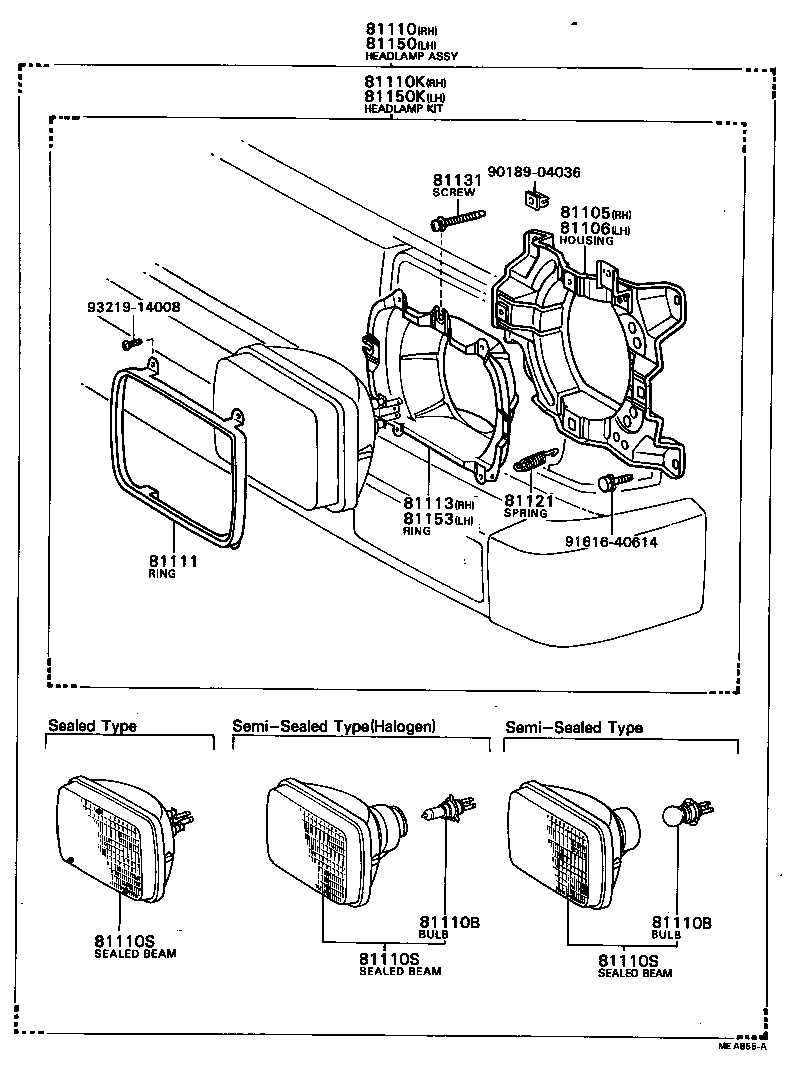

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110B 81110K 81110S 81110S 81110S 81111 81113 81121 81131 81150 81150K 81153 9018904036 9161640614 9321914008
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-89117

LN3#,4#,RN3#,4#

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-89117

LN3#,4#,RN3#,4#

 1
81110 - HEADLAMP ASSY, RH
81110-39465

LN3#,4#,RN3#,4#..RHD

 1
81110-39735

LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA)

SEALED HALOGEN

 1
81110-39485

LN3#,4#,RN3#,4#..RHD..(EUR,GEN)

SEMI-SEALED,WHITE

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

LN3#,4#,RN3#,4#..EUR,GEN

12V 45/40W,WHITE,12V 45/40W,WHITE

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

LN3#,4#,RN3#,4#..EUR,GEN

12V 45/40W,WHITE,12V 45/40W,WHITE

 2
81110K - HEADLAMP KIT, W/O SEALED BEAM, RH
04817-35010

LN3#,4#,RN3#,4#

HALOGEN

 1
81110S - SEALED BEAM UNIT, NO.1
90981-01022

LN3#,4#,RN3#,4#..RHD

12V 60/50W,*WB,12V 60/50W

 2
90981-04015

LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA)

12V 65/55W,*WB,12V 65/55W,SEALED HALOGEN

 2
90981-01028

LN3#,4#,RN3#,4#..RHD..(EUR,GEN)

12V 45/40W,*WSB,SEMI-SEALED,WHITE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-01022

LN3#,4#,RN3#,4#..RHD

12V 60/50W,*WB,12V 60/50W

 2
90981-04015

LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA)

12V 65/55W,*WB,12V 65/55W,SEALED HALOGEN

 2
90981-01028

LN3#,4#,RN3#,4#..RHD..(EUR,GEN)

12V 45/40W,*WSB,SEMI-SEALED,WHITE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-01022

LN3#,4#,RN3#,4#..RHD

12V 60/50W,*WB,12V 60/50W

 2
90981-04015

LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA)

12V 65/55W,*WB,12V 65/55W,SEALED HALOGEN

 2
90981-01028

LN3#,4#,RN3#,4#..RHD..(EUR,GEN)

12V 45/40W,*WSB,SEMI-SEALED,WHITE

 2
81111 - RING, SEALED BEAM RETAINING
81111-89117

LN3#,4#,RN3#,4#

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81153-95188

LN3#,4#,RN3#,4#

 1
81121 - SPRING, HEADLAMP TENSION
81121-62010

LN3#,4#,RN3#,4#

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

LN3#,4#,RN3#,4#

 4
81150 - HEADLAMP ASSY, LH
81150-39465

LN3#,4#,RN3#,4#..RHD

 1
81150-39735

LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA)

SEALED HALOGEN

 1
81150-39485

LN3#,4#,RN3#,4#..RHD..(EUR,GEN)

SEMI-SEALED,WHITE

 1
81150K - HEADLAMP KIT, W/O SEALED BEAM, LH
04818-35010

LN3#,4#,RN3#,4#

HALOGEN

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-89117

LN3#,4#,RN3#,4#

 1
Common parts
90189-04036
91616-40614
93219-14008
