RN41R-MSS (1981)

Toyota Hilux

Production Jan 1981 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8312)18R

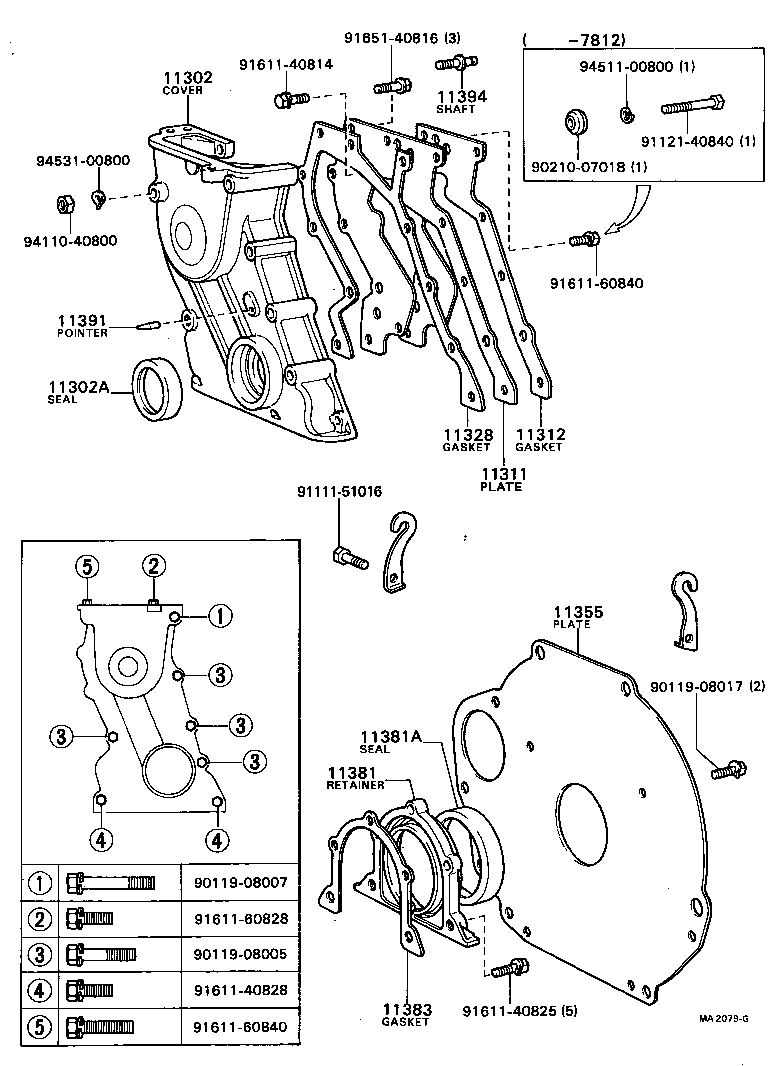

Click highlighted areas on diagram

diagram 11302 11302A 11311 11312 11328 11355 11381 11381A 11383 11391 11394 9011908005 9011908007 9011908017 9021007018 9111151016 9112140840 9161140814 9161140825 9161140828 9161160828 9161160840 9161160840 9165140816 9411040800 9451100800 9453100800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-34010

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

TC3 45 68 12

 1
11311 - PLATE, FRONT END
11311-33011

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
11312 - GASKET, FRONT END PLATE
11312-33012

18R..RN31,36,41,46

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-33014

18R..RN31,36,41,46

 1
11355 - PLATE, REAR END
11355-33012

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-38010

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
11381A - SEAL, ENGINE REAR OIL
90311-80001

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

HTC 80 100 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-33010

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
11391 - POINTER, TIMING
11391-40010

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
11394 - SHAFT, CHAIN TENSHIONER
11394-34010

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
Common parts
90119-08005
90119-08007
90119-08017
90210-07018
91111-51016
91121-40840
91611-40814
91611-40825
91611-40828
91611-60828
91611-60840
91651-40816
94110-40800
94511-00800
94531-00800
