RN41R-MSQ (1978)

Toyota Hilux

Production Aug 1978 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )RN31,36,41,46

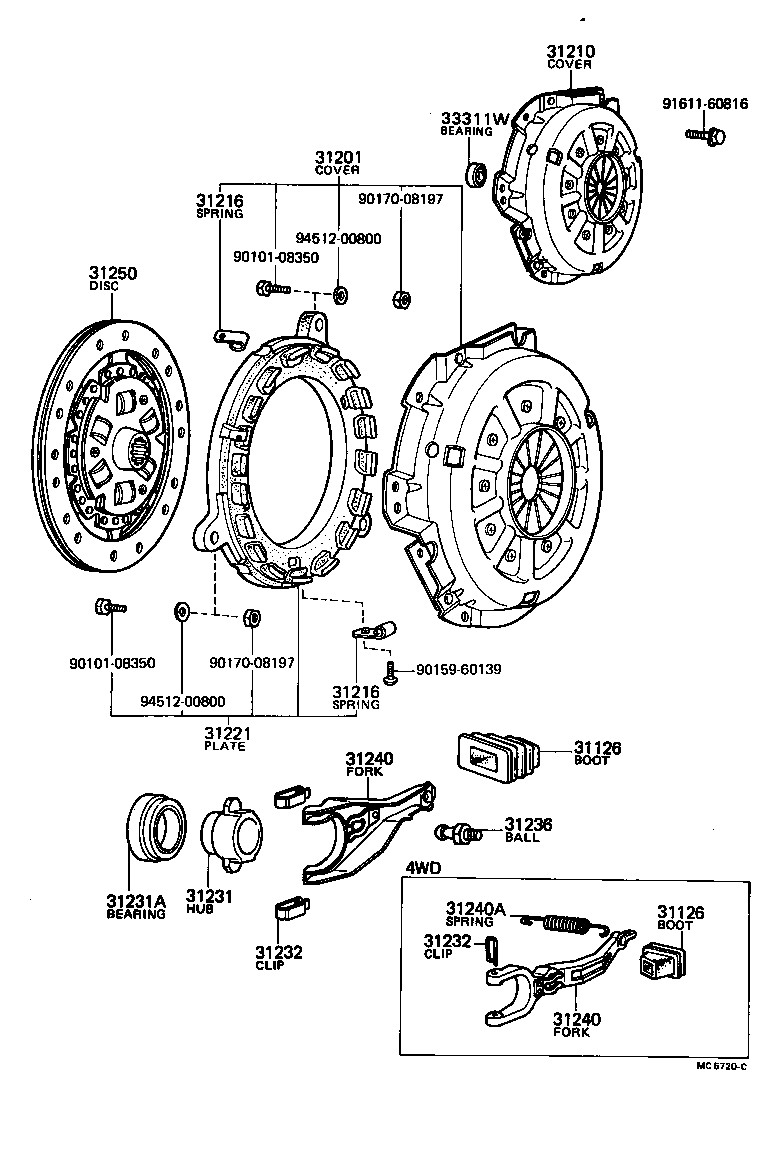

Click highlighted areas on diagram

diagram 31126 31126 31201 31210 31216 31216 31221 31231 31231A 31232 31232 31236 31240 31240 31240A 31250 33311W 9010108350 9010108350 9015960139 9017008197 9017008197 9161160816 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20060

RN31,41

 1
31126 - BOOT, CLUTCH RELEASE FORK
31126-20060

RN31,41

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-29075

RN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3

 1
31201-29076

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN31,36,41

 1
31210 - COVER ASSY, CLUTCH
31210-20130

RN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3

 1
31210-20131

RN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LN3#,4#,RN3#,4#

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LN3#,4#,RN3#,4#

 3
31221 - PLATE, CLUTCH PRESSURE
31221-29025

RN31,36,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-20071

RN31,41

 1
31231-20070

RN31,41

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40008

RN31,41

 1
90363-40022

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN3#,40,RN31,41;LN46..T1..(EUR,GEN)

 1
90363-40022

RN31,41

 1
90363-40001

RN31,41

 1
90363-40015

RN31,41

 1
90363-40019

RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN30,36,40

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

RN31,41

 2
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

RN31,41

 2
31236 - BALL, RELEASE FORK
31236-20020

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN31,36,41

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20050

RN31,41

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20050

RN31,41

 1
31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
90506-16004

LN3#,4#,RN36,46

 1
31250 - DISC ASSY, CLUTCH
31250-35050

RN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3

 1
31250-35080

LN3#,4#

 1
33311W - BEARING (FOR INPUT SHAFT)
97143-06201

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 1
Common parts
90101-08350
90159-60139
90170-08197
91611-60816
94512-00800

(7909- )LN3#,4#

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31231 31231A 31232 31236 31240 31240A 31250 33311W 9010108350 9010108350 9015960139 9015960139 9017008197 9017008197 9161160816 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20060

RN31,41

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-29075

RN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3

 1
31201-29076

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN31,36,41

 1
31210 - COVER ASSY, CLUTCH
31210-20130

RN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3

 1
31210-20131

RN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LN3#,4#,RN3#,4#

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LN3#,4#,RN3#,4#

 3
31221 - PLATE, CLUTCH PRESSURE
31221-29025

RN31,36,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-20071

RN31,41

 1
31231-20070

RN31,41

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40008

RN31,41

 1
90363-40022

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN3#,40,RN31,41;LN46..T1..(EUR,GEN)

 1
90363-40022

RN31,41

 1
90363-40001

RN31,41

 1
90363-40015

RN31,41

 1
90363-40019

RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN30,36,40

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

RN31,41

 2
31236 - BALL, RELEASE FORK
31236-20020

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN31,36,41

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20050

RN31,41

 1
31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
90506-16004

LN3#,4#,RN36,46

 1
31250 - DISC ASSY, CLUTCH
31250-35050

RN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3

 1
31250-35080

LN3#,4#

 1
33311W - BEARING (FOR INPUT SHAFT)
97143-06201

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 1
Common parts
90101-08350
90159-60139
90170-08197
91611-60816
94512-00800
