RN41R-MS3 (1982)
Toyota Hilux
Production
Aug 1982
-
Jul 1983
Engine
18R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

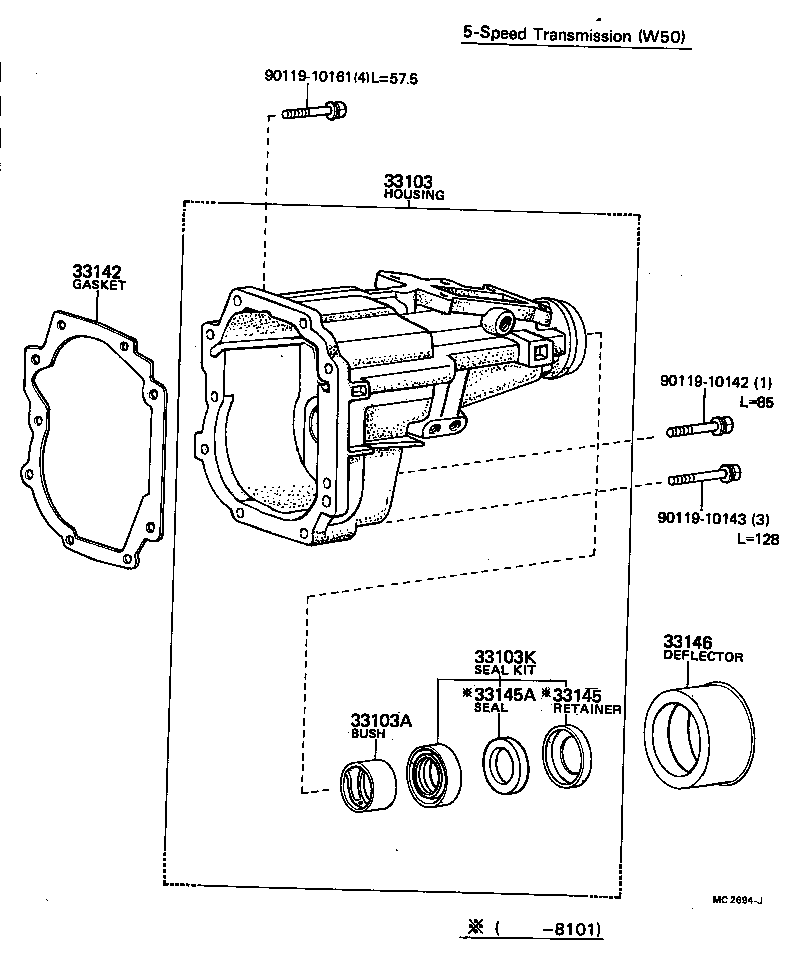

(7808-8312)RN31,41..SR5
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-20100 |
RN31,41..SR5 |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-73062 |
RN31,41..SR5 |
1 | ||
| 33103K - SEAL KIT, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING | ||||
| 04332-30010 |
RN31,41..SR5 |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-20020 |
RN31,41..SR5 |
1 | ||
| 33145 - RETAINER, EXTENSION HOUSING DUST SEAL(MTM) | ||||
| 33145-30010 |
RN31,41..SR5 |
1 | ||
| 33145A - SEAL, DUST(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90303-38010 |
RN31,41..SR5 |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
LN30,40,RN30,31,40,41 |
1 | ||
| Common parts | ||||
| 90119-10142 | ||||
| 90119-10143 | ||||
| 90119-10161 | ||||
